N3EHYPERDASH46001Inductive Toys

FCC ID: N3EHYPERDASH46001 Ophoto1 Ophoto2 FCC ID: N3EHYPERDASH46001 Ophoto3 Ophoto4 FCC ID: N3EHYPERDASH46001 Ophoto5

FCC ID: N3EHYPERDASH46001 Iphoto1 Iphoto2 FCC ID: N3EHYPERDASH46001 Iphoto3 Iphoto4 FCC ID: N3EHYPERDASH46001 Iphoto5 Iphoto6 FCC ID: N3EHYPERDASH46001 Iphoto7 Iphoto8 FCC ID: N3EHYPERDASH46001 Iphoto9 Iphoto10

FCC ID:N3EHYPERDASH46001 Technical Description : The brief circuit description is listed as follows : - L4 acts as Loop Antenna. - U1 W55MID50 acts as RFID R eader IC. - Y1 and associated circuit act as 13.56 MHz Oscillator. - K1 – K4, RST act as Control Keys. - U2 W558S080 acts as MCU and Sound Synthesizer. Antenna Used : A loop antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : N3EHYPERDASH46001 Wild Planet Entertainment, Inc. Application For Certification (FCC ID: N3EHYPERDASH46001) Transmitter Sample Description : Hyper Dash Model : 46001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0708962 AC/at May 29, 2007 INTERTEK TESTING SERVICES FCC ID: N3EHYPERDASH46001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: N3EHYPERDASH46001 ii MEASUREMENT/TECHNICAL REPORT Wild Planet Entertainment, Inc. - MODEL: 46001 FCC ID: N3EHYPERDASH46001 May 29, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: N3EHYPERDASH46001 iii Table of Contents 1.0 General Description .................................................................................................. 2 1.1 Product Description ............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology.................................................................................................. 3 1.4 Test Facility........................................................................................................... 3 2.0 System Test Configuration ....................................................................................... 5 2.1 Justification............................................................................................................ 5 2.2 EUT Exercising Software....................................................................................... 5 2.3 Special Accessories .............................................................................................. 5 2.4 Equipment Modification ......................................................................................... 6 2.5 Support Equipment List and Description................................................................ 6 3.0 Emission Results ...................................................................................................... 8 3.1 Field Strength Calculation...................................................................................... 9 3.1 Field Strength Calculation (cont’d)....................................................................... 10 3.2 Radiated Emission Configuration Photograph ..................................................... 11 3.3 Radiated Emission Data ...................................................................................... 12 3.4 Frequency Tolerance........................................................................................... 15 4.0 Equipment Photographs ......................................................................................... 17 5.0 Product Labelling .................................................................................................... 19 6.0 Technical Specifications ......................................................................................... 21 7.0 Instruction Manual .................................................................................................. 23 8.0 Miscellaneous Information ..................................................................................... 25 8.1 Measured Bandwidth........................................................................................... 26 8.2 Emission Test Procedures .................................................................................. 27 8.2 Emission Test Procedures (Cont’d) ..................................................................... 28 INTERTEK TESTING SERVICES FCC ID: N3EHYPERDASH46001 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: N3EHYPERDASH46001 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: N3EHYPERDASH46001 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for an inductive toy (RFID tag reader) operating at 13.56 MHz which is controlled by a crystal. The EUT is powered by 3 AA batteries. This toy consists of a RFID tag reade…

Text truncated - open the document above for the full version.

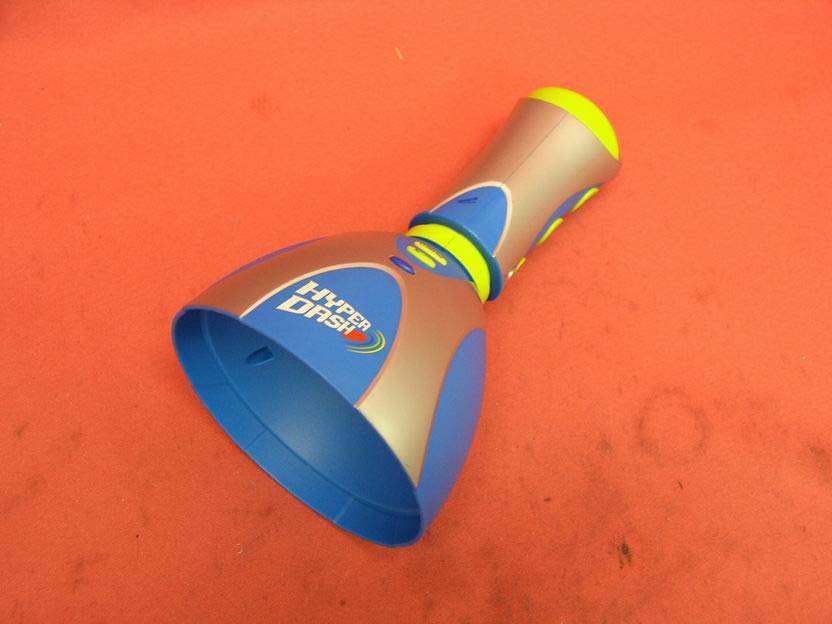

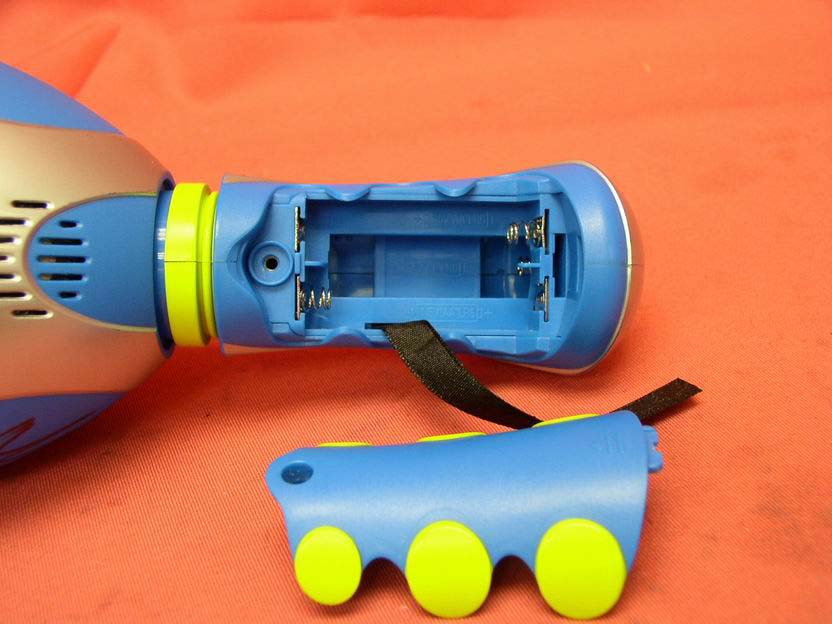

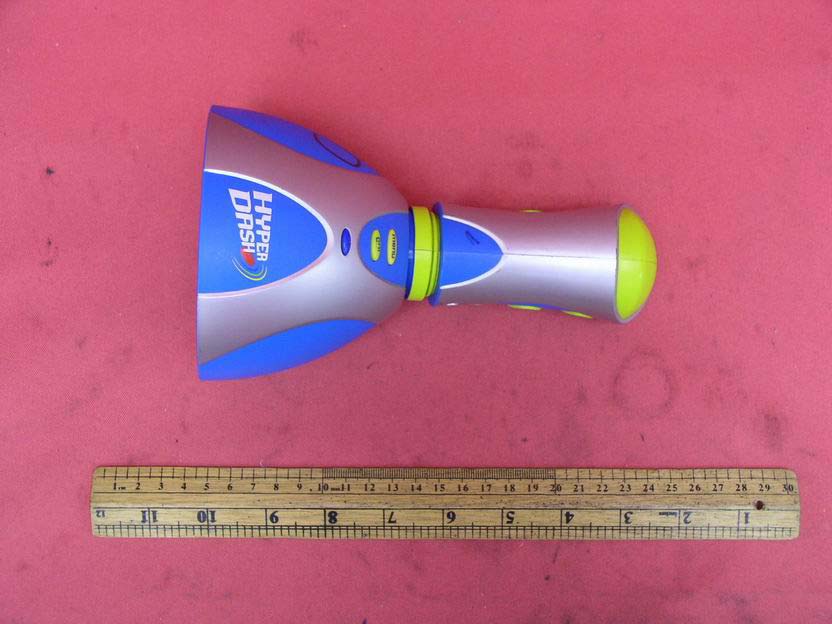

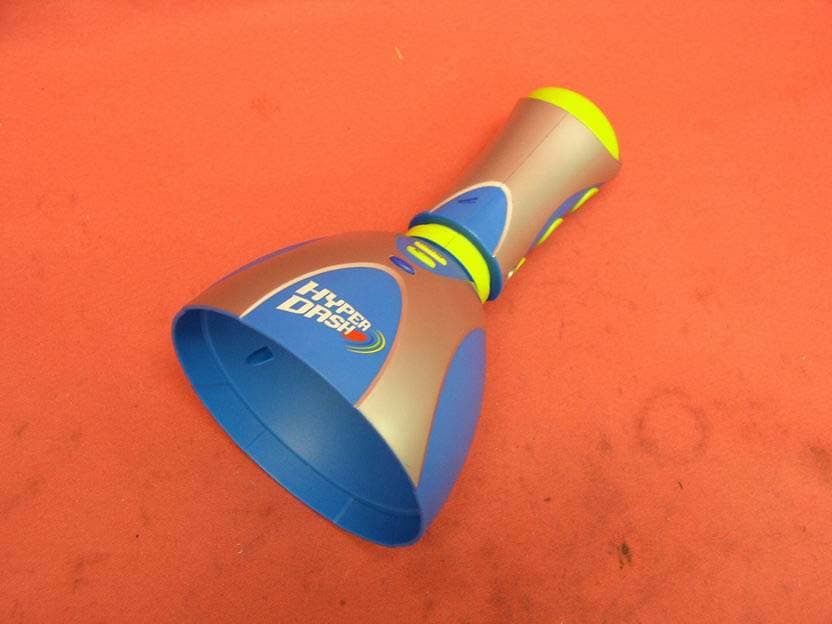

INTERTEK TESTING SERVICES Front View Back View
