N3EMAZUKAN30006WIRELESS DEVICE-TX

©2006 Wild Planet Toys, Inc., San Francisco, CA 94104, USA. All rights reserved. MADE IN CHINA. Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. MAZU KAN 30006-4000 PR 03/06 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WWW.WILDPLANET.COM ©2006 Wild Planet Toys, Inc. P.O. Box 194087 San Francisco, CA 94119-4087 Ages 8 and Up 30006 2-Player Combat System GET FAMILIAR WITH YOUR GEAR • On / Off / Combat Level Switch • Reset Button • Life Meter • Palm Button • Strap Adjuster • Shoulder Pads • Hand Units • Heal / Shield Indicator • Overheat Indicator • Elastic Wrist Band • Palm Strap • Accessory Port Insert Batteries (see instructions below) GEAR UP FOR COMBAT • Put Mazu Kan unit over your head so the shoulder pads end up on your shoulders and strap ends up around your neck • Pull strap from behind back and loop it through the Strap Adjuster; do this on both the left and right sides • Tighten combat gear to correct level so that unit fits snug to body • Adjust shoulder pads to sit on your shoulders • Put the hand units on - Slide wrist through the Elastic Wrist Band and tighten around wrist, using the Velcro straps - Tighten Palm Strap around palm and secure using Velcro; make sure the palm button is in the center or your hand and you can push it with your fingers NOTE: If wires are too long, pull and loop wires at shoulder pads until they are correct length for play SET UP FOR PLAY • Stand at least 10 feet apart (show illustration) • If you make physical contact with the other player, you automatically lose the game (show illustration) • Turn on both Mazu Kan units to Beginner Combat—Level B (middle setting) NOTE: Units must be set to same combat level (beginner or advanced) for the toy to work BEGIN BATTLE (Beginner Combat Level) • Each player starts with 10 life points • The object of the game is to knock out your opponent’s 10 life points before he knocks out yours. • You knock out your opponent’s life points by throwing punches • To punch, push and hold the palm button and throw a punch; you should hear a punch sound effect • When your punch hits your opponent, he will hear a hit sound effect and his Mazu Kan unit will vibrate • Getting hit with a regular punch knocks out 1 life point • When your opponent throws a punch, you need to execute a block move to avoid getting hit • To execute a block move, flip your wrist up so palm faces forward; you should hear a block sound • If you block the punch, you will hear the Mazu Kan unit say “Block” ADDITIONAL FEATURES (Beginner Combat Level) Healing Power • You can earn the power to add back 2 life points to your Life Meter. This power is called Healing. • To earn this power, you must block 4 of your opponent’s punches • When you have blocked 4 punches, a solid green Heal / Shield indicator will light up on your left hand • When the green Heal / Shield indicator is on, you can push it (at any point during the game) to add back 2 life points to your life meter • You can earn the power to Heal several times throughout the game if you block enough punches Overheating • If you punch too many times too fast, you will Overheat • When you Overheat, your unit shuts down – you cannot punch or block for 5 seconds; during this 5 second period, you can be hit by punches Important: Please save this instruction sheet. It contains valuable product information. FCC ID N3EXXXXXXXXXXXXXX: Made in China This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference, received including interference that may cause undesired operation. • You know you are overheating b/c: • A red light begins to flash on your right hand • Sound effects alert you – the Mazu Kan unit says “Warning Overheating” • When you Overheat, you will know b/c: • The red light on your right hand is solid red • An alarm sounds to tell you you’ve overheated Power Punch • Press palm button (either hand); wait until you hear power up sound; then keep palm button pressed and throw punch; if power punch goes through and hits opponent, opponent loses 2 life points (1 LED light). • When you receive a power punch (b/c you don’t block correctly), you lose 2 life points (1 LED light) & your chest pack rumbles 2x. Power Block • Press palm button (with hand opposite of punching hand); make block move keeping palm button pressed; you do not need to hear power up sound. Double Power Punch • Press palm buttons with both hands; wait until you hear power up sound; then keeping palm buttons pressed, throw punches with both hands; if double power punch goes through and hits opponent, opponent loses 3 life points (1-1/2 LED lights). • When you receive a power punch (b/c you don’t block correctly), you lose 3 life points (1-1/2 LED lights) & your chest pack rumbles 3x. Double Power Block • Press palm buttons with both hands; make block move with both hands keeping buttons pressed; you do not need to hear power up sound. Shielding Power • Once you gain 4 block points, if you choose to SHIELD, here is what happens. • Green LED lights up solid in left hand unit, indicating HEAL or SHIELD power is available. • To SHIELD, press top of right hand into top of left hand in a shielding action (like an X). • When you press this button, you will be shielded from your opponent’s punches for 5 seconds. During this time, you will be able to punch opponent. When you have mastered Mazu Kan Beginner Combat, begin the challenge of Mazu Kan Advanced Combat. SAFETY • Mazukan is intended for children ages 6 & up. Adult Supervision Recommended. • Never play Mazu Kan closer than 6 feet apart. (A picture showing two kids fighting with a callout showing them 6 feet apart) If you physically hit the other player, even accidentally, you lose! BATTERY SAFETY INFORMATION •…

Text truncated - open the document above for the full version.

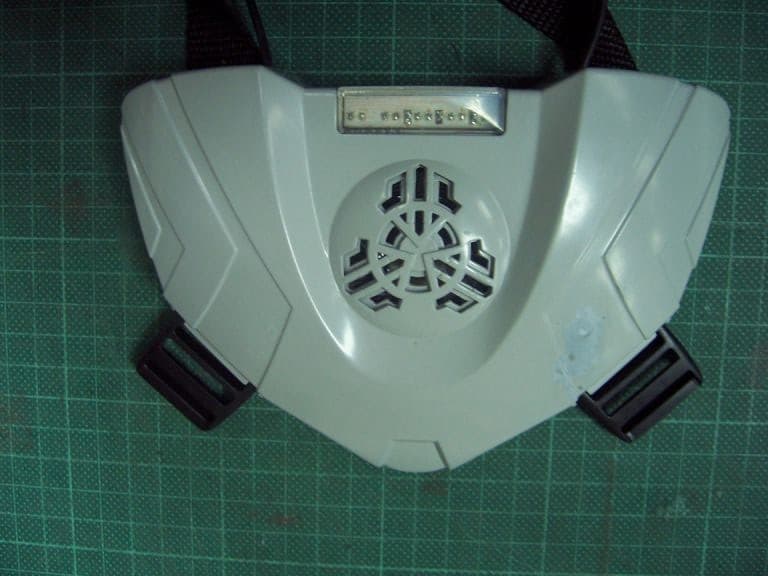

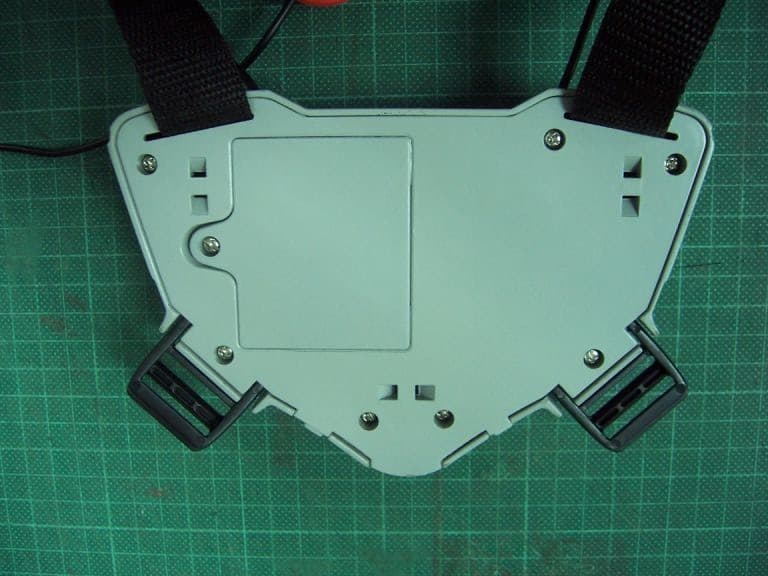

APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMANZUKAN30006 EXTERNAL PHOTOS

WILD PLANET TOYS LTD. FCC ID: N3EMAZUKAN30006 EXTERNAL PHOTOS

FCC ID : N3EMAZUKAN30006 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMANZUKAN30006 INTERNAL PHOTOS

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT #: W\Wild_N3E\377AZT6\377AZT6TestReport.doc COVER SHEET Test Report Product Name: WIRELESS DEVICE- TX FCC ID: N3EMAZUKAN30006 Applicant: WILD PLANET TOYS INC. 98 BATTERY STREET, SUITE 300 SAN FRANCISCO CA. 94111 USA Date Receipt: 3/16/2006 Date Tested: 3/16/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT #: W\Wild_N3E\377AZT6\377AZT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC LABEL SAMPLE LABEL LOCATION INSTRUCTION MANUAL EXTERNAL PHOTOS INTERNAL PHOTOS CIRCUIT DESCRIPTION TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT #: W\Wild_N3E\377AZT6\377AZT6TestReport.doc Page 1 of 5 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT #: W\Wild_N3E\377AZT6\377AZT6TestReport.doc Page 2 of 5 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. In the frequency range 10 kHz to 30 MHz the RBW was 10 kHz and from 30-1000 MHz the RBW of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was &tempr& with a humidity of &humr&. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI C63.4-2003 Section 8.2.1 MEASUREMENT PROCEDURES: The EUT was placed on a non-conducting table 80 cm above the ground plane with the EUT located in the center of the table. With the antenna vertical a preliminary scan was done at 1 meters distance, the EUT was moved to a 3.0-meter distance and the antenna height varied and also placed in a horizontal position. The frequency was scanned from 9.0 kHz to 1.0 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The EUT was measured in three (3) orthogonal planes. The unit was measured at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45 Newberry, Florida 32669. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT #: W\Wild_N3E\377AZT6\377AZT6TestReport.doc Page 3 of 5 APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109(a) and 15.209 REQUIREMENTS: OUT-OF-BAND EMISSIONS SHALL NOT EXCEED THE LEVEL OF THE FUNDAMENTAL. 9 to 490 KHz: 2400/F (kHz) uV/m @ 300 METERS 490 to 1705 KHz: 24000/F (kHz) uV/m @ 30 METERS 1705 to 30 MHz: 29.54 dBuV/M @ 30 METERS 30 to 88 MHz: 40.00 dBuV/M @ 3 METERS 88 to 216 MHz: 43.50 dBuV/M 216 to 960 MHz: 46.02 dBuV/M ABOVE 960 MHz: 54.00 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Pol Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 434.00 15.7 V 1.23 16.18 33.11 12.91 434.00 21.9 H 1.23 16.62 39.75 6.27 868.00 7.2 H 1.93 22.96 32.09 13.93 The spectrum was scanned from 10 kHz to 1000 MHz. SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI C63.4-2003 Section 8.2. The frequency was scanned from 9.0 kHz to 1.0 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The EUT was measured in three (3) orthogonal planes. The unit was measured at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45 Newberry, Florida 32669. PERFORMED BY: NAM NGUYEN DATE: 3/16/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EMAZUKAN30006 REPORT #:…
