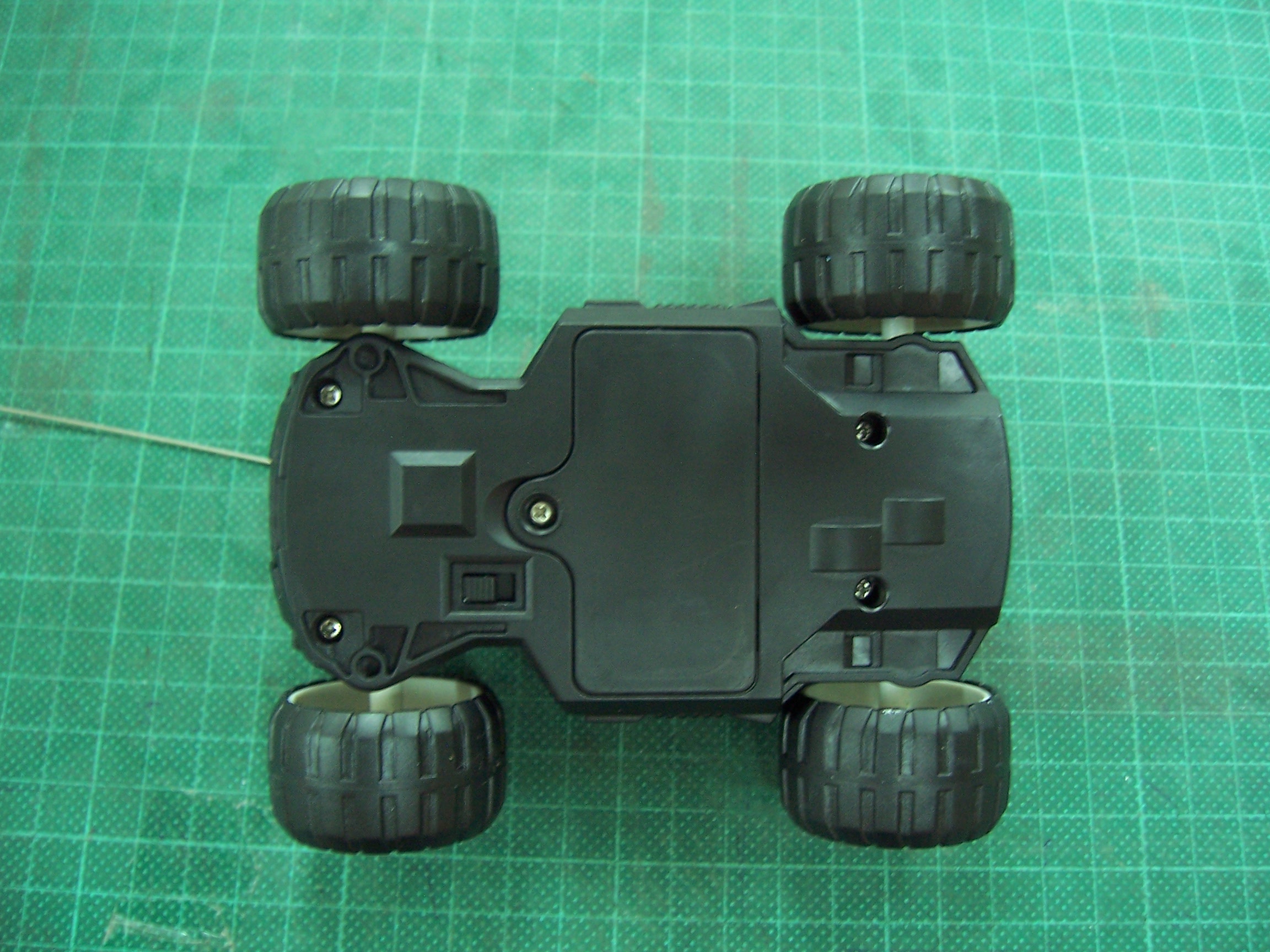

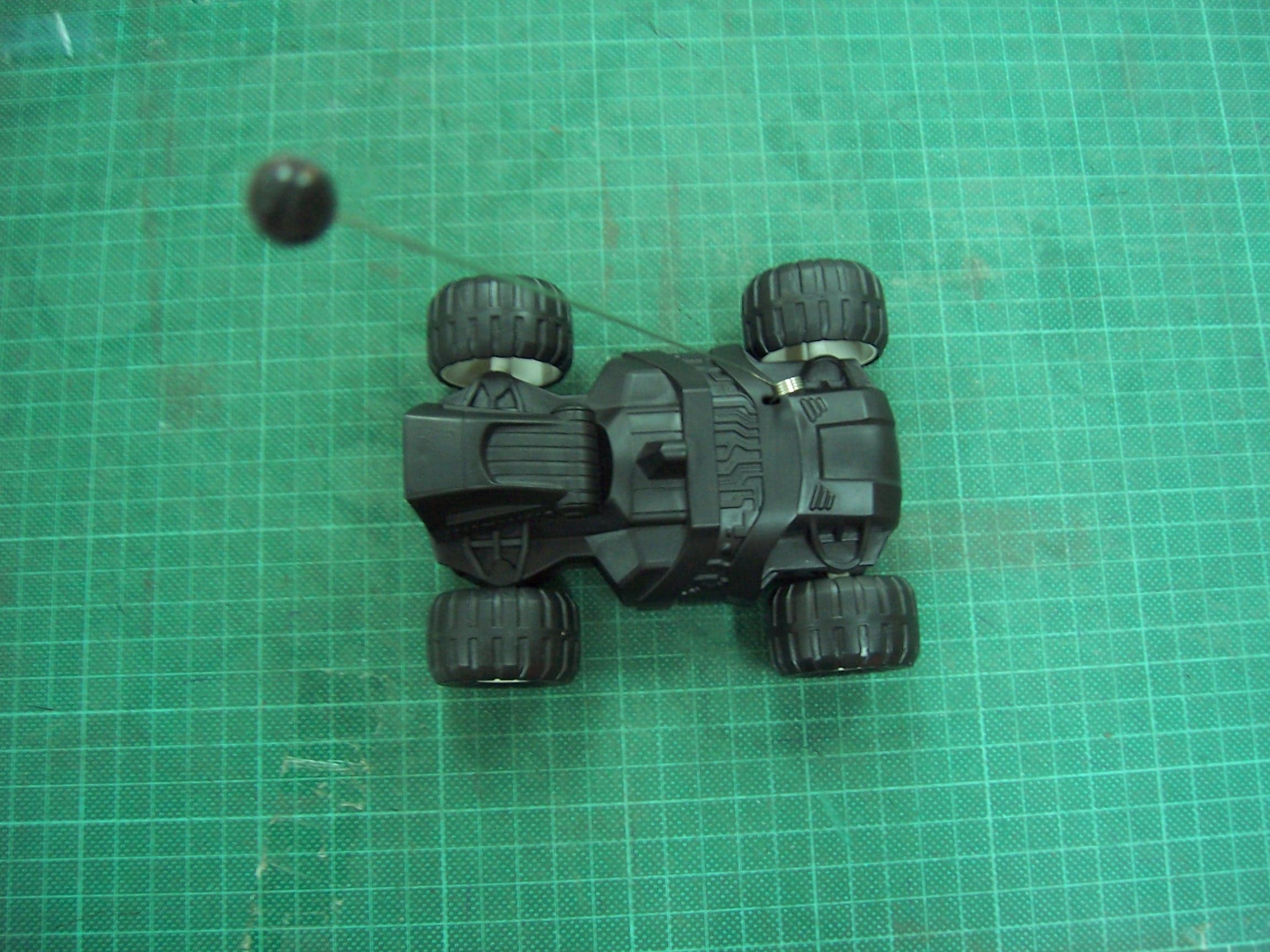

OPERATING MOBILE SPY EAR VEHICLE 1. Slide SWITCH on VEHICLE to ON position. RED LED will light. 2. Place vehicle in the room you would like to listen in, OR send it in to spy. 3. To send vehicle in to spy, place it on the floor, making sure both rear wheels are contacting the floor. 4. Pull back the vehicle to wind the motor, point vehicle in the direction you want to go, then let go. For maximum distance, pull the vehicle back until you hear the clicking “ratchet” sound, indicating the motor is fully wound. • Tip: Vehicle will travel farther on hard floors than on carpet. • Always turn power off when not in use to preserve battery life. OPERATING LISTENING RECEIVER 1. Move up to 75 feet (23 meters) from the vehicle. 2. Rotate the POWER/VOLUME CONTROL to turn on the power. RED LED will light. Set volume to a low level to start. 3. Unsnap EAR BUD, unwrap CORD, and place ear bud in your ear. 4. SLOWLY turn volume up until you can hear. • Always turn power off when not in use to preserve battery life. CONNECTING/CARRYING ON BELT CLIP 1. Turn off the power on both units. 2. Wrap cord around CORD SPOOL, snap ear bud into HOLDER. 3. Push CONNECTOR on receiver into SLOT on vehicle. 4. Secure ANTENNA under CLIP on either side of cord spool. 5. Hang connected units on your belt using BELT CLIP. ADULTS: REPLACING BATTERIES 1. Using a small Phillips screwdriver, loosen screw and remove BATTERY DOOR on each unit. (Figs. 4) 2. Remove both old batteries. 3. Snap a fresh, new battery onto each BATTERY CLIP. (Fig. 3) IMPORTANT: Observe battery polarity (+ and – ) 4. Place each battery into battery compartment, making sure wires and clip are tucked neatly inside. 5. Replace battery covers and tighten screws. BATTERY SAFETY 1. Only adults should install and replace batteries. 2. Do not recharge non-rechargeable batteries. 3. Remove dead or exhausted batteries. 4. Insert batteries correctly. Match positive and negative signs. 5. The supply terminals are not to be short circuited. 6. Do not use rechargeable batteries. 7. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. 8. Do not mix old and new batteries. 9. Only the batteries of the same or equivalent type recommended to be used. 10. Do not dispose of batteries in a fire; they may explode. 11. Dispose of batteries safely. Mini Spy Listener Car Listening Device in a Pull-Back Vehicle Ages 6 and Up 70181 Requires 2 9V (6LR61) batteries, not included. Important: Please save this instruction sheet. It contains valuable product information. TM TM MINI SPY LISTENER CAR 70210-4000 PR 3/07 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WWW.WILDPLANET.COM/HELP Wild Planet Entertainment, Inc., P.O. Box 194087 San Francisco, CA 94119-4087 TM © 2006 Wild Planet Entertainment, Inc., San Francisco, CA 94104, USA. All rights reserved. PRINTED IN CHINA. Product specifications subject to change. Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: N3EMINISPYLISCAR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Fig. 3 Battery clip Fig. 4 Receiver battery door RECEIVER Ear bud Holder Cord spool Power/volume control Belt clip (on back) Connector Red LED NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/T V technician for help. Carrier frequency: 49.86MHz, Field strength : 70.2dBuV/m at 3 m Operation is subjest to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. Ce dispositif de radiocommunication recontre toutes les exigences de la norme CNR-310 d’Industrie Canada.

OPERATING MOBILE SPY EAR VEHICLE 1. Slide SWITCH on VEHICLE to ON position. RED LED will light. 2. Place vehicle in the room you would like to listen in, OR send it in to spy. 3. To send vehicle in to spy, place it on the floor, making sure both rear wheels are contacting the floor. 4. Pull back the vehicle to wind the motor, point vehicle in the direction you want to go, then let go. For maximum distance, pull the vehicle back until you hear the clicking “ratchet” sound, indicating the motor is fully wound. • Tip: Vehicle will travel farther on hard floors than on carpet. • Always turn power off when not in use to preserve battery life. OPERATING LISTENING RECEIVER 1. Move up to 75 feet (23 meters) from the vehicle. 2. Rotate the POWER/VOLUME CONTROL to turn on the power. RED LED will light. Set volume to a low level to start. 3. Unsnap EAR BUD, unwrap CORD, and place ear bud in your ear. 4. SLOWLY turn volume up until you can hear. • Always turn power off when not in use to preserve battery life. CONNECTING/CARRYING ON BELT CLIP 1. Turn off the power on both units. 2. Wrap cord around CORD SPOOL, snap ear bud into HOLDER. 3. Push CONNECTOR on receiver into SLOT on vehicle. 4. Secure ANTENNA under CLIP on either side of cord spool. 5. Hang connected units on your belt using BELT CLIP. ADULTS: REPLACING BATTERIES 1. Using a small Phillips screwdriver, loosen screw and remove BATTERY DOOR on each unit. (Figs. 4) 2. Remove both old batteries. 3. Snap a fresh, new battery onto each BATTERY CLIP. (Fig. 3) IMPORTANT: Observe battery polarity (+ and – ) 4. Place each battery into battery compartment, making sure wires and clip are tucked neatly inside. 5. Replace battery covers and tighten screws. BATTERY SAFETY 1. Only adults should install and replace batteries. 2. Do not recharge non-rechargeable batteries. 3. Remove dead or exhausted batteries. 4. Insert batteries correctly. Match positive and negative signs. 5. The supply terminals are not to be short circuited. 6. Do not use rechargeable batteries. 7. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. 8. Do not mix old and new batteries. 9. Only the batteries of the same or equivalent type recommended to be used. 10. Do not dispose of batteries in a fire; they may explode. 11. Dispose of batteries safely. Mini Spy Listener Car Listening Device in a Pull-Back Vehicle Ages 6 and Up 70181 Requires 2 9V (6LR61) batteries, not included. Important: Please save this instruction sheet. It contains valuable product information. TM TM MINI SPY LISTENER CAR 70210-4000 PR 3/07 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WWW.WILDPLANET.COM/HELP Wild Planet Entertainment, Inc., P.O. Box 194087 San Francisco, CA 94119-4087 TM © 2006 Wild Planet Entertainment, Inc., San Francisco, CA 94104, USA. All rights reserved. PRINTED IN CHINA. Product specifications subject to change. Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: N3EMINSPYLISCAR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Fig. 3 Battery clip Fig. 4 Receiver battery door RECEIVER Ear bud Holder Cord spool Power/volume control Belt clip (on back) Connector Red LED NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/T V technician for help. Carrier frequency: 49.86MHz, Field strength : 70.2dBuV/m at 3 m Operation is subjest to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. Ce dispositif de radiocommunication recontre toutes les exigences de la norme CNR-310 d’Industrie Canada.

FCC ID : N3EMINSPYLISCAR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

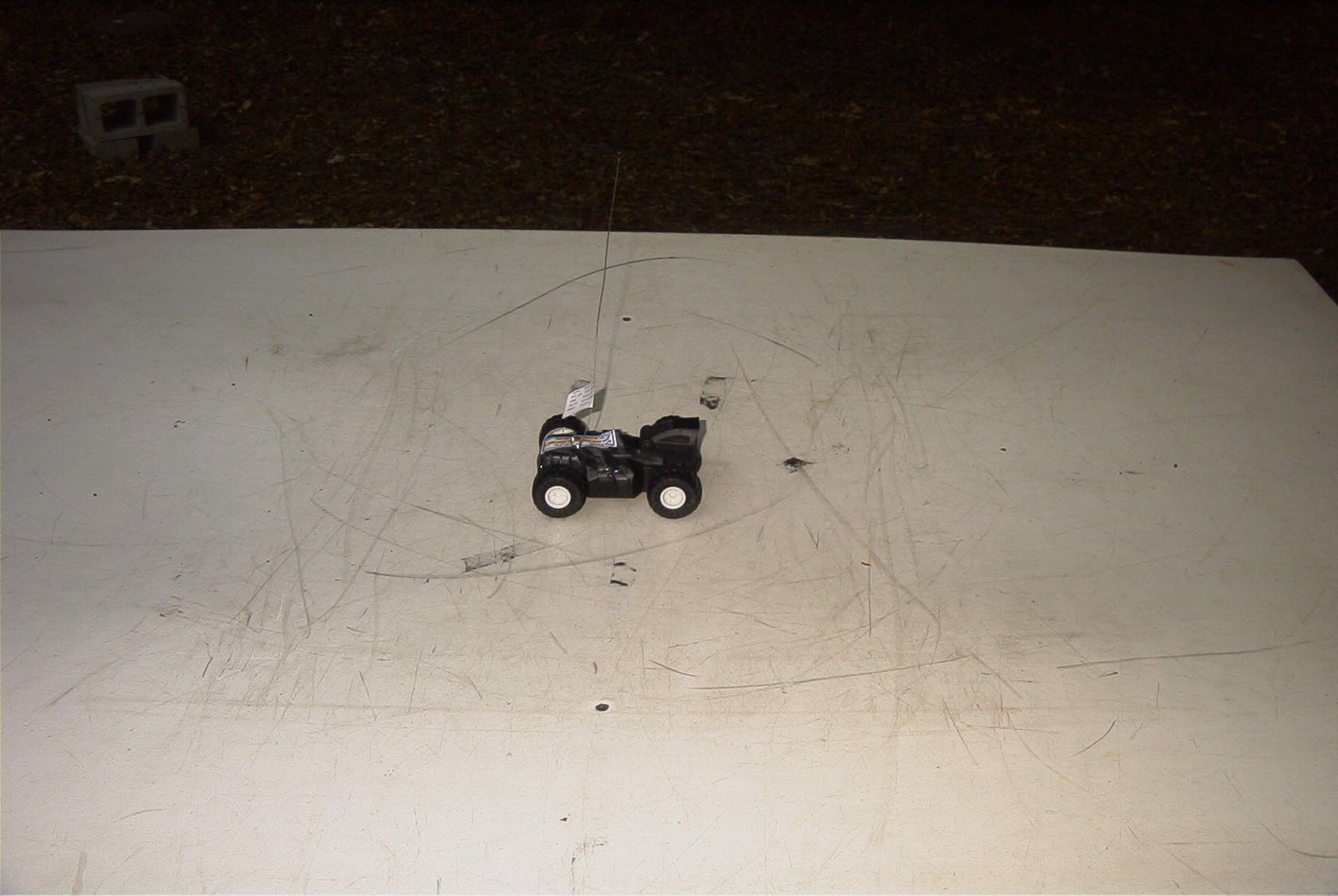

FCC PART 15 SUB PART C Applicant WILD PLANET ENTERTAINMENT INC. Address 225 BUSH STREET, SUITE 1300 SAN FRANCISCO CA. 94104 USA FCC ID N3EMINSPYLISCAR Product Description 49 MHz WIRELESS TOY TRANSMITTER Date Sample Received 5/1/2007 Date Tested 5/1/2007 Tested By JOSEPH SCOGLIO Approved By MARIO DE ARANZETA Report Number W\Wild_N3E\1018UT7\1018UT7TestReport.doc Total Pages 9 Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 Certificate # 0955-01 APPLICANT: WILD PLANET ENTERTAINMENT INC. FCC ID: N3EMINSPYLISCAR REPORT: W:\W\WILD_N3E\1018UT7\1018UT7TestReport.doc Page 2 of 9 TABLE OF CONTENTS STATEMENT OF COMPLIANCE........................................................................................... 3 GENERAL INFORMATION.................................................................................................... 4 TEST EQUIPMENT LIST....................................................................................................... 5 TEST PROCEDURE............................................................................................................... 6 RADIATED SPURIOUS EMISSIONS.................................................................................... 7 OCCUPIED BANDWIDTH..................................................................................................... 8 RADIATED EMISSIONS TEST SET UP PHOTOGRAPH...................................................... 9 Certificate # 0955-01 APPLICANT: WILD PLANET ENTERTAINMENT INC. FCC ID: N3EMINSPYLISCAR REPORT: W:\W\WILD_N3E\1018UT7\1018UT7TestReport.doc Page 3 of 9 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: < Mario de Aranzeta> Function: Engineer Date: May 1, 2007 Certificate # 0955-01 APPLICANT: WILD PLANET ENTERTAINMENT INC. FCC ID: N3EMINSPYLISCAR REPORT: W:\W\WILD_N3E\1018UT7\1018UT7TestReport.doc Page 4 of 9 GENERAL INFORMATION The test results relate only to the items tested. DUT Description 49 MHz WIRELESS TOY- TX FCC ID N3EMINSPYLISCAR 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Modifications to DUT None Test Standards FCC Part 15, Subpart C, ANSI C63.4-2003 The companion receiver to be sold with this transmitter has been tested and approved by the DoC process. Certificate # 0955-01 APPLICANT: WILD PLANET ENTERTAINMENT INC. FCC ID: N3EMINSPYLISCAR REPORT: W:\W\WILD_N3E\1018UT7\1018UT7TestReport.doc Page 5 of 9 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/30/06 10/30/08 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 3/6/07 3/6/09 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/30/06 10/30/08 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Certificate # 0955-01 APPLICANT: WILD PLANET ENTERTAINMENT INC. FCC ID: N3EMINSPYLISCAR REPORT: W:\W\WILD_N3E\1018UT7\1018UT7TestReport.doc Page 6 of 9 TEST PROCEDURE General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Radiation Interference: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The video bandwidth was always greater than or equal to the RBW. Formula Of Conversion Factors: The field strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the preselector was accounted for in the spectrum analyzer meter reading. Example: Freq (MHz) Meter Reading + ACF +CL = FS 33 20 dBuV + 10.36 dB/m +0.40 dB =30.36 dBuV/m @ 3m ANSI C63.4-2003 Section 10.1.7 Measurement Procedures: The unit under test was placed on a table 80 cm high and with dimensions of 1mby 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and verticals planes. Certificate # 0955-01 APPLICANT: WILD PLANET ENTERTAINMENT INC. FCC ID: N3EMINSPYLISCAR REPORT: W:\W\WILD_N3E\1018UT7\1018UT7TestReport.doc Page 7 of 9 RADIATED SPURIOUS EMISSIONS Rules Part No.: 15.235 Requirements: Frequency Limits Carrier Frequency 80.0 dBμV/m measured @ 3 meters 30 – 88 40.0 dBμV/m measured @ 3 meters 80 – 216 43.5 dBμV/m measured @ 3 meters 216 – 960 46.0 dBμV/m measured @ 3 meters Above 960 54.0 dBμV/m measured @ 3 meters Test Pr…
