N3EMINSPYLISCAR1Spy Audio Car

MINI SPY LISTENER CAR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID N3EMINSPYLISCAR1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Block Diagram 49.860MHz Filter RF power amplifier and Modulator Oscillator [49.860] MHz Audio Amplifier Microphone

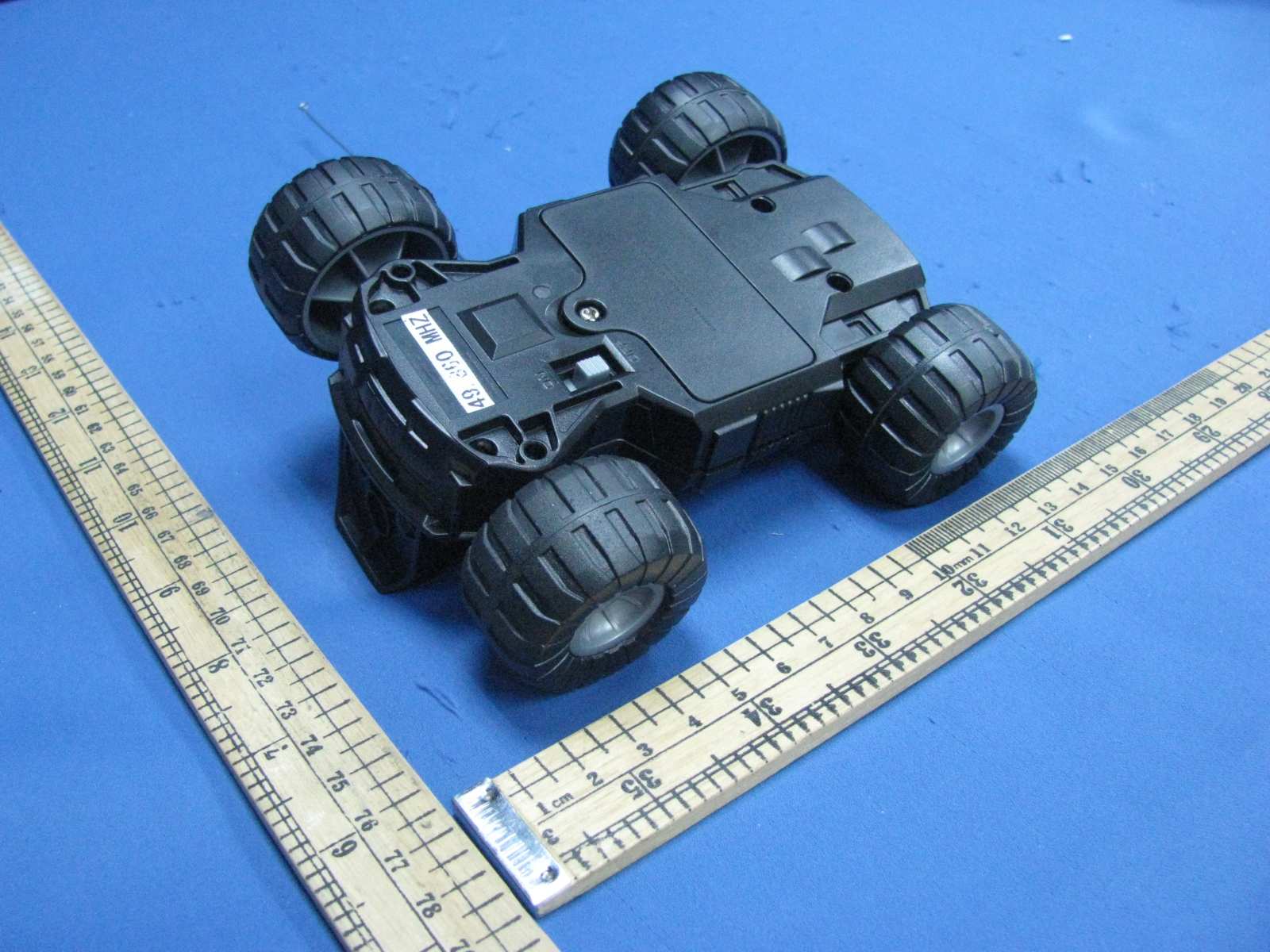

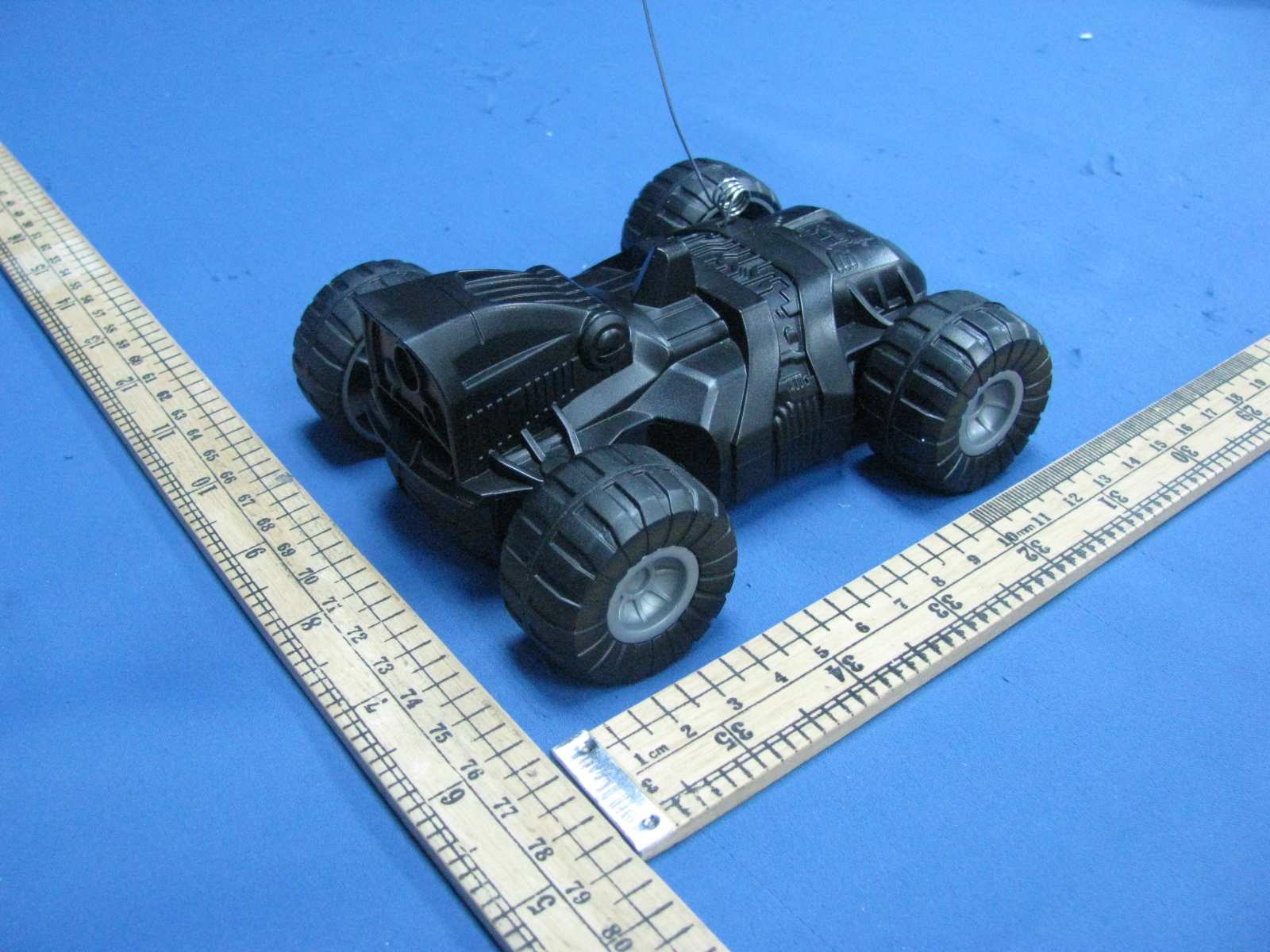

External Photos:

Label Artwork and Location Label Size: 16mm *12 mm Label Location

Internal Photos:

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L2, Ca, Cb, C3 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate [49.860] MHz carrier Y1 Audio Amplifier Amplify the audio signal Q3, Q4, Q2 Type of antenna: Integral Antenna Type of modulation: Amplitude modulation

B * RBW 1 kHz VBW 3 kHz SWT 100 msAtt 0 dB * Ref 77 dBμV 1 AP VIEW 3DB 2 PK VIEW Start 49.81 MHzStop 49.91 MHz10 kHz/ -20 -10 0 10 20 30 40 50 60 70 1 Marker 1 [T1 ] 48.20 dBμV 49.860600000 MHz 2 Delta 2 [T2 ] -44.12 dB -50.600000000 kHz 3 Delta 3 [T2 ] -47.96 dB 49.200000000 kHz
