N3EMOBILESPYEARMobile Spy Ear

OPERATING MOBILE SPY EAR VEHICLE 1. Slide SWITCH on VEHICLE to ON position. RED LED will light. 2. Place vehicle in the room you would like to listen in, OR send it in to spy. 3. To send vehicle in to spy, place it on the floor, making sure both rear wheels are contacting the floor. 4. Pull back the vehicle to wind the motor, point vehicle in the direction you want to go, then let go. For maximum distance, pull the vehicle back until you hear the clicking “ratchet” sound, indicating the motor is fully wound. • Tip: Vehicle will travel farther on hard floors than on carpet. • Always turn power off when not in use to preserve battery life. OPERATING LISTENING RECEIVER 1. Move up to 75 feet (23 meters) from the vehicle. 2. Rotate the POWER/VOLUME CONTROL to turn on the power. RED LED will light. Set volume to a low level to start. 3. Unsnap EAR BUD, unwrap CORD, and place ear bud in your ear. 4. SLOWLY turn volume up until you can hear. • Always turn power off when not in use to preserve battery life. CONNECTING/CARRYING ON BELT CLIP 1. Turn off the power on both units. 2. Wrap cord around CORD SPOOL, snap ear bud into HOLDER. 3. Push CONNECTOR on receiver into SLOT on vehicle. 4. Secure ANTENNA under CLIP on either side of cord spool. (Fig. 1) 5. Hang connected units on your belt using BELT CLIP. ADULTS: REPLACING BATTERIES 1. Using a small Phillips screwdriver, loosen screw and remove BATTERY DOOR on each unit. (Figs. 2 and 4) 2. Remove both old batteries. 3. Snap a fresh, new battery onto each BATTERY CLIP. (Fig. 3) IMPORTANT: Observe battery polarity (+ and – ) 4. Place each battery into battery compartment, making sure wires and clip are tucked neatly inside. 5. Replace battery covers and tighten screws. BATTERY SAFETY 1. Only adults should install and replace batteries. 2. Do not recharge non-rechargeable batteries. 3. Remove dead or exhausted batteries. 4. Insert batteries correctly. Match positive and negative signs. 5. The supply terminals are not to be short circuited. 6. Do not use rechargeable batteries. 7. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. 8. Do not mix old and new batteries. 9. Only the batteries of the same or equivalent type recommended to be used. Mobile Spy Ear Listening Device in a Pull-Back Vehicle Ages 6 and Up 70181 Requires 2 9V (6LR61) batteries, not included. Important: Please save this instruction sheet. It contains valuable product information. TM TM MOBILE SPY EAR 70181-4000 PR 3/07 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WWW.WILDPLANET.COM/HELP Wild Planet Entertainment, Inc., P.O. Box 194087 San Francisco, CA 94119-4087 TM © 2006 Wild Planet Entertainment, Inc., San Francisco, CA 94104, USA. All rights reserved. PRINTED IN CHINA. Product specifications subject to change. Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: N3EMOBILESPYEAR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Antenna Antenna clip Fig. 1 Fig. 3 Battery clip Fig. 2 Vehicle battery door Fig. 4 Receiver battery door RECEIVER VEHICLE Red LED Microphone Power Switch (underside) Ear bud Holder Cord spool Power/volume control Belt clip (on back) Connector Slot ON OFF Red LED NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:14-Jan-2007Sheet of File:E:\QYM\Production\8593 PULLBACK BUG\Pullback bug.ddbDrawn By: Pullback Bug Block Diagram Microphone amplifieroscillation & modulate Batt 9V K1 SWITCH TRANSMITTER Batt 9V RECEIVER ANTENNA ANTENNA receiver amplifier demodulationvolumeamplifier drive Earphone K1

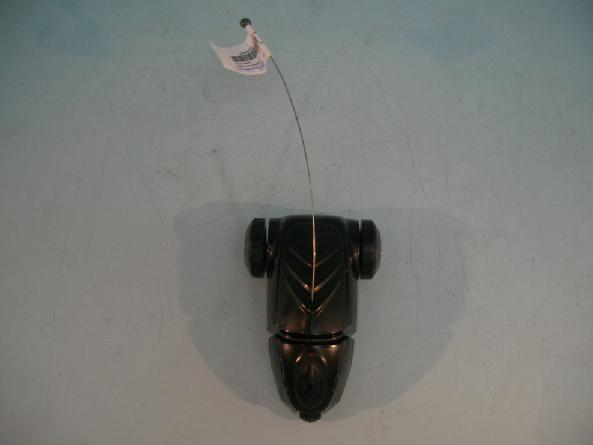

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

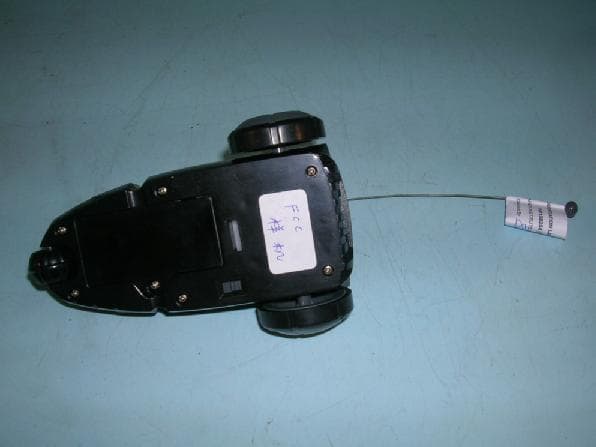

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: N3EMOBILESPYEAR Circuit Description The 49.86 MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by Q1 & Q2. The output of Q3 has the matching network consisting of L3, L4 and C10, C11 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 20.5 cm long telescoping chrome over brass tubing / Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Operation Descriptions The transmitter is a voice transmitter operating at 49.86MHz band. The transmitter is powered by a 9V battery (“6F22” size battery x1) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 49.86 MHz carrier frequency. Remarks: The transmitter is a 1Trigger transmitter. The EUT continues to transmit while Trigger is being pressed. It is Voice transmitter, Modulation by Microphone; and type is Amplitude modulation.

SequenceLevelPart No.Part NameItm TypeQty ReqdUM 1C7Chip CapSMD1PCS 2C8Chip CapSMD1PCS 3C9 C10Chip CapSMD2PCS 5C4Chip CapSMD1PCS 6C5Chip CapSMD1PCS 7C2Chip CapSMD1PCS 8C1 E-CapDIP1PCS 9J1,R8Chip ResistorSMD2PCS 10R2Chip ResistorSMD1PCS 11R1Chip ResistorSMD1PCS 12R6,R10,R11Chip ResistorSMD3PCS 13R5Chip ResistorSMD1PCS 14R3,R13Chip ResistorSMD2PCS 15R7,R9Chip ResistorSMD2PCS 16R12Chip ResistorSMD1PCS 17R4Chip ResistorSMD1PCS 18L3 Chip InductanceSMD1PCS 19L1 Chip InductanceSMD1PCS 20L4InductanceSMD1PCS 21L2InductanceSMD1PCS 22T1 IF TransformerSMD1PCS 23X1CrystalDIP1PCS 24Q3TransistorSMD1PCS 25Q1,2TransistorSMD2PCS 26LED1LEDDIP1PCS 27K1SwitchDIP1PCS 28MIC1 MicrophoneDIP1PCS 29PCB94HB1PCS 30WirePVC1PCS 31WirePVC1PCS 32 WirePVC2PCS 33Battery fastenerPVC1PCS 30*41*1.6mm PCB(94HB) 330K +/-5% 0805 Twins 7*(3+44+3)mm￠1.05mm WIRE 1000pF +/-10% 0805 0.1uF +/-20% 0805 14*(0+102+3)mm￠1.5mm Red&Black 2.2uH +/-10% EC36F2R2K-B 250mH +/-10 EI14F254K-008V Twins 7*(3+114+3)mm￠1.05mm WIRE 5.6K +/-5% 0805 15pF +/-5% 0805 NPO 47pF +/-5% 0805 NPO 10pF +/-5% 0805 NPO -54dB Φ9.6*6.5mm RED Φ3mm SK-12E14 24K +/-5% 0805 100uF/16V +/-20% Φ5*7mm 0.047uF +/-20% 0805 1K +/-5% 0805 10K +/-5% 0805 3.3K +/-5% 0805 100Ω +/-5% 0805 1 Tansmitter Specification Item No : 70181 BILL OFF MATERIAL Item Name : Mobile Spy Ear1.0Revision : 0.47uH +/-10% 0805 8.2uH +/-10% 0805 49.86MHz 30ppM 49U 2SC1623(L6) SOT-23 TH10 SOT-23 KB35F3.5T+3.5T-1.4T-030V 4.7K +/-5% 0805 47K +/-5% 0805 7*(3+74+3)mm￠1.05mm WIRE

STC Test Report Date : 2007-04-10 Page 1 of 15 No. : HM158258 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Wild Planet Entertainment Inc. 225 Bush Street, 13/F San Francisco, CA94104 U.S.A. Description of Samples: Model name: Mobile Spy Ear Model no.: 70181 Brand name: SPY GEAR FCC ID: N3EMOBILESPYEAR Date Samples Received: 2007-02-22 Date Tested: 2007-02-27 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-04-10 Page 2 of 15 No. : HM158258 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 15 Content Page 2-3 of 15 1.0 General Details 1.1 Test Laboratory Page 4 of 15 1.2 Applicant Details Page 4 of 15 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 15 Description of EUT operation 1.4 Date of Order Page 5 of 15 1.5 Submitted Samples Page 5 of 15 1.6 Test Duration Page 5 of 15 1.7 Country of Origin Page 5 of 15 2.0 Technical Details 2.1 Investigations Requested Page 6 of 15 2.2 Test Standards and Results Summary Page 6 of 15 3.0 Test Results 3.1 Emission Page 7-10 of 15 3.2 Bandwidth Measurement Page 11-12 of 15 STC Test Report Date : 2007-04-10 Page 3 of 15 No. : HM158258 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 STC Test Report Date : 2007-04-10 Page 4 of 15 No. : HM158258 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Wild Planet Entertainment Inc. 225 Bush Street, 13/F San Francisco, CA94104 U.S.A. Manufacturer Acctron Co. Ltd. Unit 5, 5/F., Apec Plaza, No. 49, Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong STC Test Report Date : 2007-04-10 Page 5 of 15 No. : HM158258 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Mobile Spy Ear Manufacturer: Acctron Co. Ltd. Brand Name: SPY GEAR Model Number: 70181 Input Voltage: 9Vd.c (“6FF” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Wild Planet Entertainment Inc. The transmitter is a 1 trigger transmitter. The EUT continues to transmit while trigger is being pressed, It is voice transmitter, Modulation by microphone, and type is amplitude modulation. 1.4 Date of Order 2007-02-22 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-02-27 1.7 Country of Origin China STC Test Report Date : 2007-04-10 Page 6 of 15 No. : HM158258 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2007-04-10 Page 7 of 15 No. : HM158258 The Hong Kong Standards and Testi…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
