N3EPWRRNGRWT47001Power Ranger Walkie Talkies

ADULTS: INSTALLING BATTERIES 1. Locate BATTERY DOOR on bottom rear of each Walkie-Talkie. Use a small Phillips head screwdriver to loosen screw. Remove battery door. 3. Snap a fresh, new battery onto each battery clip. (Fig. 1) IMPORTANT: Observe battery polarity (+ and – ) 4. Place each battery into battery compartment, making sure wires and clip are tucked neatly inside. 5. Replace battery doors and tighten screws. WALKIE-TALKIE OPERATION 1. Turn POWER SWITCH on each Walkie-Talkie to the ON position. • For best results, hold front of Walkie-Talkie 6 to 12 inches from your face and speak slowly and clearly toward the speaker/microphone holes on the front of the unit. • For best results, point ANTENNA straight up. Do not touch antenna while using. 2. Press and hold the TALK BUTTON to talk. Tip: When you are finished talking, say “OVER” so the other Ranger knows it is his or her turn to talk. 3. Release the talk button and listen for the reply. NOTE: Only one person can talk at a time. Tip: When you are finished with your conversation, say “OVER AND OUT” so the other Ranger knows you are ending the conversation. 4. Always turn both power switches off when not in use to preserve battery power. USING THE CALL BUTTON While holding down the talk button, press the CALL BUTTON to send a message alert so the other Ranger knows you want to talk to him or her. BATTERY SAFETY 1. Only adults should install and replace batteries. 2. Do not recharge non-rechargeable batteries. 3. Remove dead or exhausted batteries. 4. Insert batteries correctly. Match positive and negative signs. 5. The supply terminals are not to be short circuited. 6. Do not use rechargeable batteries. 7. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. 8. Do not mix old and new batteries. 9. Only the batteries of the same or equivalent type recommended to be used. 10. Do not dispose of batteries in a fire; they may explode. 11. Dispose of batteries safely. Ages 4 and Up 47001 Requires 2 9V (6LR61) batteries, not included. Important: Please save this instruction sheet. It contains valuable product information. WARNING: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: N3EPWRRNGRWT47001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio TV technician for help. Fig. 1 Fig. 5 Talk button Call button Power switch Battery door (on back) Antenna POWER RANGERS W-T 47001-4000 PR 4/07 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT 1-800-247-6570 WWW.WILDPLANET.COM/HELP Wild Planet Entertainment, Inc., P.O. Box 194087 San Francisco, CA 94119-4087 TM Power Rangers: ™ & © BVS Entertainment, Inc. and BVS International N.V. ABC logo: ™ and © ABC. All rights reserved. © 2006 Wild Planet Entertainment, Inc., San Francisco, CA 94104, USA. All rights reserved. PRINTED IN CHINA. Product specifications subject to change.

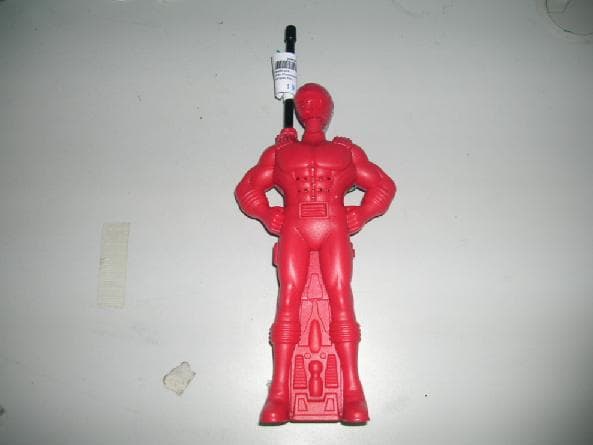

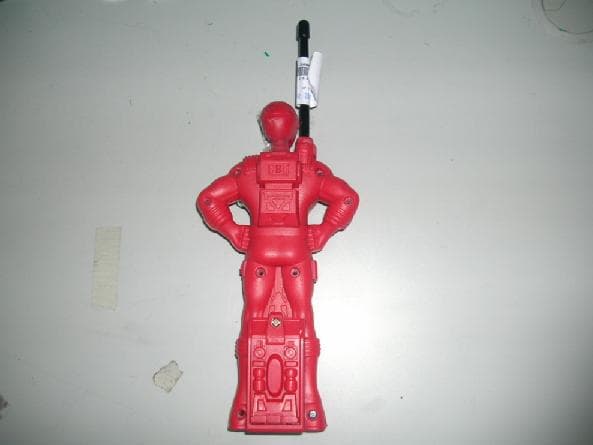

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: N3EPWRRNGRWT47001 Antenna, Ground and Power Source The antenna consists of a 9.5 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Antenna

STC Test Report Date : 2007-05-03 Page 1 of 16 No. : HM158596 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Wild Planet Entertainment, Inc. 225 Bush Street, Suite 1300, San Francisco, California 94104 U.S.A. Description of Samples: Model name: Power Ranger Walkie Talkies Model no.: 47001 Brand name: Wild Planet FCC ID: N3EPWRRNGRWT47001 Date Samples Received: 2007-04-19 Date Tested: 2007-04-23 to 2007-04-27 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: --- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-05-03 Page 2 of 16 No. : HM158596 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 2.0 Technical Details 2.1 Investigations Requested Page 6 of 16 2.2 Test Standards and Results Summary Page 6 of 16 3.0 Test Results 3.1 Emission Page 7-11 of 16 3.2 Bandwidth Measurement Page 12-13 of 16 STC Test Report Date : 2007-05-03 Page 3 of 16 No. : HM158596 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 STC Test Report Date : 2007-05-03 Page 4 of 16 No. : HM158596 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Wild Planet Entertainment, Inc. 225 Bush Street, Suite 1300, San Francisco, California 94104 U.S.A. Manufacturer D & S Products Manufactory Ltd. 10/F., Blk B, C & D, Summit Ind. Bldg., No. 9 Sun Yip St., Chai Wan, H.K. STC Test Report Date : 2007-05-03 Page 5 of 16 No. : HM158596 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Power Ranger Walkie Talkies Manufacturer: D & S Products Manufactory Ltd. Brand Name: Wild Planet Model Number: 47001 Input Voltage: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Wild Planet Entertainment, Inc.., Power Ranger Walkie Talkies. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by microphone, and type is frequency modulation. 1.4 Date of Order 2007-04-19 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-04-23 to 2007-04-27 1.7 Country of Origin China STC Test Report Date : 2007-05-03 Page 6 of 16 No. : HM158596 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted …

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
