N3ESBSEATALK54002Walkie Talkie - RX

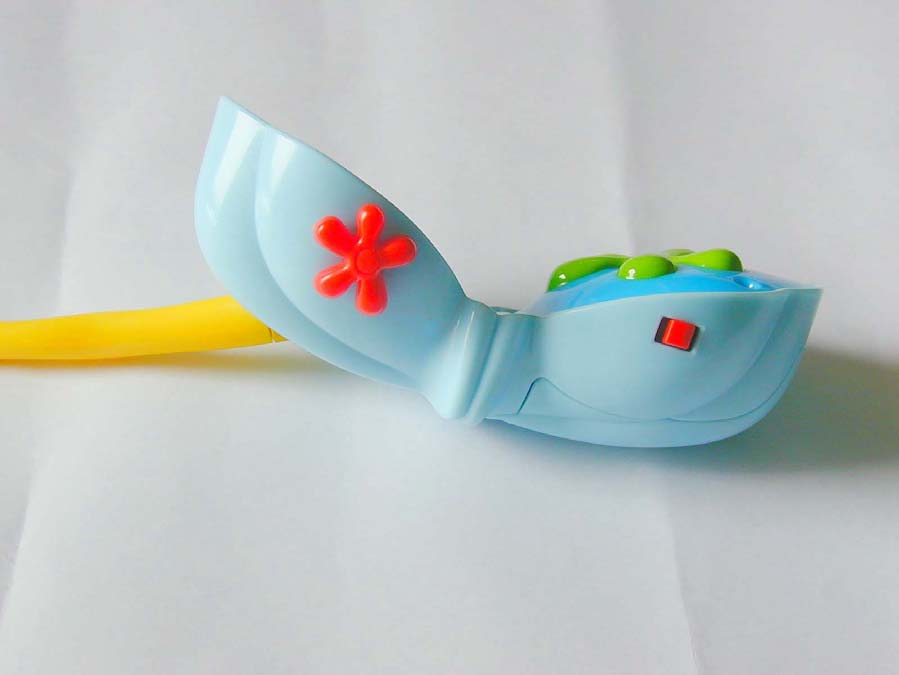

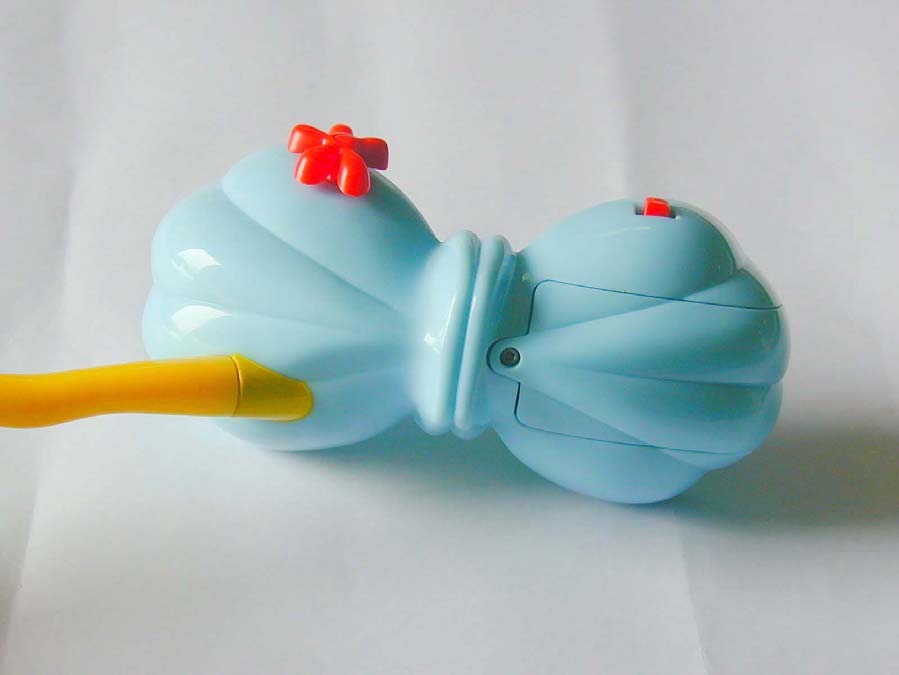

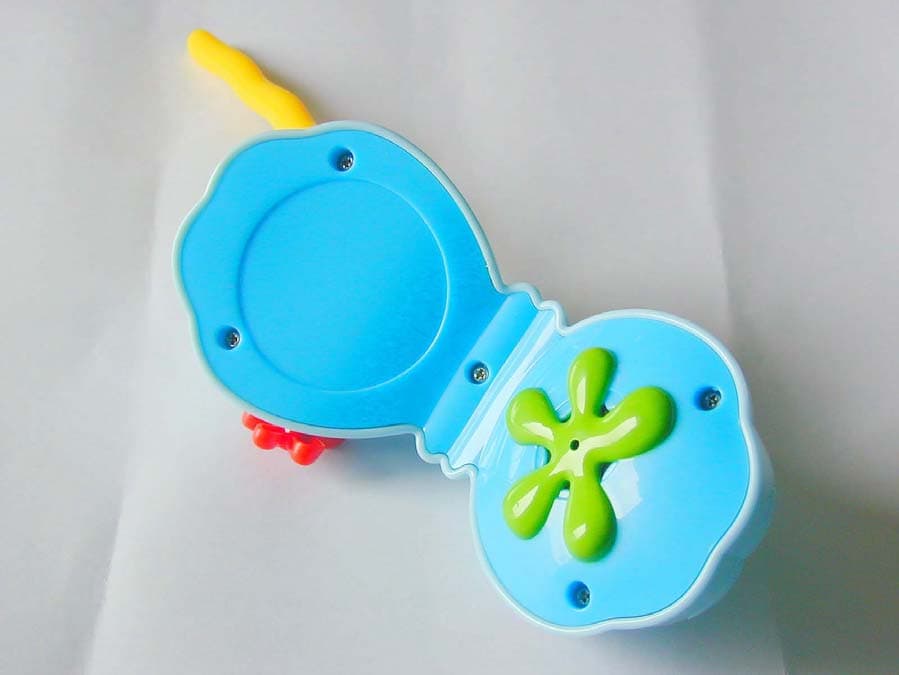

Sponge Bob Sea Talkies™ 54002 Ages 4 and Up Important: Please save this instruction sheet. It contains valuable product information • On/Off switch • Talk Button • Microphone / Speaker Patrick and SpongeBob love to chat all day long. Give your best friend one of these Sea Talkies, and you can too! 1. Move the On/Off switch to the On position. (Both units must be ON to function properly.) 2. Press the talk button to speak 3. Release talk button to hear your friend speak. You will hear underwater bubbles along with their voice! IMPORTANT: Do not use walkie-talkies underwater! Switch power when finished playing. Battery Information: Requires two 9 volt (6LR61) batteries (not included). Battery Safety: • Only adults should install and replace batteries. • Only use the specified battery types. • Do not use rechargeable batteries. • Do not try to recharge non-rechargeable batteries. • Insert batteries correctly—match positive and negative signs. • Do not place anything across the battery terminals. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Remove dead or weak batteries. • Dispose of batteries safely. Recycle them where possible. • Do not dispose of batteries in a fire. They may explode! To install the batteries: 1. Use a small Phillips head screwdriver to loosen the screw in the battery compartment door on the bottom of the station 2. Install batteries as shown. 3. Replace the battery compartment door by sliding the tabs into the holes and tightening the screw. If you have any questions, please contact us at 1-800-247-6570. www.wildplanet.com ©2003 Wild Planet Toys, Inc. WARNING: CHOKING HAZARD: Small Parts. Not for Children Under 3 Years. © 2003 Viacom International, inc. All Rights Reserved. Nickelodeon, SpongeBob SquarePants and all related titles, logos and characters are trademarks of Viacom International Inc. FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

FCC ID : N3ESBSEATALK54002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 REPORT #: W\Wild_N3E\393BUT4\393BUT4TestReport.doc COVER PAGE Test Report Product Name: WALKIE TALKIE - RECEIVER FCC ID: N3ESBSEATALK54002 Applicant: WILD PLANET TOYS INC. 98 BATTERY STREET, SUITE 300 SAN FRANCISCO CA. 94111 Date Receipt: MARCH 24, 2004 Date Tested: APRIL 8, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 REPORT #: W\Wild_N3E\393BUT4\393BUT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 REPORT #: W\Wild_N3E\393BUT4\393BUT4TestReport.doc Page 1 of 3 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 out for Cal Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 REPORT #: W\Wild_N3E\393BUT4\393BUT4TestReport.doc Page 2 of 3 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2001 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHZ with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 80ºF with a humidity of 70%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2001 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. ANSI STANDARD C63.4-1992 12.1.1.1 SUPERREGENERATIVE RECEIVER: A signal Generator was set to the unit under test operating frequency. An un-modulated continuous wave (CW) signal was radiated at the super-regenerative receiver operating frequency to cohere the characteristic broadband emissions from the receiver. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 REPORT #: W\Wild_N3E\393BUT4\393BUT4TestReport.doc Page 3 of 3 APPLICANT: WILD PLANET TOYS INC. FCC ID: N3ESBSEATALK54002 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 49.9 41.58 15.6 V 0.90 12.88 29.38 10.62 49.9 41.58 17.6 H 0.90 13.38 31.88 8.12 49.9 42.03 16.1 H 0.90 13.32 30.32 9.68 49.9 42.03 17.6 V 0.90 12.82 31.32 8.68 49.9 42.88 18.5 H 0.91 13.20 32.61 7.39 49.9 42.88 20.9 V 0.91 12.70 34.51 5.49 49.9 43.48 19.0 H 0.92 13.11 33.03 6.97 49.9 43.48 21.4 V 0.92 12.61 34.93 5.07 49.9 43.75 20.5 H 0.92 13.08 34.50 5.50 49.9 43.75 23.3 V 0.92 12.58 36.80 3.20 49.9 44.39 17.3 H 0.92 12.99 31.21 8.79 49.9 44.39 20.7 V 0.92 12.49 34.11 5.89 49.9 45.22 14.9 H 0.93 12.84 28.67 11.33 49.9 45.22 21.1 V 0.93 12.35 34.38 5.62 49.9 47.04 13.7 H 0.95 12.37 27.02 12.98 49.9 47.04 18.3 V 0.95 11.95 31.20 8.80 49.9 47.84 17.1 H 0.95 12.16 30.16 9.84 49.9 47.84 21.0 V 0.95 11.78 33.73 6.27 49.9 49.04 19.1 H 0.96 11.85 31.91 8.09 49.9 49.04 20.3 V 0.96 11.51 32.77 7.23 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2001 using a Hewlett Packard Model 8566B s…
