N3ESPYTRACKR70044Spytracker

BLOCK DIAGRAM OF SPY TRACKER TRANSMITTER LIGHT SENSOR ENCODER DATA PULSE MODULATED RF AMP ENCODER TURNS ON 49.8 MHz OSCILLATOR RECEIVER BLOCK DIAGRAM LED DISPLAY & AUDIO DECODER FILTER AND AMPLIFIER ONE TRANSISTOR RECEIVER

File: R47497 June 13, 2002 AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Juan Martinez Sr. EMC Engineer JMM/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 5, 2002 RE: FCC ID: N3ESPYTRACKR70044 Attention: Juan Martinez I have a few comments on this Application. 1 Please note that section 15.19(a)(5) can only be used when the device is “so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it”. The device appears large enough to contain the statement of 15.19. There also does not appear to be any ‘practical’ reason why the two condition statement cannot be on the device. Please provide justification for not placing the two condition statement on the device or please provide a corrected label containing this statement. 2 The report file is corrupt and cannot be opened by Adobe Reader. Please provide a report that can be opened. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 10, 2002 RE: FCC ID: N3ESPYTRACKR70044 Attention: Juan Martinez I have a few comments on this Application. 1 C63.4 states that for measurements between 30 to 1000 MHz when no bandwidth requirements are given the minimum RBW is to be 10kHz. Please explain why you used a RBW of 1 kHz in the occupied BW plot on page 21 of the report. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 of 2 Wild Planet RE: FCC ID: N3ESPYTRACKR70044 1 Please note that section 15.19(a)(5) can only be used when the device is “so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it”. The device appears large enough to contain the statement of 15.19. There also does not appear to be any ‘practical’ reason why the two condition statement cannot be on the device. Please provide justification for not placing the two condition statement on the device or please provide a corrected label containing this statement. Response: The Part 15 statement will not be able to fit on the Transmitter bottom portion, since the size of the engraved letter, used for the FCC statement, is to big. I have included a picture from the Receiver, which is large enough in size for the FCC statement to fit, but the statement is to large in size to fit on the transmitter. Transmitter bottom Bottom of Receiver (Portion of picture 1 of 2) Page 2 of 2 Full Size of the bottom side of the Receiver. 2 The report file is corrupt and cannot be opened by Adobe Reader. Please provide a report that can be opened. Response: Uploaded report that should open. Hopefully this answers all of your questions. Please contact me via [email protected] if you require more information. Regards, Juan Martinez Sr. EMC Engineer

FCC ID: N3ESPYTRACKR70044

COMPONENT SIDE SOLDER SIDE

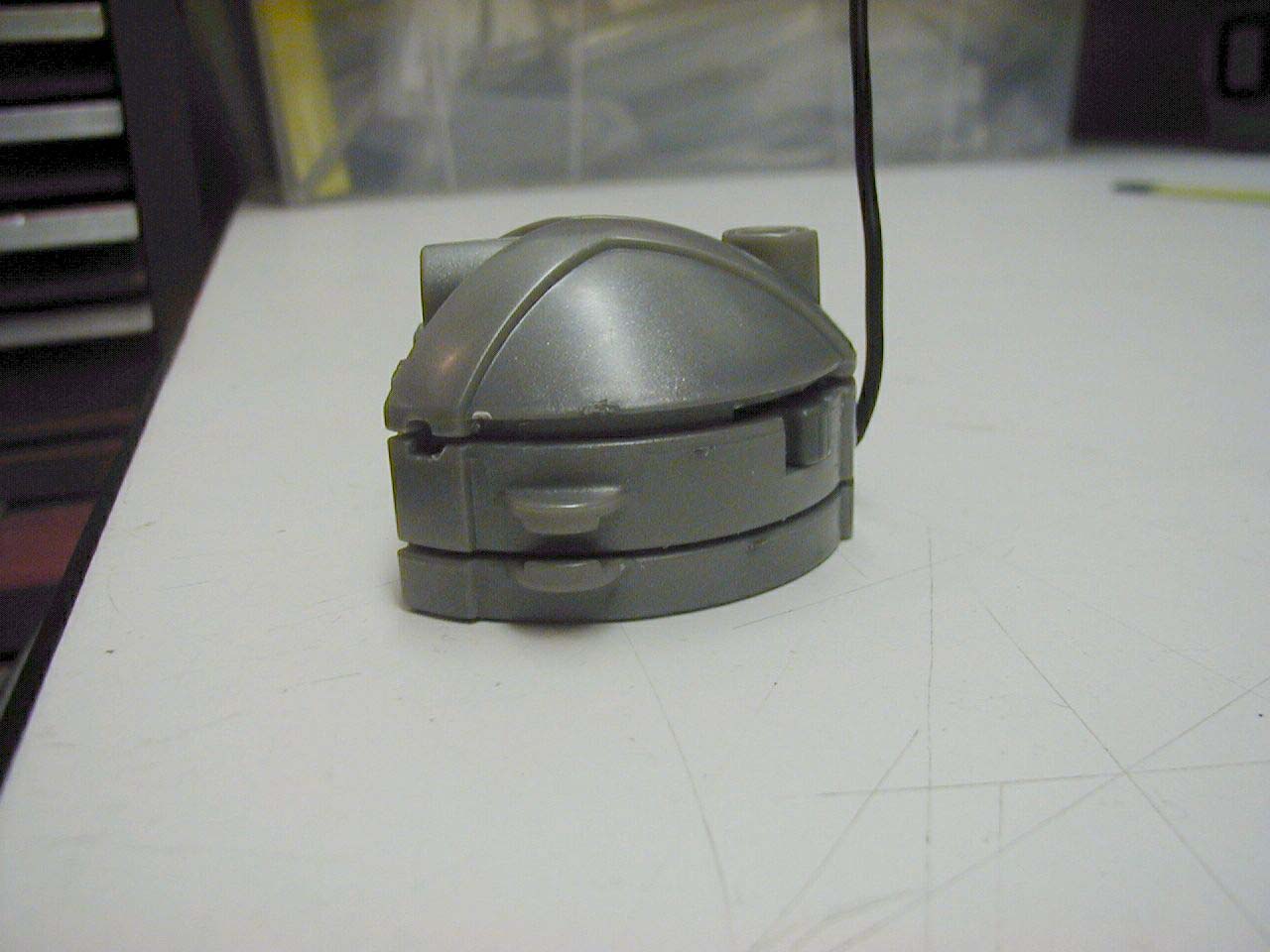

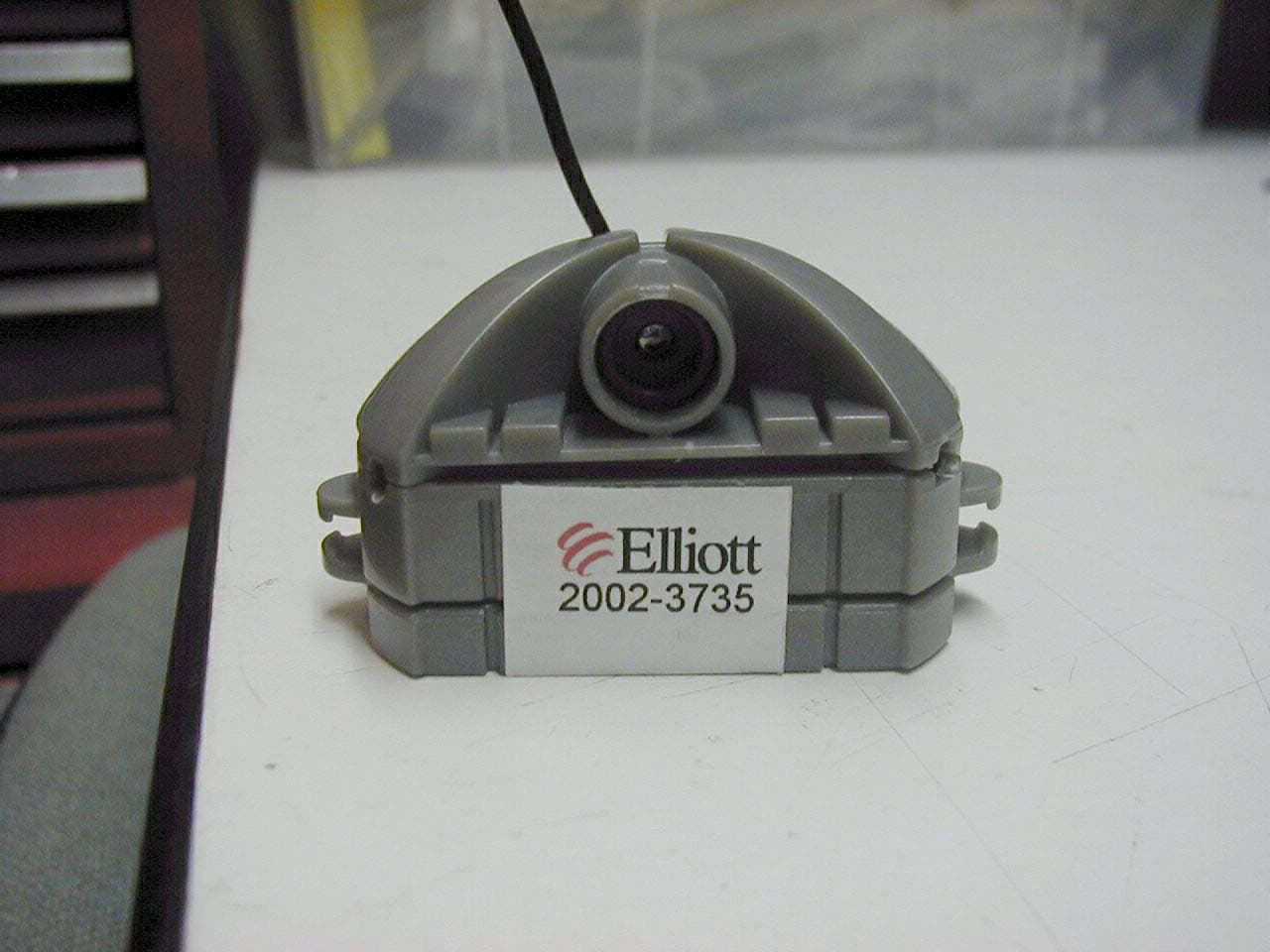

The transmitters has a light sensor, which be activated by any motion it detects. This sensor then sends an encoded signal that will activate the 49 MHz crystal oscillator. The transmitter uses a Pulse amplifier with a duty cycle from 50 to 60 percent. The transmitter will active for only 1 second and then activate until motion is re-detected. A child takes the 3 light sensor / transmitters and sets them in various locations within a house, playground, etc. When these units are turned on, they have the ability to sense the motion of person who is walking by within 3 to 5 feet of the unit. When one of the motion sensors is tripped, it sends an RF signal to the receiver unit. The child, who is on some sort of spy mission, has the receiver unit with him and can see which sensor has been tripped. Each sensor sends a different message to the receiver, and the receiver speaker will say "sensor 1", "sensor 2", or "sensor 3". Based on the location of each sensor, the kid knows where the person who may catch him is.

File: R47316 Page 1 of 12 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart C Specifications for an Intentional Radiator on the Wild Planet Toys Model: Spy Tracker FCC ID: N3ESPYTRACKR70044 GRANTEE: Wild Planet Toys 98 Battery St., Suite 300 San Francisco, CA 94111 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: June 14, 2002 FINAL TEST DATE: June 3, 2002 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Sr. EMC Engineer This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: June 14, 2002 File: R47497 Page 2 of 12 Pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 TABLE OF CONTENTS...............................................................................................................................................................2 SCOPE.............................................................................................................................................................................................3 OBJECTIVE...................................................................................................................................................................................3 STATEMENT OF COMPLIANCE..............................................................................................................................................3 EMISSION TEST RESULTS.......................................................................................................................................................4 LIMITS OF CONDUCTED INTERFERENCE VOLTAGE....................................................................................................4 LIMITS OF RADIATED INTERFERENCE FIELD STRENGTH.........................................................................................4 MEASUREMENT UNCERTAINTIES....................................................................................................................................5 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................6 GENERAL...................................................................................................................................................................................6 ENCLOSURE..............................................................................................................................................................................6 MODIFICATIONS....................................................................................................................................................................6 SUPPORT EQUIPMENT..........................................................................................................................................................6 EXTERNAL I/O CABLING......................................................................................................................................................6 TEST SOFTWARE...................................................................................................................................................................6 TEST SITE......................................................................................................................................................................................7 GENERAL INFORMATION....................................................................................................................................................7 RADIATED EMISSIONS CONSIDERATIONS....................................................................................................................7 MEASUREMENT INSTRUMENTATION..................................................................................................................................8 RECEIVER SYSTEM.................................................................................................................................................................8 INSTRUMENT CONTROL COMPUTER..............................................................................................................................8 LINE IMPEDANCE STABILIZATION NETWORK (LISN)...............................................................................................8 POWER METER........................................................................................................................................................................9 FILTERS/ATTENUATORS.....................................................................................................................................................9 ANTENNAS..............................................................................................................................................................................9 ANTENNA MAST AND EQUIPMENT TURNTABLE......................................................................................................9 INSTRUMENT CALIBRATION.............................................................................................................................................9 TEST PROCEDURES.................................................................................................................................................................10 EUT AND CABLE PLACEMENT.........................................................................................................................................10 RADIATED EMISSIONS............................................................................…

Text truncated - open the document above for the full version.

LOW BANDEDGE WITH 10 kHz RBW HIGH BANDEDGE WITH 10 kHz RBW
