N3EVIDEOCAR70133TWireless Toy Transmitter

70133 Ages 8 and Up Spy Video Car™ Remote Control Video Car with Headset Video Feed! Important: Please save this instruction sheet. It contains valuable product information. Spy Gear Consumer Service is ready to assist you! Call-outs: On Car: • Power On/off switch • Night Vision Light on/off switch • Adjustable video camera • Night Vision Light • Steering Alignment On Remote Control: • Left / right toggle • Forward / back toggle • On/off switch On Headset video screen: • Glasses • Flip up video screen Remote wire PREPARING TO DRIVE THE SPY VIDEO CAR 1. ADULTS: Install the batteries in the Video Car and Remote (see below for directions). 2. Turn on the Video Car using the POWER ON/OFF SWITCH located on the bottom of the car 3. Use the ON/OFF SWITCH to turn on the remote control. 4. Put on the GLASSES and flip the VIDEO SCREEN down over your right eye. 5. Connect the REMOTE WIRE from the video screen to the remote. DRIVING WITH THE REMOTE 1. Use the FORWARD/BACK TOGGLE to drive the car forward and reverse. 2. Use the LEFT/RIGHT TOGGLE to turn the car left and right. NIGHT VISION OPERATIONS 1. Turn on the NIGHT VISION LIGHT ON/OFF SWITCH located on the side of the ADJUSTABLE VIDEO CAMERA 2. Drive the Spy Video Car into a dark place and the night vision light will allow you to see what the car sees on your glasses-mounted video screen. 3. The video camera is adjustable up and down to give you a wider field of vision. Use this feature to look at the underside of your subject. Remember to adjust the camera before you send the Spy Video Car on a mission. 4. Note: Just like the real night vision systems used by spies around the world, the Video Car night vision light is invisible to the human eye. True stealth technology! Note: Night vision has no effect in brightly lit areas. Your Spy Video Car will operate normally with the night vision light on in all lighting conditions. TIPS AND TRICKS • When Spy Video Car doesn’t run straight you can adjust the STEERING ALIGNMENT screw located on the upper body beneath the video camera. If the car turns to the right, turn the screw to the left and vice versa. • The night vision function works best in dark conditions. In brightly lit locations the video screen may appear as a blank white screen. • Always keep fully charged batteries in the car and remote. • Spy Video Car will have a longer range if you hold the transmitter higher. • Don’t drive Spy Video Car in sand or through water (even small puddles) or snow. • To avoid damage to the camera or internal electronics, do not drive Spy Video Car off curbs or down stairs. Don’t store Spy Video Car near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. TROUBLESHOOTING GUIDE (laid out in table format) Spy Video Car won’t operate: • Batteries are dead or have low charge. Always remember to turn off the power switch on the car and remote to save battery life when not in use. • Batteries may not be installed correctly: Make sure battery direction (polarity, +/-) is correct. • Power switch is off. Spy Video Car slows down or the video screen starts to fade: • Batteries are dead or have low charge. Always remember to turn off the power switch on the car and remote to save battery life when not in use. No image on video screen: • Make sure remote wire is connected to remote properly. • Make sure power is on for both the car and remote. Spy Video Car will not travel in a straight line: • Adjust steering alignment screw as outlined in Tips and Tricks above. Erratic operation, loss of control: • Radio interference other R/C vehicles running on the same frequency, High-tension wires, large buildings, or CB radios: Move to another location. • Weak Transmitter battery. Point antenna up in the air, not at vehicle. Don’t touch antenna. SAFETY • Warning! Use under the direct supervision of an adult. • Never drive Spy Video Car on real streets • Keep fingers, hair, and loose clothing away from the tires while the vehicle is switched on. With the Video Screen flipped down, your vision is impaired. Flip the screen UP when walking or moving. Never run while wearing the video glasses, especially in the dark. BATTERY INFORMATION The Spy Video Car uses 12 AA (6 for the car and 6 for the remote) batteries, not included. ATTENTION ADULTS: TO REPLACE BATTERIES 1. Use a small Phillips head screwdriver to loosen the screws on the battery compartment of both the car and the remote. The screws will not fall out. 2. Open battery cover. Remove exhausted batteries. 3. Place new batteries in compartment as shown in Fig. 1 and 2. 4. Replace the battery cover and tighten screw. BATTERY SAFETY INFORMATION • Requires 12 AA batteries • Only adults should install and replace batteries. • Do not recharge non-rechargeable batteries. • Remove dead or exhausted batteries. • Insert batteries correctly. Match positive and negative signs. • The supply terminals are not to be short-circuited. • Do not use rechargeable batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only the batteries of the same or equivalent type recommended to be used. • Do not dispose batteries in a fire; they may explode. • Dispose of batteries safely. Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: N3EVIDEOCAR70133T, FCC ID: N3EVIDEOCAR70133R This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

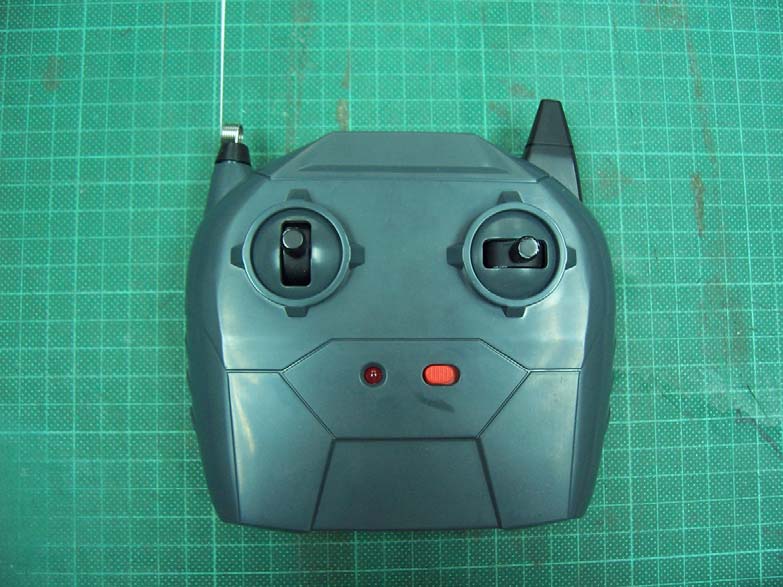

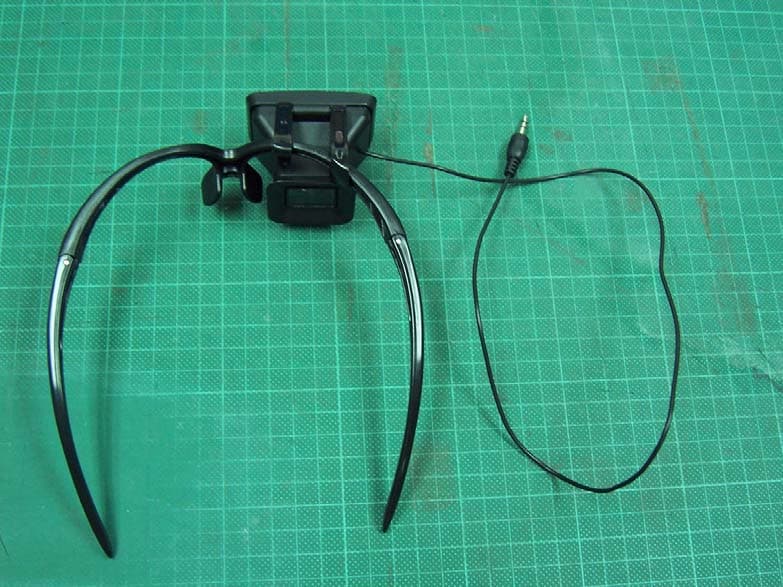

APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T EXTERNAL PHOTOS

FCC ID : N3EVIDEOCAR70133T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T INTERNAL PHOTOS

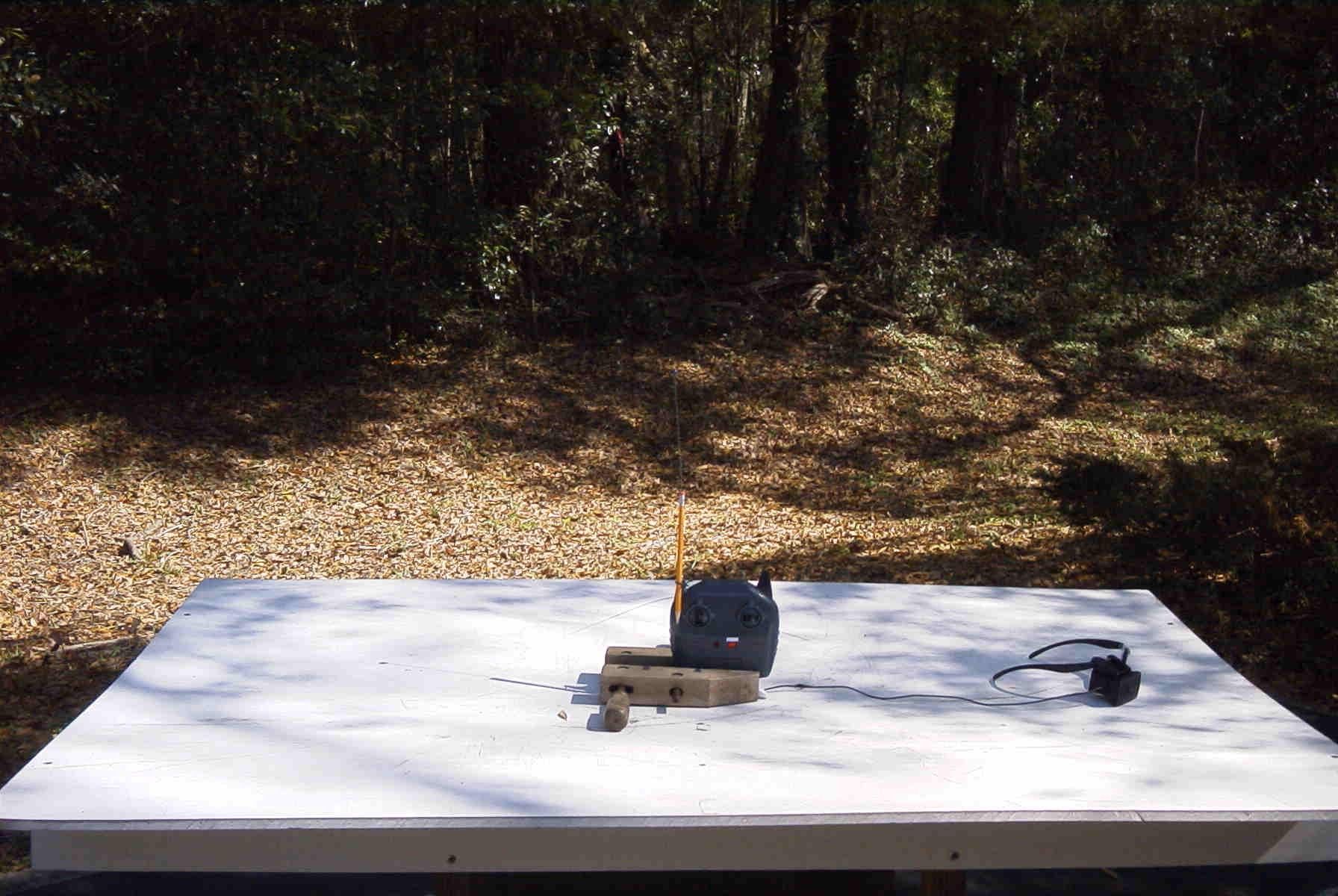

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T REPORT #: W\Wild_N3E\469UT6\469UT6TestReport.doc COVER SHEET Test Report FCC ID: N3EVIDEOCAR70133T Applicant: WILD PLANET TOYS INC. 98 BATTERY STREET, SUITE 300 SAN FRANCISCO CA. 94111 USA TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T REPORT #: W\Wild_N3E\469UT6\469UT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT PAGE 6.............TEST SET UP PHOTO EXHIBITS INCLUDING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T REPORT #: W\Wild_N3E\469UT6\469UT6TestReport.doc Page 1 of 6 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T REPORT #: W\Wild_N3E\469UT6\469UT6TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T REPORT #: W\Wild_N3E\469UT6\469UT6TestReport.doc Page 3 of 6 APPLICANT: WILD PLANET TOYS INC. FCC ID: N3EVIDEOCAR70133T NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Tuned Frequenc y MHz Emission Frequenc y MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correcti on Factor dB Field Strength dBuV/m Margin dB 49.9 49.86 26.9 H 0.97 11.63 39.50 40.50 49.9 49.86 32.7 V 0.97 10.71 44.38 35.62 49.9 99.72 13.5 V 1.40 11.42 26.32 17.18 49.9 99.72 14.9 H 1.40 10.89 27.19 16.31 49.9 149.58 5.2 H 1.75 16.16 23.11 20.39 49.9 149.58 5.9 V 1.75 16.86 24.51 18.99 49.9 199.44 4.7 H 2.10 17.10 23.90 19.60 49.9 199.44 6.3 V 2.10 17.70 26.10 17.40 49.9 249.30 5.3 H 2.35 12.37 20.02 25.98 49.9 249.42 4.4 V 2.35 12.47 19.22 26.78 49.9 299.16 5.5 H 2.60 14.07 22.17 23.83 49.9 349.02 3.6 H 2.85 14.88 21.33 24.67 49.9 349.02 5.9 V 2.85 14.43 23.18 22.82 49.9 498.60 6.2 H 3.49 17.96 27.65 18.35 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. PERFORMED BY: NAM NGUYEN DATE: 3/6/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: WILD PLANET TOYS INC. FCC ID:…
