N5GUF70RFID UHF Reader

English Installation Guide RFID Reader UF70 Certum The installation guide must be read prior to installation. Observe the safety instructions! Store for future use! This documentation is not subject to revisions. ID12002602/2012 This installation guide corresponds with "Directive 1999/5/EC of the European Parliament and the Council on radio equipment and telecommunications terminal equipment and the mutual recognition of the conformity". This installation guide is addressed to the company owner, who must pass it on to the personnel responsible for installation of the machine. The plant manager must ensure that the information contained in this installation guide and in the accompanying documents has been read and understood. The manufacturer does not assume any responsibility for injuries to persons or animals, or damage to property or to the device arising from incorrect installation or disregard or insufficient consideration of the safety criteria contained in this installation guide. The copyright for this installation guide is held solely by Brooks Automation (Germany) GmbH RFID Division Gartenstr. 19 95490 Mistelgau or its legal successor. Reproducing or circulating this installation guide is only permitted with the exclusive approval of the copyright holder. This also applies if only excerpts of the installation guide are copied or circulated. These requirements also apply for circulating the installation guide in digital form. Status: February 2012 Information Information Objectives of the installation guide This installation guide contains all the necessary safety information that must be followed for general safety and installation. This installation guide including all safety information (as well as all additional documents) must be followed, read and understood by all persons installing the device. Symbols and signal words The following symbols and signal words are used in this documentation. The combination of a pictograph and a signal word classifies the respective safety information. The symbol can vary depending on the type of danger. SymbolSignal wordDescription DANGERThis signal word must be used if death or irreversible damage to health can occur if the hazard information is not followed. WARNINGThis signal word indicates bodily injuries and property damage including injuries, accidents, and health risks. CAUTIONThis signal word indicates a risk of property damage. In addition, there is a slight risk of injuries. ATTENTIONThis signal word warns of malfunctions and may only be used if no damage to health can occur. IMPORTANTThis signal word indicates cross- references and ways in which operations are facilitated. It excludes all risks of property damage and injury risks. Risk of injury and property damage No damage Death Information Target group The installation guide is addressed to personnel with the following areas of responsibility: Definition according to DIN EN 60204-1: Instructed personnel: Persons who have been instructed and, if required, trained by a specialist as to the tasks assigned to them, the possible risks of incorrect behavior and the required safety equipment and safety measures. Specialized personnel: Persons who can evaluate the work assigned to them and recognize possible risks based on their specialized training, knowledge, experience and familiarity with the relevant standards. Further documentation For the RFID Reader UF70 Certum a Product Manual is also available. It contains information on operation, troubleshooting, transport and storage. Area of responsibilityCompetence InstallationSpecialized personnel Commissioning and decommissioningInstructed personnel Contents 1Identification ....................................................................................... 7 2Safety Instructions ............................................................................... 9 2.1Area of application and symbols 9 2.1.1 Safety symbols – in compliance with 4844-2 9 2.1.2 Warning symbols 10 2.1.3 Prohibition symbols 10 2.1.4 Other symbols 10 2.2ESD instructions 11 2.3Residual risks 11 2.4Additional instructions 12 3Product Specifications ........................................................................ 13 3.1Images 13 3.1.1 Front view 13 3.1.2 Rear view 14 3.1.3 Top view 15 3.2Description of the components 16 3.3Technical data 18 3.3.1 Device label 19 4Installation ........................................................................................ 20 4.1Safety instructions 20 4.2Qualified installation personnel 22 4.3Unpacking 22 4.4Assembly of the device 23 4.5Antenna installation 24 4.6Power supply 24 4.7Terminal connection 25 4.8External input and output (optional) 26 Contents 4.9Commissioning 26 4.9.1 Required operating conditions 26 4.9.2 Parameters of the serial interface 26 4.9.3 Parameters of the Ethernet interface 27 5Service and Troubleshooting .............................................................. 30 5.1Customer service 30 5.2Troubleshooting 31 6Dismantling and Disposal ................................................................... 32 6.1Dismantling 32 6.2Disposal 32 Chapter 1 Identification Installation Guide - RFID Reader UF70 Certum7 1Identification ModelRFID Reader UF70 Certum Serial number 00 – 0001 – UF70 Part numberTUG-E1ML-4O00-F4-00E1 ETSI version, protection class IP40 TFG-E1ML-4O00-F4-00E1 FCC version, protection class IP40 TUG-E1ML-4O00-R4-00E1 ETSI version, protection class IP65 TFG-E1ML-4O00-R4-00E1 FCC version, protection class IP65 Manufacturer Brooks Automation (Germany) GmbH RFID Division Gartenstr. 19 95490 Mistelgau GERMANY Telephone +49 (0) 9279 - 991 550 Fax +49 (0) 9279 - 991 501 E-mail [email protected] Website www.brooks-rfid.com For information on the label, see  Device label. Declaration of conformity In the Product Manual of the RFID Reader UF70 Certum you find the detailed wording of the Europe - CE conformity. Chapter 1 Identification Installation Guide - RFID Reader UF70 Certum8 Des…

Text truncated - open the document above for the full version.

English Product Manual RFID Reader UF70 Certum The product manual must be read prior to the initial start-up. Observe the safety instructions! Store for future use. This documentation is not subject to revisions. ID12003705/2012 This product manual corresponds with "Directive 1999/5/EC of the European Parliament and the Council on radio equipment and telecommunications transmission equipment and the mutual recognition of the conformity". This product manual is addressed to the operating company who must pass it on to the personnel responsible for installation, connection, use and repairs of the machine. The plant manager must ensure that the information contained in this product manual and in the accompanying documents has been read and understood. The product manual must be stored in a place that is familiar and easily accessible to employees and must be consulted whenever an employee is unsure of how to proceed. The manufacturer does not assume any responsibility for injuries to persons or animals, or damage to property or to the device arising from incorrect use or disregard or insufficient consideration of the safety criteria contained in this product manual or based on modifications of the device or the use of unsuitable spare parts. The copyright for this product manual is held solely by Brooks Automation (Germany) GmbH RFID Division Gartenstr. 19 95490 Mistelgau Germany or its legal successor. Reproducing or circulating this product manual is only permitted with the exclusive approval of the copyright holder. This also applies if only excerpts of the product manual are copied or circulated. These requirements also apply for circulating the product manual in digital form. Status: May 2012 Information Information Archiving Store the product manual in the vicinity of the device! Always keep the product manual handy! Symbols and signal words The following symbols and signal words are used in this documentation. The combination of a pictograph and a signal word classifies the respective safety information. The symbol can vary depending on the type of danger. SymbolSignal wordDescription Death DANGERThis signal word must be used if death or irreversible damage to health can occur if the hazard information is not followed. Risk of injury and property damage WARNINGThis signal word indicates bodily injuries and property damage including injuries, accidents, and health risks. CAUTIONThis signal word indicates a risk of property damage. In addition, there is a slight risk of injuries. No damage ATTENTIONThis signal word warns of malfunctions and may only be used if no damage to health can occur. IMPORTANTThis signal word indicates cross- references and ways in which operations are facilitated. It excludes all risks of property damage and injury risks. Information Target group This product manual is addressed to personnel with the following areas of responsibility: Definition according to DIN EN 60204-1: Instructed personnel Persons who have been instructed and, if required, trained by a specialist as to the tasks assigned to them, the possible risks of incorrect behavior and the required safety equipment and safety measures. Specialized personnel Persons who can evaluate the work assigned to them and recognize possible risks based on their specialized training, knowledge, experience and familiarity with the relevant standards. Area of responsibilityCompetence InstallationSpecialized personnel Commissioning, operation and decommissioning Instructed personnel TroubleshootingSpecialized personnel Contents 1Identification . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.1Designated use 8 1.2Incorrect use 8 2Declaration of Conformity . . . . . . . . . . . . . . . 10 3General Instructions . . . . . . . . . . . . . . . . . . . 12 3.1Liability and warranty 12 3.2Objectives of the product manual 12 4Safety Instructions . . . . . . . . . . . . . . . . . . . . 14 4.1Area of application and symbols 14 4.1.1 Safety symbols – in compliance with 4844-2 15 4.1.2 Warning symbols 15 4.1.3 Prohibition symbols 15 4.1.4 Other symbols 16 4.2Obligations 17 4.2.1 Operating company’s obligations 17 4.2.2 Operating personnel’s obligations 17 4.3ESD instructions 18 4.4Residual risks 18 4.5Additional information 20 5Product Specifications . . . . . . . . . . . . . . . . . . 22 5.1Function 22 5.2Images 23 5.2.1 Front view 23 5.2.2 Rear view 24 5.2.3 Top view 25 5.3Description of the components 26 5.4Technical data 28 6Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 30 6.1Safety instructions 30 6.2Qualified installation personnel 32 6.3Unpacking 32 6.4Assembly of the device 33 6.5Antenna installation 34 Contents 6.5.1 Positioning the antenna 34 6.5.2 Available antenna types 34 6.6Power supply 34 6.7Terminal connection 35 6.8External input and output (optional) 36 6.9Commissioning 36 6.9.1 Required operating conditions 36 6.9.2 Parameters of the serial interface 36 6.9.3 Parameters of the Ethernet interface 37 7Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 7.1Operating personnel 40 7.2Communication protocol ASC-I1 40 7.2.1 Structure of the communication protocol 40 7.2.2 Package contents 41 7.2.3 Commands of protocol 43 7.2.4 Parameters 126 7.3Additional information 155 8Service and Troubleshooting . . . . . . . . . . . . 156 8.1General remarks 156 8.2Qualified troubleshooting personnel 157 8.3Safety instructions 157 8.4Error codes 158 8.5Error display with LED 160 8.6Reader does not respond 160 8.7Reset 161 8.8Power cut 161 8.9Software releases 161 8.10 Customer service 161 9Dismantling and Storage . . . . . . . . . . . . . . . 162 9.1Dismantling 162 9.2Storage 162 10Transport and Disposal . . . . . . . . . . . . . . . . 163 10.1 Transport 163 10.2 Disposal 163 Product Manual - RFID Reader UF70 Certum7 Chapter 1 Identification 1Identification This chapter gives you an overview of the following topics: ■ Designated use ■ Incorrect use ModelRFID Reader UF70 Certum Serial numb…

Text truncated - open the document above for the full version.

Additional Safety Instruction for Instruction Guide and User Manual In the final version of the instruction guide and the user manual this statement will be attached: Instruction Guide (Page 20 to 22) User Manual (Page 30 to 32) The antennas must be more than 20 cm from all persons.

Request for Confidentiality Date: 10.05.2012 Subject: Confidentiality Request for: FCC ID: N5GUF70 IC: ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Brooks Automation (Germany) GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of () days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

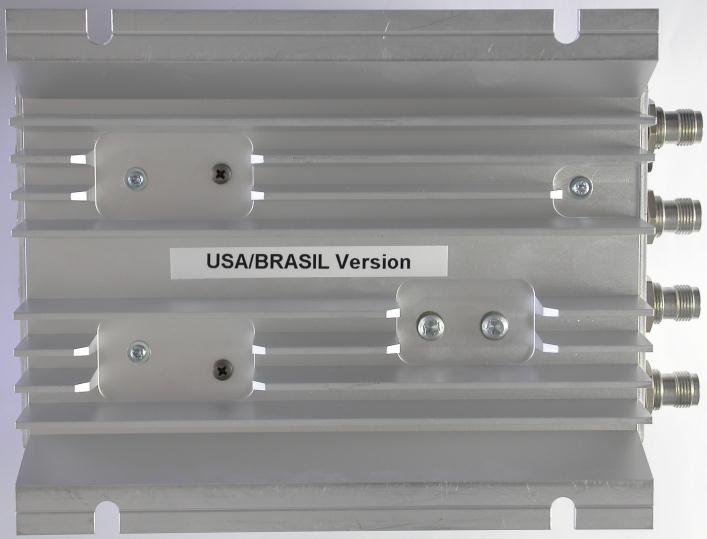

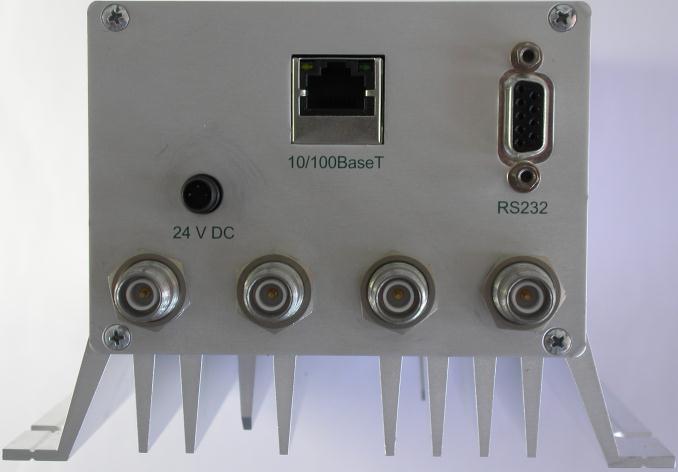

ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Photo documentation of the EUT Model: UF70 Certum and Antenna: MT – 242025/NRH/K, antenna gain: 7.5 dBic External Views: ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0

   Label Location

ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Internal Views: ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Power supply: ATTACHMENT A to File No.: T36016-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Antenna MT – 242025/NRH/K, antenna gain: 4.5 dBi:

ATTACHMENT B to File No.: T36016-00-00HU mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Maximum permissible exposure (MPE) 1.1 For test instruments and accessories used see section 6 Part CPC 2. 1.1.1 Description of the test location Test location: Shielded Room S5 1.1.2 Applicable standard According to FCC Part 15, Section 15.247(i): Systems operating under the provisions of this section shall be operated in a manner that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. The test methods used comply with ANSI/IEEE C95.1, “IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz”. This test report shows the compliance with the limits for Maximum Permissible Exposure (MPE) specified in FCC Part 1, Section 1.1310 and the criteria to evaluate the environmental impact of human exposure to radio- frequency (RF) radiation as specified in FCC Part 1, Section 1.1307(b). 1.1.3 Description of Measurement The maximum total power input to the antenna has been measured conducted as described in clause 5.3 of this document. Through the Friis transmission formula, the known maximum gain of the antenna and the maximum power, the MPE can be calculated in a defined distance away from the product. Friis transmission formula: P d = 2 **4 * r GP out  where P d =power density (mW/cm 2 ) P out = output power to antenna (mW) G = gain of antenna (linear scale) r = distance between antenna and observation point (cm) ATTACHMENT B to File No.: T36016-00-00HU mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 1.1.4 Test result Power setting 30.0 dBm =>MT – 242025/NRH/K, antenna gain: 4.5 dBi Channel No. Frequency Max power output to antenna Antenna gain Power density Limit of power density (MHz) (dBm) (mW) (dBi) (mW/cm 2 ) (mW/cm 2 ) 1 902.25 28.32 679.20 4.5 0.381 0.602 25 914.75 29.21 833.68 4.5 0.467 0.610 52 927.75 28.76 751.62 4.5 0.421 0.619 Limits for maximum permissible exposure (MPE): Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (B) Limits for General Population / Uncontrolled Exposure 0.3 – 3.0 614 1.63 100 30 3.0 – 30 824/f 2.19/f 180/ f 2 30 30 - 300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100000 --- --- 1.0 30 f = Frequency (MHz) According to FCC Rules 47CFR 2.1093(b) the EUT is not a portable device. The EUT is designed to be used that radiating structures are more than 20 cm outside of the body of the user. (r = 20 cm). Note: The manufacturer shall state in the manual the minimum cable length for each antenna. Aditionally this shall be stated on the label of the EuT. The requirements are FULFILLED. Remarks:

FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 1 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.247 - Test Report No. : T36016-00-00HU 15. May 2012 ______________________________________________________________________________________________ Date of issue Type / Model Name : UF70 Certum Product Description : RFID UHF Reader Applicant : Brooks Automation GmbH Address : Gartenstr. 19 D-95490 Mistelgau Manufacturer : Brooks Automation GmbH Address : Gartenstr. 19 D-95490 Mistelgau Licence holder : Brooks Automation GmbH Address : Gartenstr. 19 D-95490 Mistelgau Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 2 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 6 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 6 3.2 Test setup 6 3.3 Power supply system utilised 6 3.4 Short description of the EUT 6 4 T E S T E N V I R O N M E N T 8 4.1 Address of the test laboratory 8 4.2 Environmental conditions 8 4.3 Statement of the measurement uncertainty 8 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 9 5 T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1 Conducted emissions 10 5.2 20 dB bandwidth 16 5.3 Maximum peak conducted output power 21 5.4 Spurious RF conducted emissions 23 5.5 Spurious radiated emissions 29 5.6 Hopping sequence 33 5.7 Equal hopping frequency use 34 5.8 Receiver input bandwidth 34 5.9 Dwell time 35 5.10 Channel separation 38 5.11 Quantity of hopping channels 40 5.12 Antenna application - Detailed photos see Attachment A 43 5.13 Maximum permissible exposure (MPE) – See Attachment B 44 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 45 FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 3 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2011) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart B - Unintentional Radiators (October, 2011) Part 15, Subpart B, Section 15.107 AC Line conducted emissions, Part 15, Subpart B, Section 15.109 Radiated emissions, general requirements FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2011) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 Part 1, Subpart I, Section 1.1310 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1093 Radiofrequency radiation exposure evaluation: portable device OET Bulletin 65, 65A, 65B, 65C Edition 97-01, August 1997 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ANSI C63.10: 2009 Testing Unlicensed Wireless Devices ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 4 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 S U M M A R Y GENERAL REMARKS: The frequency range was scanned from 9 kHz to 10 GHz. All emissions not reported in this test report were more than 10 dB below the specified limit. The EuT is a frequency hopping system using 52 channels in the frequency band from 902 to 928 MHz. Following antenna is provided with the UF70 Certum:  MT – 242025/NRH/K antenna: Polarization RHCP, (7.5 dBic) The EuT is declared as Class B digital device. It is not possible to set the EuT only in receiving mode. Screenshot of the supportet test software: Tag reading mode: Manual mode: FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 5 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 17. April 2012 Testing concluded on : 23. April 2012 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Markus Huber FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 6 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 3.2 Test setup 3.3 Power supply system utilised Power supply voltage: : Primary: 100-240 V / 50-60 Hz / 1 Secondary: 24 V DC 3.4 Short description of the E…

Text truncated - open the document above for the full version.

FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 6 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 3.2 Test setup 3.3 Power supply system utilised Power supply voltage: : Primary: 100-240 V / 50-60 Hz / 1 Secondary: 24 V DC 3.4 Short description of the EUT The EuT is a UHF RFID reader system. It can read active and passive Tags in the frequency range from 902 to 928 MHz. Number of tested samples: 1 Serial number: 00 – 002D – UF70 EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - TAG reading mode supplying 30.0 dBm - Standby mode - - FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 10 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 16 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.2 20 dB bandwidth For test instruments and accessories used see section 6 Part MB. 5.2.1 Description of the test location Test location: Shielded Room S5 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.247(a): Frequency hopping systems shall have hopping carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. 5.2.2 Description of Measurement The bandwidth is measured at an amplitude level reduced from the reference level by a specified ratio of -20 dB. The reference level is the level of the highest amplitude signal observed from the transmitter at either the fundamental frequency or the first-order modulation products in all typical modes of operation, including the unmodulated carrier, even if atypical. FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 21 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.3 Maximum peak conducted output power For test instruments and accessories used see section 6 Part CPC 2. 5.3.1 Description of the test location Test location: Shielded Room S5 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.247(b)(2): For frequency hopping systems operating in the 902-928 MHz band the maximum peak conducted output power shall not exceed the limit of 1 watt for systems employing at least 50 hopping channels. The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 5.3.4 Description of Measurement A spectrum analyzer is connected to the output of the transmitter via a suitable attenuator while EUT was operating in transmit mode using the assigned frequency. Spectrum analyser settings: RBW 100 kHz Sweep time 5 ms (Auto) VBW 100 kHz Power Mode Max. hold Detector Peak Span 400 kHz FCC ID: N5GUF70 mikes-testingpartners gmbh File No. T36016-00-00HU, page 23 of 45 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.4 Spurious RF conducted emissions For test instruments and accessories used see section 6 Part SEC1, SEC2 and SEC3. 5.4.1 Description of the test location Test location: Shielded Room S5 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According …
