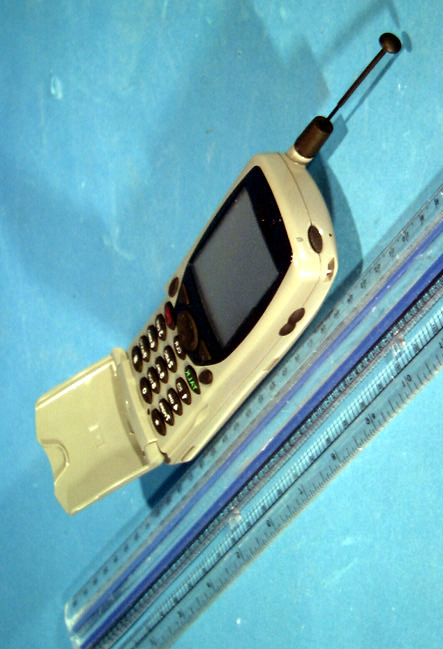

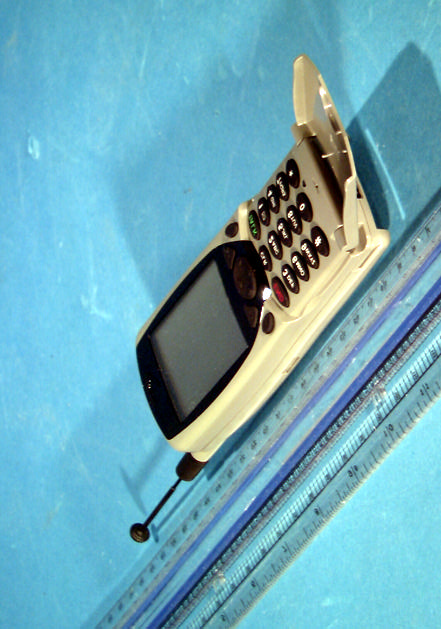

N5WNP1PSBSM01SINGLE BAND PCS CDMA PHONE

8/31/98IGS Confidential1 Preliminary Draft NeoPoint User Guide Innovative Global Solution, Inc. August 31, 1998 Draft Version 0.1 8/31/98IGS Confidential2 Preliminary Draft Table of Content IMPORTANT SAFETY INFORMATION...................................................................................4 RADIO FREQUENCY (RF) SIGNALS.............................................................................................4 TRAFFIC SAFETY......................................................................................................................4 OPERATING ENVIRONMENT.......................................................................................................4 RESTRICTED AREAS..................................................................................................................5 EMERGENCY CALLS..................................................................................................................5 IMPORTANT BATTERY INFORMATION...........................................................................6 CARE AND MAINTENANCE.........................................................................................................6 PACKAGE CONTENT.............................................................................................................7 PERSONNAL..............................................................................................................................7 PROFESSIONAL.........................................................................................................................7 GETTING CONNECTED.........................................................................................................7 HELPFUL HINTS.....................................................................................................................7 PHONE OVERVIEW...............................................................................................................7 GENERAL LAYOUT....................................................................................................................7 POWER BUTTON........................................................................................................................7 VOLUME KEYS.........................................................................................................................8 SOFTKEYS................................................................................................................................8 4-WAY CURSOR BUTTON...........................................................................................................8 KEYS........................................................................................................................................8 USING THE KEY PAD.................................................................................................................8 LCD........................................................................................................................................8 BATTERY.................................................................................................................................8 INSTALLING YOUR BATTERY.....................................................................................................9 REMOVING YOUR BATTERY.......................................................................................................9 USING THE TRAVEL CHARGER...................................................................................................9 USING THE DESKTOP CHARGER.................................................................................................9 THE BASICS.............................................................................................................................9 SWITCHING ON THE PHONE........................................................................................................9 SWITCHING OFF THE PHONE.....................................................................................................10 ICONS AND INDICATORS..........................................................................................................10 MAKING A CALL.....................................................................................................................10 EDITING A NUMBER ON DISPLAY..............................................................................................10 DIALING A PHONE NUMBER IN APPLICATIONS...........................................................................10 DIALING FROM CALL HISTORY................................................................................................10 DIALING FROM CONTACT........................................................................................................11 EMERGENCY CALLS................................................................................................................11 ENDING A CALL......................................................................................................................11 ANSWERING A CALL................................................................................................................11 KEYGUARD.............................................................................................................................11 SWITCHING OFF THE PHONE.....................................................................................................11 TO LOCK THE PHONE...............................................................................................................12 THE MAIN MENU.................................................................................................................12 8/31/98IGS Confidential3 Preliminary Draft SCROLLING THROUGH THE MAIN MENU....................................................................................12 USING MENU SHORTCUTS.........................................................................…

Text truncated - open the document above for the full version.

September 3, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Innovative Global Solution, Inc. FCC ID: N5WNP1PSBSM01 Part 24 Type Acceptance Gentlemen: Attached herewith, on behalf of Innovative Global Solution, Inc. is an application for Part 24 Type Acceptance of the following Single Band PCS CDMA Phone: FCC ID:N5WNP1PSBSM01 TRADE NAME:Innovative Global Solution, Inc. MODEL:NeoPoint 1000 EUT TYPE:Licensed Portable Transmitter Held to Ear (PCE) TX FREQ RANGE:1851.25 – 1908.75 MHz MAX OUTPUT POWER:0.2 Watts Attached is the Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description, parts list (confidential) & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Sai Kwok Staff Engineer Innovative Global Solution, Inc.

4225 Executive Square, 7 th Floor, La Jolla, CA 92037 Phone (619) 458-2800 Fax (619) 458-9588 Innovative Global Solution August 27, 1998 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re:Innovative Global Solution, Inc. FCC ID: N5WNP1PSBSM01 Single-Band PCS CDMA Phone Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Innovative Global Solution, Inc. hereby requests confidentiality of the Block Diagram (Attachment I), Schematic Diagrams (Attachment J), and Parts List (Attachment K) for the attached test report. These documents contain detailed system and equipment description and related information about the product which Innovative Global Solution, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Innovative Global Solution, Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Kye Cheung Director, Product Development Innovative Global Solution, Inc.

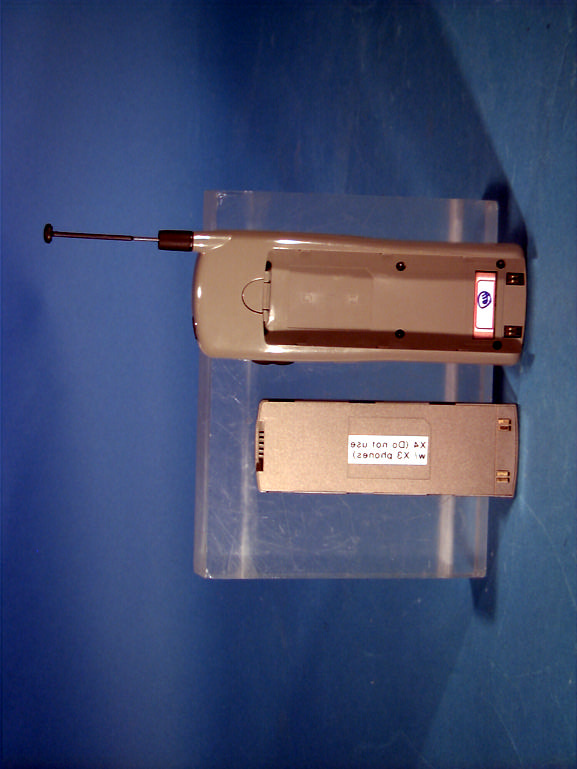

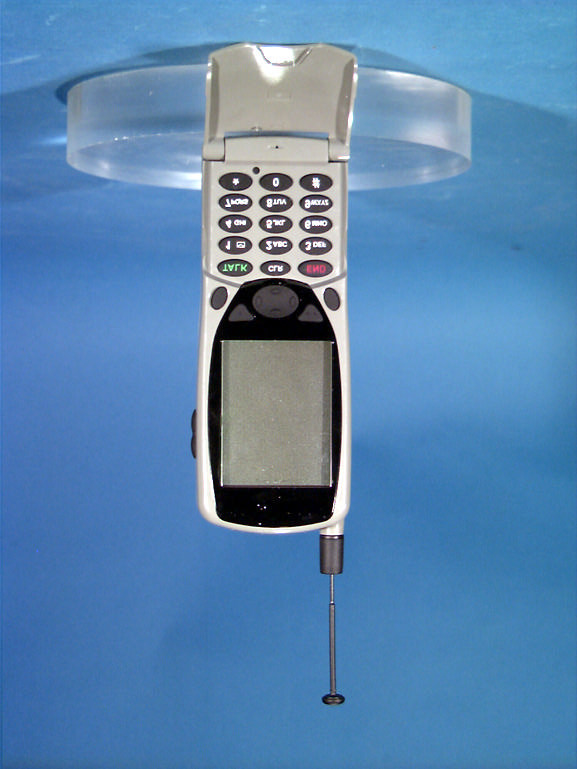

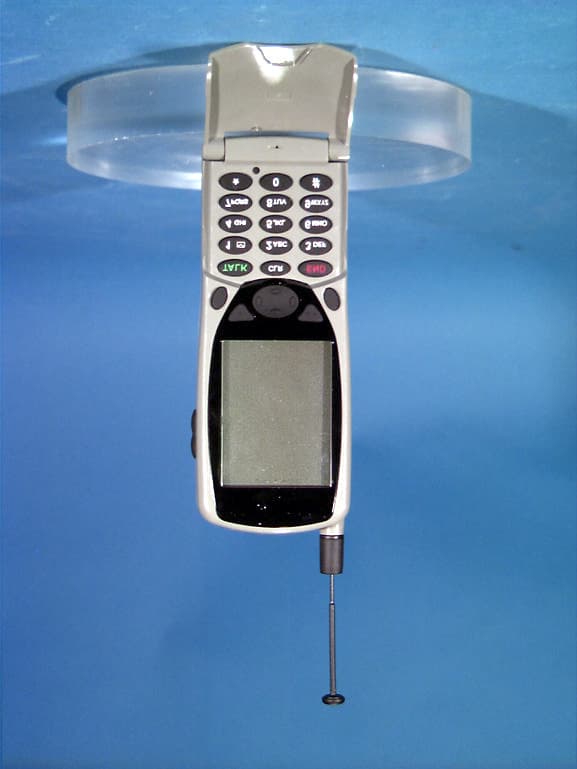

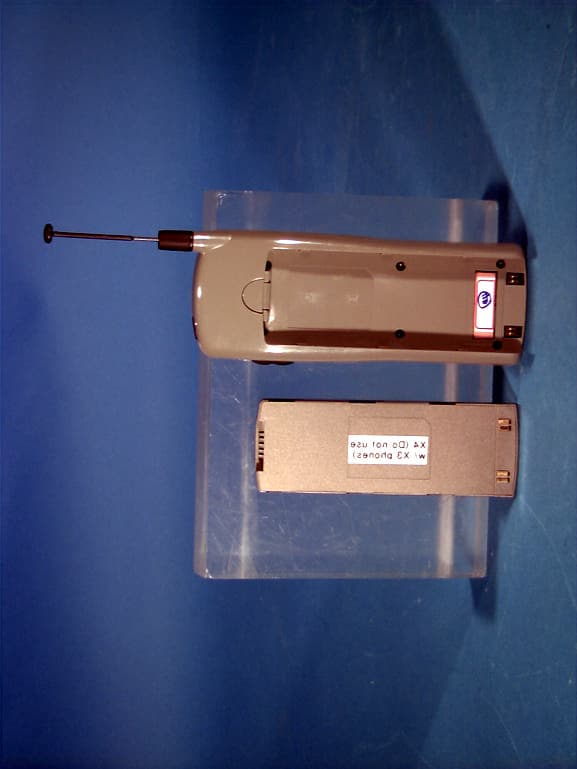

Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Date(s): August 26-28, 1998FCC Part 24 Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. 1 Peak SAR Value at the surface of the phantom A Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) FCC Label Innovative Global Solution Model Name: NeoPoint 1000 FCC ID: N5WNP1PSBSM01 S/N: IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. ESNHEX SKU IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII

Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: 24.980826588.N5WFCC Part 24 Test Date(s): August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc.

Technical Description: NeoPoint is a Single Band Single Mode digital CDMA phone with Personal Digital Assistant (PDA) functionality. It is designed to comply with Part 15 and Part 24 of the CFR as well as ANSI J-STD-008 and ANSI J-STD-018. The PDA functionality of NeoPoint allows electronic organizer capabilities and data communications with a PC through a cable. TX frequencies: 1851.25MHz (Ch.25) -- 1908.75MHz (Ch.1175) RX frequencies: 1931.25MHz (Ch.25) – 1988.75MHz (Ch. 1175) LO frequencies: 1720.87MHz (Ch.25) – 1778.37MHz (Ch. 1175) TCXO frequency: 19.68MHz Output power: -50dBm (min) to +23dBm (max) DC voltages and currents into final RF amp: 5.4V – 3.8V, 350mA – 120mA Battery voltage: 7.2 V Li-Ion (supplied with phone)

Alignment/Tune-up Procedure: This product has factory preset frequency adjustments. There is no frequency field adjustment for this product. In field operation, frequency is locked to the base station and controlled by the VCTCXO adjustments to offset any possible errors. Frequency stabilization: A voltage controlled temperature compensated crystal oscillator (VCTCXO) is utilized as a frequency reference for all of the transceiver local oscillators. This crystal oscillator is specified to a frequency stability of +/- 2.45ppm. The synthesizer lock status is constantly monitored by the microprocessor and transmission is disabled whenever an out of lock condition is detected. The mobile is locked to the base station during operation. The mobile receiver constantly monitors the received signal from the base station and makes necessary frequency adjustment on the VCTCXO to correct any frequency errors between the mobile and the base station. Suppression of Spurious Radiation: Spurious and harmonic suppression is achieved by proper design with various filters and sufficient use of metallic shields. Rigorous testing at the factory ensures continuous compliance. Limiting Power: Each mobile is individually calibrated at the factory to ensure max power of +23dBm and min power of –50dBm by employing proper frequency and temperature compensation schemes for both the TX and RX automatic gain control (AGC) amplifiers. Limiting Modulation: The audio input is sampled, digitally limited, and then filtered to amplitude and frequency limit the signal applied to the modulator. The device supports the ANSI J- STD – 008 for CDMA operation. The device has an operating temperature range of –30 to +60C. The functions include Compandor, PLL lock detector, filtering of received data, audio signal filtering for signals.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) INNOVATIVE GLOBAL SOLUTION, INC.Dates of Tests: August 26-28, 1998 4225 Executive DriveTest Report S/N: SAR.980826589.N5W 7 th Floor La Jolla, CA 92037Test Site: PCTEST Lab, Columbia MD Attention: Sai Kwok, Staff Engineer FCC ID N5WNP1PSBSM01 APPLICANT INNOVATIVE GLOBAL SOLUTION, INC. EUT Type:Single-Band PCS CDMA Phone Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max Output Power:0.2 W Trade Name:Innovative Global Solution, Inc. Model(s):NeoPoint 1000 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Type Acceptance Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980826589.N5W SAR Measurement ReportFCC Part 24 Type Acceptance © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Dates: August 26-28, 1998FCC Part 24 Type Acceptance Innovative Global Solution, Inc. PCS CDMA Phone © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 (Model: NeoPoint 1000)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:Innovative Global Solution, Inc. ADDRESS :4225 Executive Square 7 th Floor, La Jolla, CA 92037 Attention :Sai Kwok, Staff Engineer • EUT Type:Single Band PCS CDMA Phone • FCC IDENTIFIER:N5WNP1PSBSM01 • Trade Name:Innovative Global Solution, Inc. • Model:NeoPoint 1000 • S/N:Pre-production • Tx Frequency Range:1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Application Type: Type Acceptance • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 24(E); § 2.1093, Docket 96-326 • Max. Output Power:0.2 W • Modulation :CDMA • Antenna:Helical (λ/3) • Antenna Dimensions:6.6 cm. (Length) • Dates of Test(s):August 26-28, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.980826589.N5W 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Lab Code 100431-0 Figure 1. SAR Test Set-up Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Dates: August 26-28, 1998FCC Part 24 Type Acceptance Innovative Global Solution, Inc. PCS CDMA Phone © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 (Model: NeoPoint 1000)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Ex…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98082603_ZOOM.VLT Start : 26-Aug-98 10:10:44 am End : 26-Aug-98 10:21:31 am Radio Type : IGS Model Number : NeoPoint Serial Number : 00000001 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0025 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 3.500, Y = -0.500, Z = 0.000 (cm) Value = 5.708 Measured Values (volts) = 5.754E-003 3.835E-003 1.573E-003 8.587E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 4.440E-004 3.691E-004 2.400E-005 6.456E-005 Calc. Voltage @ Surface (Vs) = 0.0071 Voltage @ 1.00 cm (Vt) = 0.0040 Ave. Voltage (Vs+Vt)/2 = 0.0055 Ave. SAR over 1 g (mW/g) = 0.6148 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 mW/g 012345678910 Z centimeters SAR Scan File : 98082603_ZOOM Start : 26-Aug-98 10:10:44 am End : 26-Aug-98 10:21:31 am IGS/NeoPoint/00000001;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98082604_ZOOM.VLT Start : 26-Aug-98 10:31:14 am End : 26-Aug-98 10:42:05 am Radio Type : IGS Model Number : NeoPoint Serial Number : 00000001 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0025 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 4.000, Y = -1.250, Z = 0.000 (cm) Value = 3.085 Measured Values (volts) = 2.804E-003 1.648E-003 6.045E-004 6.209E-004 1.952E-004 1.723E-004 2.400E-005 2.400E-005 2.400E-005 5.228E-004 2.400E-005 1.489E-004 7.478E-005 Calc. Voltage @ Surface (Vs) = 0.0036 Voltage @ 1.00 cm (Vt) = 0.0017 Ave. Voltage (Vs+Vt)/2 = 0.0027 Ave. SAR over 1 g (mW/g) = 0.2952 -0.1 0.0 0.1 0.2 0.3 0.4 mW/g 012345678910 Z centimeters SAR Scan File : 98082604_ZOOM Start : 26-Aug-98 10:31:14 am End : 26-Aug-98 10:42:05 am IGS/NeoPoint/00000001;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98082607_ZOOM.VLT Start : 26-Aug-98 11:47:15 am End : 26-Aug-98 11:57:57 am Radio Type : IGS Model Number : NeoPoint Serial Number : 00000001 Frequency : 1880 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0600 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 4.000, Y = -1.500, Z = 0.000 (cm) Value = 7.712 Measured Values (volts) = 7.050E-003 4.607E-003 2.144E-003 4.317E-004 2.870E-004 3.410E-004 4.634E-004 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 Calc. Voltage @ Surface (Vs) = 0.0085 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0066 Ave. SAR over 1 g (mW/g) = 0.7383 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 mW/g 012345678910 Z centimeters SAR Scan File : 98082607_ZOOM Start : 26-Aug-98 11:47:15 am End : 26-Aug-98 11:57:57 am IGS/NeoPoint/00000001;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : 98082607_ZOOM Start : 26-Aug-98 11:47:15 am End : 26-Aug-98 11:57:57 am IGS/NeoPoint/00000001;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 0.857 0.804 0.752 0.699 0.647 0.594 0.542 0.489 0.437 0.384 File : 98082607_ZOOM Start : 26-Aug-98 11:47:15 am End : 26-Aug-98 11:57:57 am IGS/NeoPoint/00000001;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 0.857 0.804 0.752 0.699 0.647 0.594 0.542 0.489 0.437 0.384 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98082612_ZOOM.VLT Start : 26-Aug-98 12:52:16 pm End : 26-Aug-98 12:52:59 pm Radio Type : IGS Model Number : NeoPoint Serial Number : 00000001 Frequency : 1880 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0600 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225…

Text truncated - open the document above for the full version.

Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Date(s): August 26-28, 1998FCC Part 24 Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Date(s): August 26-28, 1998FCC Part 24 Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Date(s): August 26-28, 1998FCC Part 24 Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc. Test Report S/N: SAR.980826589.N5WSAR Measurement Report Test Date(s): August 26-28, 1998FCC Part 24 Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 NVLAP Lab Code: 100431-0 Innovative Global Solution, Inc.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Type Acceptance) INNOVATIVE GLOBAL SOLUTION, INC.Dates of Tests: August 26-28, 1998 4225 Executive SquareTest Report S/N: 24.980826588.N5W 7 th Floor, La Jolla, CA 92037Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Sai Kwok, Staff Engineer FCC ID N5WNP1PSBSM01 APPLICANT INNOVATIVE GLOBAL SOLUTION, INC. Classification:Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s):§§§§24(E), 2.983, 2.987 EUT Type:Single Band PCS CDMA Phone Trade Name(s):Innovative Global Solution, Inc. Model(s):NeoPoint 1000 Frequency Range:Tx: 1851.25 – 1908.75MHz Rx: 1931.25 – 1988.75MHz Max Output Power:0.2 Watts Frequency Tolerance:0.00025% (2.5 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980826588.N5W Type Acceptance © 1998PCTEST Engineering Laboratory, Inc.FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 INSERTS PER §2.983 3 DESCRIPTION OF TESTS 4-6 TEST DATA (RADIATED) 7-9 TEST DATA (FREQUENCY STABILITY) 10-11 PLOTS OF EMISSIONS 12 LIST OF TEST EQUIPMENT 13 SAMPLE CALCULATIONS 14 RECOMMENDATION / CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L:PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P:SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.980826588.N5WFCC Part 24 Dates of Tests: August 26-28, 1998Type Acceptance © 1998 PCTEST LabFCC ID: N5WNP1PSBSM01 (Model: NeoPoint 1000)1 Innovative Global Solution, Inc. PCS CDMA Phone MEASUREMENT REPORT Scope - Measurement and determinati…

Text truncated - open the document above for the full version.
