N5WNP2PDBDM01Dual-Band Analog/PCS Phone (Amps/CDMA)

NeoPoint Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jun 01, 2000
Application Purpose: Original Equipment
Date of Application: May 07, 2000
Equipment Note: Dual-Band Analog/PCS Phone (Amps/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: NeoPoint Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

NeoPoint SIMPLY MORE INTELUGENT AFFIDAVIT FOR ESN PRdTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone (FCC ID: N5WNP2DBDM01) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. Tne ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. Cl The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Claudia Ovalle International froduct Manager 4225 Executive Square l Suite 600 l La Jolla, C A 92037 -Tel 619.458.2800~ Fax 619.458.85tM [email protected] l www,neopoint.com

Cover Letter(s)

May 30, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Linda Elliott SUBJECT:NEOPOINT, INC. FCC ID: N5WNP2DBDM01 Part 24/22 Certification Amend FCC ID: N5WNP2PDBDM01 Gentlemen: Submitted herewith, on behalf of NeoPoint, Inc., is an amendment to correct the FCC ID of the above-reference phone. Orig. Submitted FCC ID:N5WNP2DBDM01 Correct FCC ID:N5WNP2PDBDM01 Please note of the additional letter “P” after the number “2”. Please correct the Form 731 and the FCC label submitted is the correct one. Should you have any questions concerning the above, please do not hesitate to contact me. cc:Mr. Sai Kwok Staff Engineer NEOPOINT, INC.

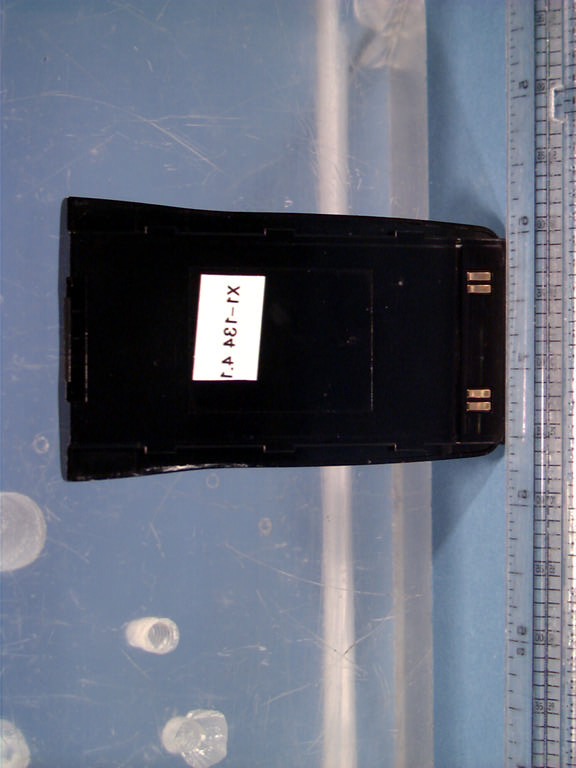

External Photos

© 2000 PCTEST Lab Neopoint FCC ID: N5WNP2DBDM01 NVLAP Lab Code: 100431-0 Model: NP2000 Dual Band Cellular Phone © 2000 PCTEST Lab Neopoint FCC ID: N5WNP2DBDM01 NVLAP Lab Code: 100431-0 Model: NP2000 Dual Band Cellular Phone © 2000 PCTEST Lab Neopoint FCC ID: N5WNP2DBDM01 NVLAP Lab Code: 100431-0 Model: NP2000 Dual Band Cellular Phone © 2000 PCTEST Lab Neopoint FCC ID: N5WNP2DBDM01 NVLAP Lab Code: 100431-0 Model: NP2000 Dual Band Cellular Phone © 2000 PCTEST Lab Neopoint FCC ID: N5WNP2DBDM01 NVLAP Lab Code: 100431-0 Model: NP2000 Dual Band Cellular Phone © 2000 PCTEST Lab Neopoint FCC ID: N5WNP2DBDM01 NVLAP Lab Code: 100431-0 Model: NP2000 Dual Band Cellular Phone

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) NEOPOINT, INC.Dates of Tests: May 02-05, 2000 4225 Executive Square, Suite 600Test Report S/N: SAR.200502181.N5W 7 th Floor, La Jolla, CA 92037Test Site: PCTEST Lab, Columbia, MD USA Attn: Sai Kwok, Staff Engineer FCC ID N5WNP2DBDM01 APPLICANT NEOPOINT, INC. EUT Type:Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency:869.04 – 893.97 MHz (AMPS) / 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power:0.6 W ERP AMPS (27.78 dBm), 0.398 W EIRP PCS CDMA (26.00 dBm) Trade Name/Model(s):NEOPOINT NP2000 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 200502181.N5W SAR Measurement ReportFCC Part 24/22 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-17 14.1 SAR TEST EQUIPMENT LIST 18 15.1 CONCLUSION 19 16.1 REFERENCES 20 Test Report S/N: SAR.200502181.N5WSAR Measurement Report Test Date(s): May 02-05, 2000FCC Part 24/22 Certification NEOPOINT FCC ID: N5WNP2DBDM01 (Model: NP2000) © 2000 PCTEST LabDual-Band Analog/PCS Phone (AMPS/CDMA)1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:NEOPOINT, INC. Address:4225 Executive Square, Suite 600 7 th Floor, La Jolla, CA 92037 Attention:Sai Kwok, Staff Engineer • EUT Type:Dual-Band Analog/PCS Phone • Trade Name:NEOPOINT • Model(s):NP2000 • FCC IDENTIFIER:N5WNP2DBDM01 • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz (AMPS) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s):AMPS / CDMA • FCC Rule Part(s):§2.1093, Docket 96-326 • Max. RF Output Power:0.6W ERP AMPS (27.78 dBm) / 0.398W EIRP PCS CDMA (26.00 dBm) • Antenna Type:Helical (λ/2) • Antenna Dimensions:8.5 cm. (Length) • Dates of Tests:May 02-05, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200502181.N5W 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200502181.N5WSAR Measurement Report Test Date(s): May 02-05, 2000FCC Part 24/22 Certification NEOPOINT FCC ID: N5WNP2DBDM01 (Model: NP2000) © 2000 PCTEST LabDual-Band Analog/PCS Phone (AMPS/CDMA)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definiti…

Text truncated - open the document above for the full version.

RF Exposure Info

Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1370 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1370 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1370 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1370 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 0.00 0.50 1.00 1.50 2.00 2.50 020…

Text truncated - open the document above for the full version.

RF Exposure Info

Validation Dipole D835V2 SN:406, d = 15mm Frequency: 835 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0 Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.17 mW/g ± 0.03 dB, SAR (1g): 2.11 mW/g ± 0.03 dB, SAR (10g): 1.41 mW/g ± 0.04 dB, (Worst-case extrapolation) Penetration depth: 13.4 (12.3, 14.9) [mm] Powerdrift: -0.01 dB SAR Tot [mW/g] 2.50E-1 5.00E-1 7.50E-1 1.00E+0 1.25E+0 1.50E+0 1.75E+0 2.00E+0 2.25E+0 2.50E+0 Validation SN406 Schmid & Partner Engineering AG, Zürich Switzerland 835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.18 mW/g, SAR (10g): 1.31 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.49E-1 5.40E-1 1.41E+0 1.38E+0 1.82E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.12 mW/g, SAR (10g): 1.32 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.13E-1 7.01E-1 1.27E+0 1.26E+0 2.31E+0 PCTEST Engineering Laboratory, Inc. Validation Dipole D1900V2 SN:502, d = 10mm Frequency: 1900 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 15.0, Dy = 15.0, Dz = 10.0 Probe: ET3DV5 - SN1302/DAE3; ConvF(4.55,4.55,4.55); Brain 1900 MHz: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 Cubes (2): Peak: 21.2 mW/g ± 0.01 dB, SAR (1g): 10.7 mW/g ± 0.01 dB, SAR (10g): 5.26 mW/g ± 0.01 dB, (Worst-case extrapolation) Penetration depth: 7.0 (6.8, 7.5) [mm] SAR Tot [mW/g] 1.00E+0 2.00E+0 3.00E+0 4.00E+0 5.00E+0 6.00E+0 7.00E+0 8.00E+0 9.00E+0 Validation SN508 Schmid & Partner Engineering AG, Zürich Switzerland 1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters Brain 1900 MHz: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.6 mW/g, SAR (10g): 5.38 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 7.41E-1 3.15E+0 5.12E+0 6.05E+0 7.23E+0 PCTEST Engineering Laboratory, Inc. 1900MHZ Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.8 mW/g, SAR (10g): 5.41 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 1.48E+0 3.62E+0 6.11E+0 8.63E+0 1.29E+1 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

NeoPoint FCC ID:N5WNP2DBDM01 -- FM Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.926 mW/g, SAR (10g): 0.692 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0991 [824.04MHz] Conducted Power = 26.7dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 9.59E-2 2.88E-1 4.79E-1 6.71E-1 8.63E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.38 mW/g, SAR (10g): 1.03 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0991 [824.04MHz] Conducted Power = 26.7dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.45E-1 4.36E-1 7.27E-1 1.02E+0 1.31E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.722 mW/g, SAR (10g): 0.545 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0383 [836.49MHz] Conducted Power = 26.7dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 7.61E-2 2.28E-1 3.81E-1 5.33E-1 6.85E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.37 mW/g, SAR (10g): 1.01 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0383 [836.49MHz] Conducted Power = 26.7dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.43E-1 4.28E-1 7.13E-1 9.98E-1 1.28E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.42 mW/g, SAR (10g): 1.06 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0799 [848.97MHz] Conducted Power = 26.7dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.48E-1 4.45E-1 7.41E-1 1.04E+0 1.33E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.33 mW/g, SAR (10g): 0.976 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0799 [848.97MHz] Conducted Power = 26.7dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.33E-1 3.98E-1 6.63E-1 9.29E-1 1.19E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.22 mW/g, SAR (10g): 0.637 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.0dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.18E-1 3.53E-1 5.88E-1 8.23E-1 1.06E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.26 mW/g, SAR (10g): 0.696 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.0dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.34E-1 4.02E-1 6.69E-1 9.37E-1 1.21E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.28 mW/g, SAR (10g): 0.652 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.0dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.27E-1 3.80E-1 6.34E-1 8.88E-1 1.14E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.29 mW/g, SAR (10g): 0.710 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.0dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.34E-1 4.01E-1 6.69E-1 9.37E-1 1.20E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.22 mW/g, SAR (10g): 0.634 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.1175 [1908.75MHz] Conducted Power = 24.0dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.29E-1 3.88E-1 6.46E-1 9.05E-1 1.16E+0 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.26 mW/g, SAR (10g): 0.693 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.1175 [1908.75MHz] Conducted Power = 24.0dBm Test Date -- 05-02-2000 SAR Tot [mW/g] 1.33E-1 3.98E-1 6.63E-1 9.29E-1 1.19E+0 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

NeoPoint FCC ID:N5WNP2DBDM01 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.786 mW/g, SAR (10g): 0.494 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0991 [824.04MHz] Conducted Power = 26.7dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-02-2000 SAR Tot [mW/g] 8.55E-2 2.57E-1 4.28E-1 5.98E-1 7.70E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.00 mW/g, SAR (10g): 0.606 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0991 [824.04MHz] Conducted Power = 26.7dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-02-2000 SAR Tot [mW/g] 1.08E-1 3.24E-1 5.39E-1 7.55E-1 9.71E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.508 mW/g, SAR (10g): 0.323 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0383 [836.49MHz] Conducted Power = 26.7dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-02-2000 SAR Tot [mW/g] 5.43E-2 1.63E-1 2.72E-1 3.80E-1 4.89E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.945 mW/g, SAR (10g): 0.592 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0383 [836.49MHz] Conducted Power = 26.7dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-02-2000 SAR Tot [mW/g] 9.80E-2 2.94E-1 4.90E-1 6.86E-1 8.82E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.444 mW/g, SAR (10g): 0.285 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0799 [848.97MHz] Conducted Power = 26.7dBm; Spacing = 1.5cm from flat phantom to phone, w/ holster Test Date -- 05-02-2000 SAR Tot [mW/g] 4.85E-2 1.46E-1 2.42E-1 3.40E-1 4.37E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.639 mW/g, SAR (10g): 0.412 mW/g NeoPoint Dual-band Model:NP2000 FM Mode, Ch.0799 [848.97MHz] Conducted Power = 26.7dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-02-2000 SAR Tot [mW/g] 6.96E-2 2.09E-1 3.48E-1 4.87E-1 6.26E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.270 mW/g, SAR (10g): 0.149 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.0dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-03-2000 SAR Tot [mW/g] 2.71E-2 8.13E-2 1.36E-1 1.90E-1 2.44E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.592 mW/g, SAR (10g): 0.327 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.0dBm; Spacing = 1.5cm from flat phantom to phone, w/holster Test Date -- 05-03-2000 SAR Tot [mW/g] 3.64E-2 1.09E-1 1.82E-1 2.55E-1 3.28E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.437 mW/g, SAR (10g): 0.248 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.0dBm; Spacing = 1.5cm from flat phantom to phone, w/ holster Test Date -- 05-03-2000 SAR Tot [mW/g] 4.65E-2 1.40E-1 2.33E-1 3.26E-1 4.19E-1 PCTEST Engineering Laboratory, Inc. NeoPoint FCC ID:N5WNP2DBDM01 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.699 mW/g, SAR (10g): 0.400 mW/g NeoPoint Dual-band Model:NP2000 PCS Mode, Ch.0600 [18…
