FCC & Industry Canada Regulatory Compliance The NeoPoint 2500 is approved for use with CDMA IXRTT networks. This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your wireless hand-held portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and sends radio frequency (RF) signals. In August 1996, the FCC adopted RF exposure guidelines with safety levels for hand-held wireless phones. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable standards. A A CVarning! Unauthorized antennas, modifications, or attachments could impair call quality, drmxge the phone, or result in violation of FCC rele(ulaIions. Dn nnt use the phone with a dnmaged antenna. PlC~~sC conlact your local authorized NenPoint dealer for antennn replacement. Warning!IIODY-WORN OPERATION - This device was tested fat typical body-worn operations. ‘To comply with FCC Rl: exposure requirements, a minimum separation distance of (0.6) inches/(1.5) cm must be nysintained between the user’s body and a third part! belt-ciip/ holster. including the anterma, whether extended or retracted. Tbird- party belt-clips, bolsters, and similar accessories used by this device should not contain any metallic cnmpnnents. Body-worn accessories that do not meet these requirements may not comply with FCC RI<’ exposure limils and should bc avoided. NOTE:Read “Safety” on page xiv prior to using your NeoPoint 2500. NeoPoint 2500 User’s Guide
© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) June 28, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. In re: Neopoint, Inc. FCC ID: N5WNP2XSBSM01 Single-Band PCS CDMA IS-2000 1X Trial Phone Request for Confidentiality Dear Sir or Madam: In accordance with 0.459 of CFE 47, Neopoint, Inc. hereby requests confidentiality of the Black Diagram (Attachment), Schematic Diagrams (Attachments), and Parts List (Attachment) for the attached test report. These documents contain detailed system and equipment description and related information about the product which Neopoint, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Neopoint, Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Rob Keppeler Product Manager Neopoint, Inc.
© 2000 PCTEST Lab ATTACHMENT I – BLOCK DIAGRAM(S)
© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER August 10, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEOPOINT, INC. FCC ID: N5WNP2XSBSM01 Part 24 Certification Gentlemen: Submitted herewith, on behalf of NeoPoint, Inc., is an application for Part 24 Certification of the following Single-Band Single Mode PCS Phone: FCC ID: N5WNP2XSBSM01 TRADE/MODEL(s): NeoPoint NP-2500 EUT TYPE: Single-Band Single Mode PCS Phone (CDMA) Tx Freq. Range(s): 1851.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.457W PCS CDMA (26.598 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), Schematic diagrams (confidential), operational description, parts list (confidential), tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Russell Gore NEOPOINT, INC.

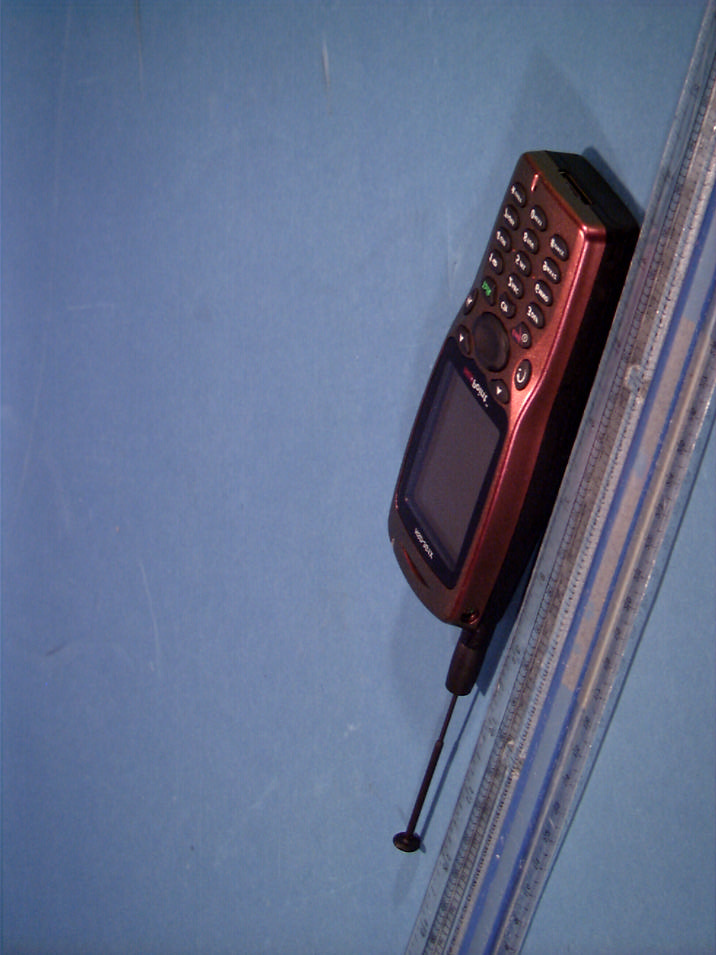

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA)
© 2000 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION NP2500HandsetLabel Inc. NeoPoint2500 FCC:N5WNP2XSBSM01 MN: PN: SN: MadeinKoreaLabelPN:52-25001-00 NPP25000 10-25000-00
© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA)
© 2000 PCTEST Lab ATTACHMENT M – ANTENNA SPECIFICATIONS Antenna Specifications: Peak gain @ PCS Band: +IdBi (retracted) and +2dBi(extended) Omnidirectional; VSWR < 3 : 1
© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) NEOPOINT, INC. Dates of Tests: August 09-11, 2000 4225 Executive Square, Suite 600 Test Report S/N: SAR.200807399.N5W 7th Floor, LaJolla, CA 92037 Test Site: PCTEST Lab, Columbia, MD USA Attention: Russell Gore FCC ID N5WNP2XSBSM01 APPLICANT NEOPOINT, INC. EUT Type: Single-Band Single Mode PCS Phone (CDMA) Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.457 W EIRP PCS CDMA (26.598 dBm) Max. SAR Measurement: 1.45 mW/g PCS CDMA Head SAR; 1.160 mW/g PCS CDMA Body SAR Trade Name/Model(s): NEOPOINT NP-2500 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 200807399.N5W SAR Measurement Report FCC Part 24/22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-15 14.1 SAR TEST EQUIPMENT LIST 16 15.1 CONCLUSION 17 16.1 REFERENCES 18 Test Report S/N: SAR.200807399.N5W SAR Measurement Report Test Date(s): August 09-11, 2000 FCC Part 24 Certification NeoPoint FCC ID: N5WNP2XSBSM01 (Model: NP-2500) © 2000 PCTEST Lab Single-Band Single Mode PCS Phone (CDMA) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: NEOPOINT, INC. Address: 4225 Executive Square 7th Floor, LaJolla, CA 92037 Attention: Attention: Russell Gore • EUT Type: Single-Band Single Mode PCS Phone (CDMA) • Trade Name: NeoPoint • Model(s): NP-2500 • FCC IDENTIFIER: N5WNP2XSBSM01 • S/N: Pre-production • Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s): CDMA • FCC Rule Part(s): §2.1093, Docket 96-326 • Max. RF Output Power: 0.457W EIRP PCS CDMA (26.598 dBm) • Max. SAR Measurement: 1.450 mW/g PCS Head SAR; 1.160 mW/g PCS Body SAR • Antenna Type: Helical • Antenna Dimensions: 8.4 cm. (Length) • Dates of Tests: August 09-11, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.200807399.N5W 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200807399.N5W SAR Measurement Report Test Date(s): August 09-11, 2000 FCC Part 24 Certification NeoPoint FCC ID: N5WNP2XSBSM01 (Model: NP-2500) © 2000 PCTEST Lab Single-Band Single Mode PCS Phone (CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biolo…
Text truncated - open the document above for the full version.
NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.22 mW/g, SAR (10g): 0.659 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.5dBm Test Date -- 08-10-2000 SAR Tot [mW/g] 1.01E-1 3.02E-1 5.04E-1 7.06E-1 9.07E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.950 mW/g, SAR (10g): 0.523 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.5dBm Test Date -- 08-10-2000 SAR Tot [mW/g] 9.77E-2 2.93E-1 4.88E-1 6.84E-1 8.79E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.45 mW/g, SAR (10g): 0.755 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.5dBm Test Date -- 08-10-2000 SAR Tot [mW/g] 1.11E-1 3.32E-1 5.53E-1 7.74E-1 9.95E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.20 mW/g, SAR (10g): 0.661 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.5dBm Test Date -- 08-10-2000 SAR Tot [mW/g] 1.23E-1 3.70E-1 6.16E-1 8.62E-1 1.11E+0 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.637 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.1175 [1908.75MHz] Conducted Power = 24.5dBm Test Date -- 08-10-2000 SAR Tot [mW/g] 1.01E-1 3.04E-1 5.06E-1 7.08E-1 9.11E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.03 mW/g, SAR (10g): 0.565 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.1175 [1908.75MHz] Conducted Power = 24.5dBm Test Date -- 08-10-2000 SAR Tot [mW/g] 1.14E-1 3.43E-1 5.72E-1 8.01E-1 1.03E+0 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.460 mW/g, SAR (10g): 0.278 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to phone, no holster/beltclip Test Date -- 08-11-2000 SAR Tot [mW/g] 4.91E-2 1.47E-1 2.46E-1 3.44E-1 4.42E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.798 mW/g, SAR (10g): 0.444 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0025 [1851.25MHz] Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to phone, no holster/beltclip Test Date -- 08-11-2000 SAR Tot [mW/g] 5.97E-2 1.79E-1 2.98E-1 4.18E-1 5.37E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.489 mW/g, SAR (10g): 0.291 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to phone, no holster/beltclip Test Date -- 08-11-2000 SAR Tot [mW/g] 5.09E-2 1.53E-1 2.55E-1 3.56E-1 4.58E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.16 mW/g, SAR (10g): 0.640 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.0600 [1880.00MHz] Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to phone, no holster/beltclip Test Date -- 08-11-2000 SAR Tot [mW/g] 7.73E-2 2.32E-1 3.87E-1 5.41E-1 6.96E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.402 mW/g, SAR (10g): 0.242 mW/g NEOPOINT Single Band PCS Model: 2500 PCS Mode, Ch.1175 [1908.75MHz] Conducted Power = 24.5dBm; Spacing = 1.5cm from flat phantom to phone, no holster/beltclip Test Date -- 08-11-2000 SAR Tot [mW/g] 4.01E-2 1.20E-1 2.00E-1 2.81E-1 3.61E-1 PCTEST Engineering Laboratory, Inc. NEOPOINT FCC ID: N5WNP2XSBSMO1 -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parame…
Text truncated - open the document above for the full version.
© 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA) © 2000 PCTEST Lab FCC ID: N5WNP2XSBSM01 NVLAP Lab Code: 1004310 NeoPoint Single-Band Single Mode PCS Phone (CDMA)
FCC & Industry Canada Regulatory Compliance The NeoPoint 2500 is approved for use with CDMA IXRTT networks. This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your wireless hand-held portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and sends radio frequency (RF) signals. In August 1996, the FCC adopted RF exposure guidelines with safety levels for hand-held wireless phones. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable standards. A A CVarning! Unauthorized antennas, modifications, or attachments could impair call quality, drmxge the phone, or result in violation of FCC rele(ulaIions. Dn nnt use the phone with a dnmaged antenna. PlC~~sC conlact your local authorized NenPoint dealer for antennn replacement. Warning!IIODY-WORN OPERATION - This device was tested fat typical body-worn operations. ‘To comply with FCC Rl: exposure requirements, a minimum separation distance of (0.6) inches/(1.5) cm must be nysintained between the user’s body and a third part! belt-ciip/ holster. including the anterma, whether extended or retracted. Tbird- party belt-clips, bolsters, and similar accessories used by this device should not contain any metallic cnmpnnents. Body-worn accessories that do not meet these requirements may not comply with FCC RI<’ exposure limils and should bc avoided. NOTE:Read “Safety” on page xiv prior to using your NeoPoint 2500. NeoPoint 2500 User’s Guide
Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1370 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1370 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1370 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1370 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 0.00 0.50 1.00 1.50 2.00 2.50 020…
Text truncated - open the document above for the full version.
1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.4 mW/g, SAR (10g): 5.10 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 1.19E+0 3.42E+0 5.23E+0 7.27E+0 9.68E+0 PCTEST Engineering Laboratory, Inc. 1900MHZ Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.8 mW/g, SAR (10g): 5.43 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 1.51E+0 3.60E+0 6.12E+0 8.69E+0 1.27E+1 PCTEST Engineering Laboratory, Inc.
© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification NEOPOINT, INC. Dates of Tests: August 09-11, 2000 4225 Executive Square Test Report S/N: 24.200807405.N5W 7th Floor, La Jolla, CA 92037 Test Site: PCTEST Lab, Columbia MD USA Attention: Russell Gore FCC ID N5WNP2XSBSM01 APPLICANT NEOPOINT, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Band Single Mode PCS CDMA Phone Trade Name/Model(s): NEOPOINT NP-2500 Frequency Range: Tx: 1851.25 – 1908.75MHz (PCS CDMA) Rx: 1931.25 – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.457 Watts EIRP (26.598 dBm) Max. SAR Measurement: 1.45 mW/g PCS CDMA Head SAR; 1.160 mW/g PCS CDMA Body SAR Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value…
Text truncated - open the document above for the full version.
6660-B Dobbin Road · Columbia, Maryland · United States
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 24 | 1.85 GHz - 1.91 GHz | 457.00 mW | 1M25F9W | 2.5000000000 ppm |

Dual-Band Analog/PCS Phone (Amps/CDMA)
Equipment Class
PCE - PCS Licensed Transmitter held to ear
Single-Mode Cellular CDMA Phone
Equipment Class
TNE - Licensed Non-Broadcast Transmitter Held to Ear
Dual Mode 800 MHz Phone AMPS/CDMA
Equipment Class
TNE - Licensed Non-Broadcast Transmitter Held to Ear
SINGLE BAND PCS CDMA PHONE
Equipment Class
PCE - PCS Licensed Transmitter held to ear
