N5ZDN308RUHF Wireless Remote Controller

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 AT TA CH MEN T E. - USER’S MANUAL REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 Service Manual (DN-308R) Table of Contents The Description of Product with Remote controller 1. Description 2. Control and Function 3. Operating Instructions 4. General Specification 5. Transmitter Specifications 6. Theory of Operation m Rev 1.0 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 Federal Communications Commission Requirements Warning : Changes or modifications not expressly approved by the party responsible for compliance with the FCC’S rules could void the user's authority to operate the equipment. Because of the limited space on the model DN-308R UHF Wireless Remote Controller case, the notice of compliance with FCC Rules is printed here Dyne Telecom Co., Ltd FCC ID : N5ZDN308R THIS DEVICE COMPLIES WITH PARTS 15 OF FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 1. Description The Remote Controller of the DN-308R is the UHF Wireless Remote Controller that can wireless trans control the Recording and Stop Functions. It is very handiness operate remote controller. 2. Control and Function - REC : Recording Start - STOP : Recording Stop 3. Operating Instructions To Record the Voice with Wireless Remote Controller : To Start the Recording : Press the “REC” key once. To Stop the Recording : Press the “STOP” key once(After Recording the unit will be turn off automatically in one Min). 4. General Specifications Temperature Range -20 °C ~ +60°C Frequency Error ±30 ppm Voltage Range 2.7V ~ 3.6V Channel No 1 Ch Max Deviation ±15KHz REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 5. Transmitter Specifications Output Power Max 1mW (ERP) Frequency Band 315.16MHz Modulation Type FSK Frequency Deviation ±15KHz Maximum Bit Rate 20Kbit/s Transmitt supply Current Max 20mA Antenna Type 50Ω Helical ANT Weight 15g (With Battery) 6. Theory of Operation 6-1. CPU & Key Control The unit always supply the power to the IC2(CPU). During Sleep Mode, user can Switch the unit mode from the Sleep Mode to Active Mode by pressing “REC” or “STOP” Key. CPU’s 2pin may change the condition from “L” to “H” by pressing “REC” Key, also the ‘LED1’ will be Turn On Mode for a moments. On this Moments, the DATA-IN(3pin) of the CPU will output the Recording Code/Stop Code Data. 6-2. RF Tranceiver The 19pin of the IC1 is the Pin that can select the Transmit/Receive Mode. It always support “H” condition to Transmit. 18pin of the IC1 may supply the Transmit Power to the unit when it switched to “H” condition by 2pin of the IC2. 6-3. Modulation After inputting the fixed REC/STOP code from 3pin of IC2 into the 9pin of IC, the data should approve the Loop Filter of the PLL to Modulate the FSK method. REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 6-4. VCO(voltage Control Oscillator) The L1, C19’s L/C OSC will activate to 300MHz Frequency by 5&6pin of IC1. The VCO will lock to Frequency 315.15MHz by IC1’s internal PLL. Upgrade the Frequency Quality by using High Frequency Inductor. 6-5. PLL Frequency Synthesizer The Phase Comparator, Lock Detector and Oscillator are built-in inside of IC1. The 1&20pin of IC1 may OSC by X-Tal Oscillator(4MHz) to active the R-Counter. Load Cap C1, C2 may support safe Frequency activating. The structure of C6, R9 and C7 may minimize the Phase Noise for smooth Data Transfer. 6-6. Power Amplifier The Level of the output power may decided by R2 what connected with 11pin of IC1. The RF Low Noise TR built inside of IC1 and it covers the level until max 10dBm@400Ω. 6-7. ANT Matching The impedance of the Power AMP of IC1 is 400Ω.The Impedance of the Helical ANT matched with 50Ω by L2, C11.Matching 50Ω can maximize the Output Power Lever.

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

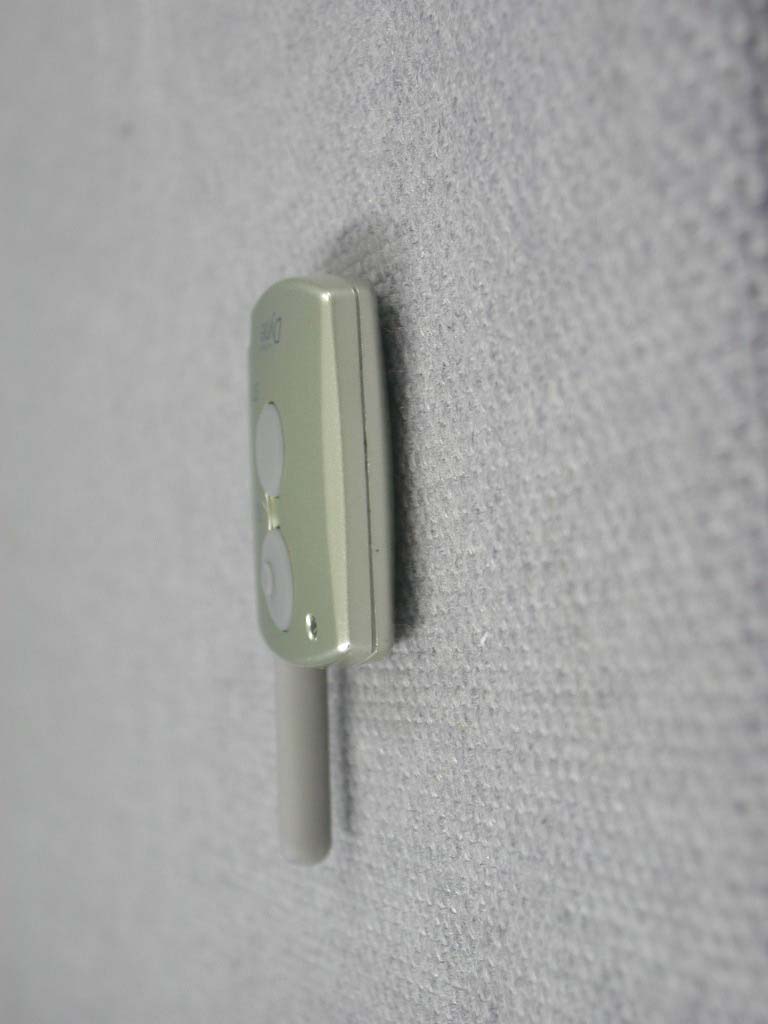

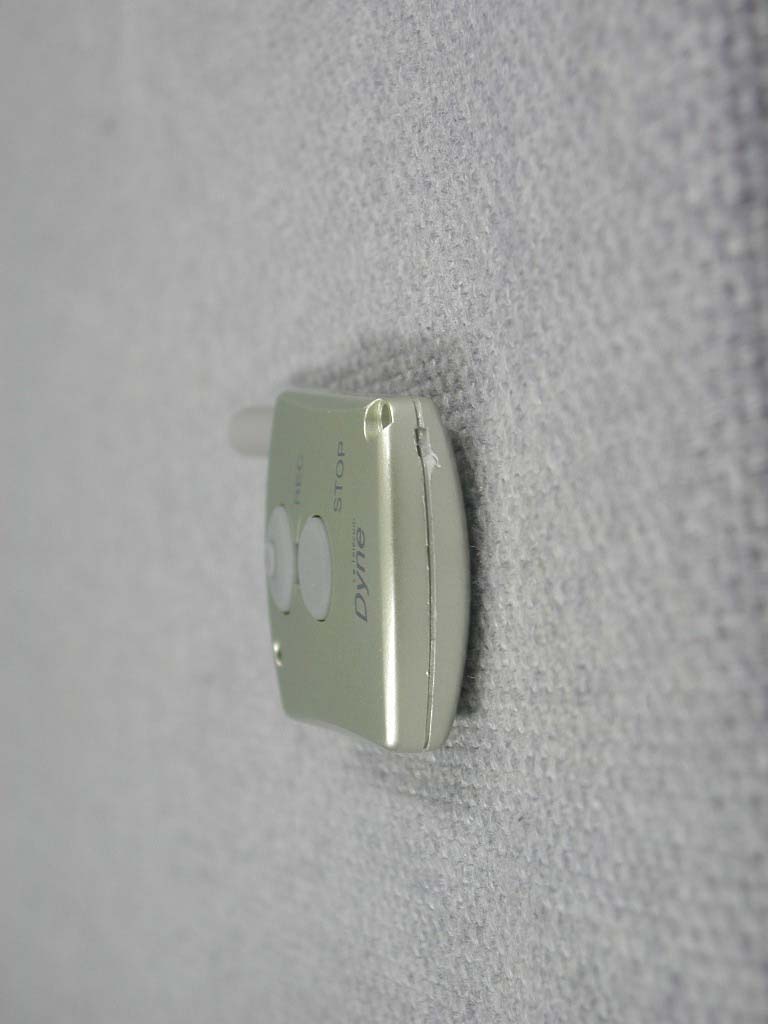

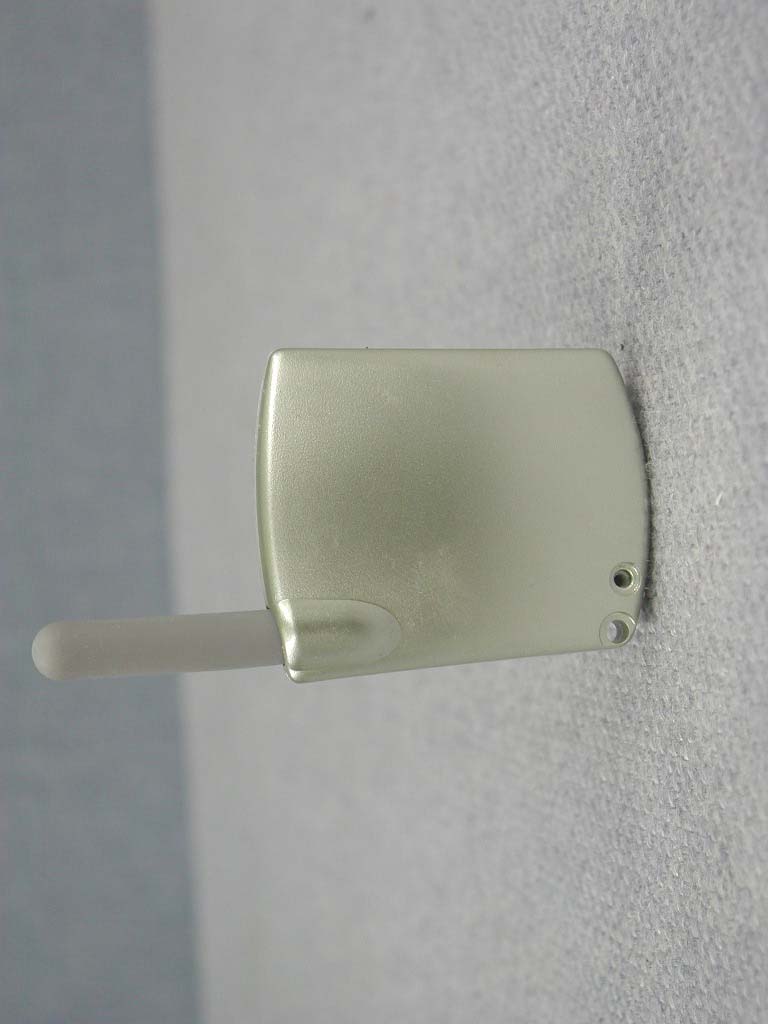

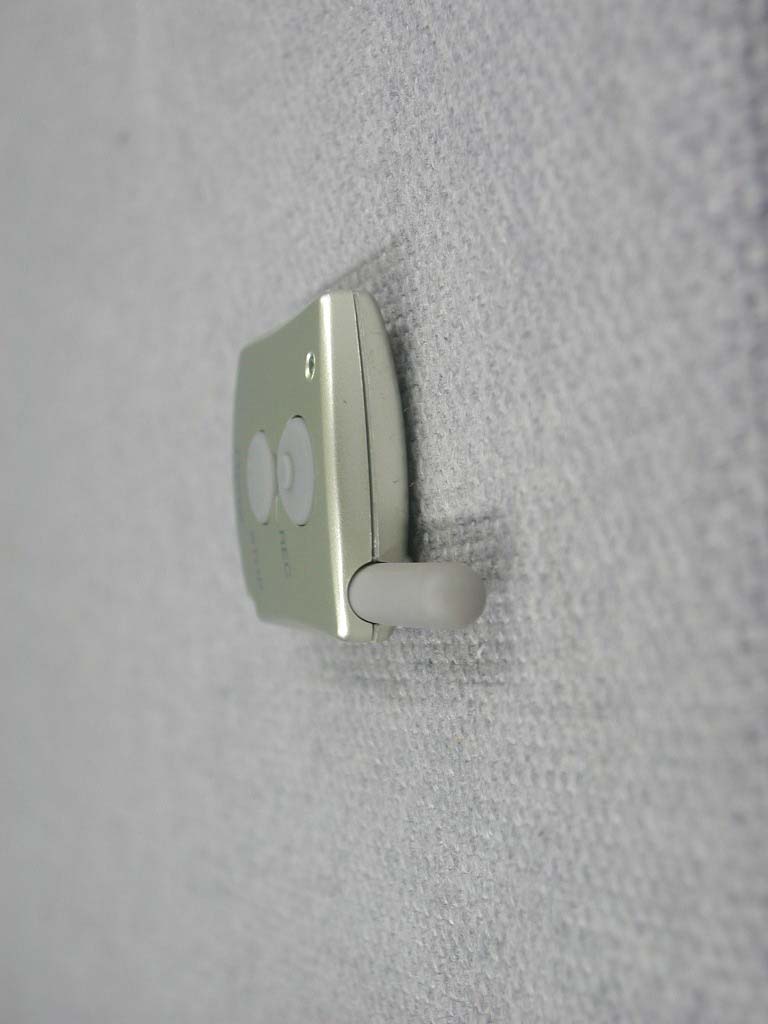

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 AT TA CH MEN T B. - EXTERNAL PHOTOS REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1.1 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) (SEE NEXT PAGE) REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Model NO : DN-308R POWER : DC 3.0 VDC FCC ID : N5ZDN308R Serial No : This device complies with part 15 of the FCC Rules Operation is subject the following two conditions : (1) This device may not cause harmful interference , and (2) This device must accept any interference received, Including interference that may cause undesired operation. MANUFACTURED BY Dyne Telecom CO., LTD. MADE IN KOREA Dyne Telecom

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 ATTACHMENT F. - INTERNAL PHOTOS REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 ATTACHMENT H. - Operational Description REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CIRCUIT DESCRIPTION 1. Power section(IC4,Q7,8) will be operated and checked the battery voltage from IC1(KS88C2148) when battery power is supplied. 2. If the Battery power is checked normally, Memory(IC2,3) and DSP(IC4) is initialized. 3. After checking of memory & DSP, Back-light is turned on and 'SYSTEM START' message is displayed on LCD. And also, the data saved in memory will be read by CPU and displayed on LCD. - At this time, the main clock of CPU is X1(6MHz) and Sub clocks for Display and save mode are X2(32.768KHz). 4. At stand-by status, REC-CNT(Q5,6) is run and REC Indicator LED is turned on if S1(REC/STOP) is turned on. - When recording starts, MIC related circuit is run and the voice signal will be amplified by IC1(NJM2100V) and AGC circuit (Q4,D1,D4). And then the amplified signal is input to A/D convector of IC3(MSM7702). The data converted by IC3(MSM7702) will be saved in memory through IC4(D6571E) & IC1(KS88C2148). 5. If you turn off S1, REC-CNT is OFF and changed to stand-by status. 6. If S2(PLAY/STOP) is on, SPK-CNT(Q5,6) is turned on. Then the data saved in Memory is read and out-put through speaker by IC2(NJM2113R) after D/A converted through DSP(IC4) and IC3. 7. RF related Operation: - IC1 read the data received from ANT(pin15,16) Port of IC6(nRF403) and ON/OFF the REC. 8. If one minute is passed at stand-by status, the unit is changed to save mode and CPU turns off the LCD At save mode, the power supply is run by VCC(IC4) only and IC1(KS88C2148) is run by X2 instead of X1. At this time, IC1 frequently check the Key in-put and data of IC6.

REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT C. - BLOCK/CIRCUIT DIAGRAM REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE TEAM SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CERTIFICATION FCC Rule Part(s): FCC Part 15.231 Subpart C Equipment Class: Low Power Communication Device Transmitter(DXX) Frequency Range: 1 ch , UHF Wireless Remote Controller 315.16MHz Standard(s): FCC Class B: 2001 Equipment(EUT) Type: UHF Wireless Remote Controller Model(s): DN-308R The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992.(See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HYUNDAI C-Tech. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse of 1988,21 U.S.C.853(a). Report prepared by : Ki-Soo Kim Manager of EMC Tech. Part  HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. EMC LAB.  N5ZDN308R Dyne Telecom Co., Ltd. Manufacture; Dyne Telecom Co., Ltd. #3 Chungyoung B/D1123-1, Kwanyang-2dong, Dongan-gu, Anyang-city, Kyungki-do, Korea 431-062. Dyne Telecom FRN : 0007-9085-51 Date of Issue: NOVEMBER 13, 2002 Test Report No.: HCT-F02-1105 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. HCT FRN : 0005-8664-21 FCC ID : APPLICANT : REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION........................................................................................ 1.1 Product Description........................................................................................... 1.2 Related submittal(s)/Grant(s).......................................................................... . 1.3 Tested System Details........................................................................................ 1.4 Test Methodology.............................................................................................. 1.5 Test Facility..................................................................................................... 2. SYSTEM TEST CONFIGURATION............................................................................. 2.1 Justification...................................................................................................... 2.2 EUT Exercise Software..................................................................................... 2.3 Cable Description............................................................................................. 2.4 Noise Suppression Parts on Cable..................................................................... 2.5 Equipment Modifications................................................................................. 2.6 Configuration of Tested System......................................................................... 3. PRELMINARY TESTS................................................................................... 3.1 Radiated Emission Test........................................................................... 4. OCCUPIED BANDWIDTH TEST SUMMARY..................................................... 4.1 Occupied bandwidth (Part 15.231).............................................................. 5. TRANSMISSION REQUIREMENT................................................................... 5.1 Transmission Requirement (Part 15.231)...................................................... 6. RADIATED EMISSION TESTS SUMMARY....................................................... 6.1 Radiated Emissions(1)-Fundamental and Spurious Emission............................. 6.2 Radiated Emissions(2) - Out of restricted band Emission.................................. 6.3 Antenna Requirement (Part 15.203 Subpart C).............................................. 7. FIELD STRENGTH CALCULATION........................................................................... 8. LIST OF TEST EQUIPMENT ..................................................................................... ATTACHMENT A ......................................................ID Label / Location Info. ATTACHMENT B.......................................................External Photos. ATTACHMENT C ......................................................Block/Circuit Diagram. ATTACHMENT D ......................................................Test Setup Photos. ATTACHMENT E ......................................................User’s Manual. ATTACHMENT F ......................................................Internal Photos. ATTACHMENT G......................................................Part List. ATTACHMENT H......................................................Operational Description. ATTACHMENT I........................................................Test Plot(S)-1. ATTACHMENT J........................................................Test Plot(S)-2. 2 3 3 3 4 4 4 5 5 5 6 6 7 8 8 9 9 10 10 11 12 13 14 15 16 REPORT NO : HCT-F02-1105 FCC ID :N5ZDN308R NOVEMBER 13, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1. GENERAL INFORMATION 1.1 Product Description The Dyne Telecom. Co., Ltd. Model DN-308R (referred to as the EUT in this report) is a UHF Wireless Remote Control…
