N73-ET33ET33 Tag

Mine Site Technologies Pty Ltd ET33 tag use’s manual version number： V1.0 Mine Site Technologies Pty Ltd 1 Mine Site Technologies Pty Ltd Table of Contents Statement................................................................................. 3 General Information................................................................... 3 Physical map ............................................................................ 4 Component function.................................................................. 4 Performance index..................................................................... 5 Accessories................................................................................ 6 General attention....................................................................... 6 Warranty conditions................................................................... 7 FCC Statement ...........................................................................................8 2 Mine Site Technologies Pty Ltd Statement Thank you for using this electronic product of our company. In order to let you experience the product swimmingly, detailed instruction is provided which you can find the product’s introduction, usage and other information. Before using this product, please read the manual carefully, so that you can correctly use it. In case of any printing or translation error, we apologize for the inconvenience. As for the content change, we are sorry for no further notice. General Information The Mine Site Technologies ET33 tag is a radio frequency indentification module operating at 2.4GHz. The AL2236 IC of Airoha Technologu Corp and MSP430 microcontroller unit are working together, realizing the carrier arising,signal amplify,data modulation,demodulation and decoding. Radio-frequency mode in the reader and ET33 Rf tag no contact between the bidirectional data transmission, in order to achieve target recognition and data exchange. And the tradition of code, magnetic and IC card, compared with non-contact, RF card reading speed, wear, not by environmental impact, long life, easy to use and has the characteristics of anti-collision function. ET33 tag is mainly used for 3 Mine Site Technologies Pty Ltd container port. Physical map ET33 Tag physical map as follows. Component function  LED light：After press button and low voltage alarm.  Button：Alarm. 4 Mine Site Technologies Pty Ltd Performance index Mechanical Structure Index Item Name Specific parameters 1 Size 124mm X 57mm X 28mm 2 Weight 124g Electrical Performance Index Item Name Specific parameters 1 Power supply Battery 2 Rated voltage DC 3.0V～4.2V 3 Working frequency Transmitter frequency:2.4GHz; Receive frequency:125KHz 4 Communication protocol IEEE 802.11b 5 Transmitter frequency Adjust 6 Low voltage alarm ≤3.05V Environment Index Item Name Specific parameters 1 Operating temperature. -25°C～+60°C 2 Anti-static grade Air discharge：8000V 5 Mine Site Technologies Pty Ltd Accessories 1. Tag. 2. A set of Use’s Manual & warranty card. General attention 1.To avoid degaussing, please keep the tag away from the magnetic materials, such as disk, credit cards, etc., to ensure that the tag is not contact with any liquid. Do not bump,shake or throw the tag in case of malfunction or lighting a fire. Do not put tag on microwave oven or high-tension apparatus to avoid circuit damage and fire accident. Do not use under flammable and explosive gas in case of malfunction or lighting a fire. Do not put it on uneven or unstable surfaces to avoid falling off or breakdown. 2. ET33 Tag use disposable batteries.Can’t recharge. You can replace if the battery capacity is insufficient. Use the battery appointed by the company. Other production may cause battery leakage, overheating, explosions and lighting a fire. 6 Mine Site Technologies Pty Ltd Warranty conditions For any defect, in the judgment of our technician, caused under normal use, we are responsible for repairing free of tages one year commencing from the date of purchase at the discretion of our company. A valid warranty card and original purchase invoice must be presented upon request of warranty service. This warranty card shall not apply to the product if (1) It has explicitly modified or repaired in any wan by persons other than technicians of this company, or (2) It has been damaged through misuse, malicious acts, negligence, and inflow of any liquid, accident or natural calamities. No alteration to this warranty card will be allowed The warranty terms and conditions will be subjected to change with prior notice. Please retain you proof of purchase for warranty service. 7 Mine Site Technologies Pty Ltd FCC Statement This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to part 15 of the FCC Rules . These limits are designed to provide reasonable protection again st harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is n o guarantee that interference will not occur in a particular installatio n. If this equipment does cause harmful interference to radio or tel evision reception, which can be determined by turning the equipme nt off and on, the user is encouraged to try to correct the interferen ce by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 8 Mine Site Technologies Pty Ltd — Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth f or an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This …

Text truncated - open the document above for the full version.

Project No.: 1501C132 Page 2 of 6

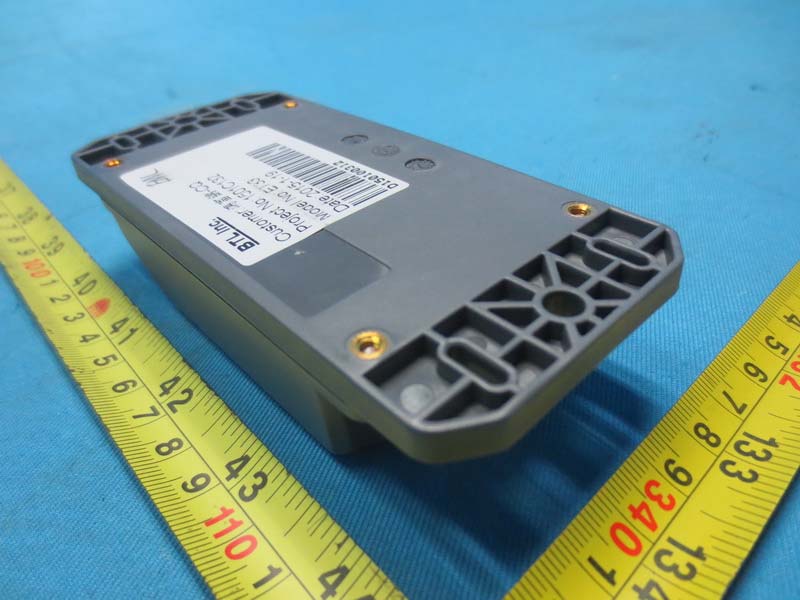

Label location

Project No.: 1501C132 Page 3 of 6 Project No.: 1501C132 Page 4 of 6 Project No.: 1501C132 Page 5 of 6 Project No.: 1501C132 Page 6 of 6

FCC RF EXPOSURE REPORT FCC ID: N73-ET33 Project No. : 1501C132 Equipment : ET33 Tag Model : ET33 Applicant : Mine Site Technologies Pty Ltd. Address : 113 Wicks Road, North Ryde,New South Wales 2113, Australia According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type ConnectorGain(dBi) Note 1 RainSun AN9520-245 Chip N/A 1.30 TX/RX TEST RESULTS EUT： ET33 Tag Model Name : ET33 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.30 1.3490 21.39 137.7209 0.036978591 Complies 1.30 1.3490 21.27 133.9677 0.035970821 Complies 1.30 1.3490 20.87 122.1800 0.032805781 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1501C132 Page 1 of 63 FCC Radio Test Report FCC ID: N73-ET33 This report concerns (check one): Original Grant Class II Change Project No. : 1501C132 Equipment : ET33 Tag Model Name : ET33 Applicant : Mine Site Technologies Pty Ltd. Address : 113 Wicks Road, North Ryde,New South Wales 2113, Australia Date of Receipt : Jan. 19, 2015 Date of Test : Jan. 19, 2015 ~ Apr. 22, 2015 Issued Date : Apr. 23, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1501C132 Page 2 of 63 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unl ess the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1501C132 Page 3 of 63 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FCCP-1-1501C132 Page 4 of 63 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 29 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 30 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 32 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 39 ATTACHMENT E - BANDWIDTH 52 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 55 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 57 ATTACHMENT H - POWER SPECTRAL DENSITY 61 Report No.: BTL-FCCP-1-1501C132 Page 5 of 63 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1501C132 Original Issue. Apr. 23, 2015 Report No.: BTL-FCCP-1-1501C132 Page 6 of 63 1. CERTIFICATION Equipment : ET33 Tag Brand Name : MST Model Name : ET33 Applicant : Mine Site Technologies Pty Ltd. Manufacturer : Mine Site Technologies China Co., Ltd. Address : 4F Building-1 1413 Moganshan Road, Hangzhou, CHINA Factory : Mine Site Technologies China Co., Ltd. Address : 4F Building-1 1413 Moganshan Road, Hangzhou, CHINA Date of Test : Jan. 19, 2015 ~ Apr. 22, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2014 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found is compliant with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1501C132) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1501C132 Page 7 of 63 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2014 Standard(s) Section Test Ite…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1501C132 Page 26 of 63 10. EUT TEST PHOTO Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1501C132 Page 27 of 63 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1501C132 Page 28 of 63 Radiated Measurement Photos Above 1000MHz
