N73-MP70G2Mine Phone

Mine Site Technologies Pty Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 26, 2016
Application Purpose: Original Equipment
Date of Application: Jan 26, 2016
Equipment Note: Mine Phone
Frequency Range: 2412.00000000 - 2462.00000000
Company: Mine Site Technologies Pty Ltd
Country: Australia

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

�� …

Text truncated - open the document above for the full version.

Cover Letter(s)

[Mine Site Technologies Pty Ltd] FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameMine Site Technologies Pty Ltd Address113 Wicks Road CityNorth Ryde NSW 2113 CountryAustralia request for this certification filing under: Grantee CodeProduct Number FCC ID:N73-MP70G2 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription vOperational DescriptionOperational Description.pdfexplaining the functioning of the block diagram vBlock DiagramsMP70 Block diagram.pdfshowing the systematic building blocks of the EUT vSchematics DiagramsSchematics.pdf; RF chip AR6103G.pdfshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) North Ryde,NSW AUSTRALIA 2015-11-10paul.jukesHardware engineer

Cover Letter(s)

[Mine Site Technologies Pty Ltd] FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Mine Site Technologies Pty Ltd Address 113 Wicks Road City North Ryde NSW 2113 Country Australia declare that the following representative (agent): Name (person) Tony Wu Company name Shenzhen Hongcai Testing Technology Co., Ltd. Address 1st-3rd Floor,Building C,Shuanghuan Xin Yi Dai Hi-Tech Industrial Park,No.8 Baoqing Road, Baolong Industrial Zone,Longgang District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Mine Phone Type or Model(s) MP70 Tradename or Brand(s) MINE SITE TECHNOLOGIES We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) North Ryde,NSW AUSTRALIA 2015-11-10 paul.jukes Hardware engineer

Cover Letter(s)

[Mine Site Technologies Pty Ltd] FCC Ad-Hoc Declaration Number: CF308 Version: V02 Date: 01-08-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Ad Hoc Mode Function Declaration Hereby, we: (the applicant company) Company Name Mine Site Technologies Pty Ltd Address: 113 Wicks Road Postal/Zip: 2113 City: North Ryde State/Province:NSWCountry:Australia declare that this device identified by: Grantee Code (CG)Product Code FCC ID:N73-MP70G2 is operating in the 2.4 GHz band with 11 channels from 2412 – 2462 MHz in 11b or 11g mode only. 11n mode is not implemented and not supported by the device. Regarding Ad Hoc or Hot Spot mode, this device is not capable to operate outside any of these FCC certified channels. (Attestation) (the applicant company or its authorized representative) City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2015-12-18Mark Koop (authorized) Manager

External Photos

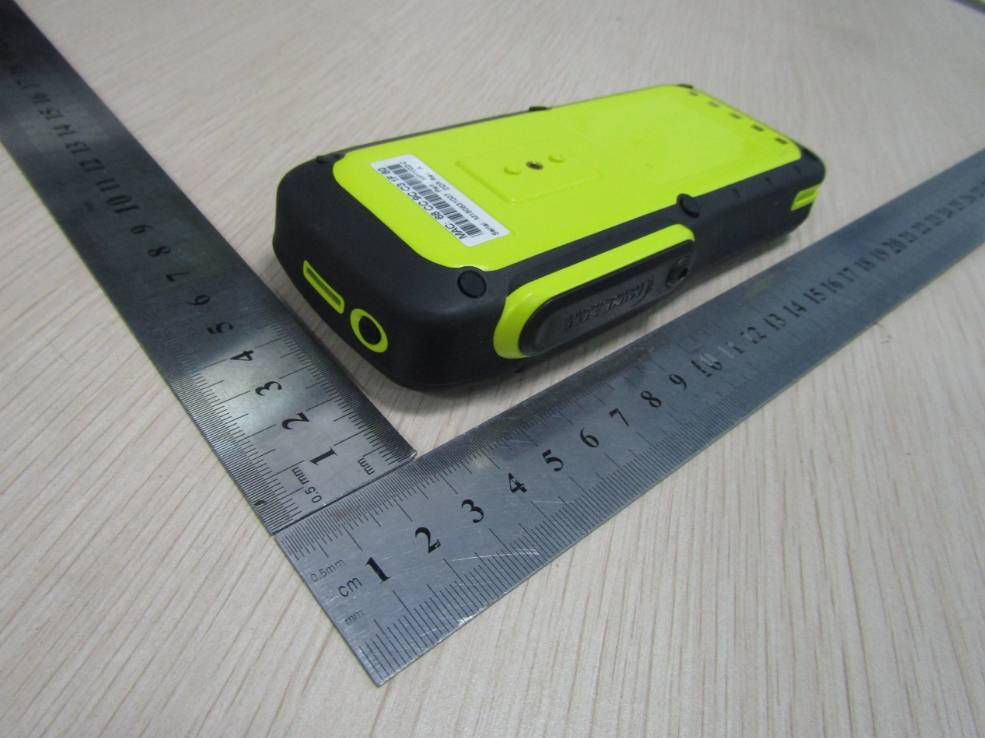

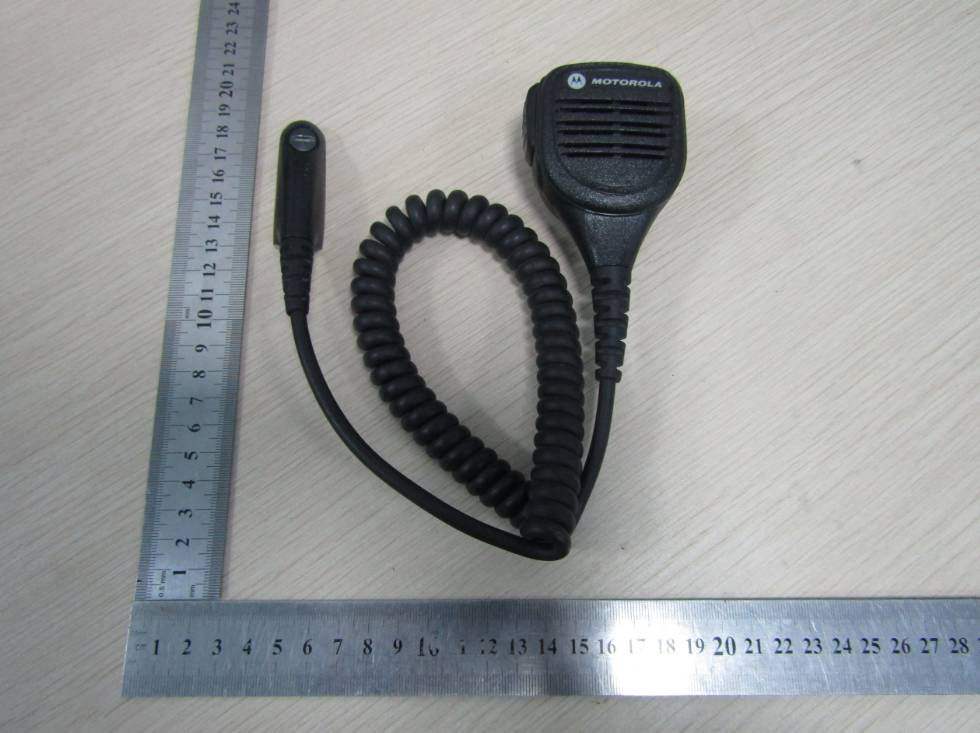

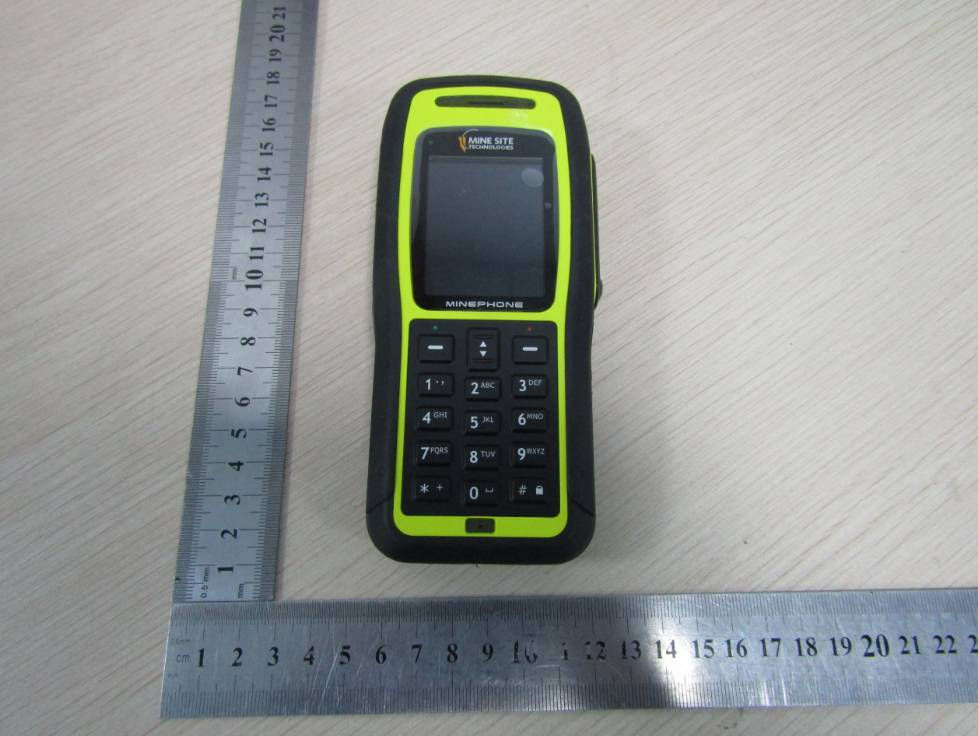

FCC-ID: N73-MP70G2 / IC Registration No.: 7449B-MP70G2 EUT EXTERNAL PHOTOGRAPHS EUT- View EUT- Front View EUT- Rear View EUT- Side View EUT- Side View EUT- Side View EUT- Side View EUT- Microphone View EUT- Microphone View EUT- Adapter front View EUT- Adapter rear View EUT- Adapter front View EUT- Adapter rear View

ID Label/Location Info

FCC-ID: N73-MP70G2 / IC Registration No.: 7449B-MP70G2 Label and Label Location

Internal Photos

EUT INTERNAL PHOTOGRAPHS EUT –Uncovered View EUT– PCB View Antenna location EUT– PCB View EUT– Battery View

Parts List/Tune Up Info

Tune Up values

RF Exposure Info

Shenzhen Hongcai Testing Technology Co., Ltd. Report No.: HCT15KR073E-1 SAR TEST REPORT Report Reference No. .................... : FCC ID. ............................................ : HCT15KR073E-1 N73-MP70G2 IC ID. ................................................ : 7449B-MP70G2 Compiled by ( position+printed name+signature) . : File administrators Martin Ao Supervised by ( position+printed name+signature) . : Test Engineer Martin Ao Approved by ( position+printed name+signature) . : Manager Tony Wu Date of issue .................................... : Nov. 10, 2015 Representative Laboratory Name .... : Shenzhen Hongcai Testing Technology Co., Ltd. Address ............................................ : 1st-3rd Floor, Building C, Shuanghuan Xin Yi Dai Hi-Tech Industrial Park, No.8 Baoqing Road, Baolong Industrial Zone, Longgang District, Shenzhen, Guangdong, China Testing Laboratory Name ................ : SHENZHEN YIDAJIETONG INFORMATION TECHNOLOGY CO., LTD Address ............................................ : No.12 Building Shangsha, Innovation & Technology Park, Futian District, Shenzhen, P.R.China Applicant’s name ........................... : Mine Site Technologies Pty Ltd. Address ............................................ : 113, Wicks Road, North Ryde, NSW 2113, AUSTRALIA Test specification ............................. : Standard .......................................... : ANSI C95.3 47CFR §2.1093 RSS-102 Issue 5 TRF Originator ................................. : Shenzhen Hongcai Testing Technology Co., Ltd. Shenzhen Hongcai Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Hongcai Testing Technology Co., Ltd. as copyright owner and source of the material. Shenzhen Hongcai Testing Technology Co., Ltd. takess no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mine Phone Trade Mark ....................................... : MINE SITE TECHNOLOGIES Manufacturer .................................. : Mine Site Technologies China Co. Ltd Model/Type reference ...................... : MP70 Listed Models .................................. : / Operation Frequency ........................ WLAN 2.4G Modulation Type ............................... WIFI(DSSS,OFDM) Hardware version ............................. : MP70_Main_PCB_F. Software version ............................. : 2.6.0.0. Power Rating ................................... : Internal 3.7V Li-ion Battery Result ............................................... : PASS Page 2 of 65 Report No.: HCT15KR073E-1 T E S T R E P O R T Test Report No. : HCT15KR073E-1 Nov 10, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mine Phone Model /Type : MP70 Listed Models : N/A Applicant : Mine Site Technologies Pty Ltd. Address : 113, Wicks Road, North Ryde, NSW 2113, AUSTRALIA Manufacturer : Mine Site Technologies China Co. Ltd Address : 4F Building-1 1413 Moganshan Road, Hangzhou, CHINA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 3 of 65 Report No.: HCT15KR073E-1 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Statement of Compliance 5 3. TEST ENVIRONMENT 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 6 3.4. SAR Limits 6 3.5. Equipments Used during the Test 7 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 8 4.1. SAR Measurement Set-up 8 4.2. DASY4 E-field Probe System 9 4.3. Phantoms 10 4.4. Device Holder 10 4.5. Scanning Procedure 11 4.6. Data Storage and Evaluation 13 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 14 4.8. Tissue equivalent liquid properties 14 4.9. System Check 15 4.10. SAR measurement procedure 16 5. TEST CONDITIONS AND RESULTS 19 5.1. Conducted Power Results 19 5.2. Transmit Antennas and SAR Measurement Position 21 5.3. SAR Measurement Results 22 5.4. Measurement Uncertainty (300MHz-3GHz) 23 5.5. System Check Results 26 5.6. SAR Test Graph Results 29 6. CALIBRATION CERTIFICATE 40 6.1. Probe Calibration Certificate 40 6.2. D2450V2 Dipole Calibration Ceriticate 51 6.3. DAE4 Calibration Certificate 59 7. TEST SETUP PHOTOS 62 Page 4 of 65 Report No.: HCT15KR073E-1 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. IEEE C95.3-2002: IEEE recommended practice for measurements and computations of radio frequency electromagnetic fields with respect to human exposure to such fields, 100 kHz-300 GHz. IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 5-2015: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) FCC Part 2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices KDB447498 D01 General RF Exposure Guidance v06 : Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB648474 D04, Handset SAR v01r03 : SAR Evaluation Considerations for Wireless Handsets KDB865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 : SAR Measurement Requirements for 100 MHz to 6 GHz KDB865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documen…

Text truncated - open the document above for the full version.

Test Report

Test Report of FCC CFR 47 Part 15 Subpart C and Industry Canada RSS-247 Issue 1 On Behalf of Mine Site Technologies Pty Ltd. 113, Wicks Road, North Ryde, NSW 2113, AUSTRALIA Product Name: Mine Phone Model/Type No.: MP70 Trade Name: MINE SITE TECHNOLOGIES FCC ID: N73-MP70G2 IC Registration No.: 7449B-MP70G2 Prepared By: Shenzhen Hongcai Testing Technology Co., Ltd. 1st-3rd Floor, Building C, Shuanghuan Xin Yi Dai Hi-Tech Industrial Park, No.8 Baoqing Road, Baolong Industrial Zone, Longgang District, Shenzhen, Guangdong, China Tel: +86-755-86337020 Fax:+86-755-86337028 Report Number: HCT15IR-0942E Tested Date: November 2 ～ November 19, 2015 Issued Date: November 19, 2015 Tested By: Jiankuai Li/ Reviewed By: Approved By: Owen.Yang EMC Technical Supervisor Tony Wu EMC Technical Manager Report No.: HCT15KR073E Page 2 of 54 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................... 4 1.2 TEST STANDARDS .............................................................................................................................. 5 1.3 TEST FACILITY ................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ....................................................................................................... 6 2.1 EUT CONFIGURATION ........................................................................................................................ 6 2.2 EUT EXERCISE ................................................................................................................................. 6 2.3 GENERAL TEST PROCEDURES............................................................................................................. 6 2.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 6 2.5 MEASURE RESULTS EXPLANATION EXAMPLE ........................................................................................ 7 2.6 LIST OF MEASURING EQUIPMENTS USED .............................................................................................. 7 3. SUMMARY OF TEST RESULTS .......................................................................................................... 8 4. TEST OF AC POWER LINE CONDUCTED EMISSION ........................................................................ 9 4.1 APPLICABLE STANDARD ...................................................................................................................... 9 4.2 TEST SETUP DIAGRAM ....................................................................................................................... 9 4.3 TEST RESULT .................................................................................................................................... 9 5. OUTPUT POWER MEASUREMENT .................................................................................................. 12 5.1 APPLICABLE STANDARD .................................................................................................................... 12 5.2 EUT SETUP .................................................................................................................................... 12 5.3 TEST EQUIPMENT LIST AND DETAILS .................................................................................................. 12 5.4 TEST PROCEDURE ........................................................................................................................... 12 5.5 TEST RESULT .................................................................................................................................. 13 6. TEST OF PEAK POWER SPECTRAL DENSITY ................................................................................ 14 6.1 APPLICABLE STANDARD .................................................................................................................... 14 6.2 EUT SETUP .................................................................................................................................... 14 6.3 TEST EQUIPMENT LIST AND DETAILS .................................................................................................. 14 6.4 TEST PROCEDURE ........................................................................................................................... 14 6.5 TEST RESULT .................................................................................................................................. 15 7. TEST OF 6DB BANDWIDTH .............................................................................................................. 20 7.1 APPLICABLE STANDARD .................................................................................................................... 20 7.2 EUT SETUP .................................................................................................................................... 20 7.3 TEST EQUIPMENT LIST AND DETAILS .................................................................................................. 20 7.4 TEST PROCEDURE ........................................................................................................................... 20 7.5 TEST RESULT .................................................................................................................................. 21 8. TEST OF CONDUCTED SPURIOUS EMISSION ................................................................................ 26 8.1 APPLICABLE STANDARD .................................................................................................................... 26 8.2 EUT SETUP ................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC-ID: N73-MP70G2 / IC Registration No.: 7449B-MP70G2 TEST SETUP PHOTOGRAPHS Radiated emission below 30MHz Radiated emission 30MHz~1GHz Radiated emission Above 1GHz Conducted Emission Conducted measurement 1). all conducted measurements use this temporarily connector 2). example of PSD measuremnt

Contact Information

Applicant

Vadim Parfenov(Chief Technology Officer)

[email protected]+61294916553Fax: +61298708270

Test Firm

Shenzhen CTL Testing Technology Co., Ltd.Tracy Qi

[email protected]86-755-89486194

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	133.40 mW

Confidentiality

Long Term

Grant Notes

Output power listed is peak conducted. his device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. SAR compliance for body-worn operating conditions is restricted to belt clips as described in this filing or belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1cm separation distance between the device and the users body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are � Head: 0.267 W/kg; Body-worn: 0.096 W/kg.
