WRN BLE Module User Manual Features: Bluetooth® 5, IEEE 802.15.4-2006, 2.4 GHz transceiver. LED for user interaction. Support SEGGER J-Link debug interface. CE/FCC/IC compliant. Hardware Specifications: Bluetooth 5.0 Low Energy Standard: IEEE 802.15.4 Frequency Band: 2.402GHz to 2.480GHz CH: 0~39 Frequency Spacing: 1MHz Supported data rates: 1 Mbps Power: DC 3.3V Transmit Power: -40 to +10 dBm Receiver Sensitivity: -95 dBm sensitivity in 1 Mbps Bluetooth® low energy mode Antenna: MMCX connector *1 CPU: ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz Working Temperature: -20 ~ 70°C Storage Humidity ： 10% ~ 90% Software Specifications: Beacon Transmit Configuration: Configure iBeacon/Eddy stone / customized Beacon. Beacon Scan Scan and receive BLE beacons. Specification Table Item Description Type BLE Module Size（mm） 28.5 mm * 26.4mm Weight（g） ＜5 g Power Supply DC 3.3V Antenna 1 external antenna Bluetooth Port Bluetooth 5.0 Low Energy User interface J-Link Working Temperature ‐20 C ~ 70 °C BLE Module Outward Number Description 1 J-Link Interface 2 LED 3 Antenna Connecter 4 RF Debug Connector 5 Shield Can 6 External Interface Final Product Sample Example Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ⚫ Reorient or relocate the receiving antenna. ⚫ Increase the separation between the equipment and receiver. ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la norme RSS d'Industrie Canada. Son fonctionnementestsujet aux deux conditions suivantes: (1) ledispositif ne doit pas produire de brouillagepréjudiciable, et (2) cedispositifdoit accepter tout brouillagereçu, y compris un brouillage susceptible de provoquer un fonctionnementindésirable. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Déclarationd'exposition aux radiations: Cetéquipementestconforme aux limitesd'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cetéquipementdoitêtreinstallé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. Federal Communications Commission (FCC) Interference Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. The host must meet the necessary requirements to satisfy the module limiting conditions: shield and power supply regulation. The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring the end user has no manual instructions to remove or install module. Regulatory Module Integration Instructions This module has been granted modular approval for mobile applications. OEM integrators for host products may use the module in their final products without additional FCC / IC (Industry Canada) certification if they meet the following conditions. Otherwise, additional FCC / IC approvals must be obtained. • The host product with the module installed must be evaluated for simultaneous transmission requirements. • The user manual for the host product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF exposure guidelines. • To comply with FCC / IC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile- only exposure condition must not exceed the specification as…

Text truncated - open the document above for the full version.

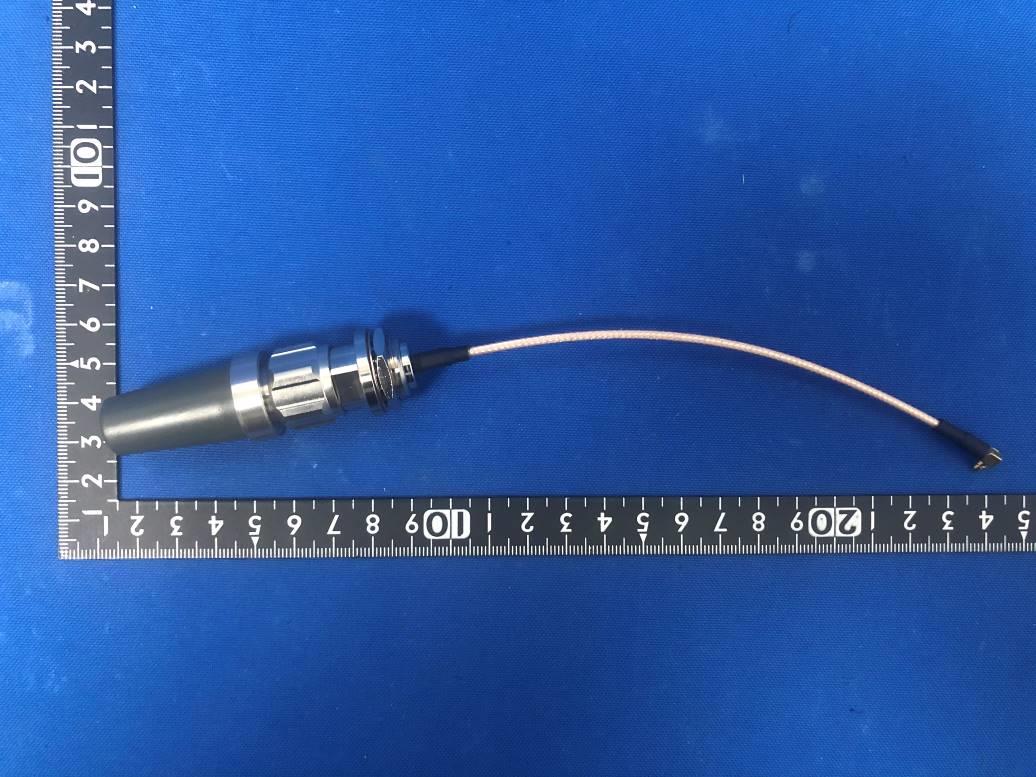

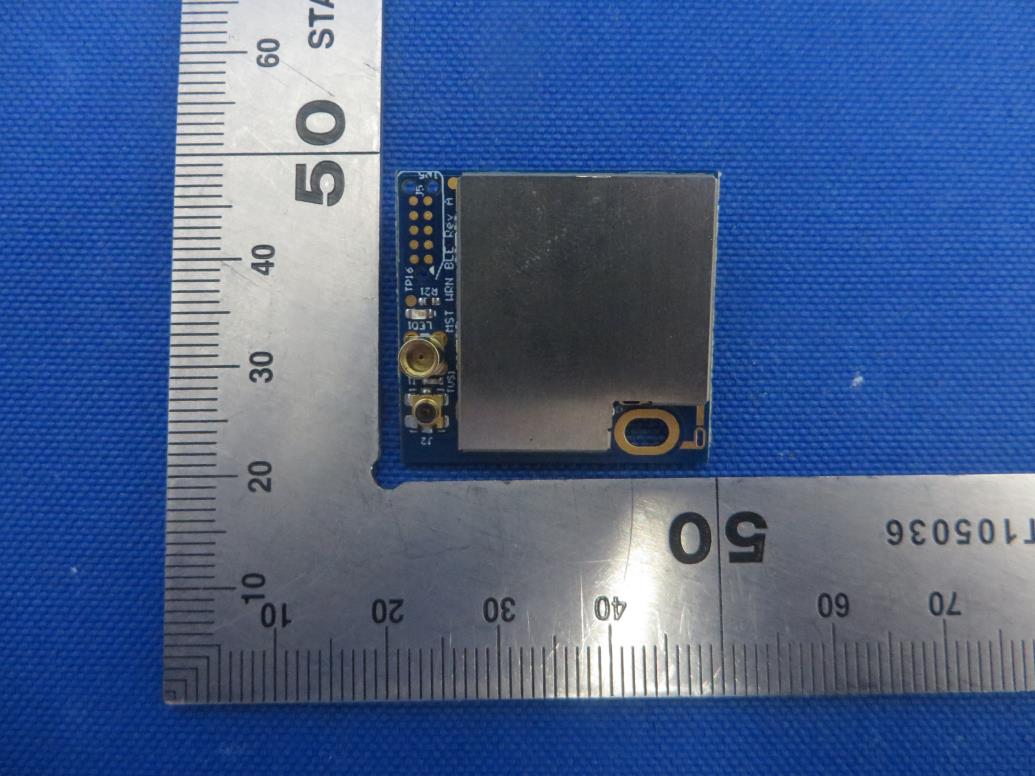

Report No.: 2007RSU059-EE 1 of 2 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2007RSU059-EE 2 of 2 (3) EUT Photo (4) EUT Photo

Label Location

Report No.: 2007RSU059-EE 1 of 2 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2007RSU059-EE 2 of 2 (3) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2007RSU059-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 08-31-2020 Page Number: 1 of 11 RF Exposure Evaluation Declaration FCC ID: N73-WRN-BLE Applicant: Mine Site Technologies Pty Ltd Application Type: Certification Product: WRN BLE Model No.: W-WRN-150 Brand Name: MINE SITE TECHNOLOGIES FCC Classification: Digital Transmission System (DTS) Test Procedure(s): KDB 447498 D01v06 Test Date: August 20, 2020 Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2007RSU059-U2 Page Number: 2 of 11 Revision History Report No. Version Description Issue Date Note 2007RSU059-U2 Rev. 01 Initial Report 08-31-2020 Valid Report No.: 2007RSU059-U2 Page Number: 3 of 11 CONTENTS Description Page General Information .................................................................................................................... 4 1. INTRODUCTION ................................................................................................................... 5 1.1. Scope .................................................................................................................................... 5 1.2. MRT Test Location .............................................................................................................. 5 2. PRODUCT INFORMATION ................................................................................................... 6 2.1. Equipment Description........................................................................................................ 6 2.2. Product Specification Subjective to this Report .............................................................. 6 2.3. Working Frequencies for this report ................................................................................. 6 2.4. Description of Available Antennas .................................................................................... 7 2.5. Description of Antenna RF Port ........................................................................................ 7 3. RF Exposure Evaluation ..................................................................................................... 8 3.1. Limits ..................................................................................................................................... 8 3.2. Test Procedure ..................................................................................................................... 9 3.3. Test Result of RF Exposure Evaluation ......................................................................... 10 Appendix A – EUT Photograph ................................................................................................. 11 Report No.: 2007RSU059-U2 Page Number: 4 of 11 General Information Applicant: Mine Site Technologies Pty Ltd Applicant Address: 113 Wicks Road, North Ryde, New South Wales, 2113, Australia Manufacturer: Mine Site Technologies China Co. Ltd. Manufacturer Address: 4th Floor, Building 1, No. 1413 Moganshan Road, Hangzhou, Zhejiang Province, 310011, China Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Tian’edang Rd., Suzhou, China.  MRT facility is an FCC accredited testing laboratory (MRT Designation No. CN1166) on the FCC website.  MRT facility is an ISED recognized testing laboratory (MRT Reg. No. CN0001) on the ISED website.  MRT facility is a VCCI registered (R-20025, G-20034, C-20020, T-20020) test laboratory with the site description on file at VCCI Council.  MRT Lab is accredited to ISO 17025 by the A2LA under the A2LA Program (Cert. No. 3628.01) and CNAS under the CNAS Program (Cert. No. L10551) in EMC, Safety, Radio, Telecommunications and SAR testing. Report No.: 2007RSU059-U2 Page Number: 5 of 11 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taihu Lake. These measurement tests were conducted at the MRT Technology (Suzhou) Co., Ltd. Facility located at D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China. The measurement facility compliant with the test site requirements specified in ANSI C63.4-2014. Report No.: 2007RSU059-U2 Page Number: 6 of 11 2. PRODUCT INFORMATION 2.1. Equipment Description 2.2. Product Specification Subjective to this Report 2.3. Working Frequencies for this report Channel Frequency Channel Frequency Channel Frequency 00 2402 MHz 01 2404 MHz 02 2406 MHz 03 2408 MHz 04 2410 MHz 05 2412 MHz 06 2414 MHz 07 2416 MHz 08 2418 MHz 09 2420 MHz 10 2422 MHz 11 2424 MHz 12 2426 MHz 13 2428 MHz 14 2430 MHz 15 2432 MHz 16 2434 MHz 17 2436 MHz 18 2438 MHz 19 2440 MHz 20 2442 MHz 21 2444 MHz 22 2446 MHz 23 2448 MHz 24 2450 MHz 25 2452 MHz 26 2454 MHz 27 2456 MHz 28 2458 MHz 29 2460 MHz 30 2462 MHz 31 2464 MHz 32 2466 MHz 33 2468 MHz 34 2470 MHz 35 2472 MHz 36 2474 MHz 37 2476 MHz 38 2478 MHz 39 2480 MHz -- -- -- -- Product Name: WRN BLE Model No.: W-WRN-150 Brand Name: MINE SITE TECHNOLOGIES Bluetooth Version: V5.0 (BLE only) Working Voltage: DC 3.3V EUT Identification No.: 20200611Sample…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2007RSU059-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 08-31-2020 1 of 55 FCC ID: N73-WRN-BLE IC: 7449B-WRNBLE Applicant: Mine Site Technologies Pty Ltd Application Type: Certification Product: WRN BLE Model No.: W-WRN-150 Brand Name: MINE SITE TECHNOLOGIES FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) ISED Rule(s): RSS-247 Issue 2, RSS-Gen Issue 5 Test Procedure(s): ANSI C63.10-2013 Test Date: July 24 ~ August 05, 2020 Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) MEASUREMENT REPORT FCC PART 15.247 / ISED RSS-247 Bluetooth-LE The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2007RSU59-U1 2 of 55 Revision History Report No. Version Description Issue Date Note 2007RSU059-U1 Rev. 01 Initial Report 08-31-2020 Valid Report No.: 2007RSU59-U1 3 of 55 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Product Specification Subjective to this Report ............................................................. 7 2.3. Working Frequencies for this report .............................................................................. 7 2.4. Description of Available Antennas ................................................................................ 8 2.5. Description of Antenna RF Port .................................................................................... 8 2.6. Test Mode .................................................................................................................... 8 2.7. Configuration of Test System ........................................................................................ 9 2.8. Test System Details ...................................................................................................... 9 2.9. Test Software ............................................................................................................... 9 2.10. Test Environment Condition ........................................................................................ 10 2.11. EMI Suppression Device(s)/Modifications ................................................................... 10 2.12. Labeling Requirements ............................................................................................... 10 3. ANTENNA REQUIREMENTS ................................................................................................. 11 4. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 12 5. MEASUREMENT UNCERTAINTY ......................................................................................... 14 6. TEST RESULT ...................................................................................................................... 15 6.1. Summary .................................................................................................................... 15 6.2. Occupied Bandwidth Measurement ............................................................................ 16 6.2.1. Test Limit ................................................................................................................ 16 6.2.2. Test Procedure used ............................................................................................... 16 6.2.3. Test Setting ............................................................................................................. 16 6.2.4. Test Setup ............................................................................................................... 17 6.2.5. Test Result .............................................................................................................. 18 6.3. Output Power Measurement ....................................................................................... 20 6.3.1. Test Limit ................................................................................................................ 20 6.3.2. Test Procedure Used .............................................................................................. 20 6.3.3. Test Setting ............................................................................................................. 20 6.3.4. Test Setup ............................................................................................................... 21 6.3.5. Test Result .............................................................................................................. 22 6.4. Power Spectral Density Measurement ........................................................................ 23 Report No.: 2007RSU59-U1 4 of 55 6.4.1. Test Limit ................................................................................................................ 23 6.4.2. Test Procedure Used .............................................................................................. 23 6.4.3. Test Setti…

Text truncated - open the document above for the full version.

Report No.: 2007RSU059-UT 1 of 3 FCC RF Test Setup Photograph Description: Front View of Conducted Emission Test Setup for Power Port Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 2007RSU059-UT 2 of 3 Description: Radiated Spurious Emission Test Setup for below 1GHz Description: Radiated Spurious Emission Test Setup for above 1GHz Report No.: 2007RSU059-UT 3 of 3 Description: Conducted Test Setup
