N73-MP10MP10 MINE PHONE

...................................................................................................................................... MP10 Configuration Guide v. 1.1-SNAPSHOT Ref: MP10_CG_1.1-SNAPSHOT ...................................................................................................................................... Mine Site Technologies 2012-04-22 i Table of Contents ....................................................................................................................................... 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i 2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3 Charger Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 4 Phone Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1 1 I n troduction 1 Introduction ....................................................................................................................................... The Mine Site Technologies MinePhone MP10 is a Voice over Wireless LAN (VoWLAN) phone designed for use in hazardous environments. It is an integral component in the MST ImPact Coal product suite, allowing for two way voice and text communication over underground wireless networks. This document covers installation of charging infrastructure, network configuration of the handset, server side configuration, and the recurring maintenance required for reliable operation. MinePhone MP10 2 2 C h a r g e r I n s t a l l a t i o n 2 Charger Installation ....................................................................................................................................... The MinePhone is supplied with a charging block that the handset is placed within to initiate charging. MinePhone MP10 in charging block Correctly setting up a charger for the MinePhone requires consideration of a suitable location, and ensuring power is correctly connected. 2.1 Positioning The charger provided for the MinePhone is not approved for use in hazardous areas MinePhone Chargers should be located in a well ventilated non-hazardous area, with access to a clean Power supply. The ambient temperature should be within the range of 0 to 40 degrees Celcius. Selecting a suitable charger position should account for the ease of physical access, and visibility of charge indicators on the charger unit, and the handset's screen. While handsets should slide easily into the charger, some users are likely to apply considerably more force than required - the charger should be suitably supported to account for this. 2.2 Connectors Due to regional differences there are several types of power connectors available for connecting the MinePhone charger to a power source. You should confirm that you have been shipped connectors of the appropriate voltage and type for your site prior to installation. The power pack supplied will connect to either 110V or 240V AC power. The tail will terminate in a 2.5mm DC connector jack that fits into the charging block. 3 4 2 C h a r g e r I n s t a l l a t i o n 2.3 Indicators The charger has one LEDs on the top to indicate status. Showing Meaning Red Charging in progress Green Charging completed successfully Neither Phone not in charger / Charger not connected to power / A problem has occurred during charging Charging Block showing LED positioning 5 3 P h o n e C o n f i g u r a t i o n 3 Phone Configuration ....................................................................................................................................... MinePhones are designed to be deployed as a fleet with centralised management software, which reduces the configuration complexity operators are exposed to. Phones will by default attempt to connect to a TFTP server and download site and device specific configuration files at startup. The MinePhone does offer the ability for the network and configuration settings to be manually edited from the device itself. This functionality is exposed only when the phone is started in Admin mode. 3.1 Powering Up A newly commissioned MinePhone should receive a full battery charge before deployment. Ensure that every new handset is charged for a minimum of eight hours before operation. A MinePhone is powered on by holding down the power button, located on the top of the digital keyboard, for 5 seconds. If the handset is charged, it will turn on and the display will light up to show an introduction splash screen. 3.1.1 Administrator Mode To power a unit into Admin mode, press the # key before pressing the power button and hold until after the splash screen is shown. Power buttons # buttons MinePhone power and # buttons If started in Admin mode the text Admin will appear in the bottom left corner of the splash screen and the Network and Configuration menus will be available from the Main Menu. 6 3 P h o n e C o n f i g u r a t i o n 3.2 User Configurable Settings The majority of settings for the phone are site specific and are managed centrally. Users may however adjust volume and screen brightness during operation. 3.2.1 Volume During operation a user may wish to adjust the volume of ringtone and communication. Changing the volume does not require Admin access. If on a call, the volume may be adjusted using the up and down navigation button on the keypad. Alternatively the volume may be adjusted from the Sound Setting accessible from the main menu. Select Sound -> Volume Setting and use the Up and Down navigation buttons to adjust the volume. Sound configuration option in the main menu 3.2.2 …

Text truncated - open the document above for the full version.

深圳市华标检测技术服务有限公司 Bontek Compliance Testing Laboratory Co.,Ltd DATE: July30, 2012 Dear TCB Section of Timco Engineering, Inc., s Thank you for cooperation. I would like to submit FCC application of Mine Site Technologies Pty Ltd. FCC ID: N73-MP10 by your TCB Approval today. Best Regards, Bontek Compliance Testing Laboratory Co., Ltd. Tony Wu/General Manager

FCC ID Label Location FCC ID Location

Mine Site Technologies Pty Ltd. FCC ID: N73-MP10 POWER OF ATTORNEY July 30, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Co., Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Co., Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We, Mine Site Technologies Pty Ltd.,are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuantto that section. Sincerely, Mine Site Technologies Pty Ltd.. Cher Seong Phang （Regulatory Compliance Engineer）

AUSTRALIA Mine Site Technologies Pty Limited Level 5, 113 Wicks Rd, North Ryde, NSW 2113 Australia Tel : + 62 2 9491 6500 Fax: + 61 2 9870 8270 Email [email protected] USA Mine Site Technologies (USA) Inc. 13301 West 43 rd Drive, Suite 15 Golden, CO. 80401 U.S.A. Tel : +1 303 951 0570 Fax: +1 303 865 5443 Email [email protected] CANADA Mine Site Technologies (Canada) Inc. 1085 Kelly Lake Road Sudbury, Ontario P3E 5P5 Canada Tel : +1 705 675 7468 Fax: +1 705 675 7815 Email [email protected] A u s t r a l i a • U S A • C a n a d a • C h i l e • S o u t h A f r i c a • C h i n a Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: N73-MP10 Pursuant to Sections 0.457 and 0.459 of Commission’s Rules, we hereby request confidential treatment of information accompany this application as outlined below: Exhibit Type File Name Block Diagram MP10_Block diagram.pdf Operational Description MP10 user’s manual.pdf Schematics MP10_Schematics diagram.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to it’s competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, .................................. Cher Seong Phang Regulatory Compliance Engineer 4 th September, 2012

AUSTRALIA Mine Site Technologies Pty Limited Level 5, 113 Wicks Rd, North Ryde, NSW 2113 Australia Tel : + 62 2 9491 6500 Fax: + 61 2 9870 8270 Email [email protected] USA Mine Site Technologies (USA) Inc. 13301 West 43 rd Drive, Suite 15 Golden, CO. 80401 U.S.A. Tel : +1 303 951 0570 Fax: +1 303 865 5443 Email [email protected] CANADA Mine Site Technologies (Canada) Inc. 1085 Kelly Lake Road Sudbury, Ontario P3E 5P5 Canada Tel : +1 705 675 7468 Fax: +1 705 675 7815 Email [email protected] A u s t r a l i a • U S A • C a n a d a • C h i l e • S o u t h A f r i c a • C h i n a Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding FCC ID: N73-MP10 Pursuant to Sections 0.457 and 0.459 of Commission’s Rules, we hereby request confidential treatment of information accompany this application as outlined below: Exhibit Type File Name Block Diagram MP10_Block diagram.pdf Operational Description MP10 user’s manual.pdf Schematics 1 MP10_MAIN_BOARD_SCH.pdf Schematics 2 MP10_Battery_Safety.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to it’s competitors. The applicant is aware that the above documentation has been available since issuance of grant and understands that pursuant to Section 0.457 of the Rules. This documentation will no longer be made available after the requested confidentiality is approved. Sincerely, .................................. Cher Seong Phang Regulatory Compliance Engineer 8 th October, 2012

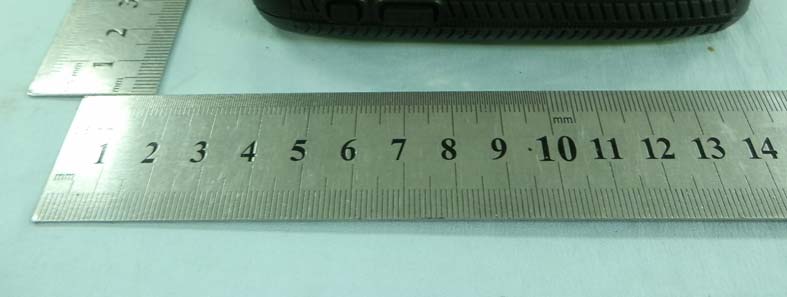

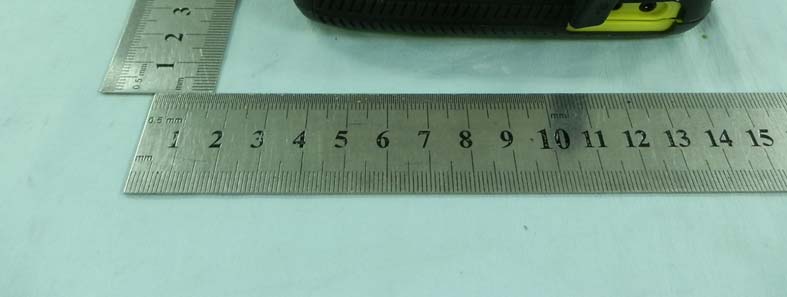

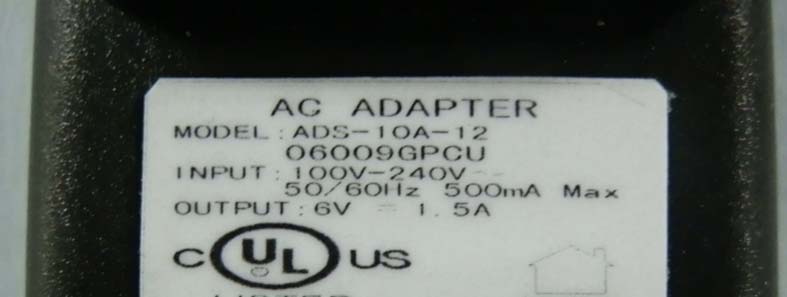

EUT EXTERNAL PHOTOGRAPHS EUT –Front View EUT –Rear View EUT –Side View EUT –Side View EUT –Adapter View

FCC ID and IC ID Label Sample Mine Phone Handset Model: MP10 FCC ID: N73-MP10 IC ID: 7449B-MP10 Made in China

EUT INTERNAL PHOTOGRAPHS EUT –Uncovered View EUT –PCB View Antenna Location EUT –PCB View EUT –WIFI Modul View EUT –Battery View EUT –earphone View

MP10 Working principle The Mine Site Technologies MinePhone MP10 is a Voice over Wireless LAN (VoWLAN) phone designed for use in hazardous environments. It is an integral component in the MST ImPact Coal product suite, allowing for two way voice and text communication over underground wireless networks. WiFi mobile phone uses the digital transmission mode and the full-duplex communication, it has character of good anti-jamming, high security, and can connect with the WiFi nets seamlessly, it can realize voice communication, short messages’ sending and receiving, radio, talkback, a key alarm functions, and so on. VoIP(Voice over IP) is just an IP telephone , it is a transmission technology that based on the IP network. It uses the packetized and digitized transmission technology of the computer communication. First , it compresses and codes the voice data, then, it packs the data according to relevant protocol, and after the packet has been send to the destination, the receiver reconstitutes the data, at last , the data is recovered to the primary voice signals after decoded and decompressed. Thus, it completes the conversation of the two ends. SIP(Session Initiation Protocol)is an application layer protocol for multimedia communication in the IP network, it is used to create、modify and end a conversation which one or more talker attends. SIP protocol can be used to initiate a conversation, and can also be used to invite members to join in a conversation that has been built by other ways. Wifi mobile phone RF system is made up with two parts : the RF receiver and the RF launcher , the RF receive circuit includes the received signals’ filter、signal amplification 、demodulation and so on; the RF launch circuit mainly includes the speech baseband signals’ modulation、frequency conversion、power amplifier , etc . The launch end of the WiFi phone: it receives the mechanical signals from the microphone and converses them into analog audio signals, after de-noising and echo suppression processing, they are sent to the speech signal processing module for further processing, then, we can get the audio PCM data stream. After the sample data is processed and packed by the SIP protocol, it drives the wireless WiFi module to send the radio-frequency signal to the wireless network by electromagnetic wave. The receive end of the WiFi phone : first, it converses the radio-frequency signal to the digital signal, after it has received the data from the wireless network, it analyses the data by SIP protocol, extracts the audio data, processes by the Audio Signal processing(D/A conversion), then it converses the digital output pulse that gotten into analog audio signal, amplifese by the audio power amplifier, and transmits the signal to the speaker of the cell phones,thus, it can be sounded by human.

Report No.: 127S064R-HP-US-P03V01 Page: 1 of 65 SAR Test Report Product Name : MP10 Mine Phone Model No. : MP10 FCC ID : N73-MP10 Applicant : Mine Site Technologies Pty Ltd. Address : 113, Wicks Road, Macquarie Park, NSW 2113, AUSTRALIA Date of Receipt : 02/08/2012 Date of Test : 08/08/2012 Issued Date : 10/08/2012 Report No. : 127S064R-HP-US-P03V01 Report Version : V 1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 127S064R-HP-US-P03V01 Page: 2 of 65 Test Report Certification Issued Date: 10/08/2012 Report No.: 127S064R-HP-US-P03V01 Product Name : MP10 Mine Phone Applicant : Mine Site Technologies Pty Ltd. Address : 113, Wicks Road, Macquarie Park, NSW 2113, AUSTRALIA Manufacturer : Mine Site Technologies China Co., Ltd. Address : Building 5 1413 Moganshan Road, Hangzhou, China Model No. : MP10 FCC ID : N73-MP10 Brand Name : Mine Site Technologies EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.298 W/kg Body: 0.119 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Manager: Marlin Chen) Report No.: 127S064R-HP-US-P03V01 Page: 3 of 65 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3 rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 127S064R-HP-US-P03V01 Page: 4 of 65 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................6 1.1. EUT Description ..................................................................................................6 1.2. Test Procedure ....................................................................................................6 1.3. Test Environment.................................................................................................7 2. SAR Measurement System ......................................................................................8 2.1. DASY5 System Description.................................................................................8 2.1.1. Applications .....................................................................................................9 2.1.2. Area Scans ......................................................................................................9 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................9 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ...........................................9 2.2. DASY5 E-Field Probe........................................................................................10 2.2.1. Isotropic E-Field Probe Specification .............................................................10 2.3. Boundary Detection Unit and Probe Mounting Device...................................... 11 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 11 2.5. Robot.................................................................................................................12 2.6. Light Beam Unit .................................................................................................12 2.7. Device Holder ....................................................................................................13 2.8. SAM Twin Phantom...........................................................................................13 3. Tissue Simulating Liquid .......................................................................................14 3.1. The composition of the tissue simulating liquid .................................................14 3.2. Tissue Calibration Result...................................................................................15 3.3. Tissue Dielectric Parameters for Head and Body Phantoms .............................16 4. SAR Measurement Procedure ...............................................................................17 4.1. SAR System Validation......................................................................................17 4.1.1. Validation Dipoles..........................................................................................17 4.1.2. Validation Result.....................................................................…

Text truncated - open the document above for the full version.

Test Report of FCC CFR 47 Part 15 Subpart C and Industry Canada RSS-210 Issue 8 On Behalf of Mine Site Technologies Pty Ltd. FCC ID: N73-MP10 IC ID: 7449B-MP10 Product Description: MP10 Mine Phone Model No.: MP10 Brand Name: Mine Site Technologies Prepared for: Mine Site Technologies Pty Ltd. 113, Wicks Road, Macquarie Park, NSW 2113, AUSTRALIA. Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT12ER172E Issue Date: August 16, 2012, Test Date: June23~August 14, 2012 Test by: Reviewed By: Vincent Jiang Tony Wu Report No.: BCT12ER172E Page 2 of 48 FCC ID:N73-MP10 & IC ID: 7449B-MP10 TABLE OF CONTENTS 1. GENERAL INFORMATION.................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................3 1.2 TEST STANDARDS AND TEST METHODOLOGY.....................................................................................................3 1.3 TEST FACILITY......................................................................................................................................................4 2. SYSTEM TEST CONFIGURATION......................................................................................................................5 2.1 EUT CONFIGURATION..........................................................................................................................................5 2.2 EUT EXERCISE.....................................................................................................................................................5 2.3 GENERAL TEST PROCEDURES.............................................................................................................................5 2.4 MEASUREMENT UNCERTAINTY.............................................................................................................................5 2.5 LIST OF MEASURING EQUIPMENTS USED............................................................................................................6 3. SUMMARY OF TEST RESULTS...........................................................................................................................8 4. TEST OF AC POWER LINE CONDUCTED EMISSION....................................................................................9 4.1 APPLICABLE STANDARD.......................................................................................................................................9 4.2 TEST SETUP DIAGRAM.........................................................................................................................................9 4.3 TEST RESULT........................................................................................................................................................9 5. TEST OF MAXIMUM PEAK OUTPUT POWER................................................................................................12 5.1 APPLICABLE STANDARD.....................................................................................................................................12 5.2 EUT SETUP........................................................................................................................................................12 5.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................12 5.4 TEST PROCEDURE..............................................................................................................................................12 5.5 TEST RESULT......................................................................................................................................................12 6. TEST OF PEAK POWER SPECTRAL DENSITY.............................................................................................18 6.1 APPLICABLE STANDARD.....................................................................................................................................18 6.2 EUT SETUP........................................................................................................................................................18 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................18 6.4 TEST PROCEDURE..............................................................................................................................................18 6.5 TEST RESULT......................................................................................................................................................18 7. TEST OF 6DB BANDWIDTH...............................................................................................................................24 7.1 APPLICABLE STANDARD.....................................................................................................................................24 7.2 EUT SETUP........................................................................................................................................................24 7.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................24 7.4 TEST PROCEDURE..............................................................................................................................................24 7.5 TEST RESULT......................................................................................................................................................24 8. TEST OF CONDUCTED SPURIOUS EMISSION..........................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission
