N73-MP10-G2Mine Phone

...................................................................................................................................... MP10-G2 Configuration Guide v. 1.1-SNAPSHOT Ref: MP10-G2_CG_1.1-SNAPSHOT ...................................................................................................................................... Mine Site Technologies 2013-01-15 i Table of Contents ....................................................................................................................................... 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i 2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3 Charger Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 4 Phone Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1 1 I n troduction 1 Introduction ....................................................................................................................................... The Mine Site Technologies MinePhone MP10-G2 is a Voice over Wireless LAN (VoWLAN) phone designed for use in hazardous environments. It is an integral component in the MST ImPact Coal product suite, allowing for two way voice and text communication over underground wireless networks. This document covers installation of charging infrastructure, network configuration of the handset, server side configuration, and the recurring maintenance required for reliable operation. MinePhone MP10-G2 2 2 C h a r g e r I n s t a l l a t i o n 2 Charger Installation ....................................................................................................................................... The MinePhone is supplied with a charging block that the handset is placed within to initiate charging. MinePhone MP10-G2 in charging block Correctly setting up a charger for the MinePhone requires consideration of a suitable location, and ensuring power is correctly connected. 2.1 Positioning The charger provided for the MinePhone is not approved for use in hazardous areas MinePhone Chargers should be located in a well ventilated non-hazardous area, with access to a clean Power supply. The ambient temperature should be within the range of 0 to 40 degrees Celcius. Selecting a suitable charger position should account for the ease of physical access, and visibility of charge indicators on the charger unit, and the handset's screen. While handsets should slide easily into the charger, some users are likely to apply considerably more force than required - the charger should be suitably supported to account for this. 2.2 Connectors Due to regional differences there are several types of power connectors available for connecting the MinePhone charger to a power source. You should confirm that you have been shipped connectors of the appropriate voltage and type for your site prior to installation. The power pack supplied will connect to either 110V or 240V AC power. The tail will terminate in a 2.5mm DC connector jack that fits into the charging block. 3 4 2 C h a r g e r I n s t a l l a t i o n 2.3 Indicators The charger has one LEDs on the top to indicate status. Showing Meaning Red Charging in progress Green Charging completed successfully Neither Phone not in charger / Charger not connected to power / A problem has occurred during charging Charging Block showing LED positioning 5 3 P h o n e C o n f i g u r a t i o n 3 Phone Configuration ....................................................................................................................................... MinePhones are designed to be deployed as a fleet with centralised management software, which reduces the configuration complexity operators are exposed to. Phones will by default attempt to connect to a TFTP server and download site and device specific configuration files at startup. The MinePhone does offer the ability for the network and configuration settings to be manually edited from the device itself. This functionality is exposed only when the phone is started in Admin mode. 3.1 Powering Up A newly commissioned MinePhone should receive a full battery charge before deployment. Ensure that every new handset is charged for a minimum of eight hours before operation. A MinePhone is powered on by holding down the power button, located on the top of the digital keyboard, for 5 seconds. If the handset is charged, it will turn on and the display will light up to show an introduction splash screen. 3.1.1 Administrator Mode To power a unit into Admin mode, press the # key before pressing the power button and hold until after the splash screen is shown. Power buttons # buttons MinePhone power and # buttons If started in Admin mode the text Admin will appear in the bottom left corner of the splash screen and the Network and Configuration menus will be available from the Main Menu. 6 3 P h o n e C o n f i g u r a t i o n 3.2 User Configurable Settings The majority of settings for the phone are site specific and are managed centrally. Users may however adjust volume and screen brightness during operation. 3.2.1 Volume During operation a user may wish to adjust the volume of ringtone and communication. Changing the volume does not require Admin access. If on a call, the volume may be adjusted using the up and down navigation button on the keypad. Alternatively the volume may be adjusted from the Sound Setting accessible from the main menu. Select Sound -> Volume Setting and use the Up and Down navigation buttons to adjust the volume. Sound configuration option in the m…

Text truncated - open the document above for the full version.

Date:2013-1-28 FCC ID: N73MP10-G2 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Cher Seong Phang Title: Regulatory Compliance Engineer Tel: +61294916500

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/1/28 To: S IEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA D ear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ _ Mine Site Technologies Pty Ltd____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Mine Phone,Model: MP10-G2, FCC ID: N73MP10-G2) We affirm that between SIEMIC and ___ Mine Site Technologies Pty Ltd ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Name: Cher Seong Phang Title: Regulatory Compliance Engineer Tel: +61294916500

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/1/28 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: N73MP10-G2 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Name: Cher Seong Phang Title: Regulatory Compliance Engineer Tel: +61294916500Tel: 888-968-1985

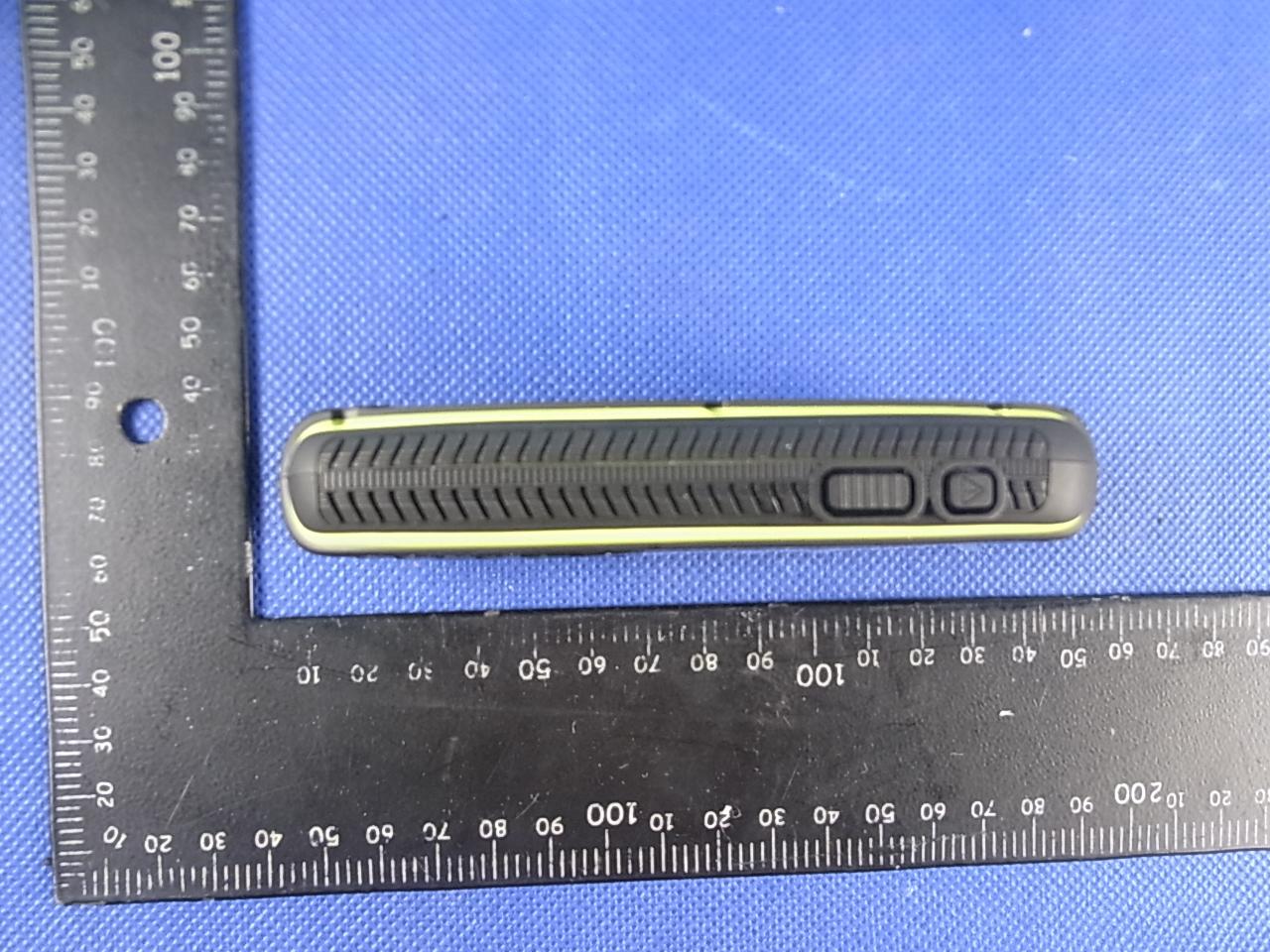

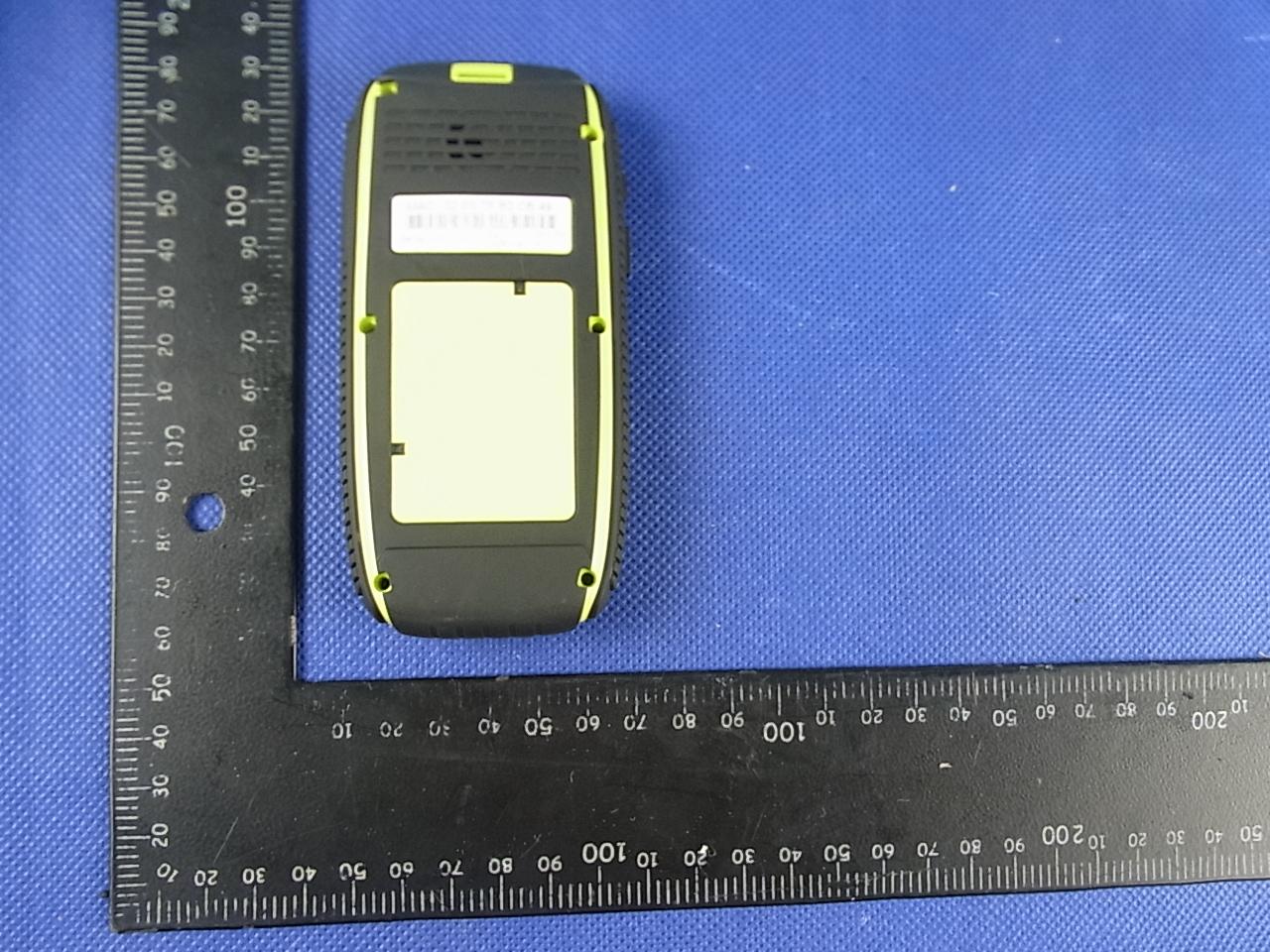

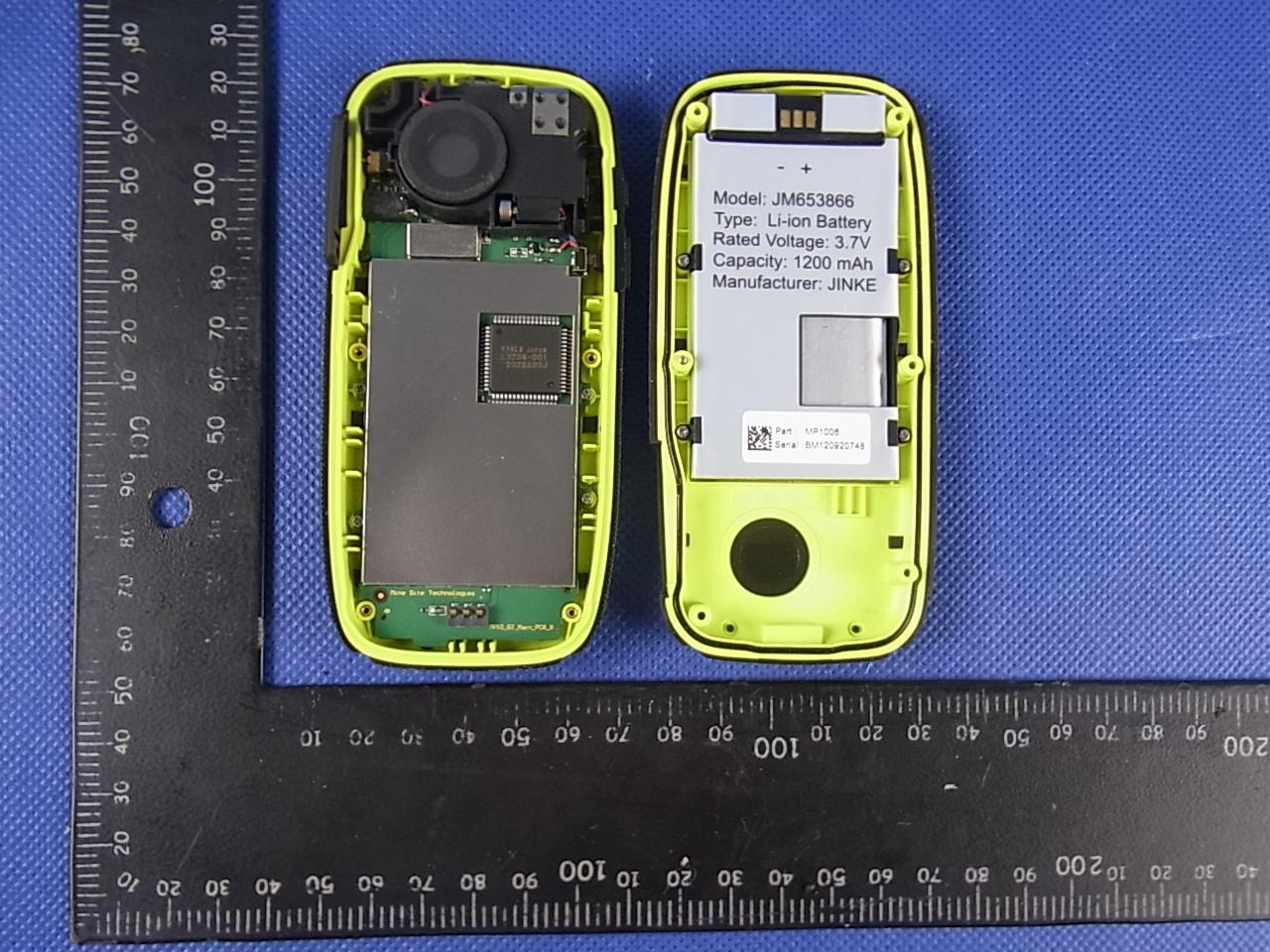

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Label

P

Photo 9 Photo 10 Antenna Photo 11 Photo 12

RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power. 802.11B frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power(AV) (dBm) Maximum Conducted Output Power (mW) 2412 12.85 9.71 9.35 2437 12.76 9.46 8.83 2462 12.68 9.52 8.95 802.11G frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power(AV) (dBm) Maximum Conducted Output Power (mW) 2412 11.69 7.41 5.51 2437 11.54 7.35 5.43 2462 11.63 7.29 5.36 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted Output Power 9.35 mW(<10mW), so no SAR is required.

FCC&IC RADIO TEST REPORT FCC ID: N73-MP10-G2 IC:7449B-MP10-G2 Product： Mine Phone Trade Name： Mine Site Technologies Model Name： MP10-G2 Serial Model： N/A Report No.： NTEK- 2013NT0203041F Prepared for Mine Site Technologies Pty Ltd. 113, Wicks Road, Macquarie Park, NSW 2113, AUSTRALIA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 58 Report No.: NTEK- 2013NT0203041F TEST RESULT CERTIFICATION Applicant’s name................. : Mine Site Technologies Pty Ltd. Address ................................. : 113, Wicks Road, Macquarie Park, NSW 2113, AUSTRALIA. Manufacture's Name............ : Mine Site Technologies China Co., Ltd. Address ................................. : 4F Building-1 1413 Moganshan Road, Hangzhou, CHINA Product description Product name ........................... : Mine Phone Model and/or type reference : MP10-G2 Serial Model .............................. : N/A Standards............................. : FCC Part15.247& RSS-210 Issue 8 Test procedure .............................. ANSI C63.4-2003,RSS-Gen This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 20 Jan. 2013 ~27 Jan. 2013 Date of Issue...........................................: 28 Jan. 2013 Test Result...............................................: Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 58 Report No.: NTEK- 2013NT0203041F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C&IC RSS-210 Standard Section Test Item Judgment Remark FCC §15.207 & IC RSS-GEN Clause 7.2.4 Conducted Emission PASS FCC §15.247(a) & IC RSS-210 A8.2 (a) 6dB Bandwidth PASS FCC §15.247(b) & IC RSS-210 A8.4 Peak Output Power PASS FCC §15.205 and §15.209 & IC RSS-210 Clause 2.5 (Transmitter) Radiated Spurious Emission PASS FCC §15.247(e) & IC RSS-210 A8.2 (b) Power Spectral Density PASS FCC §15.205 and §15.209 & IC RSS-210 Clause 2.5 (Transmitter) Band Edge Emission PASS FCC §15.203/15.247(b)/(c) & IC RSS-GEN Clause 7.1.2 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 4 of 58 Report No.: NTEK- 2013NT0203041F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 5 of 58 Report No.: NTEK- 2013NT0203041F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Mine Phone Trade Name Mine Site Technologies Model Name MP10-G2 Serial Model N/A Model Difference N/A Product Description The EUT is a Mine Phone Operation Frequency: 802.11b/g:2412~2462 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps Number Of Channel 802.11b/g: 11CH Antenna Designation: Please see Note 3. PK Output Power(Conducted): 802.11b: 12.85 dBm (Max.) 802.11g: 11.69 dBm (Max.) Antenna Gain (dBi) 2.0dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Ratings DC 6V from Adapter Adapter Model:S12A02-060A150-06, AC Power Input: 100-240V~, 50/60Hz, 0.5A Max. Output: 6.0V 1.5A Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity :1200mAh Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 58 Report No.: NTEK- 2013NT0203041F 2. Channel List for 802.11b/g Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2412 04 2427 07 2442 10 2457 02 2417 05 2432 08 2447 11 2462 03 2422 06 2437 09 2452 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE A N/A N/A PIFA Antenna N/A 2.0 N/A Page 7 of 58 Report No.: NTEK- 2013NT0203041F 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 802.11b CH1/ CH6/ CH11 Mode 2 802.11g CH1/ CH6/ CH11 Mode 3 Link Mode For Conducted Emission Final Test Mode Description Mode 4 Link Mode For Radiated Emission Final Test Mode Description Mode 1 802.11b CH1/ CH6/ CH11 Mode 2 802.11g CH1/ CH6/ CH11 Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2) The measurements are performed at all Bit Rate of Transmitter…

Text truncated - open the document above for the full version.

Page 73 of 74 Report No.: NTEK- 2013NT0203041F 8. EUT TEST PHOTO Radiated Measurement Photos Page 74 of 74 Report No.: NTEK- 2013NT0203041F Conducted Measurement Photos
