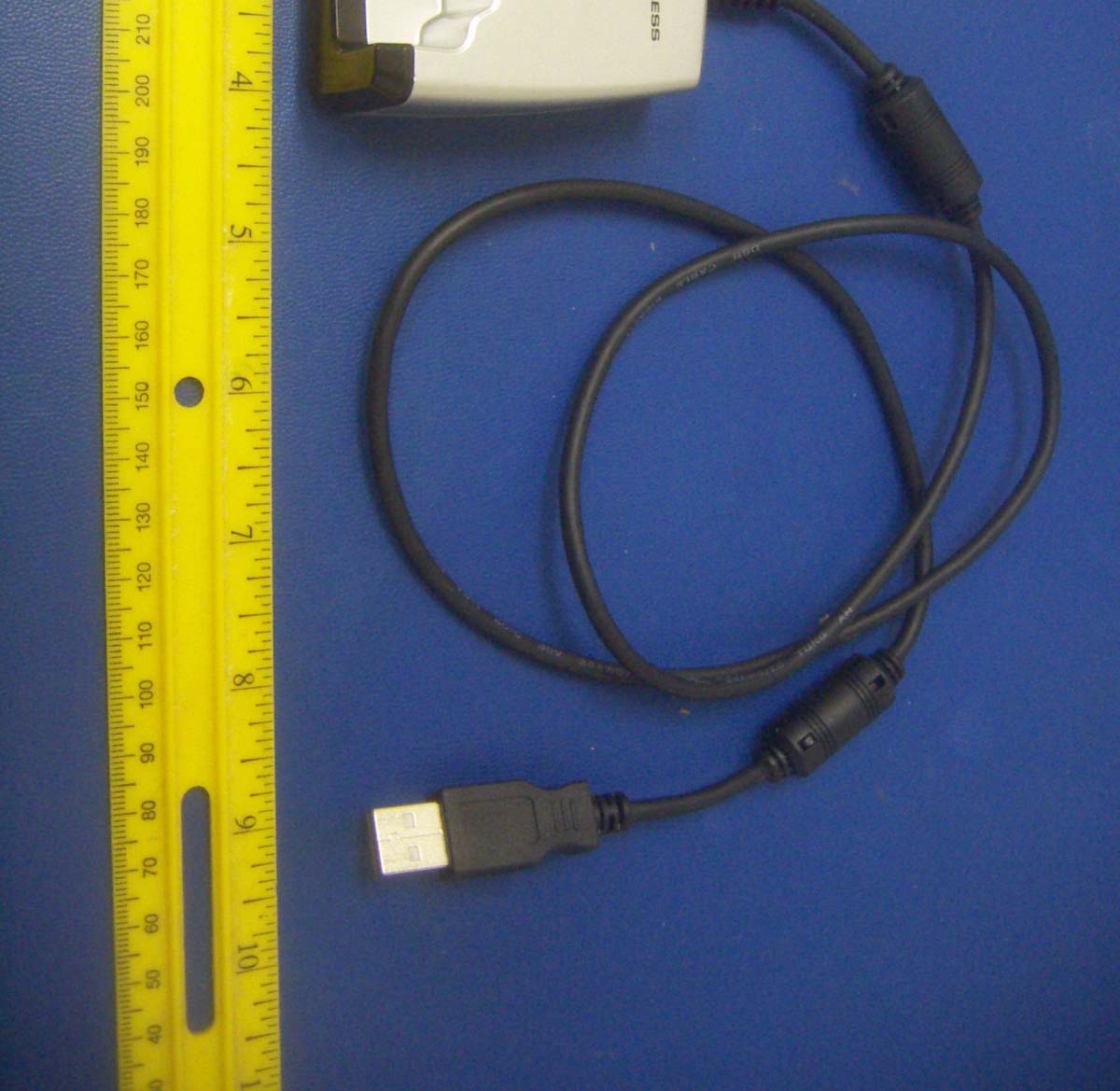

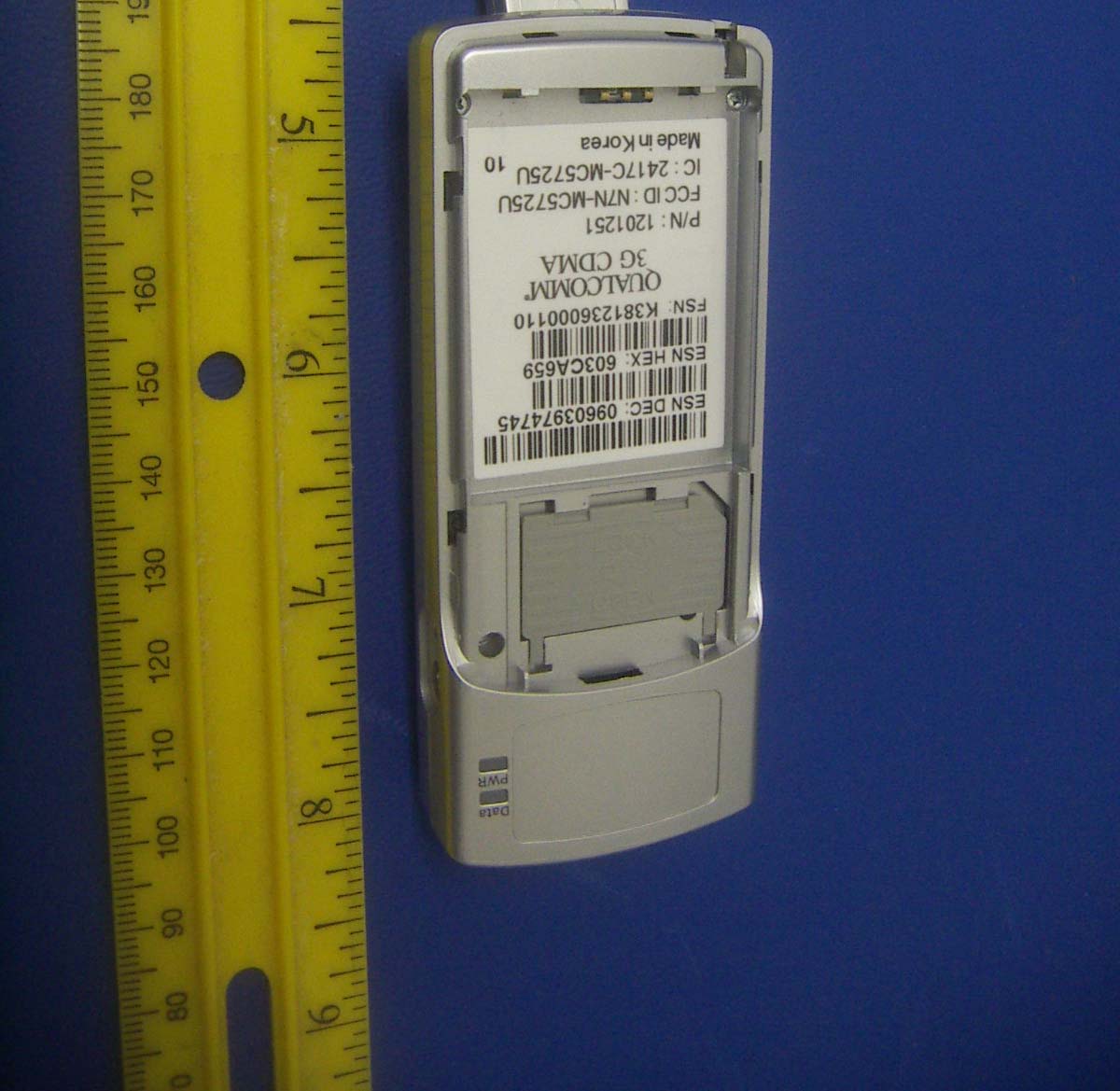

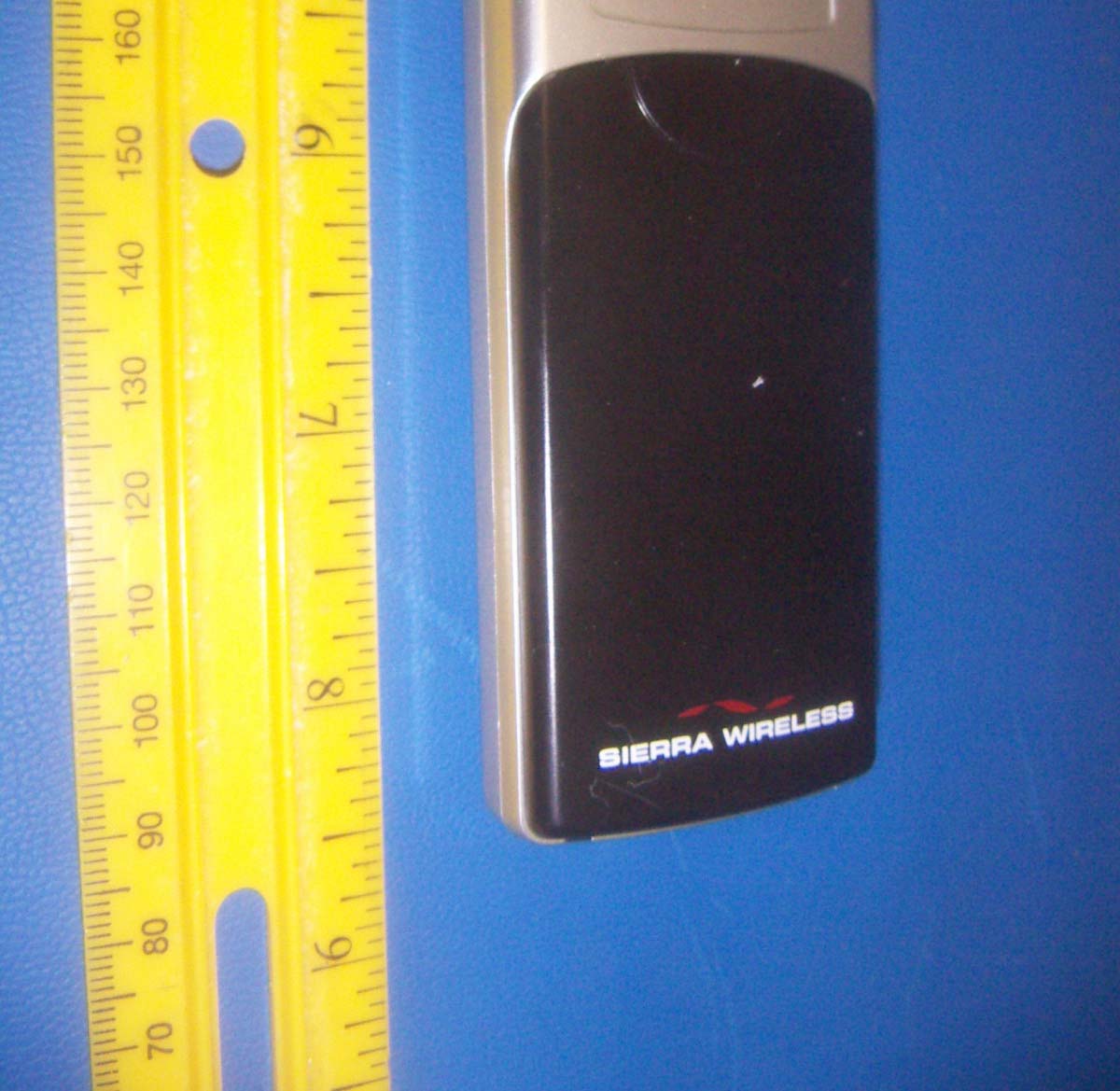

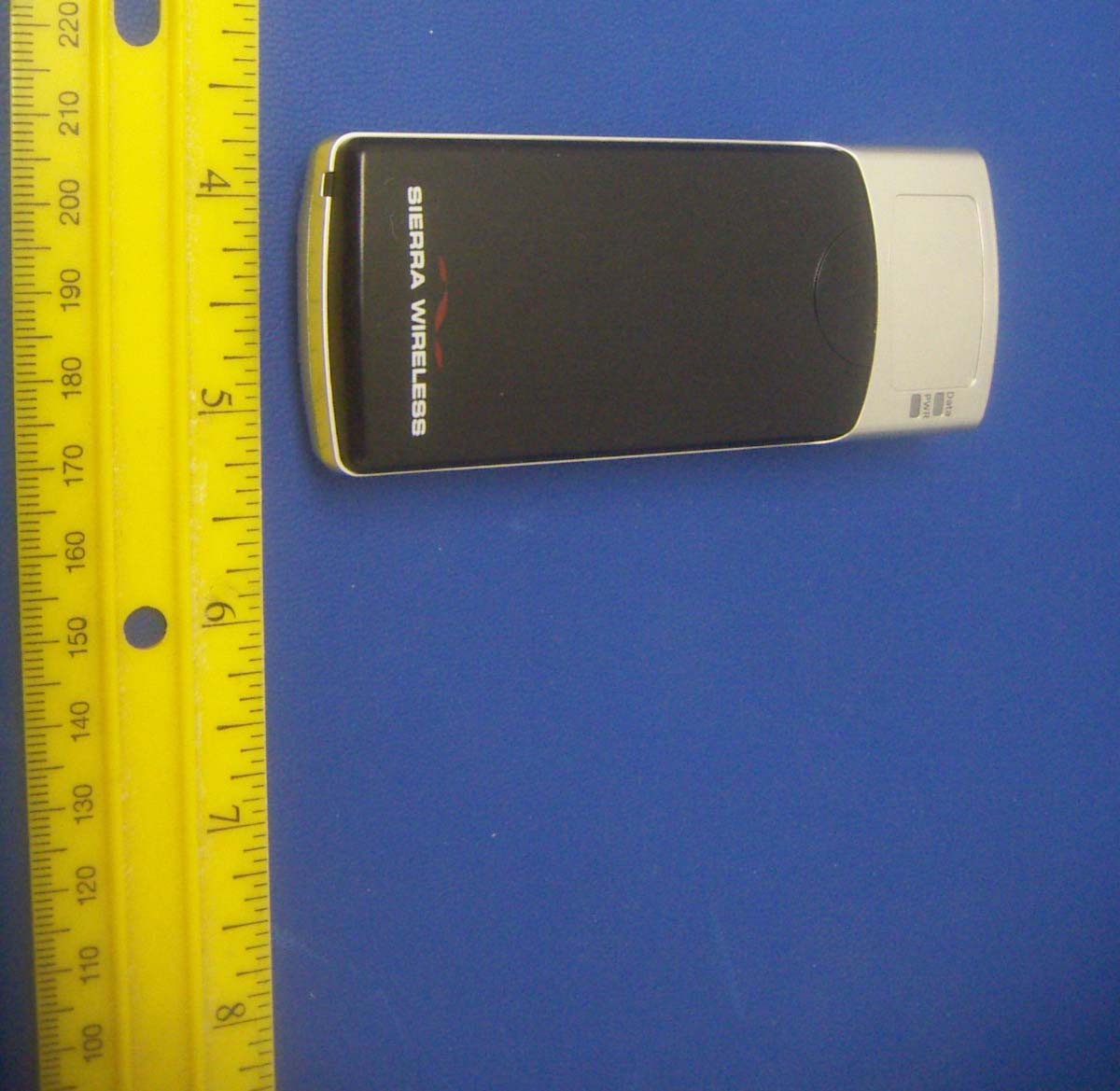

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C IC RSS 102 ISSUE 1 : 1999 FOR WIRELESS USB CDMA MODEM MODULE MODEL: AC595U FCC ID: N7N-MC5725U IC: 2417C-MC5725U REPORT NUMBER: 06U10743-6 ISSUE DATE: FEBRUARY 5, 2007 Prepared for SIERRA WIRELESS 2290 COSMOS CT. CARLSBAD, CA 92010 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET, FREMONT, CA 94538 USA REPORT NO: 06U10743-6 DATE: February 5, 2007 FCC ID: N7N-MC5725U COMPLIANCE CERTIFICATION SERVICES Page: 2 of 43 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- February 5, 2007 Initial issue HS REPORT NO: 06U10743-6 DATE: February 5, 2007 FCC ID: N7N-MC5725U COMPLIANCE CERTIFICATION SERVICES Page: 3 of 43 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: January 26, 29, 30 and 31 2007 APPLICANT: ADDRESS: Sierra Wireless 2290 Cosmos Ct. Carlsbad, CA 92010 FCC ID: MODEL: N7N-MC5725U AC595U DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure Wireless USB CDMA Modem Module is installed in three host laptops for SAR evaluation. Test Sample is a: Production unit Host Laptops: 1) Panasonic CF-29 2) Sony Vaio VGN-C140G 3) Toshiba Satellite P10 Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] FCC 22H 824.7 - 848.31 1) Panasonic CF-29 0.535 2) Sony Vaio VGN-C140G 0.890 3) Toshiba Satellite P10 0.725 FCC 24E 1851.25 - 1908.75 1) Panasonic CF-29 1.240 2) Sony Vaio VGN-C140G 1.068 3) Toshiba Satellite P10 0.981 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and RSS 102. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Engineering Supervisor EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 06U10743-6 DATE: February 5, 2007 FCC ID: N7N-MC5725U COMPLIANCE CERTIFICATION SERVICES Page: 4 of 43 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION............................................................................ 5 2 FACILITIES AND ACCREDITATION ...................................................................................................6 3 SYSTEM DESCRIPTION ..................................................................................................................... 7 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .............................. 8 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 9 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT............................................................ 10 5 SYSTEM PERFORMANCE CHECK .................................................................................................. 14 5.1 SYSTEM PERFORMANCE CHECK RESULTS........................................................................ 15 6 SAR MEASURMENT PROCEDURE ................................................................................................. 16 6.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 17 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 18 8 SAR MEASURMENT RESULTS........................................................................................................ 24 8.1 CELL BAND ............................................................................................................................... 24 8.1.1 PANASONIC ........................................................................................................................... 24 8.1.2 PANASONIC – SIDE OPEN ................................................................................................... 25 8.1.3 SONY VAIO - HORIZONTAL .................................................................................................. 26 8.1.4 SONY VAIO – VERTICAL....................................................................................................... 27 8.1.5 TOSHIBA - HORIZONTAL ...................................................................................................... 28 8.1.6 TOSHIBA – VERTICAL ........................................................................................................... 29 8.2 PCS BAND................................................................................................................................. 30 8.2.1 PANASONIC ........................................................................................................................... 30 8.2.2 PANASONIC – SIDE OPEN ................................................................................................... 31 8.2.3 SONY VAIO - HORIZONTAL .................................................................................................. 32 8.2.4 SONY VAIO - VERTICAL............................................…

Text truncated - open the document above for the full version.

Date/Time: 1/30/2007 9:18:31 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2;Serial: D835V2 - SN:4d002 Communication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.91 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 54.9 V/m; Power Drift = -0.129 dB Peak SAR (extrapolated) = 3.83 W/kg SAR(1 g) = 2.6 mW/g; SAR(10 g) = 1.72 mW/g Maximum value of SAR (measured) = 2.81 mW/g 0 dB = 2.81mW/g Date/Time: 1/30/2007 9:36:50 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.92 mW/g Date/Time: 1/31/2007 9:48:22 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2;Serial: D835V2 - SN:4d002 Communication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.956 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.90 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 55.0 V/m; Power Drift = -0.110 dB Peak SAR (extrapolated) …
