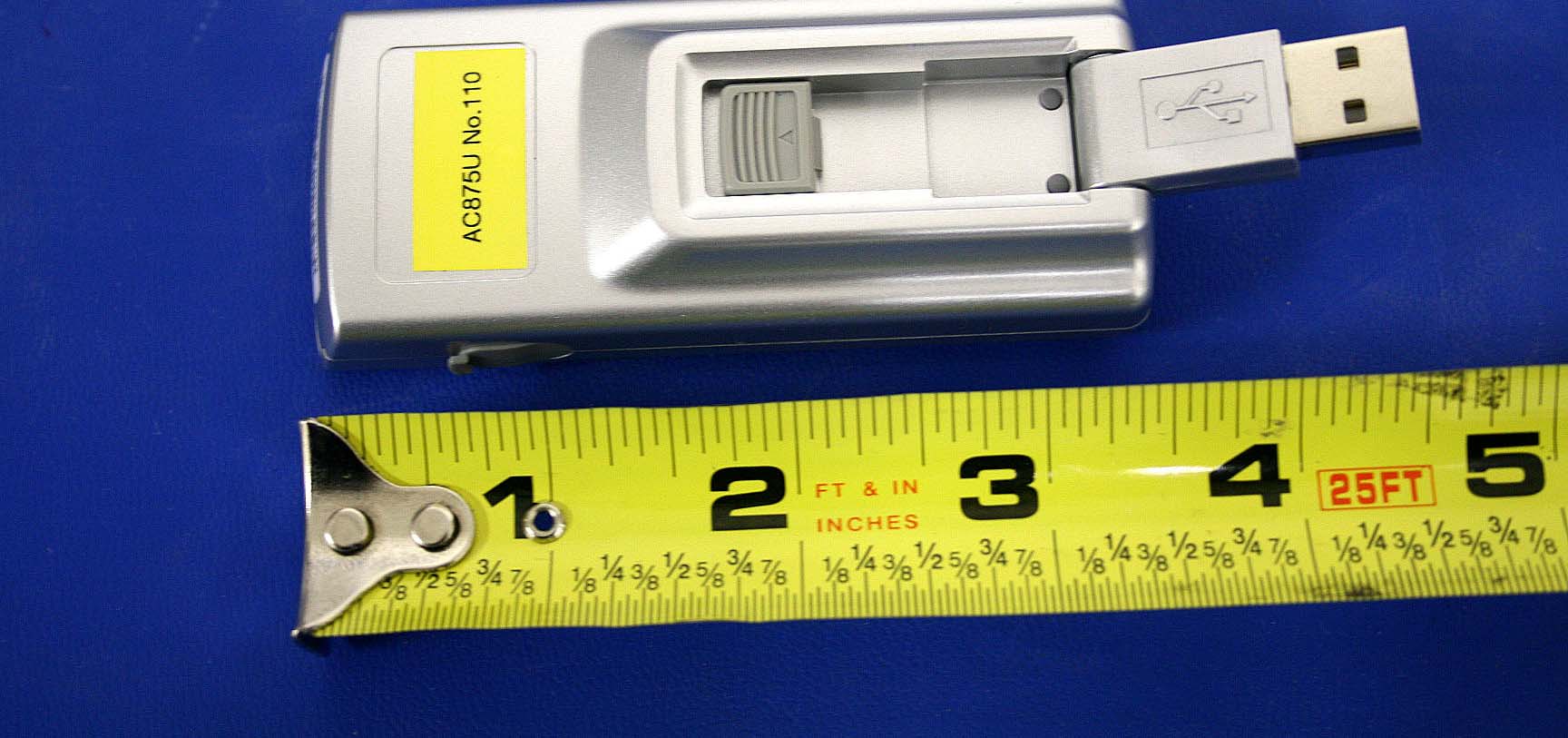

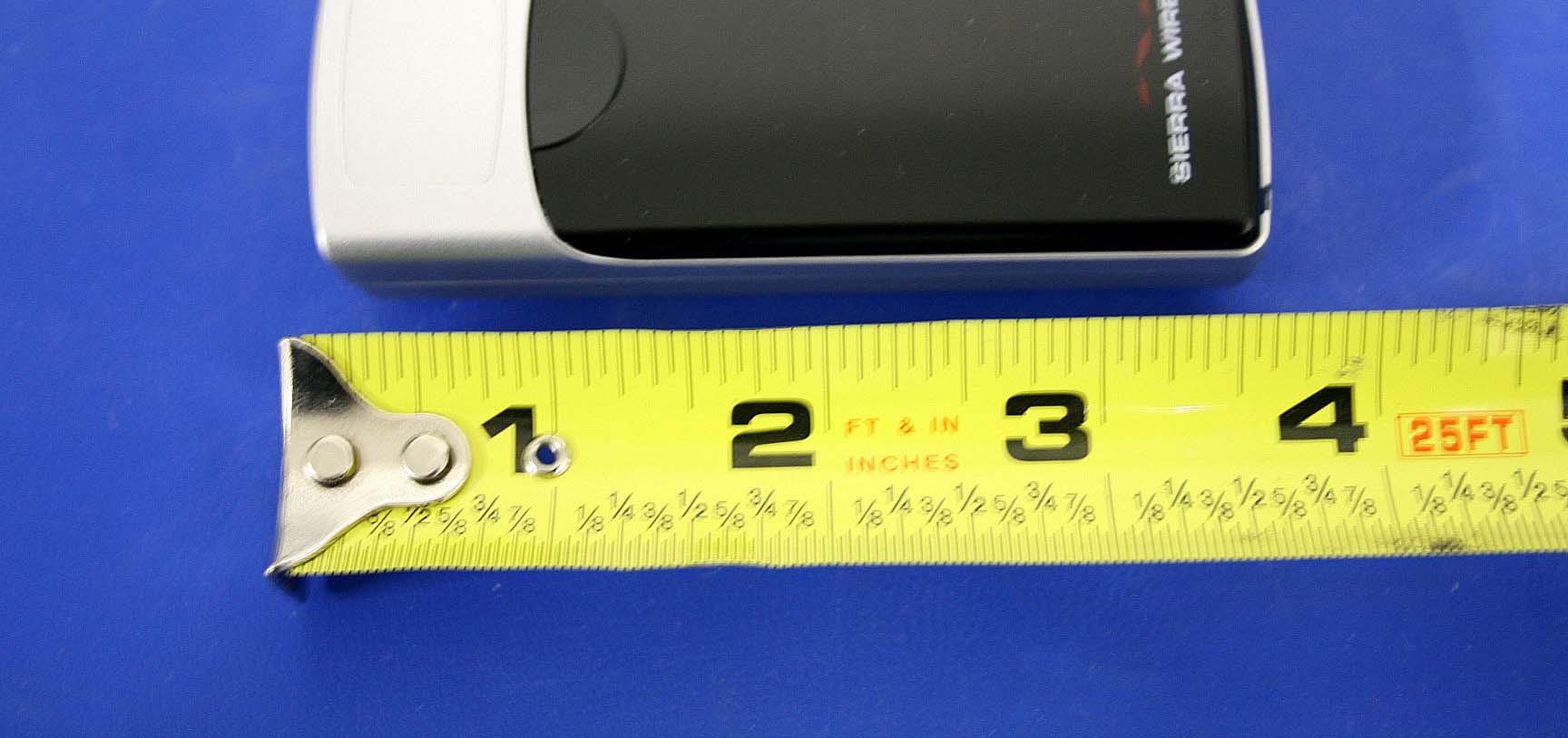

N7N-MC8775UWireless USB Modem

2130784 Rev 1.0 AirCard ® 800 Series Wireless USB Modem Installation Guide Preface Rev 1.0 Jan.073 Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless or its affiliates. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. NOTWITHSTANDING THE FOREGOING, IN NO EVENT SHALL SIERRA WIRELESS AND/OR ITS AFFILIATES’ AGGREGATE LIABILITY ARISING UNDER OR IN CONNECTION WITH THE SIERRA WIRELESS PRODUCT, REGARDLESS OF THE NUMBER OF EVENTS, OCCURRENCES OR CLAIMS GIVING RISE TO LIABILITY, BE IN EXCESS OF THE PRICE PAID BY THE PURCHASER FOR THE SIERRA WIRELESS PRODUCT. PatentsPortions of this product may be covered by some or all of the following US patents: 5,515,013 5,629,960 5,845,216 5,847,553 5,878,234 5,890,057 5,929,815 6,169,884 6,191,741 6,199,168 6,339,405 6,359,591 6,400,336 6,516,204 6,561,851 6,643,501 6,653,979 6,697,030 6,785,830 6,845,249 6,847,830 6,876,697 6,879,585 6,886,049 6,968,171 6,985,757 7,023,878 7,053,843 7,106,569 D442,170 D459,303 and other patents pending. This product includes technology licensed from: Licensed by QUALCOMM Incorporated under one or more of the following United States patents and/or their counterparts in other nations: 4,901,307 5,056,109 5,101,501 5,109,390 5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. 26"-$0..¥ (
)4%1" AirCard 800 Series USB Modem Installation Guide 42130784 Copyright© 2007 Sierra Wireless. All rights reserved. TrademarksAirCard ® and Heart of the Wireless Machine ® are registered trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, the red‐tipped antenna, and Watcher are trademarks of Sierra Wireless. Other trademarks are the property of the respective owners. All product specifications are subject to change without notice. Contact Information Consult our website for up‐to‐date product descriptions, documentation, application notes, firmware upgrades, trouble‐ shooting tips, and press releases: www.sierrawireless.com Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Rev 1.0 Jan.075 Table of Contents Welcome to the AirCard 800 Series wireless USB modem . . . . . . . . . . . . . . . .7 AirCard 800 Series wireless USB modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Supported operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The AirCard USB modem as a network card . . . . . . . . . . . . . . . . . . . . . . . . 7 HSDPA, UMTS, EDGE, and GPRS service support . . . . . . . . . . . . . . . . . . . 8 Frequency band support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Your account and coverage area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 AirCard USB modem software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 The SIM card and your account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Install the AirCard USB modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Insert the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Insert the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Install Watcher software and the AirCard USB modem . . . . . . . . . . . . . . 15 Set Internet Explorer to use the AirCard USB modem . . . . . . . . . . . . . . . 17 Remove the AirCard USB modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Remove the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Configure your account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Set up a profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Care and maintenance of your USB modem . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 AirCard 800 Series USB Modem Installation Guide 62130784 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 LED operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Radio frequency and electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . 26 Environmental specifications . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

January 29, 2007 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, M.D. 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID N7N-MC8775U We hereby request that the documentation listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. 1. Schematics 2. Block Diagram 3. Detailed Circuit Description , Theory of Operation 4. Tune Up Procedure Sincerely, Ying Wang Senior RF Engineer

1 Mike Kuo From: September Radecki Sent: Wednesday, February 07, 2007 2:41 PM To: Mike Kuo; Helen Zhao Cc: Chi Tsou; Christine Vu; Claire Hoque Subject: RE: Sierra Wireless Inc., FCC ID: N7N-MC8775U, Assessment NO.: AN07T6505, Notice#1 Importance: High Attachments: 2130784_AirCard 800 Series USB Modem Installation Guide_r1.0.pdf 2130784_AirCard 800 Series USB... Hi Reviewers, Here are the customer's replies to the remaining questions on this submission. Question #1: Internal Photos: The FCC ID number (N7N-MC8775) in the internal photos does not match with proposed FCC ID number (N7N-MC8775U). Please make necessary corrections. <answer>The FCC ID N7NMC8775(not N7N-MC8775)in the internal photos is for an already approved Sierra Wireless module. N7N-MC8775U is for this application(USB WIRELESS MODEM). Question #2: FCC ID label: As shown in the FCC ID label format, it looks like the FCC ID label will be placed underneath the battery. By reviewing the user manual, looks like the battery and sim card will be installed by the end user at the time of installation so the FCC ID label will be seen by the end user at the time of purchase. Please confirm this statement. ANSWER: Confirmed by Ying Wang of Sierra Wireless. Question #3: User Manual: Regulatory section of user manual does not contain information to warn the user that this device can not be co-located with other transmitter. The following statement is suggested to be included: [YW] The manual has been revised. "CAUTION: The AirCard 875 USB modem has been tested for compliance with FCC / IC RF exposure limits in the laptop computer(s) configurations with the side loading USB slot and can be used in laptop computers with substantially similar physical dimensions,  construction, and electrical and RF characteristics. This USB Modem must not be co ] located or operated in conjunction with any other antenna or transmitter. Use of this device in any other configuration may exceed the FCC RF Exposure compliance limit. Note: If this USB modem is intended for use in any other portable device, you are responsible for separate approval to satisfy the SAR requirements of Part 2.1093 of FCC rules." ANSWER: Please see attached revised manual. Question #4: EMI Statement in the user manual, " These devices comply with Part 15 of FCC rules. Operation is subject to the condition that these devices do not cause harmful interference ". Please replace above statement to comply the requirement as stated in section 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operation. [YW] Per prior discussion with FCC, we label the device per Part 15 Section 15.19 (a) (1) since the device contains a receiver associated with the operation of a licensed radio service. ANSWER: Please see attached revised manual. Question #5: FCC ID label: since there is no DoC logo included in the ID label format and this USB modem is also classified as PC peripheral device. In the submitted attachments, there is ITE test setup photo but there is no Part 15B test report. If the applicant is 2 going to use FCC DoC procedure to comply with PC peripheral compliance requirements, then FCC ID label must comply with FCC DoC label requirement by including FCC DoC logo. If PC Peripheral portion is subject to Certification, then please mark this application as composite application and submit another application as PC peripheral ( JBP). <answer>We are going to file a JBP application immediately. Question #6: Page 35 of user manual, please change FCC Equipment Authorization ID: N7N- MC8775U to FCC ID: N7N-MC8775U. [YW] The manual has been revised. ANSWER: Please see attached revised manual. Question #7: Request for confidentiality letter. Theory of operation is not listed in the request letter but this file contains Block Diagram. Please modify request letter by including theory of operation. <answer>confi. letter is revised and uploaded(please see TCBUpload\AN07T6505). Question #8: Please submit SAR report and associated attachments. <answer>SAR report/attachment are uploaded(please see TCBUpload\AN07T6505). Thank you. Kindest regards, September -----Original Message----- From: Mike Kuo Sent: Wednesday, February 07, 2007 10:53 AM To: September Radecki; Christine Vu; Chi Tsou Cc: Helen Zhao Subject: FW: Sierra Wireless Inc., FCC ID: N7N-MC8775U, Assessment NO.: AN07T6505, Notice#1 Best Regards Mike Kuo Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Direct: (510) 771-1105 Fax: (510) 661-0888 Main: (510) 771-1000 e-mail:[email protected] Web Site:www.ccsemc.com -----Original Message----- From: Helen Zhao Sent: Wednesday, February 07, 2007 10:52 AM To: Thu Chan Cc: Mike Kuo; Helen Zhao Subject: Sierra Wireless Inc., FCC ID: N7N-MC8775U, Assessment NO.: AN07T6505, Notice#1 Question #1: Internal Photos: The FCC ID number (N7N-MC8775) in the internal photos does not match with proposed FCC ID number (N7N-MC8775U). Please make necessary correction. Question #2: FCC ID label: As shown in the FCC ID label format, it looks like the FCC ID label will be placed underneath the battery. By reviewing the user manual, looks like the battery and sim card will be installed by the end user at the time of installation so the FCC ID label will be seen by the end user at the time of purchase. Please confirm this statement. Question #3: User Manual: Regulatory section of user manual does not contain information to warn the user that this device can not be co-located with other transmitter. The following statement is suggested to be included: 3 "CAUTION: The AirCard 875 USB modem has been tested for compliance with FCC / IC RF exposure limits in the laptop computer(s) configurations with the side loading USB slot and can be used in laptop computers with substantially sim…

Text truncated - open the document above for the full version.

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C IC RSS 102 ISSUE 1 : 1999 FOR USB WIRELESS MODEM MODEL: AirCard 875U FCC ID: N7N-MC8775U IC: 2417C-MC8775U REPORT NUMBER: 07U10801-6B ISSUE DATE: JANUARY 30, 2007 Prepared for SIERRA WIRELESS 13811 WIRELESS WAY, RICHMOND, BC CANADA V6V 3A4 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET, FREMONT, CA 94538 USA REPORT NO: 07U10801-6B DATE: January 30, 2007 FCC ID: N7N-MC8775U COMPLIANCE CERTIFICATION SERVICES Page: 2 of 45 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- January 29, 2007 Initial issue HS B January 30, 2007 Corrected some typos HS REPORT NO: 07U10801-6B DATE: January 30, 2007 FCC ID: N7N-MC8775U COMPLIANCE CERTIFICATION SERVICES Page: 3 of 45 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: January 22, 23, 24 and 25, 2007 APPLICANT: ADDRESS: Sierra Wireless 13811 Wireless Way, Richmond, BC Canada V6V 3A4 FCC ID: MODEL: N7N-MC8775U AirCard 875U DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure USB Wireless Modem is installed in three host laptops for SAR evaluation. Test Sample is a: Production unit Host Laptop(s): 1. Panasonic CF-29 2. Toshiba Satellite 3. Compaq Presario R3000 Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] FCC 22H 824.20 - 848.80 1. Panasonic CF-29 0.851 2. Toshiba Satellite 1.375 3. Compaq Presario R3000 0.529 FCC 24E 1850.2 - 1909.8 1. Panasonic CF-29 0.922 2. Toshiba Satellite 1.202 3. Compaq Presario R3000 0.498 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and RSS 102. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Engineering Supervisor EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 07U10801-6B DATE: January 30, 2007 FCC ID: N7N-MC8775U COMPLIANCE CERTIFICATION SERVICES Page: 4 of 45 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION............................................................................ 5 2 FACILITIES AND ACCREDITATION ...................................................................................................6 3 SYSTEM DESCRIPTION ..................................................................................................................... 7 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .............................. 8 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 9 5 SIMULATING LIQUID PARAMETER CHECK RESULT .................................................................... 10 6 SYSTEM PERFORMANCE CHECK .................................................................................................. 14 7 SYSTEM PERFORMANCE CHECK RESULTS ................................................................................ 15 8 SAR MEASURMENT PROCEDURE ................................................................................................. 16 8.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 17 9 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 18 10 SAR MEASURMENT RESULTS........................................................................................................ 24 10.1 PCS BAND................................................................................................................................. 24 10.1.1 PANASONIC CF-29 .............................................................................................. 24 10.1.2 PANASONIC CF-29 .............................................................................................. 25 10.1.3 PANASONIC CF-29 .............................................................................................. 26 10.1.4 TOSHIBA SATELLITE – VERTICAL POSITION ................................................... 27 10.1.5 TOSHIBA SATELLITE – HORIZONTAL POSITION ............................................. 28 10.1.6 TOSHIBA SATELLITE – HORIZONTAL POSITION ............................................. 29 10.1.7 COMPAQ PRESARIO R3000 - VERTICAL POSITION ........................................ 30 10.1.8 COMPAQ PRESARIO R3000 – HORIZONTAL POSITION .................................. 31 10.2 CELL BAND ............................................................................................................................... 32 10.2.1 PANASONIC CF-29 .............................................................................................. 32 10.2.2 PANASONIC CF-29 .............................................................................................. 33 10.2.3 TOSHIBA SATELLITE – VERTICAL POSITION ................................................... 34 10.2.4 TOSHIBA SATELLITE – HO…

Text truncated - open the document above for the full version.

Date/Time: 1/22/2007 2:11:12 PM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.957 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.57 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 52.0 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g Date/Time: 1/22/2007 2:23:29 PM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.76 mW/g Date/Time: 1/23/2007 2:28:52 PM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.966 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.63 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 52.7 V/m; Power Drift = -0.069 dB Peak SAR (extrapolated) = 3.60 W/kg SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.64 mW/g 0 dB = 2.64mW/g Date/Time: 1/23/2007 2:40:57 PM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.80 mW/g Date/Time: 1/24/2007 10:01:58 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.57 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.9 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.1 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 9.71 mW/g; SAR(10 g) = 5.1 mW/g 0 dB = 10.9mW/g Date/Time: 1/24/2007 10:12:27 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm; Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 6.39 mW/g Date/Time: 1/25/2007 10:05:29 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2;Serial: D1900V2 - SN:5d043 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.1 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.2 V/m; Power Drift = -0.049…

Text truncated - open the document above for the full version.

Date/Time: 1/24/2007 10:37:28 AM Test Laboratory: Compliance Certification Services Panasonic Laptop DUT: USB Modem; Type: N/A;Serial: N/A Communication System: DCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 GPRS - ch 661 - 1 slot/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.188 mW/g GPRS - ch 661 - 1 slot/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.84 V/m; Power Drift = 0.191 dB Peak SAR (extrapolated) = 0.364 W/kg SAR(1 g) = 0.224 mW/g; SAR(10 g) = 0.124 mW/g Maximum value of SAR (measured) = 0.252 mW/g 0 dB = 0.252mW/g Date/Time: 1/24/2007 10:53:51 AM Test Laboratory: Compliance Certification Services Panasonic Laptop DUT: USB Modem; Type: N/A; Serial: N/A Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 GPRS - ch 661 - 2 slots/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.351 mW/g GPRS - ch 661 - 2 slots/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 18.0 V/m; Power Drift = -0.118 dB Peak SAR (extrapolated) = 0.685 W/kg SAR(1 g) = 0.424 mW/g; SAR(10 g) = 0.229 mW/g Maximum value of SAR (measured) = 0.476 mW/g Date/Time: 1/24/2007 11:14:01 AM Test Laboratory: Compliance Certification Services Panasonic Laptop DUT: USB Modem; Type: N/A;Serial: N/A Communication System: DCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:2.67 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 GPRS - ch 661 - 3 slots/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.509 mW/g GPRS - ch 661 - 3 slots/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 21.8 V/m; Power Drift = -0.175 dB Peak SAR (extrapolated) = 0.940 W/kg SAR(1 g) = 0.568 mW/g; SAR(10 g) = 0.305 mW/g Maximum value of SAR (measured) = 0.639 mW/g Date/Time: 1/24/2007 11:53:44 AM Test Laboratory: Compliance Certification Services Panasonic Laptop DUT: USB Modem; Type: N/A;Serial: N/A Communication System: DCS 1900;Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 GPRS - ch 512 - 4 slots/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.744 mW/g GPRS - ch 512 - 4 slots/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 26.7 V/m; Power Drift = -0.186 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.883 mW/g; SAR(10 g) = 0.475 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.00 mW/g Date/Time: 1/24/2007 11:35:10 AM Test Laboratory: Compliance Certification Services Panasonic Laptop DUT: USB Modem; Type: N/A;Serial: N/A Communication System: DCS 1900;Frequency: 1880 MHz;…

Text truncated - open the document above for the full version.
