N7NAC319UAirCard 319U

Sierra Wireless AirCard USB Modem User Guide 2131232 Rev. 6 Preface Rev 6 Dec.101 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment that may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. AirCard USB Modem User Guide 22131232 PatentsThis product may contain technology developed by or for Sierra Wireless, Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright© 2010 Sierra Wireless. All rights reserved. TrademarksAirCard ® and Watcher ® are registered trademarks of Sierra Wireless. Sierra Wireless™, the Sierra Wireless logo, and the red wave design are trademarks of Sierra Wireless. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Consult our web site for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Revision numberRelease dateChanges 1.0November 2009New document 2.0April 2010Applied new template 3July 2010Updated Mac OS X information 4September 2010Updated Patents section, added AirCard 312U Preface Rev 6 Dec.103 5October 2010Added AirCard 312U to Regulatory information for EU countries 6December 2010Added AirCard 318U and AirCard 319U information. Revision numberRelease dateChanges AirCard USB Modem User Guide 42131232 Rev 6 Dec.105 Contents Sierra Wireless AirCard USB Modem User Guide . . . . . . . . . . . . . . . . . . . . . 7 About the AirCard USB Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Your account and coverage area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 AirCard USB Modem features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 LED operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connection management software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Launching Watcher (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Launching Watcher (Mac) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Reinstalling the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connecting to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Mac…

Text truncated - open the document above for the full version.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 AUTHORIZATION LETTER DATE: 20 February , 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

January 17, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque /Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in submitting our application for the FCC equipment authorization. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from Sierra Wireless. Sincerely Yours, Ying Wang Staff Regulatory Specialist

January 13, 2011 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NAC319U We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  User Guide  Product Photos  Test Setup Photos Best Regards Ying Wang Staff Regulatory Specialist

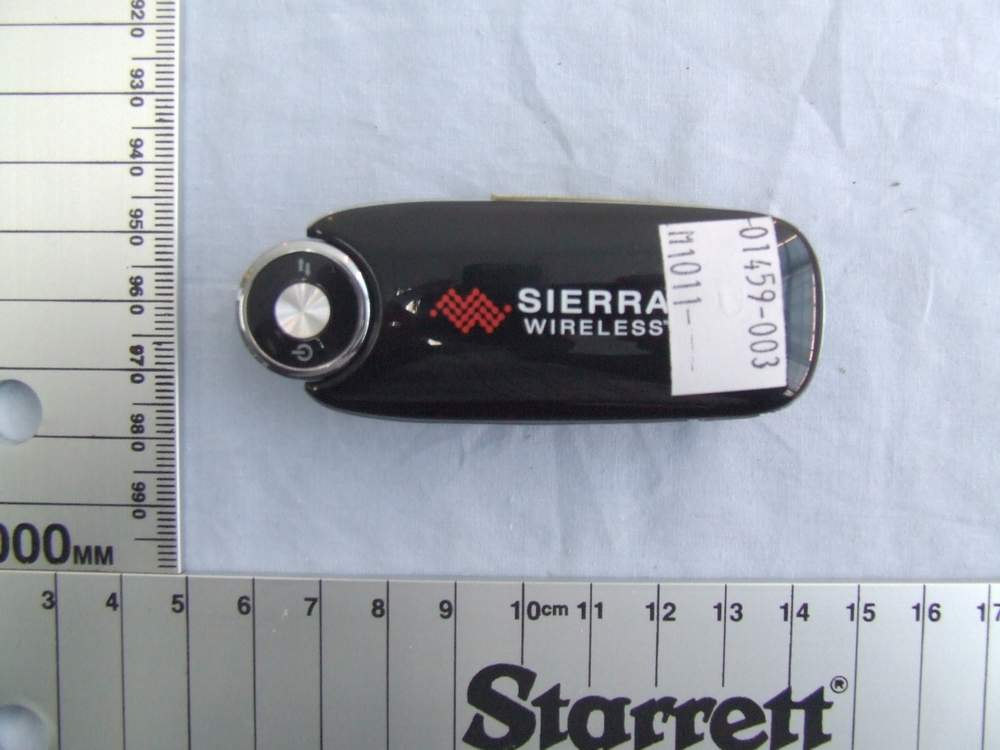

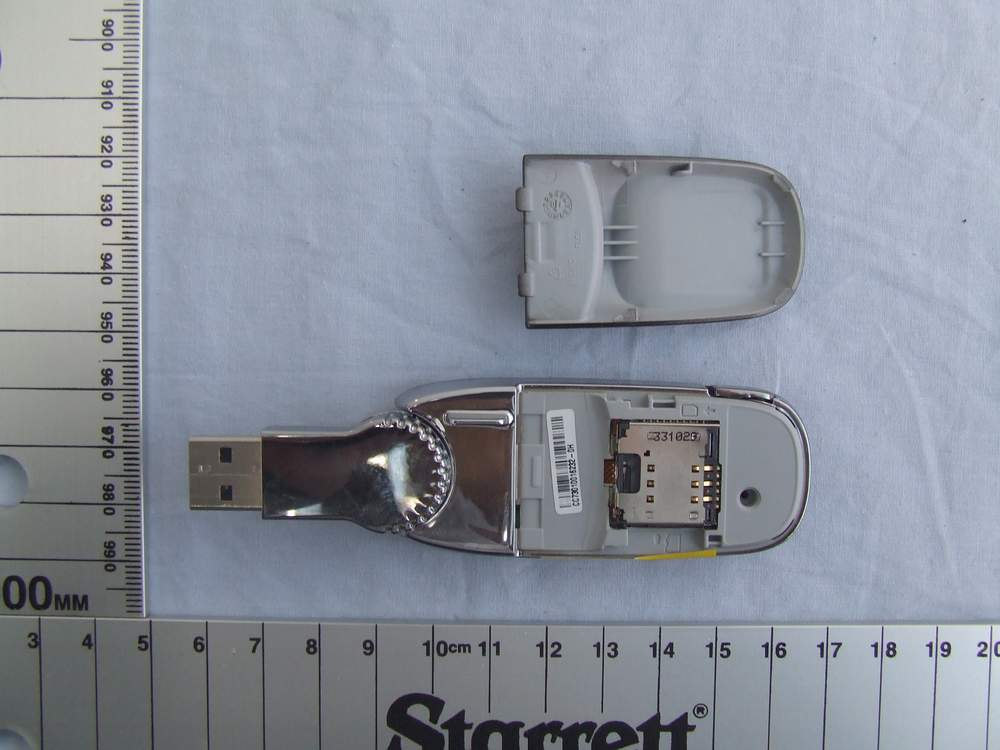

FCC ID: N7NAC319U IC ID: 2417C-AC319U Page 1 of 3 External Photos FCC ID: N7NAC319U IC ID: 2417C-AC319U Page 2 of 3 Front View Rear View FCC ID: N7NAC319U IC ID: 2417C-AC319U Page 3 of 3 Cover Removed View

FCC ID: N7NAC319U IC: 2417C-AC319U AirCard319U Label

FCC ID: N7NAC319U IC ID: 2417C-AC319U ! Page 1 of 3 Internal Photos FCC ID: N7NAC319U IC ID: 2417C-AC319U ! Page 2 of 3 FCC ID: N7NAC319U IC ID: 2417C-AC319U ! Page 3 of 3

Report No.: RZA1011-1777SAR01R2 TESTING No. L2264 OET 65/ RSS-102 TEST REPORT Product Name USB Wireless Modem Model AirCard 319U FCC ID N7NAC319U IC 2417C-AC319U Client Sierra Wireless Inc. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name USB Wireless Modem Model AirCard 319U FCC ID N7NAC319U IC 2417C-AC319U Report No. RZA1011-1777SAR01R2 Client Sierra Wireless Inc. Manufacturer Sierra Wireless Inc. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radio frequency Emissions. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) KDB 447498 D02 SAR Procedures for Dongle Xmtr v02: SAR Measurement Procedures for USB Dongle Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: January 24 th , 2011 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Liu Jun TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1011-1777SAR01R2 Page 3 of 118 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report.......................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT................................................................................................................... 7 1.6. The Maximum SAR 1g Values and Conducted Power of Each Tested Band............................. 8 1.7. Test Date ................................................................................................................................. 8 2. Operational Conditions during Test ................................................................................................. 9 2.1. General Description of Test Procedures .................................................................................. 9 2.2. GSM Test Configuration ........................................................................................................... 9 2.3. WCDMA Test Configuration ................................................................................................... 10 2.4. HSDPA Test Configuration ..................................................................................................... 10 2.5. HSUPA Test Configuration ..................................................................................................... 12 2.6. Position of Module in Portable Devices.................................................................................. 14 2.7. Picture of Host Product .......................................................................................................... 15 3. SAR Measurements System Configuration ................................................................................... 17 3.1. SAR Measurement Set-up .....................................................................................................17 3.2. DASY4 E-field Probe System ................................................................................................ 18 3.2.1. EX3DV4 Probe Specification .......................................................................................... 18 3.2.2. E-field Probe Calibration ................................................................................................. 19 3.3. Other Test Equipment ............................................................................................................19 3.3.1. Device Holder for Transmitters ....................................................................................... 19 3.3.2. Phantom .........................................................................................................................20 3.4. Scanning Procedure ..............................................................................................................20 3.5. Data Storage and Evaluation ................................................................................................. 22 3.5.1. Data Storage...................................................................................................................22 3.5.2. Data Evaluation by SEMCAD ......................................................................................... 22 3.6. System Check........................................................................................................................ 25 3.7. Equivalent Tissues ................................................................................................................. 26 4. Laboratory Environment................................................................................................................ 26 5. Characteristics of the Test .....................................................................................…

Text truncated - open the document above for the full version.

 2009 Sierra Wireless, Inc. This document contains information which is proprietary and confidential to Sierra Wireless, Inc. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sierra Wireless, Inc. is strictly prohibited. AirCard 319U Test Report FOR FCC and IC Certifications IC: 2417C-AC319U FCC ID: N7NAC319U SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 AirCard 319U December 17, 2010 Page 2 of 35  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. Table of Contents 1 Introduction and Purpose ......................................................................... 3 2 Test Summary .......................................................................................... 3 3 Description of Equipment under Test ...................................................... 3 4 RF Power Output ..................................................................................... 4 4.1 Test Procedure .................................................................................................... 4 4.2 Test Equipment.................................................................................................... 4 4.3 Test Results GSM/EDGE (GMSK: MCS4; 8-PSK: MCS9) ................................ 5 4.4 Test Results UMTS .............................................................................................. 5 4.4.1 Test 1: RF Output Power Results for WCDMA R99 ....................................... 5 4.4.2 Test 2: RF Output Power Results for HSDPA Rel6 ........................................ 6 4.4.3 Test 3: RF Output Power Results for HSPA (HSDPA & HSUPA) Rel6 ......... 8 4.5 Test Settings for UMTS Mode on CMU200 ...................................................... 10 5 Occupied Bandwidth .............................................................................. 14 5.1 Test Procedure .................................................................................................. 14 5.2 Test Equipment.................................................................................................. 14 5.3 Test Results ....................................................................................................... 14 5.3.1 GSM Results .................................................................................................. 15 5.3.2 WCDMA Results ........................................................................................... 15 5.4 Test Plots ........................................................................................................... 16 6 Block Edge Compliance ........................................................................ 25 6.1 Test Procedure .................................................................................................. 25 6.2 Test Equipment.................................................................................................. 25 6.3 Test Results ....................................................................................................... 25 6.4 Test Plots ........................................................................................................... 26 7 Frequency Stability versus Temperature ............................................... 32 7.1 Summary of Results ........................................................................................... 32 7.2 Test Procedure .................................................................................................. 32 7.3 Test Equipment.................................................................................................. 32 7.4 Test Results ....................................................................................................... 33 7.4.1 GSM Frequency Error over Temperature .................................................... 33 7.4.2 UMTS Frequency Error over Temperature .................................................. 33 8 Frequency Stability versus Voltage ....................................................... 34 8.1 Summary of Results ........................................................................................... 34 8.2 Test Procedure .................................................................................................. 34 8.3 Test Equipment.................................................................................................. 34 8.4 Test Results ....................................................................................................... 35 8.4.1 GSM Frequency Error over Voltage............................................................. 35 8.4.2 UMTS Frequency Error over Voltage .......................................................... 35 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 AirCard 319U December 17, 2010 Page 3 of 35  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 1 Introduction and Purpose This document provides test data for the AirCard 319U modem intended for FCC and Industry Canada certifications. The tests included in this report are limited to all conducted tests required. The radiated tests were performed at an external test facility. 2 Test Summary FCC Rule IC Standards DESCRIPTION OF TEST RESULT PAGE 2.1046 RSS-132, 4.4 Issue 2 RSS-133, 6.4 Issue 5 RF Power Output Complies 5 2.1049 RSS-Gen, 4.6 Issue 2 Occupied Bandwidth Complies 14 2.1051, 22.901(d) 22.917, 24.238(a) RSS-132, 4.5 Issue 2 RSS-133, 6.5 Issue 5 Out of Band Emissions at Antenna Terminals Complies 26 2.1053 RSS-132, 4.5 Issue 2 RSS-133, 6.5 Issue 5 Field Strength of Spurious Radiation Complies See CCS Report 2.1055 RSS-132, 4.3 Issue 2 RSS-133, 6.3 Issue 5 Frequency Stability versus Temperature Complies 7132 2.1055 RSS-132, 4.3 Issue 2 RSS-133, 6.3 Issue 5 Frequency Stability versus Voltage Comp…

Text truncated - open the document above for the full version.

FCC ID: N7NAC319U IC ID: 2417C-AC319U Page 1 of 2 Test Setup Photos FCC ID: N7NAC319U IC ID: 2417C-AC319U Page 2 of 2 Radiated Emission: Conducted emission:

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1011-1777SAR01R2 Page 115 of 118 ANNEX H: The EUT Appearances and Test Configuration Picture 5: Constituents of the EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1011-1777SAR01R2 Page 116 of 118 Picture 6: Test position 1 Picture 7: Test position 2 5mm 5mm TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1011-1777SAR01R2 Page 117 of 118 Picture 8: Test Position 3 Picture 9: Test Position 4 5mm 5mm TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1011-1777SAR01R2 Page 118 of 118 Picture 10: Test Position 5 5mm
