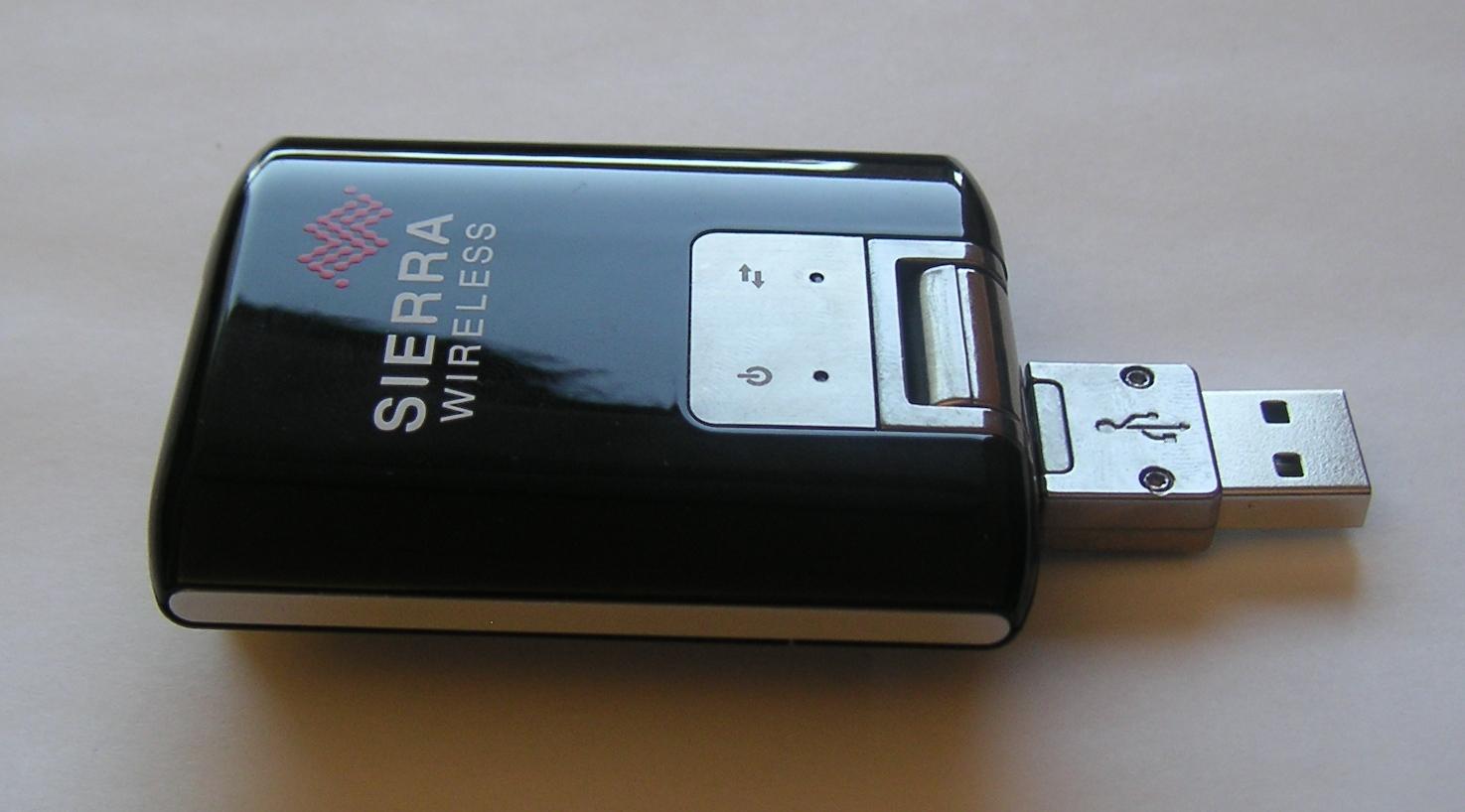

N7NAC330UAirCard 330U Modem

Sierra Wireless AirCard 330U USB Modem User Guide 2400182 Rev. 1 Preface Rev 1 Oct.111 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment that may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. AirCard 330U USB Modem User Guide 22400182 PatentsThis product may contain technology developed by or for Sierra Wireless, Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright© 2011 Sierra Wireless. All rights reserved. TrademarksAirCard ® and Watcher ™ are registered trademarks of Sierra Wireless. Sierra Wireless ™ , the Sierra Wireless logo, and the red wave design are trademarks of Sierra Wireless. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Consult our web site for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Revision numberRelease dateChanges 1October 2011Initial release Rev 1 Oct.113 Contents Sierra Wireless AirCard USB Modem User Guide . . . . . . . . . . . . . . . . . . . . . 5 About the AirCard USB Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Your account and coverage area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 AirCard USB Modem features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 LED operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Connection management software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Launching Watcher (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Launching Watcher (Mac) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Reinstalling the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connecting to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Using the microSD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Removing the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Care and maintenance . . . .…

Text truncated - open the document above for the full version.

November 18, 2011 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NAC330U We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  User Guide  Product Photos  Test Setup Photos Best Regards Ying Wang Staff Regulatory Specialist

Appendix A: Compliance Certification Services related SAR Test Reports Number FCC ID SAR Report No. Device Type/Model TCB Manufacturer N7NAC330U 2011SAR00124 AirCard 330U Compliance Certification Services Sierra Wireless Inc. N7NAC330U 2011EEB00647 Air card 330U Compliance Certification Services Sierra Wireless Inc. N7NAC763S 2011EEB00779-SAR Air card 763S Compliance Certification Services Sierra Wireless Inc. N7NAC763S 2012SAR00007 AirCard 763S Compliance Certification Services Sierra Wireless Inc.

Model: AirCard330U FCC ID: N7NAC330U IC: 2417C - AC330U AirCard 330U Label

Designation Description Distance (mm) “A” Distance from antenna to top edge 3.4 “B” Distance from antenna to side edge 1.9 “C” Distance from antenna to bottom edge 3.5 “D” Distance from antenna to back edge 4.2 “A” “B” “B” “C” “C” “D”

No. 2011EEB00647 Page 1 of 112 SAR TEST REPORT No. 2011EEB00647 For Sierra Wireless Inc. USB Modem AirCard 330U With Hardware Version: DV1.1 Software Version: SWI9200X_03.00.06.05AP FCCID : N7NAC330U IC Cert Number: 2417C-AC330U Issued Date: 2012-02-01 No. DGA-PL-114/09-A0 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2011EEB00647 Page 2 of 112 Revision Version Report Number RevisionDate Memo 2011EEB00647 00 2011/11/22 Initial creation of test report 2011EEB00647 01 2012/01/31 Add annex H 2011EEB00647 02 2012/02/01 Remove the picture of sample 2011EEB00647 03 2012/02/15 Add KDB450824D01&D02 No. 2011EEB00647 Page 3 of 112 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................. 4 1.1 TESTING LOCATION ........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT ................................................................................................................................. 4 1.3 PROJECT DATA ............................................................................................................................................... 4 1.4 SIGNATURE ..................................................................................................................................................... 4 2 CLIENT INFORMATION .............................................................................................................. 5 2.1 APPLICANT INFORMATION .............................................................................................................................. 5 2.2 MANUFACTURER INFORMATION ..................................................................................................................... 5 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 6 3.1 ABOUT EUT ................................................................................................................................................... 6 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 6 4 CHARACTERISTICS OF THE TEST .......................................................................................... 6 4.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 6 4.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 6 5 OPERATIONAL CONDITIONS DURING TEST .......................................................................... 7 5.1 SCHEMATIC TEST CONFIGURATION ................................................................................................................. 7 5.2 SAR MEASUREMENT SET-UP .......................................................................................................................... 9 5.3 DASY4 E-FIELD PROBE SYSTEM ................................................................................................................... 10 5.4 E-FIELD PROBE CALIBRATION ...................................................................................................................... 11 5.5 OTHER TEST EQUIPMENT ............................................................................................................................. 12 5.5.1 DEVICE HOLDER FOR TRANSMITTERS ....................................................................................................... 12 5.5.2 PHANTOM .................................................................................................................................................. 12 5.6 EQUIVALENT TISSUES ................................................................................................................................... 12 5.7 SYSTEM SPECIFICATIONS .............................................................................................................................. 13 6 TEST RESULTS ........................................................................................................................ 13 6.1 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 6.2 SYSTEM VALIDATION .................................................................................................................................... 14 6.3 SUMMARY OF MEASUREMENT RESULTS ....................................................................................................... 15 6.4 CONCLUSION ................................................................................................................................................ 17 7 MEASUREMENT UNCERTAINTY ............................................................................................ 17 8 MAIN TEST INSTRUMENTS .................................................................................................... 19 ANNEX A MEASUREMENT PROCESS .................................................................................... 20 ANNEX B TEST LAYOUT ......................................................................................................... 21 ANNEX C GRAPH RESULTS .................................................................................................... 23 ANNEX D SYSTEM VALIDATION RESULTS ..........................................…

Text truncated - open the document above for the full version.

No. 2011EEB00647 Page 71 of 112 No. 2011EEB00647 Page 72 of 112 No. 2011EEB00647 Page 73 of 112 No. 2011EEB00647 Page 74 of 112 No. 2011EEB00647 Page 75 of 112 No. 2011EEB00647 Page 76 of 112 No. 2011EEB00647 Page 77 of 112 No. 2011EEB00647 Page 78 of 112 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No. 2011EEB00647 Page 79 of 112 No. 2011EEB00647 Page 80 of 112 No. 2011EEB00647 Page 81 of 112 No. 2011EEB00647 Page 82 of 112 No. 2011EEB00647 Page 83 of 112 No. 2011EEB00647 Page 84 of 112 No. 2011EEB00647 Page 85 of 112 No. 2011EEB00647 Page 86 of 112 No. 2011EEB00647 Page 87 of 112 1900 MHz Dipole Calibration Certificate No. 2011EEB00647 Page 88 of 112 No. 2011EEB00647 Page 89 of 112 No. 2011EEB00647 Page 90 of 112

No. 2011EEB00647 Page 91 of 112 No. 2011EEB00647 Page 92 of 112 No. 2011EEB00647 Page 93 of 112 No. 2011EEB00647 Page 94 of 112 No. 2011EEB00647 Page 95 of 112 No. 2011EEB00647 Page 96 of 112 ANNEX G DIPOLE QUALIFICATION FOR THE EXTENDED 3-YEAR CALIBRATION INTERVAL G1 Dipole 835 The information and documentation below are provided to qualify the extended 3-year calibaration interval of dipole. G1.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46103759 02 Power meter NRVD 101253 03 Power sensor NRV-Z5 100333 04 Signal Generator E4438C MY45095825 05 Amplifier VTL5400 0404 06 E-field Probe SPEAG ES3DV3 3151 07 DAE SPEAG DAE4 786 08 Dipole Validation Kit SPEAG D835 V2 443 G1.2 Results of Impedance, Return-loss and System validation Dipole 835 - Head Year Deviation Limit 20092010 20112010 2011 Impedance Real (Ω) 52.1 53.7 52.8 1.6Ω 0.7Ω Deviation＜ 5Ω Imaginary (Ω) -3.5 -3.7 -3.6 0.2Ω 0.1Ω Deviation＜ 5Ω Return-loss (dB) -25.5-25.63 -25.690.13dB0.19dB Deviate ＜ 0.2dB System validation 10g 1.57 1.55 1.56 -1.27%-0.64% Deviation＜ 10% 1g 2.43 2.41 2.45 -0.82%0.82% Deviation＜ 10% Dipole 835- Body Year Deviation Limit 2009 2010 2011 2010 2011 Impedance Real (Ω) 49.6 49.4 49.5 0.2Ω 0.1Ω Deviation＜ 5Ω Imaginary (Ω) -5.3 -5.1 -5.0 0.2Ω 0.3Ω Deviation＜ 5Ω Return-loss (dB) -25.8 -25.62-25.680.18dB 0.12dB Deviate＜ 0.2dB System validation 10g 1.60 1.61 1.59 0.63% -0.63% Deviation＜ 10% 1g 2.46 2.51 2.48 2.03% 0.81% Deviation＜ 10% According to the above tables, it is not necessary to recalibration the dipoles in 2010 and 2011. Please see below for the detail information. No. 2011EEB00647 Page 97 of 112 G1.3 Detail Information G1.3.1 Impedance Measurement Plot Picture G1: Impedance Measurement Plot _Dipole 835 Head _2010 Picture G2: Impedance Measurement Plot _Dipole 835 Body _2010 No. 2011EEB00647 Page 98 of 112 Picture G3: Impedance Measurement Plot _Dipole 835 Head _2011 Picture G4: Impedance Measurement Plot _Dipole 835 Body _2011 No. 2011EEB00647 Page 99 of 112 G1.3.2 System Validation Results 835 MHz Date/Time: 2010-10-23 9:17:25 AM Electronics: DAE4 Sn786 Medium: 850 head Medium parameters used: f = 835 MHz; σ= 0.91 mho/m; εr = 41.7; ρ= 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF (6.02, 6.02, 6.02) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.64 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.2 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.59 mW/g 0 dB = 2.59mW/g Fig.G1 validation 835MHz 250mW No. 2011EEB00647 Page 100 of 112 835 MHz Date/Time: 2010-10-24 11:17:25 AM Electronics: DAE4 Sn786 Medium: 850 body Medium parameters used: f = 835 MHz; σ= 0.98 mho/m; εr = 55.35; ρ= 1000 kg/m 3 Ambient Temperature: 22.0 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF (6.02, 6.02, 6.02) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.55 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.3V/m; Power Drift = 0.086 dB Peak SAR (extrapolated) = 3.46 W/kg SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.63 mW/g 0 dB = 2.63mW/g Fig.G2 validation 835MHz 250mW No. 2011EEB00647 Page 101 of 112 835 MHz Date/Time: 2011-10-22 08:37:24 AM Electronics: DAE4 Sn786 Medium: 850 head Medium parameters used: f = 835 MHz; σ= 0.92 mho/m; εr = 41.2; ρ= 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 23.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF (6.02, 6.02, 6.02) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.55 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.2. V/m; Power Drift = 0.044 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g Fig.G3 validation 835MHz 250mW No. 2011EEB00647 Page 102 of 112 835 MHz Date/Time: 2011-10-23 10:57:25 AM Electronics: DAE4 Sn786 Medium: 850 Body Medium parameters used: f = 835 MHz; σ= 0.98 mho/m; εr = 53.29; ρ= 1000 kg/m 3 Ambient Temperature: 23.0 o C Liquid Temperature: 23.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF (6.02, 6.02, 6.02) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.58 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.0 V/m; Power Drift = 0.053 dB Peak SAR (extrapolated) = 3.49 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.66mW/g 0 dB = 2.66mW/g Fig.G4 validation 835MHz 250mW No. 2011EEB00647 Page 103 of 112 G2 Dipole1900 The information and documentation below are provided to qualify the extended 3-year calibaration interval of dipole. G2.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46103759 02 Power meter NRVD 101253 03 Power sensor NRV-Z5 100333 04 Signal Generator E4438C MY45095825 05 Amplifier VTL5400 0404 06 E-field Probe SPEAG ES3DV3 3151 07 DAE SPEAG DAE4 786 08 Dipole Validation Kit SPEAG D1900V2 541 G2.2 Results of Impedance, Return-loss and System validation Dipole1900 - Head Year Deviation Limit 2009 2010 2011 2010 2011 Impedance Real (Ω) 54.4 54.6 54.8 0.2Ω 0.4Ω Deviation＜ 5Ω Imaginary (Ω) 5.8 5.3 5.5 0.5Ω 0.3Ω Deviation＜ 5Ω Return-loss (dB) -23.02-23.10-23.210.1dB 0.19dB Deviate＜ 0.2dB System validation 10g 5.12 5.14 5.16 0.39% 0.78% Devia…

Text truncated - open the document above for the full version.

No.2011SAR00124 Page 1 of 148 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00124 For Sierra Wireless Inc. USB Modem AirCard 330U With Hardware Version: DV1.1 Software Version: SWI9200X_03.00.06.05AP FCCID : N7NAC330U IC : 2417C-AC330U Issued Date: 2012-02-15 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2011SAR00124 Page 2 of 148 Revision Version Report Number Revision Date Memo 2011SAR00124 00 2011/11/02 Initial creation of test report 2011SAR00124 01 2011/11/16 Update the conducted power 2011SAR00124 02 2011/11/22 Remove the picture of sample 2011SAR00124 03 2011/12/16 Add annex G 2011SAR00124 04 2011/12/22 Update the standard and the dielectric of the tissue simulating liquid 2011SAR00124 05 2012/01/13 Add the LTE test for some positions 2011SAR00124 06 2012/01/27 Add the detailed explanation of the software version and the frequency validity 2011SAR00124 07 2012/01/31 Retest the SAR value for some positions and add annex H 2011SAR00124 08 2012/02/15 Add the KDB 450824 in section 4.2 No. 2011SAR00124 Page 3 of 148 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................4 1.1 TESTING LOCATION........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT................................................................................................................................. 4 1.3 PROJECT DATA............................................................................................................................................... 4 1.4 SIGNATURE..................................................................................................................................................... 4 2 CLIENT INFORMATION..............................................................................................................5 2.1 APPLICANT INFORMATION.............................................................................................................................. 5 2.2 MANUFACTURER INFORMATION..................................................................................................................... 5 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................6 3.1 ABOUT EUT ................................................................................................................................................... 6 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 6 4 CHARACTERISTICS OF THE TEST ..........................................................................................6 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 6 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 6 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 9 5.3 DASY4 E-FIELD PROBE SYSTEM................................................................................................................... 10 5.4 E-FIELD PROBE CALIBRATION...................................................................................................................... 11 5.5 OTHER TEST EQUIPMENT............................................................................................................................. 12 5.6 EQUIVALENT TISSUES................................................................................................................................... 12 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 13 6 TEST RESULTS ........................................................................................................................13 6.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 6.2 SYSTEM VALIDATION.................................................................................................................................... 14 6.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 16 6.4 CONCLUSION................................................................................................................................................ 18 7 MEASUREMENT UNCERTAINTY ............................................................................................18 8 MAIN TEST INSTRUMENTS ....................................................................................................19 ANNEX A MEASUREMENT PROCESS....................................................................................20 ANNEX B TEST LAYOUT .........................................................................................................21 ANNEX C GRAPH RESULTS...................................................................…

Text truncated - open the document above for the full version.

band 4 20 MHz band 4 10 MHz band 7 20 MHz band 7 10 MHz 941225 Low 1720 Mid 1732.5 High 1745 Low 1715 Mid 1732.5 High 1750 Low 2510 Mid 2535 High 2560 Low 2505 Mid 2535 High 2565 qpskP, 1RB, B21.8522.4422.3322.1322.4722.2621.4521.5721.1621.5121.6321.80 qpskP, 1RB, T22.5422.0822.3422.4522.5522.3622.1221.7721.4821.7121.8321.65 qpskP, 50%RB, C21.4921.5521.4321.2021.4321.1620.9420.7620.6720.4620.7620.57 qpskP, 100%RB, C21.3721.3921.3621.1321.4021.0920.6620.8320.5020.5420.7520.69 Posfreq17201732.5174517151732.51750251025352560250525352565 1QPSK, 50%RB, C1.171.071.091.161.361.093) A) 1QPSK, 100%RB, C3) A) I) 1QPSK, 1RB, T1.21.433) B) 1QPSK, 1RB, B1.191.413) B) 116QAM, 50%RB, C0.9571.054) A) 116QAM, 100%RB, C4) A) I) b) 116QAM, 1RB, T0.9881.44) B) 116QAM, 1RB, B1.371.394) B) 2QPSK, 50%RB, C0.6080.393) A) 2QPSK, 100%RB, C3) A) I) 2QPSK, 1RB, T0.5850.4123) B) 2QPSK, 1RB, B0.7520.5393) B) 216QAM, 50%RB, C0.3640.3584) A) 216QAM, 100%RB, C4) A) I) b) 216QAM, 1RB, T0.5680.4544) B) 216QAM, 1RB, B0.6450.4494) B) 3QPSK, 50%RB, C0.0820.1223) A) 3QPSK, 100%RB, C3) A) I) 3QPSK, 1RB, T0.1190.0983) B) 3QPSK, 1RB, B0.1100.1253) B) 316QAM, 50%RB, C0.0700.0784) A) 316QAM, 100%RB, C4) A) I) b) 316QAM, 1RB, T0.1000.1204) B) 316QAM, 1RB, B0.1040.1034) B) T = top edge, C = center, B = bottom edge; fn = footnote x = default test channel, o = other channel depending on power or SAR Revised table for Rev 5 LTE SAR Report band 4 20 MHz band 4 10 MHz band 7 20 MHz band 7 10 MHz 941225 qpskP, 1RB, B21.8522.4422.3322.1322.4722.2621.4521.5721.1621.5121.6321.80 qpskP, 1RB, T22.5422.0822.3422.4522.5522.3622.1221.7721.4821.7121.8321.65 qpskP, 50%RB, C21.4921.5521.4321.2021.4321.1620.9420.7620.6720.4620.7620.57 qpskP, 100%RB, C21.3721.3921.3621.1321.4021.0920.6620.8320.5020.5420.7520.69 Posfreq1720.01732.51745.01715.01732.51750.02510.02535.02560.02505.02535.02565.0 4QPSK, 50%RB, C0.4410.5623) A) 4QPSK, 100%RB, C3) A) I) 4QPSK, 1RB, T0.7350.5783) B) 4QPSK, 1RB, B0.6370.6503) B) 416QAM, 50%RB, C0.3810.4284) A) 416QAM, 100%RB, C4) A) I) b) 416QAM, 1RB, T0.5220.5034) B) 416QAM, 1RB, B0.7050.5564) B) 5QPSK, 50%RB, C0.6020.3283) A) 5QPSK, 100%RB, C3) A) I) 5QPSK, 1RB, T0.8670.2413) B) 5QPSK, 1RB, B0.8030.3723) B) 516QAM, 50%RB, C0.4790.2454) A) 516QAM, 100%RB, C4) A) I) b) 516QAM, 1RB, T0.5740.3144) B) 516QAM, 1RB, B0.9950.3034) B)

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No. 2011TAR590 Page1 of 19 TEST REPORT No. 2011TAR590 for Sierra Wireless Inc. USB Modem Model Name: AirCard 330U FCC ID: N7NAC330U IC: 2417C-AC330U with Hardware Version: DV1.1 Software Version: SWI9200X_03.00.06.05AP Issued Date: Nov 17, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2011TAR590 Page2 of 19 CONTENTS 1. TEST…
