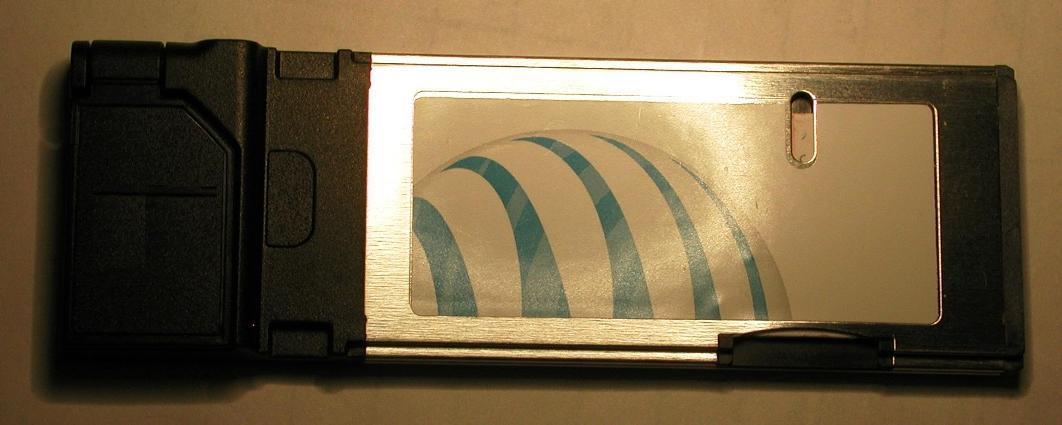

N7NAC500ExpressCard Wireless Modem

Sierra Wireless AirCard Modem User Guide 2131233 Rev 1.0 Rev 1.0 Nov. 093 Important NoticeDue to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (that is, have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well‐constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and HazardsDo not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF . The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operatorʹs control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR AirCard Modem User Guide 42131233 REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. PatentsPortions of this product may be covered by some or all of the following US patents: 5,515,013 5,629,960 5,845,216 5,847,553 5,878,234 5,890,057 5,929,815 6,169,884 6,191,741 6,199,168 6,339,405 6,359,591 6,400,336 6,516,204 6,561,851 6,643,501 6,653,979 6,697,030 6,785,830 6,845,249 6,847,830 6,876,697 6,879,585 6,886,049 6,968,171 6,985,757 7,023,878 7,053,843 7,106,569 7,145,267 7,200,512 7,295,171 7, 287,162 D442,170 D459,303 D599,256 D560,911 and other patents pending. This product includes technology licensed from: Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. Copyright© 2009 Sierra Wireless. All rights reserved. Trademarks“Heart of the Wireless Machine ® ” is a registered trademark of Sierra Wireless. Watcher ® is a trademark of Sierra Wireless, registered in the European Community. Sierra Wireless, the Sierra Wireless logo, the red wave design, the red‐tipped antenna, and TRU‐Install are trademarks of Sierra Wireless. Windows ® is a registered trademark of Microsoft Corporation. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Macintosh ® is a trademark of Apple Inc., registered in the U.S. and other countries. Other trademarks are the property of the respective owners. QUALCOMM ® 3G Rev 1.0 Nov. 095 Contact Information Consult our Web site for up‐to‐date product descriptions, documentation, application notes, firmware upgrades, trouble‐ shooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax: 1-604-231-1109 Web:www.sierrawireless.com Revision number Release dateChanges 1.0November 2009New document AirCard Modem User Guide 62131233 Rev 1.0 Nov. 097 Contents AirCard Modem User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 About the AirCard modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Services supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Your account and coverage area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 AirCard modem features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 LED operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connection management software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Launching Watcher (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Launching Watcher (Mac) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 AUTHORIZATION LETTER DATE: 20 February , 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

January 17, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque /Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in submitting our application for the FCC equipment authorization. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from Sierra Wireless. Sincerely Yours, Ying Wang Staff Regulatory Specialist

November 17, 2009 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NAC500 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  User Guide  Product Photos  Test Setup Photos Best Regards Ying Wang Staff Regulatory Specialist

Compliance Certification Services GLOBAL TEST & CERTIFICATION FCC, IC, CE, NCC, IDA, VCCI, BSMI, MIC SAR/HAC, DFS, CTIA, UL/CUL, TUV, CSA NVLAP ACCREDITATION TCB / CAB 47173 BENICIA STREET, FREMONT CA 94538 TEL: (510) 771-1000 FAX: (510) 661-0888 WWW.CCSEMC.COM Federal Communication Commissions 7435 Oakland Mills Road Columbia MD 21046 Subject: Superseded uploaded File Ref: Grantee: Sierra Wireless FCC ID: N7NAC500 Grant date: Dec. 07, 2009 Supersede action taken on: Dec. 07, 2009 To Whom It May Concern: Page 26 of SAR test report (Report No: 09U12860-3B ) contains confidential information. The grantee requested to have such confidential information to be included in the operational description (section 2.2.2). Two files are superseded: SAR test report (replaced with Report no: 09U12860-3C) and operational description. If you have any question, please feel free to contact the undersigned. Best Regards Mike C.I. Kuo / CEO Compliance Certification Services Dec. 07, 2009

47173 Benicia Street Fremont, CA 94538, USA Tel: (510) 771-1000,Fax: (510) 661-0888 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: reviewer Re: Request FCC to replace previous submitted label SUB: FCC ID: N7NAC500 N7NAC500 was granted on 12/7/2009, however Sierra Wireless informed us to replace the label since the current label submitted reveals too much details of the product(currently external photos are kept short-term confidential). CCS-TCB is requesting FCC to delete the label uploaded on Dec.7, 2009. Sincerely Yours, Mike Kuo Compliance Certification Services 47173 Benicia Street Fremont, CA 94538, USA Tel: (510) 771-1000

Date/Time: 10/19/2009 8:38:23 AM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.5 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.82 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.0 V/m; Power Drift = -0.210 dB Peak SAR (extrapolated) = 68.6 W/kg SAR(1 g) = 38.1 mW/g; SAR(10 g) = 20.2 mW/g Normalized to target power = 1 W and actual power = 0.25 W Maximum value of SAR (measured) = 47.9 mW/g 0 dB = 47.9mW/g Date/Time: 10/19/2009 8:46:43 AM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 11.9 mW/g Date/Time: 10/27/2009 4:23:15 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.5 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.81 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.1 V/m; Power Drift = -0.140 dB Peak SAR (extrapolated) = 68.3 W/kg SAR(1 g) = 37.9 mW/g; SAR(10 g) = 20 mW/g Normalized to target power = 1 W and actual power = 0.25 W Maximum value of SAR (measured) = 48.1 mW/g 0 dB = 48.1mW/g Date/Time: 10/27/2009 4:35:17 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 12 mW/g Date/Time: 10/20/2009 8:42:10 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole; Type: D835V2; Serial: 4d002 Communication System: System Check Signal - CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.968 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.7, 8.7, 8.7); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.94 mW/g d=15mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.2 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 15.0 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 6.58 mW/g Normalized to target power = 1 W and actual power = 0.25 W Maximum value of SAR (measured) = 11.8 mW/g 0 dB = 11.8mW/g Date/Time: 10/20/2009 8:47:25 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole; Type: D835V2; Serial: 4d002 Communication System: System Check Signal - CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 2.95 mW/g Date/Time: 10/27/2009 8:38:10 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole; Type: D835V2; Serial: 4d002 Communication System: System Check Signal - CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.969 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.7, 8.7, 8.7); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=250mW/Area Scan (7x9x1):…

Text truncated - open the document above for the full version.

Date/Time: 10/19/2009 4:55:31 PM Test Laboratory: Compliance Certification Services WCDMA Band II DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: PCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 M-ch_Band II R99/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.844 mW/g M-ch_Band II R99/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 17.7 V/m; Power Drift = -1.28 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.734 mW/g; SAR(10 g) = 0.452 mW/g Maximum value of SAR (measured) = 0.878 mW/g 0 dB = 0.878mW/g Date/Time: 10/27/2009 5:37:56 PM Test Laboratory: Compliance Certification Services WCDMA Band II Ant wide open DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: PCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 M-ch_Band II R99/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.362 mW/g M-ch_Band II R99/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 13.3 V/m; Power Drift = -0.264 dB Peak SAR (extrapolated) = 0.530 W/kg SAR(1 g) = 0.350 mW/g; SAR(10 g) = 0.226 mW/g Maximum value of SAR (measured) = 0.408 mW/g 0 dB = 0.408mW/g

Date/Time: 10/19/2009 10:49:59 AM Test Laboratory: Compliance Certification Services GPRS1900 Ant wide open DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 L-ch_4 slot/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.21 mW/g L-ch_4 slot/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 21.4 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 1.76 W/kg SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.699 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.36 mW/g Date/Time: 10/19/2009 11:11:50 AM Test Laboratory: Compliance Certification Services GPRS1900 Ant wide open DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:2 L-ch_4 slot/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.35 mW/g Date/Time: 10/19/2009 10:24:21 AM Test Laboratory: Compliance Certification Services GPRS1900 Ant wide open DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 M-ch_4 slot/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.22 mW/g M-ch_4 slot/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 21.3 V/m; Power Drift = -0.192 dB Peak SAR (extrapolated) = 1.76 W/kg SAR(1 g) = 1.1 mW/g; SAR(10 g) = 0.674 mW/g Maximum value of SAR (measured) = 1.32 mW/g Date/Time: 10/19/2009 11:14:14 AM Test Laboratory: Compliance Certification Services GPRS1900 Ant wide open DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: DCS 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:2 Medium parameters used (extrapolated): f = 1909.8 MHz; σ = 1.5 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 H-ch_4 slot/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.08 mW/g H-ch_4 slot/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 19.5 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.965 mW/g; SAR(10 g) = 0.594 mW/g Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.14 mW/g Date/Time: 10/19/2009 2:19:42 PM Test Laboratory: Compliance Certification Services GPRS1900 Ant closed DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.85, 6.85, 6.85); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 M-ch_4 slot/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.174 mW/g M-ch_4 slot/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 8.99 V/m; Power Drift = 0.240 dB Peak SAR (extrapolated) = 0.230 W/kg SAR(1 g) = 0.160 mW/g; SAR(10 g) = 0.113 mW/g Maximum value of SAR (measured) = 0.191 mW/g Date/Time: 10/19/2009 3:10:11 PM Test Laboratory: Compliance Certification Services GPRS1900 Ant half open DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; ε r = 54…

Text truncated - open the document above for the full version.

Date/Time: 10/20/2009 10:01:56 AM Test Laboratory: Compliance Certification Services WCDMA Band V DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: UMTS850; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.969 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.7, 8.7, 8.7); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 10/20/2008 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 M-ch_Band V R99/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.616 mW/g M-ch_Band V R99/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 16.5 V/m; Power Drift = -0.112 dB Peak SAR (extrapolated) = 0.881 W/kg SAR(1 g) = 0.561 mW/g; SAR(10 g) = 0.351 mW/g Maximum value of SAR (measured) = 0.664 mW/g 0 dB = 0.664mW/g Date/Time: 10/27/2009 8:09:52 PM Test Laboratory: Compliance Certification Services WCDMA Band V DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: UMTS850; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.971 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.7, 8.7, 8.7); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 M-ch_Band V R99/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.238 mW/g M-ch_Band V R99/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 13.8 V/m; Power Drift = -0.557 dB Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.232 mW/g; SAR(10 g) = 0.173 mW/g Maximum value of SAR (measured) = 0.253 mW/g 0 dB = 0.253mW/g

Date/Time: 10/20/2009 11:50:04 AM Test Laboratory: Compliance Certification Services GSM850_2TS DUT: Sierra Wireless; Type: AirCard504; Serial: F9E26290179E20C Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium parameters used: f = 825 MHz; σ = 0.957 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0 deg. C; Liquid Temperatu…

Text truncated - open the document above for the full version.
