N7NAC597EExpressCard Modem CDMA

AirCard® 597E ExpressCard User Guide 2130755 Rev 1.0 Preface Document 2130755. Rev 1.0 Dec.062 Important NoticeDue to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well‐constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and HazardsDo not operate the Sierra Wireless modem: •In areas where blasting is in progress •Where explosive atmospheres may be present •Near medical equipment •Near life support equipment, or any equipment that may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF . The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. The Sierra Wireless modem may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operatorʹs control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Preface Document 2130755. Rev 1.0 Dec.063 Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. PatentsPortions of this product may be covered by some or all of the following US patents: 5,515,013 5,629,960 5,845,216 5,847,553 5,878,234 5,890,057 5,929,815 6,169,884 6,191,741 6,199,168 6,339,405 6,359,591 6,400,336 6,516,204 6,561,851 6,643,501 6,653,979 6,697,030 6,785,830 6,845,249 6,847,830 6,876,697 6,879,585 6,886,049 6,968,171 6,985,757 7,023,878, 7,053,843 7,106,569 D442,170 D459,303 and other patents pending. This product includes technology licensed from: Licensed by QUALCOMM Incorporated under one or more of the following United States patents and/or their counterparts in other nations: 4,901,307 5,056,109 5,101,501 5,109,390 5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Manufactured or sold by Sierra Wireless Inc. or its Licensees under one or more patents licensed from InterDigital Group. Copyright©2006 Sierra Wireless. All rights reserved. Preface Document 2130755. Rev 1.0 Dec.064 TrademarksAirCard and “Heart of the Wireless Machine” are registered trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, and Watcher are trademarks of Sierra Wireless. Windows ® is a registered trademark of Microsoft Corporation. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. ExpressCard is a trademark of PCMCIA. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. gpsOne is a trademark of QUALCOMM Incorporated. InstallShield ® is a registered trademark of Macrovision Corpo‐ ration in the United States of America and/or other countries. Other trademarks are the property of the respective owners. Comments Additional information and updates For up‐to‐date product descriptions, documentation, appli‐ cation notes, firmware upgrades, troubleshooting tips, and press releases, visit. www.sierrawireless.com. Sales Desk:Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax: 1-604-231-1109 Web:www.sierrawireless.com Document 2130755. Rev 1.0 Dec.065 Table of Contents Introducing the AirCard® 597E ExpressCard . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Feature summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wireless ExpressCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 CDMA 3G services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Additional AirCard ExpressCard feat…

Text truncated - open the document above for the full version.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 FCC ID: N7NAC597E Request for Modular Approval FCC ID: N7NAC597E Item Requirements EUT 1 The final device is designed for mobile or fixed operation (Portable is not permitted – Reference TCB Exclusion List (17 July 2002) II (g)). This Express Card card will be installed in a host product where the transmitting antenna can provide 20cm separation distance to the body of user. This Express Card card is sold to OEM and will only be installed by OEM or OEM authorized installer. Install this module in a portable configuration is not allowed unless proper equipment authorization has obtained. 2 The maximum antenna gain to allow compliance with RF exposure requirements is listed on the Grant of Certification for this Express Card card. The antenna gain including cable loss must not exceed 5.55 dBi in Cellular band an d 4.95 dBi in PCS band, for purposes of 2.1043 and 2.1091. Above MPE estimate is based upon the measured peak conducted output power. MPE estimate is submitted via separate RF exposure attachment. 3 The licensed module must have a FCC ID label on the Express Card card itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NAC597E” Please refer to the FCC ID label format. Labeling instruction has been provided in the OEM installation instruction. 4 The Grant should include the following words in the device description or grant notes: “modular transmitter” or “transmitter module”. Modular approval is requested for this application. Sincerely, Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 CONFIDENTIALITY LETTER DATE: 19 December, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Sierra Wireless, Request for Confidentiality FCC ID: N7NAC597E Request for Confidentiality To whom it may concern, Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential documents from public disclosure indefinitely. Circuit Description Block Diagram Parts List Tune up Alignment Schematic Above mentioned documents contain detailed system/ equipment descriptions and related information about the product in which Sierra Wireless considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04- 1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

External Photos

IC : 2417C-AC597E FCC ID : N7NAC597E ESN Label FCC ID Label Customer Label Branding label Customer Labels

Internal Photos

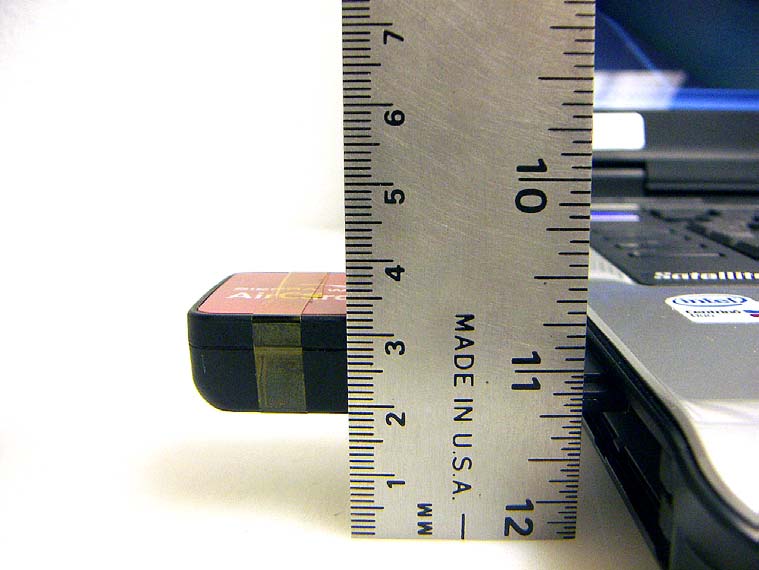

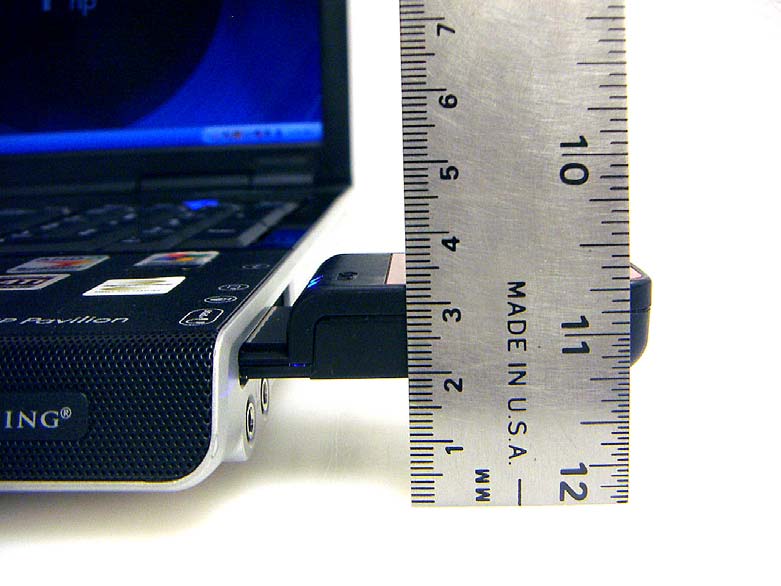

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C IC RSS 102 ISSUE 1 : 1999 FOR PCMCIA ExpressCard MODEM CDMA MODEL: AC597E FCC ID: N7NAC597E IC: 2417C-AC597E REPORT NUMBER: 06U10740-6, REVISION B ISSUE DATE: JANUARY 9, 2007 Prepared for SIERRA WIRELESS 2290 COSMOS COURT, CARLSBAD, CA 92011, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA REPORT NO: 06U10740-6B DATE: January 9, 2007 FCC ID: N7NAC597E COMPLIANCE CERTIFICATION SERVICES Page: 2 of 36 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- January 4, 2007 Initial issue HS B January 9, 2007 Updated EUT description DZ REPORT NO: 06U10740-6B DATE: January 9, 2007 FCC ID: N7NAC597E COMPLIANCE CERTIFICATION SERVICES Page: 3 of 36 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: December 19, 20, and 21, 2006 APPLICANT: ADDRESS: SIERRA WIRELESS 2290 COSMOS COURT, CARLSBAD, CA 92009, USA FCC ID: MODEL: N7NAC597E AC597E DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure PCMCIA ExpressCard Modem CDMA Installed in three Host Laptops. Test Sample is a: Production unit Host Device(s): 1-Toshiba PSAA8U-14N02K 2- HP Pavilion dv8000 3- Sony VGN-C140G FCC/IC Rule Parts Frequency Range [MHz] The Highest SAR Values 22H / RSS 102 824.7 - 848.31 Host Devices SAR (mW/g) # 1 - Toshiba 0.966 # 2 - HP 0.817 # 3 - Sony 0.615 24E / RSS102 1851.25 - 1908.75 Host Devices SAR (mW/g) # 1 - Toshiba 0.877 # 2 - HP 0.768 # 3 - Sony 1.000 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and IC RSS 102 ISSUE 1 : 1999 Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Mengistu Mekuria EMC Supervisor EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 06U10740-6B DATE: January 9, 2007 FCC ID: N7NAC597E COMPLIANCE CERTIFICATION SERVICES Page: 4 of 36 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION............................................................................ 5 2 FACILITIES AND ACCREDITATION ...................................................................................................6 3 SYSTEM DESCRIPTION ..................................................................................................................... 7 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .............................. 8 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 9 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT............................................................ 10 5 SYSTEM PERFORMANCE CHECK .................................................................................................. 14 5.1 SYSTEM PERFORMANCE CHECK RESULTS........................................................................ 15 6 SAR MEASURMENT PROCEDURE ................................................................................................. 16 6.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 17 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 18 8 SAR MEASURMENT RESULTS........................................................................................................ 24 8.1 HOST # 1 TOSHIBA – 1XRTT................................................................................................... 24 8.2 HOST # 1 TOSHIBA - 1XEV-DO ............................................................................................... 25 8.3 HOST # 2 HP - 1XRTT .............................................................................................................. 26 8.4 HOST # 2 HP - 1XEV-DO .........................................................................................................27 8.5 HOST # 3 SONY - 1XRTT ......................................................................................................... 28 8.6 HOST # 3 SONY - 1XEV-DO.....................................................................................................29 9 MEASURMENT UNCERTAINTY ....................................................................................................... 30 9.1 MEASURMENT UNCERTAINTY FOR 300 MHZ – 3000 MHZ ................................................. 30 10 EQUIPMENT LIST AND CALIBRATION............................................................................................ 31 11 PHOTOS ............................................................................................................................................ 32 12 ATTACHMENTS................................................................................................................................. 36 REPORT NO: 06U10740-6B DATE: January 9, 2007 FCC ID: N7NAC597E COMPLIAN…

Text truncated - open the document above for the full version.

Date/Time: 12/19/2006 7:37:05 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.954 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.53 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 51.6 V/m; Power Drift = 0.034 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.57 mW/g 0 dB = 2.57mW/g Date/Time: 12/19/2006 7:48:13 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.75 mW/g Date/Time: 12/20/2006 8:56:07 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.953 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.48 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 50.8 V/m; Power Drift = 0.148 dB Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g Date/Time: 12/20/2006 9:07:24 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.74 mW/g Date/Time: 12/20/2006 11:16:53 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.8 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.8 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 16.4 W/kg SAR(1 g) = 9.56 mW/g; SAR(10 g) = 5.03 mW/g Maximum value of SAR (measured) = 10.7 mW/g Date/Time: 12/20/2006 11:27:28 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm; Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 6.27 mW/g Date/Time: 12/21/2006 8:08:08 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.52 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.8 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.1 V/m; Power Drift = -0.067 dB Peak SAR (extrapolated) = 16.2 W/kg SAR(1 g) = 9.44 …

Text truncated - open the document above for the full version.

Date/Time: 12/19/2006 11:53:55 AM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless ; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 825 MHz; σ = 0.943 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=18mm, 1xRtt, L-Ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.638 mW/g d=18mm, 1xRtt, L-Ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 25.6 V/m; Power Drift = -0.246 dB Peak SAR (extrapolated) = 0.884 W/kg SAR(1 g) = 0.630 mW/g; SAR(10 g) = 0.441 mW/g Maximum value of SAR (measured) = 0.675 mW/g Date/Time: 12/19/2006 11:12:43 AM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless ; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.956 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=18mm, 1xRtt, M-Ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.775 mW/g d=18mm, 1xRtt, M-Ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 28.1 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 1.000 W/kg SAR(1 g) = 0.725 mW/g; SAR(10 g) = 0.514 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.767 mW/g Date/Time: 12/19/2006 12:42:44 PM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless ; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.966 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=18mm, 1xRtt, Hi-Ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.667 mW/g d=18mm, 1xRtt, Hi-Ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 25.4 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 0.857 W/kg SAR(1 g) = 0.637 mW/g; SAR(10 g) = 0.452 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.678 mW/g Date/Time: 12/19/2006 9:40:14 AM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless ; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 825 MHz; σ = 0.943 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=18mm, 1xEv-DO Rev A, L-Ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.682 mW/g d=18mm, 1xEv-DO Rev A, L-Ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 26.0 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 0.915 W/kg SAR(1 g) = 0.668 mW/g; SAR(10 g) = 0.472 mW/g Maximum value of SAR (measured) = 0.713 mW/g Date/Time: 12/19/2006 9:28:44 AM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless ; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 836.52 MHzFrequency: 824.7 MHz;Duty Cycle: 1:1 d=18mm, 1xEv-DO Rev A, M-Ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.697 mW/g d=18mm, 1xEv-DO Rev A, L-Ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 0.496 mW/g Date/Time: 12/19/2006 9:16:33 AM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless ; Ty…

Text truncated - open the document above for the full version.

Date/Time: 12/20/2006 1:56:38 PM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.48 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=18mm, 1xRtt, L-Ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.589 mW/g d=18mm, 1xRtt, L-Ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.1 V/m; Power Drift = -0.101dB Peak SAR (extrapolated) = 0.732 W/kg SAR(1 g) = 0.507 mW/g; SAR(10 g) = 0.318 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.552 mW/g Date/Time: 12/20/2006 1:28:12 PM Test Laboratory: Compliance Certification Services Host # 1 Toshiba PSAA8U-14N02K DUT: Sierra Wireless; Type: AirCard 597E; Serial: 01829 Communication System: CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; Co…

Text truncated - open the document above for the full version.
