N7NAC770SCellular/PCS GSM/EDGE/WCDMA/LTE Mobile Hotspot

Sierra Wireless AirCard 770S Mobile Hotspot User Guide 4112754 Rev 1.1 Preface Rev 1.2 Nov.12 3 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Sierra Wireless Mobile Hotspot User Guide 4 4112754 PatentsThis product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright© 2012 Sierra Wireless. All rights reserved. TrademarksAirCard ® is a registered trademark of Sierra Wireless. Sierra Wireless, Watcher and the Sierra Wireless logo are trademarks of Sierra Wireless. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of Qualcomm Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Rev 1.2 Nov.12 5 Contents Get Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Know Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Touchscreen LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 LCD screen elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Set Up and Connect to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Insert the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Install the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Connect to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Security Credentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Use Your Mobile Hotspot . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

November 22, 2012 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NAC770S We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  User Guide  Product Photos  Test Setup Photos Best Regards Ying Wang Manager, Regulatory Compliance

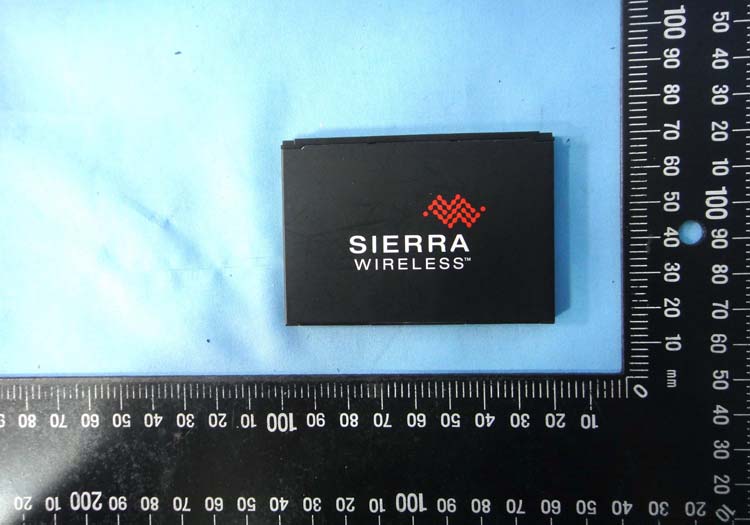

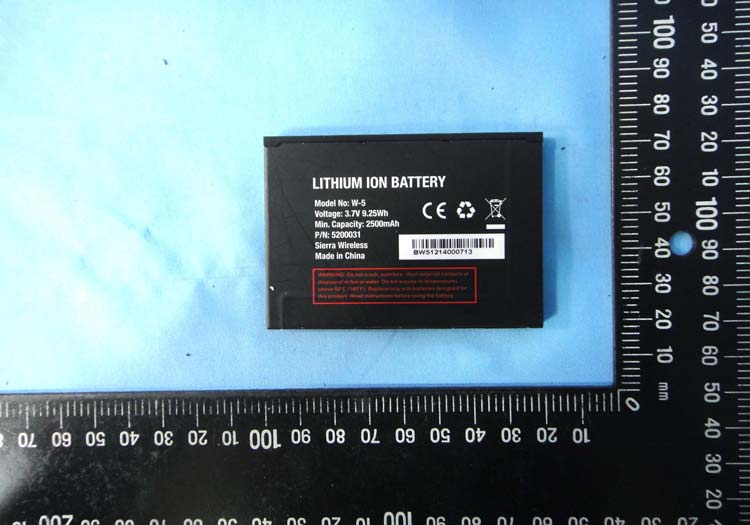

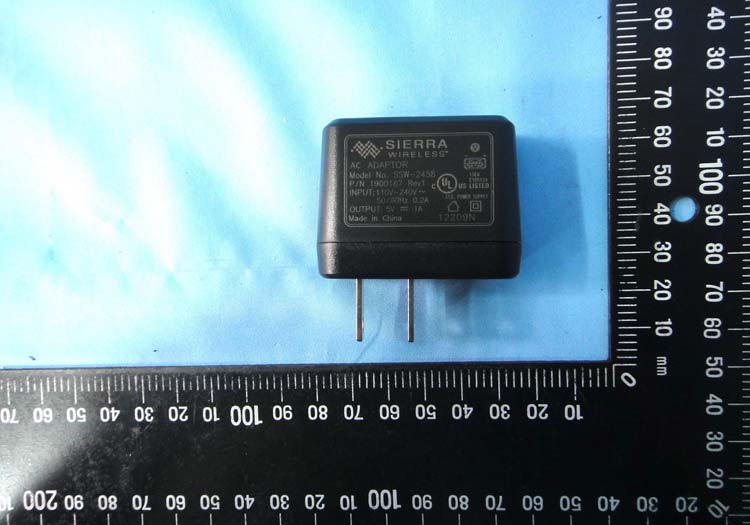

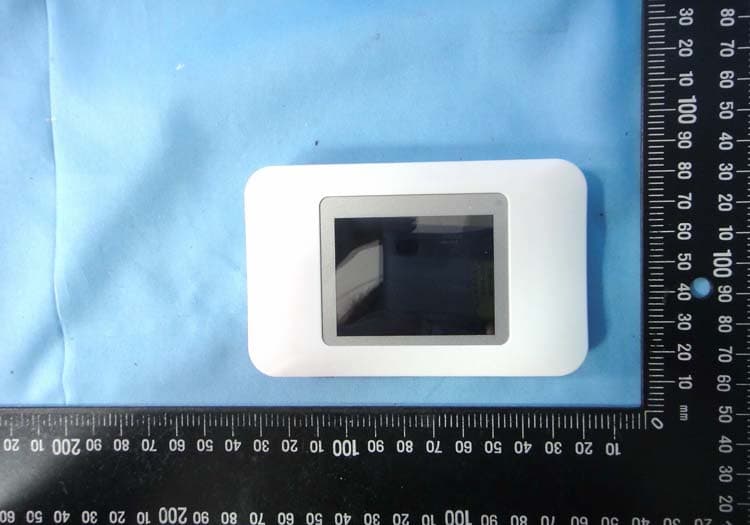

1 of 7 External Photos Model Number: AirCard 770S FCC ID: N7NAC770S 2 of 7 EUT Photo 1 ) EUT Photo 2 ) 3 of 7 EUT Photo 3 ) EUT Photo 4 ) 4 of 7 EUT Photo 5 ) EUT Photo 6 ) 5 of 7 EUT Photo 7 ) EUT Photo 8 ) 6 of 7 EUT Photo 9 ) EUT Photo 10 ) 7 of 7 EUT Photo 11 ) EUT Photo 12 )

AirCard 770S label is affixed to the PCB in the battery compartment.

1 of 8 Internal Photos Model Number: AirCard 770S FCC ID: N7NAC770S 2 of 8 EUT Photo 1 ) EUT Photo 2 ) 3 of 8 EUT Photo 3 ) EUT Photo 4 ) 4 of 8 EUT Photo 5 ) EUT Photo 6 ) 5 of 8 EUT Photo 7 ) EUT Photo 8 ) 6 of 8 EUT Photo 9 ) EUT Photo 10 ) 7 of 8 EUT Photo 11 ) EUT Photo 12 ) 8 of 8 EUT Photo 13 ) EUT Photo 14 )

FCC 47 CFR PART 15 SUBPART B Product Type ： Wireless Mobile Hotspot Applicant ： Sierra Wireless, Inc. Address ： 13811 Wireless Way, Richmond, BC, Canada, V6V 3A4 Trade Name ： AirCard Model Number ： AirCard 770S FCC ID ： N7NAC770S Test Specification ： FCC 47 CFR PART 15 SUBPART B: Oct., 2011 ANSI C63.4: 2009 CISPR 22: 1997 Receive Date ： Oct. 09, 2012 Test Period ： Oct. 09 ~ Oct. 11, 2012 Issue Date ： Nov. 22, 2012 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1210FE18-02 1 of 20 Revision History Rev. Issue Date Revisions Revised By 00 Oct. 29, 2012 Initial Issue 01 Nov. 20, 2012 Revised report information. Joyce Liao 01 Nov. 22, 2012 Revised report format. Joyce Liao A Test Lab Techno Corp. Report Number: 1210FE18-02 2 of 20 Verification of Compliance Issued Date: 11/22/2012 Product Type : Wireless Mobile Hotspot Applicant : Sierra Wireless, Inc. Address : 13811 Wireless Way, Richmond, BC, Canada, V6V 3A4 Trade Name : AirCard Model Number : AirCard 770S FCC ID : N7NAC770S Applicable Standard : FCC 47 CFR PART 15 SUBPART B: Oct., 2011 ANSI C63.4: 2009 CISPR 22: 1997 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment has been tested by A Test Lab Techno Corp., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Charlie Chang) A Test Lab Techno Corp. Report Number: 1210FE18-02 3 of 20 TABLE OF CONTENTS 1 General Information .........................................................................................................5 2 EUT Description................................................................................................................6 3 Test Methodology.............................................................................................................7 3.1. Decision of Test Mode .............................................................................................7 3.2. EUT Exercise Software............................................................................................7 3.3. Configuration of Test System Details .......................................................................8 3.4. Test Site Environment ..............................................................................................8 4 Emission Test ...................................................................................................................9 4.1. Conducted Emission Measurement .........................................................................9 4.2. Radiated Interference Measurement.....................................................................13 A Test Lab Techno Corp. Report Number: 1210FE18-02 4 of 20 1 General Information 1.1 Summary of Test Result Emission Standard Item Result Remark FCC 47 CFR PART 15 SUBPART B ANSI C63.4 Conducted Emission PASS Meet Class B limit FCC 47 CFR PART 15 SUBPART B ANSI C63.4 Radiated Emission PASS Meet Class B limit The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may concern should recognize the pass or fail of the test result. 1.2 Measurement Uncertainty Conducted Emission The measurement uncertainty is evaluated as ± 2.24 dB. Conducted Emissions (Telecommunication Ports) The measurement uncertainty is evaluated as ± 2.24 dB. Radiated Emission The measurement uncertainty of 30 MHz - 1GHz is evaluated as ± 3.072dB. The measurement uncertainty of 1GHz - 40GHz is evaluated as ± 3.072dB. A Test Lab Techno Corp. Report Number: 1210FE18-02 5 of 20 2 EUT Description Product Wireless Mobile Hotspot Trade Name AirCard Model Number AirCard 770S FCC ID N7NAC770S Applicant Sierra Wireless, Inc. 13811 Wireless Way, Richmond, BC, Canada, V6V 3A4 Manufacturer Sierra Wireless, Inc. 13811 Wireless Way, Richmond, BC, Canada, V6V 3A4 Component Battery SIERRA, W-5 3.7V, 2500mAh Power Adapter SIERRA, SSW-2458 I/P: 110-240VAC, 50/60Hz, 0.2A O/P: 5.0VDC, 1.0A Shielded, 1.0m I/O Port Description： I/O Port Types Q’TYTest Description 1). USB Port 1 Connected to AC Adapter 2). Signal Port 2 For Manufacturer used 3). SIM Card Port 1 Connected to SIM Card A Test Lab Techno Corp. Report Number: 1210FE18-02 6 of 20 3 Test Methodology 3.1. Decision of Test Mode 3.1.1. The following test mode(s) were scanned during the preliminary test: Pre-Test Mode Mode 1: GSM 850+Wi-Fi Link Mode Mode 2: PCS 1900 + Wi-Fi Link Mode Mode 3: WCDMA Band II + Wi-Fi Link Mode Mode 4: WCDMA Band V + Wi-Fi Link Mode Mode 5: LTE Band 4 + Wi-Fi Link Mode Mode 6: LTE Band 17 + Wi-Fi Link Mode Mode 7: LTE Band II + Wi-Fi Link Mode Mode 8: LTE Band V + Wi-Fi Link Mode 3.1.2. After the preliminary scan, the following test mode was found to produce the highest emission level. Final Test Mode Conducted Emission Mode 5 Below 1GHzMode 5 Emission Radiated Emission Above 1GHzMode 5 Then, the above highest emission mode of the…

Text truncated - open the document above for the full version.

Part 15B Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View A Test Lab Techno Corp. Report Number: 1210FE18-02 1 of 3 Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1210FE18-02 2 of 3 Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1210FE18-02 3 of 3
