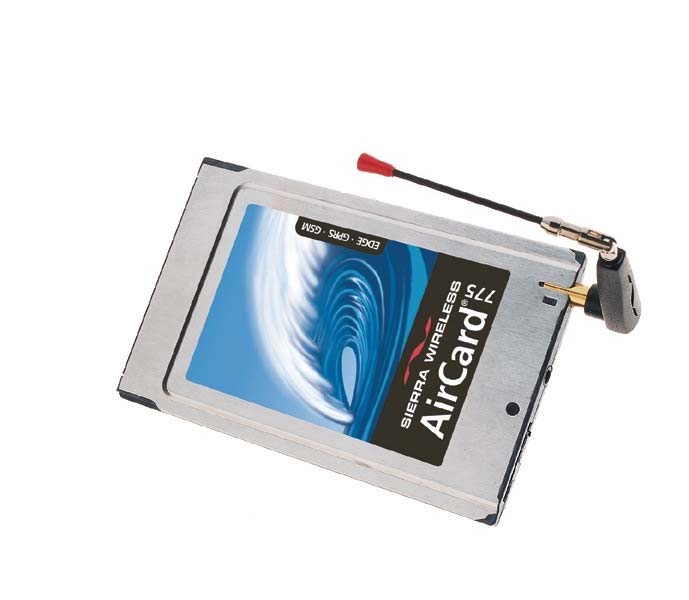

N7NAC775Quadband GSM/GPRS/EDGE PC Card

2130204CEFCC Rev 2.1A AirCard ® 700 Series Wireless Network Card Installation Guide Preface Rev 2.1A Jun.041 Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless or its affiliates. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. NOTWITHSTANDING THE FOREGOING, IN NO EVENT SHALL SIERRA WIRELESS AND/OR ITS AFFILIATES’ AGGREGATE LIABILITY ARISING UNDER OR IN CONNECTION WITH THE SIERRA WIRELESS PRODUCT, REGARDLESS OF THE NUMBER OF EVENTS, OCCURRENCES OR CLAIMS GIVING RISE TO LIABILITY, BE IN EXCESS OF THE PRICE PAID BY THE PURCHASER FOR THE SIERRA WIRELESS PRODUCT. PatentsPortions of this product are covered by some or all of the following US patents: 5,515,0135,617,1065,629,9605,682,6025,748,449 5,845,2165,847,5535,878,2345,890,0575,929,815 6,169,8846,191,7416,199,1686,327,1546,339,405 D367,062D372,248D372,701D416,857D442,170 D452,495D452,496and other patents pending. Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. Copyright©2004 Sierra Wireless. All rights reserved. TrademarksAirCard ® and Heart of the Wireless Machine ® are registered trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, the red-tipped antenna, and Watcher are trademarks of Sierra Wireless. Other trademarks are the property of the respective owners. All product specifications are subject to change without notice. AirCard 700 Series Installation Guide 22130204CEFCC Rev 2.1A Jun.043 Table of Contents Introducing the AirCard ® 700 Series Wireless Network Cards . .7 AirCard 700 Series wireless network cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Supported operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The AirCard as a network card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The AirCard as a mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Differences between the AirCard 750 and AirCard 775 . . . . . . . . . . . . . . . . . . . 8 GPRS and EDGE service support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Frequency band support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Your account and coverage area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 AirCard software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Before you can begin using the AirCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 The SIM Card and Your Account . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Inserting a SIM card into your AirCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Removing a SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Attaching the antenna to your AirCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Installation on Notebook PCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installation on Windows 98, 2000, and Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Installation on Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installation on Windows NT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Inserting the AirCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Installing the network card driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Installing the modem driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Changing the interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Setting Internet Explorer to use the AirCard. . . . . . . . . . . . . . . . . . . . . . . . . . . 24 AirCard 700 Series Installation Guide 42130204CEFCC Installation on Devices Running Windows CE . . . . . . . . . . . . . . . 27 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 ActiveSync installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Flash card installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Pocket PC and Handheld PC installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Windows CE .NET device installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Extracting the CAB file to the host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 ActiveSync installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Flash card installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Inserting the AirCard into a Pocket PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Inserting the AirCard into a Handheld or Tablet PC . . . . . . . . . . . . . . . . . . . . 34 Configuring Your Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Setting up a …

Text truncated - open the document above for the full version.

June 8, 2004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, M.D. 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID N7NAC775 We hereby request that the documentation listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. 1. AC775 Schematics 2. AC775 Block Diagram 3. AC775 Detailed Circuit Description 4. AC775 Tune Up Procedure Sincerely, Ying Wang Senior RF Engineer

Company: Sierra Wireless, Inc. FCC ID: N7NAC775 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 3V power regulator. Refer to schematics 4 Meet the antenna requirements of Section 15.203 Not applicable 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested inside a laptop. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Refer to page 60 of user manual 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. The module is in the form of a PCMCIA card. No adjustment can be made by the user. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Refer to RF Exposure_AC775.pdf

Evaluation of RF Exposure for AirCard 775 Wireless Modem as a Mobile Device In this application we also seek modular approval to the AirCard 775 wireless modem for use in mobile configuration. Based on the FCC OET Bulletin 65 Supplement C and 47 CFR §2.1091, we have concluded that the AirCard 775 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 4.5 dBi in both cellular band and PCS band. The following analysis will demonstrate such compliance. Since the AirCard 775 modem is a dual band device, the analysis will be done in both bands. Operation in cellular band (824 – 849 MHz) The peak conducted output power of AirCard 775 in cellular band is 31.5 dBm. Take the worst case as an example, in which an antenna with 4.5 dBi gain is used. The resulted power density at a distance of 20 cm can be deducted as follows: EIRP = 31.5 + 4.5 = 36 dBm = 3981 mW Power Density = EIRP*DutyCycle/(4πR 2 ) = 3981*0.5/(4*π*20 2 ) = 0.40 mW/cm 2 where DutyCycle is 0.5 for GPRS operation (the worst case) and R is 20 cm. The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit = 824/1500 = 0.55 mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore AirCard 775 in cellular band is compliant with the FCC rules on RF exposure. Operation in PCS band (1850 – 1910 MHz) The peak conducted output power of AirCard 775 in PCS band is 28.5 dBm. Take the worst case as an example, in which an antenna with 4.5 dBi gain is used. The resulted ERP can be expressed as follows: ERP = 28.5 + 4.5 –2.15 = 30.49 dBm (1.12 W) < 3 W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR §2.1091 that operate at frequencies above 1.5 GHz with an ERP of 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3 W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for AirCard 775 in PCS band is categorically excluded.

PROPOSED FCC ID LABEL AND LOCATION SIERRA WIRELESS, INC. This device complies with Part 22/24 of the FCC Rules. FCC ID: N7NAC775 FCC ID LABEL LOCATION

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 850/900/1800/1900MHz GSM/EDGE PC Card Wireless Modem Model: AirCard 775 FCC ID: N7NAC775 June 7, 2004 REPORT NO: 04U2631-3 Prepared for Sierra Wireless, Inc. 13811 Wireless Way Richmond, British Columbia V6V 3A4 Canada Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 04U2631-3 DATE: June 7, 2004 FCC ID: N7NAC775 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 31 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: June 7, 2004 APPLICANT: Sierra Wireless, Inc. ADDRESS: 13811 Wireless Way Richmond British Columbia V6V 3A4, Canada BRAND/MODEL NAME: AirCard 775 FCC ID: N7NAC775 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Tx Frequency: 824 MHz to 849 MHz and 1850 MHz to 1910 MHz for GSM 1900 Max. O/P Power: (Conducted/Peak) 31.45 dBm for GSM 850 28.50 dBm for GSM 1900 Max. SAR (1g): Part 22 - 1.19 mW/g (Host # 2) Part 24 - 0.167 mW/g (Host # 2) Application Type: Certification FCC Rule Part(s): 24E & 22H Host devices: Host # 1: Compaq, ARMADA M700 Host # 2: Toshiba, Satellite2060CDS Host # 3: IBM, 310ED Note: This device contains GSM900/GSM1800 function not operational in US territories. This report is applicable to GSM850 and GSM1900 PCS band. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04U2631-3 DATE: June 7, 2004 FCC ID: N7NAC775 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 31 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION........................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC............................... 4 3. DOSIMETRIC ASSESSMENT SYSTEM.......................................................................... 4 3.1. MEASUREMENT SYSTEM DIAGRAM......................................................................................................5 3.2. SYSTEM COMPONENTS.......................................................................................................................6 4. EVALUATION PROCEDURES..................................................................................... 8 5. MEASUREMENT UNCERTAINTY............................................................................... 12 6. EXPOSURE LIMIT................................................................................................. 13 7. PROCEDURES USED TO ESTABLISH TEST SIGNALS................................................... 13 8. MEASUREMENT RESULTS...................................................................................... 14 8.1. SIMULATING LIQUIDS PARAMETER CHECK..........................................................................................14 8.2. SYSTEM PERFORMANCE CHECK........................................................................................................19 8.3. SAR MEASUREMENTS RESULTS.......................................................................................................21 9. PHOTOS............................................................................................................. 24 10. EQUIPMENT LIST & CALIBRATION STATUS............................................................... 29 11. REFERENCES...................................................................................................... 30 12. ATTACHMENTS.................................................................................................... 31 REPORT NO: 04U2631-3 DATE: June 7, 2004 FCC ID: N7NAC775 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 31 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION The Sierra Wireless Inc. model AirCard 775 is a quad-band PCMCIA card wireless modem operating on the GSM/GPRS/EDGE network. In the US and Canada, only cellular and PCS bands are used for GSM/GPRS operation, so this test report only contains data for these two bands (850MHz and 1900MHz). 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standa…

Text truncated - open the document above for the full version.

Date/Time: 06/07/04 10:45:23 Test Laboratory: The name of your organization File Name: D835V2SN4d002_060704.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 52.8 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 2.48 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 52.8 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 2.52 mW/g Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.51 mW/g 0 dB = 2.52mW/g Date/Time: 06/07/04 10:45:23 Test Laboratory: The name of your organization File Name: D835V2SN4d002_060704.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 52.8 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.52 mW/g Date/Time: 06/07/04 15:29:19 Test Laboratory: The name of your organization File Name: D1900V2 SN5d043_060704.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 85.9 V/m; Power Drift = 0.12 dB Maximum value of SAR (measured) = 9.91 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.9 V/m; Power Drift = 0.12 dB Maximum value of SAR (measured) = 10.7 mW/g Peak SAR (extrapolated) = 17.1 W/kg SAR(1 g) = 9.54 mW/g; SAR(10 g) = 4.98 mW/g 0 dB = 10.7mW/g Date/Time: 06/07/04 15:29:19 Test Laboratory: The name of your organization File Name: D1900V2 SN5d043_060704.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm; Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 85.9 V/m; Power Drift = 0.12 dB Maximum value of SAR (measured) = 11 mW/g

Date/Time: 06/07/04 11:43:20 Test Laboratory: The name of your organization File Name: 1_Host # 1_Compaq_ARMADA M700.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 1_Host # 1_Compaq_ARMADA M700 Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.966 mho/m; ε r = 56; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 22.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.566 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 22.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.634 mW/g Peak SAR (extrapolated) = 0.952 W/kg SAR(1 g) = 0.584 mW/g; SAR(10 g) = 0.367 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 06/07/04 11:43:20 Test Laboratory: The name of your organization File Name: 1_Host # 1_Compaq_ARMADA M700.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 1_Host # 1_Compaq_ARMADA M700 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.966 mho/m; ε r = 56; ρ = 1000 kg/m 3 Phantom section: Flat Section M-ch/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 22.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.634 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 06/07/04 12:46:48 Test Laboratory: The name of your organization File Name: 2_Host # 2_Toshiba_Satellite 2060CDS.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 2_Host # 2_Toshiba_Satellite2060CDS Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: GSM850; Frequency: 824.04 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 824.04 MHz; σ = 0.951 mho/m; ε r = 56.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 23.8 V/m; Power Drift = 0.13 dB Maximum value of SAR (measured) = 1.1 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 23.8 V/m; Power Drift = 0.13 dB Maximum value of SAR (measured) = 1.13 mW/g Peak SAR (extrapolated) = 1.64 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.657 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 06/07/04 12:46:48 Test Laboratory: The name of your organization File Name: 2_Host # 2_Toshiba_Satellite 2060CDS.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 2_Host # 2_Toshiba_Satellite2060CDS Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.966 mho/m; ε r = 56; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 24.5 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 1.19 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 24.5 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 1.19 mW/g Peak SAR (extrapolated) = 1.72 W/kg SAR(1 g) = 1.1 mW/g; SAR(10 g) = 0.698 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 06/07/04 12:46:48 Test Laboratory: The name of your organization File Name: 2_Host # 2_Toshiba_Satellite 2060CDS.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 2_Host # 2_Toshiba_Satellite2060CDS Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.974 mho/m; ε r = 55.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 H-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 25.2 V/m; Power Drift = 0.13 dB Maximum value of SAR (measured) = 1.26 mW/g Info: Interpolated medium parameters used for SAR evaluation! H-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 25.2 V/m; Power Drift = 0.13 dB Maximum value of SAR (measured) = 1.28 mW/g Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 1.19 mW/g; SAR(10 g) = 0.745 mW/g Info: Interpolated medium parameters used for SAR evaluation! D…

Text truncated - open the document above for the full version.

Date/Time: 06/07/04 18:05:04 Test Laboratory: The name of your organization File Name: 1_Host # 1_Compaq_ARMADA M700.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 1_Host #1_Compaq_ARMADA M700 Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.8, 4.8, 4.8); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (9x10x1): Measurement grid: dx=15mm, dy=15mm M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.87 V/m; Power Drift = 0.16 dB Maximum value of SAR (measured) = 0.100 mW/g Peak SAR (extrapolated) = 0.137 W/kg SAR(1 g) = 0.090 mW/g; SAR(10 g) = 0.053 mW/g M-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.87 V/m; Power Drift = 0.16 dB Maximum value of SAR (measured) = 0.058 mW/g Peak SAR (extrapolated) = 0.095 W/kg SAR(1 g) = 0.053 mW/g; SAR(10 g) = 0.032 mW/g Date/Time: 06/07/04 18:05:04 Test Laboratory: The name of your organization File Name: 1_Host # 1_Compaq_ARMADA M700.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 1_Host #1_Compaq_ARMADA M700 Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section M-ch/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 3.87 V/m; Power Drift = 0.16 dB Maximum value of SAR (measured) = 0.111 mW/g Date/Time: 06/07/04 16:22:11 Test Laboratory: The name of your organization File Name: 2_Host # 2_Toshiba_Satellite 2060CDS.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 2_Host # 2_Toshiba_Satellite2060CDS Ambient Temp.: deg. C; Liquid Temp.: deg. C Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.49 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.8, 4.8, 4.8); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.81 V/m; Power Drift = 0.14 dB Maximum value of SAR (measured) = 0.080 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 7.81 V/m; Power Drift = 0.14 dB Maximum value of SAR (measured) = 0.099 mW/g Peak SAR (extrapolated) = 0.169 W/kg SAR(1 g) = 0.091 mW/g; SAR(10 g) = 0.047 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 06/07/04 16:22:11 Test Laboratory: The name of your organization File Name: 2_Host # 2_Toshiba_Satellite 2060CDS.da4 DUT: Sierra Wireless; Type: AirCard 755; Serial: S040405000510E3 Program Name: 2_Host # 2_Toshiba_Satellite2060CDS Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configura…

Text truncated - open the document above for the full version.
