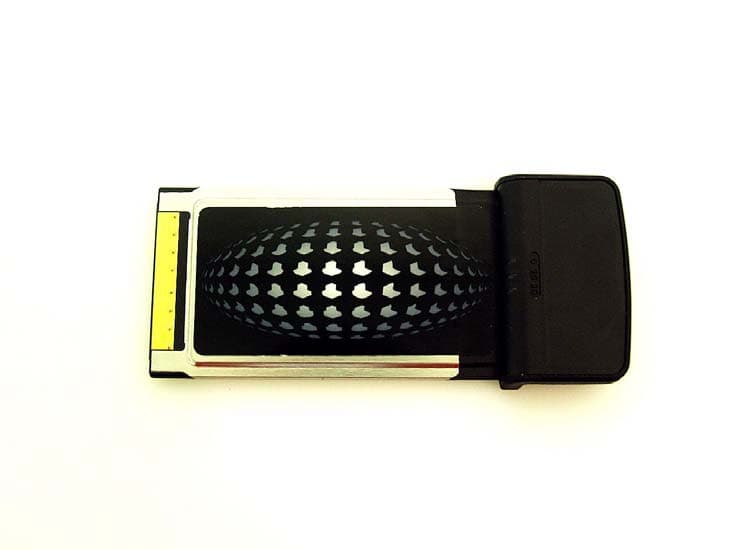

N7NAC880PC Card Wireless Modem

2130623 Rev 3.7B AirCard ® 800 Series Wireless Network Cards Installation Guide Includes: AirCard 880 Wireless Modem AirCard 881 Wireless Modem AirCard 880 Express Card Wireless Modem AirCard 881 Express Card Wireless Modem AirCard 875 Wireless Modem AirCard 860 Wireless Modem AirCard 850 Wireless Modem Rev 3.7B May.073 Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless or its affiliates. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. NOTWITHSTANDING THE FOREGOING, IN NO EVENT SHALL SIERRA WIRELESS AND/OR ITS AFFILIATES’ AGGREGATE LIABILITY ARISING UNDER OR IN CONNECTION WITH THE SIERRA WIRELESS PRODUCT, REGARDLESS OF THE NUMBER OF EVENTS, OCCURRENCES OR CLAIMS GIVING RISE TO LIABILITY, BE IN EXCESS OF THE PRICE PAID BY THE PURCHASER FOR THE SIERRA WIRELESS PRODUCT. PatentsPortions of this product may be covered by some or all of the following US patents: 5,515,013 5,629,960 5,845,216 5,847,553 5,878,234 5,890,057 5,929,815 6,169,884 6,191,741 6,199,168 6,339,405 6,359,591 6,400,336 6,516,204 6,561,851 6,643,501 6,653,979 6,697,030 6,785,830 6,845,249 6,847,830 6,876,697 6,879,585 6,886,049 6,968,171 6,985,757 7,023,878 7,053,843 7,106,569 D442,170 D459,303 and other patents pending. This product includes technology licensed from: Licensed by QUALCOMM Incorporated under one or more of the following United States patents and/or their counterparts in other nations: 4,901,307 5,056,109 5,101,501 5,109,390 5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. Copyright© 2007 Sierra Wireless. All rights reserved. AirCard 800 Series Installation Guide 42130623 TrademarksAirCard modem ® and Heart of the Wireless Machine ® are registered trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, the red‐tipped antenna, and Watcher are trademarks of Sierra Wireless. Other trademarks are the property of the respective owners. All product specifications are subject to change without notice. Contact Information Consult our website for up‐to‐date product descriptions, documentation, application notes, firmware upgrades, trouble‐ shooting tips, and press releases: www.sierrawireless.com Sales Desk:Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax: 1-604-231-1109 Web:www.sierrawireless.com Rev 3.7B May.075 Table of Contents Introducing the AirCard 800 Series Wireless Network Cards . . . . . . . . . . . . . .7 AirCard 800 Series wireless network cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Services supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Your account and coverage area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 AirCard modem software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Frequency band support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 AirCard Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 The SIM Card and Your Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Attach the antenna to your AirCard modem . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Install Watcher software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Setting Internet Explorer to use the AirCard modem . . . . . . . . . . . . . . . . . . . 14 Configuring Your Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Setting up a profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 The AirCard modem as a network card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Watcher Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Launching Watcher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Frequency band selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Care and Maintenance of Your Network Card . . . . . . . . . . . . . . . . . . . . . . . . . .19 Stopping and ejecting the AirCard modem . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Removing a SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 AirCard 850 and 860 modems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 AirCard 875, 88x, and 88xE modems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 AirCard 800 Series Installation Guide 62130623 Regulatory and Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Important notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Safety and hazards . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 AUTHORIZATION LETTER DATE: 20 February , 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

May 15, 2007 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NAC880 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. • Schematics • Block Diagram • Operation Description • Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 45 days from the date of the Grant of Equipment Authorization, due to the sensitive business information: • User Guide • Product Photos • Test Setup Photos Best Regards Ying Wang Staff Regulatory Specialist

1 Mike Kuo From: Mike Kuo Sent: Thursday, June 14, 2007 5:43 PM To: 'Ying Wang' Subject: RE: Sierra Wireless Inc., FCC ID: N7NAC880, Assessment NO.: AN07T6828, Notice#1 Hi Ying: Thanks for your confirmation. Based upon FCC policy and TCB exclusion list, if Sierra Wireless is going to update the firmware to include HSDPA/HSUPA per 3GPP release 6, you are required to file Class II permissive change to FCC directly to update additional mode of operation. Best Regards Mike Kuo Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Direct: (510) 771-1105 Fax: (510) 661-0888 Main: (510) 771-1000 e-mail:[email protected] Web Site:www.ccsemc.com -----Original Message----- From: Ying Wang [mailto:[email protected]] Sent: Thursday, June 14, 2007 4:40 PM To: Mike Kuo Subject: RE: Sierra Wireless Inc., FCC ID: N7NAC880, Assessment NO.: AN07T6828, Notice#1 The current firmware release doesn't support the HSUPA mode of operation, therefore this mode is not investigated. Pls let me know if you have further questions. Regards, Ying -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: June 14, 2007 4:08 PM To: Ying Wang Subject: Sierra Wireless Inc., FCC ID: N7NAC880, Assessment NO.: AN07T6828, Notice#1 Question #1: Based upon the description in the user manual and in the theory of operation, this device is capable of having HSDPA mode of operation per 3GPP Release 5. However, by reviewing the capabilities of MSM7200 Microprocessor on Qualcomm web site, MSM7200 has capabilities of supporting HSUPA operation. Please explain why HSUPA mode of operation is not investigated. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the 2 requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. No virus found in this incoming message. Checked by AVG Free Edition. Version: 7.5.472 / Virus Database: 269.8.16/849 - Release Date: 6/14/2007 12:44 PM No virus found in this outgoing message. Checked by AVG Free Edition. Version: 7.5.472 / Virus Database: 269.8.16/849 - Release Date: 6/14/2007 12:44 PM No virus found in this incoming message. Checked by AVG Free Edition. Version: 7.5.472 / Virus Database: 269.8.17/850 - Release Date: 6/15/2007 11:31 AM

Date/Time: 4/24/2007 8:38:42 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2;Serial: D835V2 - SN:4d002 Communication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.955 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.54 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 51.7 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g Date/Time: 4/24/2007 8:50:30 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 2.56 mW/g Date/Time: 4/25/2007 8:08:47 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2;Serial: D1900V2 - SN:5d043 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.4 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.9 V/m; Power Drift = 0.147 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.55 mW/g Maximum value of SAR (measured) = 12.0 mW/g 0 dB = 12.0mW/g Date/Time: 4/25/2007 8:19:30 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm; Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 12.0 mW/g

Date/Time: 4/24/2007 9:32:31 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: GSM850;Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium parameters used: f = 825 MHz; σ = 0.945 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Sony - GPRS 2 Slots - L ch/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.809 mW/g Sony - GPRS 2 Slots - L ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 30.2 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.804 mW/g; SAR(10 g) = 0.556 mW/g Maximum value of SAR (measured) = 0.855 mW/g Date/Time: 4/24/2007 9:44:15 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card; Serial: Project No. 07U10993 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Sony - GPRS 2 Slots - L ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 0.855 mW/g Date/Time: 4/24/2007 9:10:20 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: GSM850;Frequency: 837 MHz;Duty Cycle: 1:4 Medium parameters used (interpolated): f = 837 MHz; σ = 0.957 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Sony - GPRS 2 Slots - M ch/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.737 mW/g Sony - GPRS 2 Slots - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 28.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.730 mW/g; SAR(10 g) = 0.506 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.776 mW/g Date/Time: 4/24/2007 9:50:02 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: GSM850;Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.967 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Sony - GPRS 2 Slots - H ch/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.670 mW/g Sony - GPRS 2 Slots - H ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 27.1 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 0.918 W/kg SAR(1 g) = 0.658 mW/g; SAR(10 g) = 0.457 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.694 mW/g Date/Time: 4/24/2007 8:20:32 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: GSM850;Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.957 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.57, 9.57, 9.57); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Sony - WCDMA 12.2K RMC + HSDPA - M ch/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.340 mW/g Sony - WCDMA 12.2K RMC + HSDPA - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.96 V/m; Power Drift = -0.108 dB Peak SAR (extrapolated) = 0.485 W/kg SAR(1 g) = 0.348 mW/g; SAR(10 g) = 0.244 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.370 mW/g Date/Time: 4/24/2007 11:12:42 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC C…

Text truncated - open the document above for the full version.

Date/Time: 4/25/2007 8:30:49 PM Test Laboratory: Compliance Certification Services Lap-Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: PCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Sony - GPRS 4 slots - M ch/Area Scan (8x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.563 mW/g Sony - GPRS 4 slots - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 20.4 V/m; Power Drift = 0.039 dB Peak SAR (extrapolated) = 0.808 W/kg SAR(1 g) = 0.553 mW/g; SAR(10 g) = 0.349 mW/g Maximum value of SAR (measured) = 0.608 mW/g Date/Time: 4/25/2007 7:09:20 PM Test Laboratory: Compliance Certification Services Lap-Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: PCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Sony - WCDMA 12.2k RMC - M ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.559 mW/g Sony - WCDMA 12.2k RMC - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 7.89 V/m; Power Drift = 0.098 dB Peak SAR (extrapolated) = 0.831 W/kg SAR(1 g) = 0.568 mW/g; SAR(10 g) = 0.356 mW/g Maximum value of SAR (measured) = 0.625 mW/g Date/Time: 4/25/2007 10:29:59 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: PCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 HP - GPRS 4 slots - M ch/Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.255 mW/g HP - GPRS 4 slots - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 13.2 V/m; Power Drift = -0.002 dB Peak SAR (extrapolated) = 0.346 W/kg SAR(1 g) = 0.235 mW/g; SAR(10 g) = 0.147 mW/g Maximum value of SAR (measured) = 0.252 mW/g Date/Time: 4/25/2007 9:07:29 PM Test Laboratory: Compliance Certification Services Lap Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: PCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 HP - WCDMA 12.2k RMC - M ch/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.284 mW/g HP - WCDMA 12.2k RMC - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 4.32 V/m; Power Drift = 0.111 dB Peak SAR (extrapolated) = 0.388 W/kg SAR(1 g) = 0.265 mW/g; SAR(10 g) = 0.166 mW/g Maximum value of SAR (measured) = 0.285 mW/g Date/Time: 4/25/2007 11:43:09 PM Test Laboratory: Compliance Certification Services Lap-Held Position DUT: AirCard 880; Type: PC Card;Serial: Project No. 07U10993 Communication System: PCS 1900;Frequency: 1880 MHz;Duty Cycle: 1:2 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.6, 7.6, 7.6); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Compaq - GPRS 4 slots - M ch/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.699 mW/g Compaq - GPRS 4 slots - M ch/Zoom Scan (5x5x7)/Cube 0: Me…

Text truncated - open the document above for the full version.

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C FOR PC CARD WIRELESS MODEM MODEL: AirCard 880 FCC ID: N7NAC880 REPORT NUMBER: 07U10993-4, REVISION B ISSUE DATE: APRIL 27, 2007 Prepared for SIERRA WIRELESS, INC. 13811 WIRELESS WAY RICHMOND, BC V6V3A4 CANADA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538 USA REPORT NO: 07U10993-4B DATE: April 27, 2007 FCC ID: N7NAC880 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 2 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- April 27, 2007 Initial issue Sunny Shih B May 9, 2007 Corrected some typos Sunny Shih REPORT NO: 07U10993-4B DATE: April 27, 2007 FCC ID: N7NAC880 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 3 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: APRIL 24 AND 25, 2007 APPLICANT: ADDRESS: 13811 WIRELESS WAY RICHMOND, BC V6V3A4 CANADA FCC ID: MODEL: N7NAC880 AirCard 880 DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure PC Card Wireless Modem is installed in three host laptops for SAR Testing Test Sample is a: Production unit Host: Compaq Presario R3000 HP NC6400 Sony PCG-V505D1p Frequency Range [MHz] The Highest SAR Values [1g_mW/g] FCC 22H 824 - 850 Compaq 0.425 HP 0.386 Sony 0.806 FCC 24E 1850 - 1910 Compaq 0.737 HP 0.265 Sony 0.568 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01). Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Cert…
