N7NACRD2Wireless CDPD, PCMCIA, Type II modem

PN 2110044 Rev. A07/11/01Page i AirCard CE Installation Guide Revision A Draft Part Number: 2110044 September 1998 Installation GuideAirCard CE PN 2110044 Rev. A07/11/01Page ii This page is intentionally left blank. AirCard CEInstallation Guide Page iii07/11/01PN 2110044 Rev. A Important Notice Because of the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well- constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless, Inc., accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Patents "Some or all of the following US patents covers Portions of this product: D367062; D372248; D372701; 5515013; 5617106; 5629960; and other patents pending." © 1998 Sierra Wireless, Inc. All rights reserved. Printed in Canada. First Printing September 1998. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, without the prior permission of the publisher. The software described in this guide is © 1998 Sierra Wireless, Inc. All rights reserved. AT is a trademark of Hayes Microcomputer Products, Inc. Hayes is a registered trademark of Hayes Microcomputer Products, Inc. Windows CE is a trademark of Microsoft Corporation. Microsoft is a registered trademark of Microsoft Corporation. All other trademarks are owned by their respective companies. The information in this guide is subject to change without notice and does not represent a commitment on the part of Sierra Wireless, Inc. Sierra Wireless, Inc. shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this manual. Installation GuideAirCard CE PN 2110044 Rev. A07/11/01Page iv Regulatory Information The equipment certifications appropriate to your device are marked on the device and the accompanying product specific information. Where appropriate, the use of the equipment is subject to the following conditions. CAUTION Unauthorized modifications or changes not expressly approved by Sierra Wireless, Inc. could void compliance with regulatory rules, and thereby your authority to use this equipment. !! WARNING (EMI) - United States This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help !! WARNING (EMI) - Canada "This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference causing equipment standard entitled 'Digital Apparatus', ICES-003 of the Department of Communications." "Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe B prescrites dans la norme sur le materiel brouilleur: 'Appareils Numeriques', NHB-003 edictee par le ministre des Communications. " RSA Licensee AirCard CEInstallation Guide Page v07/11/01PN 2110044 Rev. A If you have purchased this product under a United States Government contract, it shall be subject to restrictions as set forth in subparagraph (c)(1)(ii) of Defense Federal Acquisitions Regulations (DFARs) Section 252.227-7013 for Department of Defense contracts and as set forth in Federal Acquisitions Regulations (FARs) Section 52.227-19 for civilian agency contracts or any successor regulations. If further government regulations apply, it is your responsibility to ensure compliance with such regulations. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE TURNED OFF. The Sierra Wireless modem can transmit signals, which could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE TURNED OFF. The reason for this is that when operating in the CDPD or cellular circuit switched mode, the Sierra Wireless modem can transmit signals, which could interfere with various onboard equipment systems. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in co…

Text truncated - open the document above for the full version.

APPLICATION FOR CERTIFICATION Sierra Wireless Inc. FCC ID: N7NACRD2 MODEL: AIRCARD 2 Prepared by: Sierra Wireless Inc. #260 - 13151 Vanier Place Richmond, B.C. V6V 2J2 Nov 2, 1998 FCC ID: N7NACRD2 2 Block Diagram of Aircard 2 Logic and Radio Sections Figure 1: ACE Logic Block Diagram PCMCIA Connector CIS ROM (256 Bytes) Xilinx FPGA DSP1634 Serial A/D Serial D/A AirCard Radio minus: PIC, DPROC, EEPROM, I2C switches, 3 channel D/A FPGA Serial ROM A[1:9]D[0:7]A[0:5]D[0:7] Serial D[0:7] 29 MHz Master Clock Codec Clock Reset, CINT IO Strobes KEYMOD DISC+ DISC- THERMRSSITNETQTUNE PWM Analog Outpus: PWRCTL RxON TxON Ramp PCMCIA FCR 1 Clock Control VALV Mailboxes PIC Registers Power Control Frequency Synthesizer Calibration Table EEPROM Serial Bus 1 Serial Bus 2 CS CS CS CS CE1REGWEOEIORDIOWRWAITINT FCC ID: N7NACRD2 3 ITT333106 SFGCG450AX4 SAFC836.5MA70N UPC8106T XTAL: C-30.000-0-SWL1 TEMPUS LMX1511 TOWA VCO KGF1191 UPC2745T KFN6121 SA607 UPC2771T FAR-D5CB-881M50-D1A1 Nano 90MHz Xtal Modulator MOD PWR_CTRL DISC RSSI FTUNE SAFC881.5MA70N LNA Mixer TQ9223B 881.5 MHz 450 kHz450 kHz RSSI SFGCG450AX4 UHF Synthesizer (914 - 939 MHz) 14.85MHz TCXO 836.5 MHz Mixer ALC (Power Control) UPC2745T x3 Multiplier 45 MHz TNET EMI Filters Serial Bus2 Tx 3V Regulator on/off Rx 3V Regulator on/off VCO 3V Regulator on/off RxON TxON SYNTH CS QUAD Tune QTUNE THERM +5V RAMP PA Vdd Switch on/off KEY LockDet TxSense Thermister Logic Figure 2. Radio Block Diagram

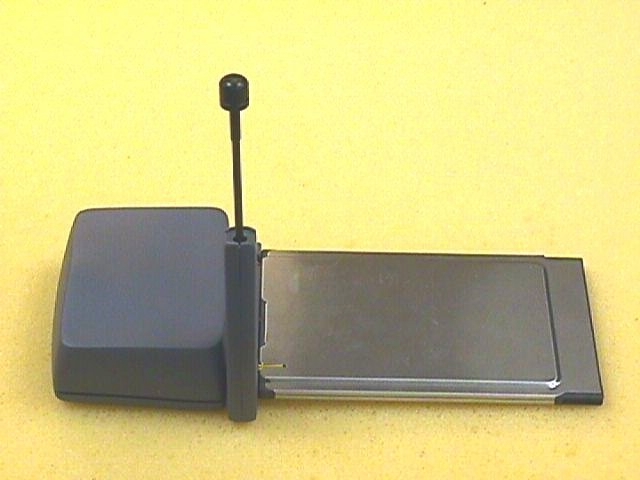

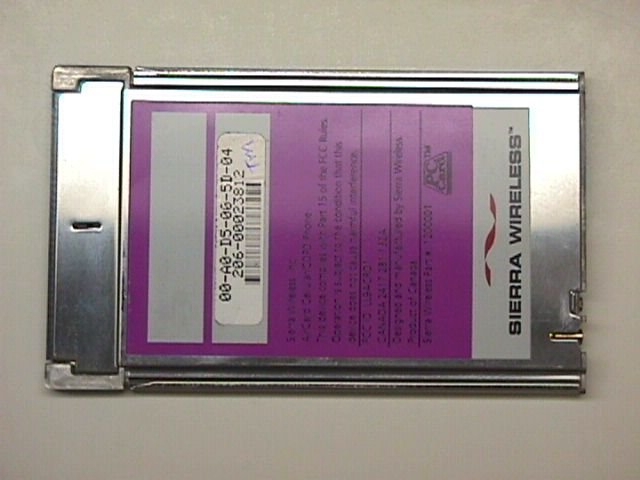

APPLICATION FOR TYPE ACCEPTANCE Sierra Wireless Inc. FCC ID: N7NACRD2 MODEL: AIRCARD 2 External Equipment Photographs Prepared by: Sierra Wireless Inc. #260 - 13151 Vanier Place Richmond, B.C. V6V 2J2 Sept 23, 1998 Figure 1: PCMCIA Card Edge – Outside edge showing antenna connector Figure 2: PCMCIA Card Bottom – Shows FCC label format and position Figure 3: PCMCIA Card Prospective View – Shows antenna and battery bump attached

APPLICATION FOR TYPE ACCEPTANCE Sierra Wireless Inc. FCC ID: N7NACRD2 MODEL: AIRCARD 2 Internal Equipment Photographs Prepared by: Sierra Wireless Inc. #260 - 13151 Vanier Place Richmond, B.C. V6V 2J2 Sept 23, 1998 Figure 1: PCBA Top Side Figure 2: PCBA Bottom Side
