N7NEM8781850/900/1800/1900/2100 MHz Multi-band Module

2130851 Rev 1.0 GSM Embedded Modules Hardware Integration Guide Proprietary and Confidential EM8780/ EM8781 Preface Rev 1.0 Apr.07 3 Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. PatentsPortions of this product may be covered by some or all of the following US patents: 5,515,013 5,629,960 5,845,216 5,847,553 5,878,234 5,890,057 5,929,815 6,169,884 6,191,741 6,199,168 6,339,405 6,359,591 6,400,336 6,516,204 6,561,851 6,643,501 6,653,979 6,697,030 6,785,830 6,845,249 6,847,830 6,876,697 6,879,585 6,886,049 6,968,171 6,985,757 7,023,878 7,053,843 7,106,569 D442,170 D459,303 and other patents pending. This product includes technology licensed from: Licensed by QUALCOMM Incorporated under one or more of the following United States patents and/or their counterparts in other nations: 4,901,307 5,056,109 5,101,501 5,109,390 5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. Copyright©2007 Sierra Wireless. All rights reserved. GSM Embedded Modems Hardware Integration Guide 42130851 TrademarksAirCard and “Heart of the Wireless Machine” are registered trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, and Watcher are trademarks of Sierra Wireless. Windows ® is a registered trademark of Microsoft Corporation. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of the respective owners. Contact Information Consult our website for up‐to‐date product descriptions, documentation, application notes, firmware upgrades, trouble ‐ shooting tips, and press releases: www.sierrawireless.com Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Rev 1.0 Apr.075 Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 The Lab Adapter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Required connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Guide organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Overview of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Power signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Electrostatic discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Module power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Normal state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Low power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Usage models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 RF Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 RF connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Ground connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Antenna and cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Interference and sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Power supply noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Interference from other wireless devices . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Device-generated RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Important notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 GSM Embedded Modems Hardware Integration Guide 62130851 Safety and hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 AUTHORIZATION LETTER DATE: 20 February , 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

April 11, 2007 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, M.D. 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NEM8781 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. • Schematics • Block Diagram • Theory of Operation • Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 45 days from the date of the Grant of Equipment Authorization, due to the sensitive business information: • User Guide • Product Photos • Test Setup Photos Best Regards Ying Wang Staff Regulatory Specialist

Request for Modular Approval FCC ID: N7NEM8781 Item Requirements EUT 1 The final device is designed for mobile or fixed operation (Portable is not permitted – Reference TCB Exclusion List (17 July 2002) II (g)). This Modem module will be installed in a host product where the transmitting antenna can provide 20cm separation distance to the body of user. This module is sold to OEM and will only be installed by OEM or OEM authorized installer. Install this module in a portable configuration is not allowed unless proper equipment authorization has obtained. 2 The maximum antenna gain to allow compliance with RF exposure requirements is listed on the Grant of Certification for the module. The antenna gain including cable loss must not exceed 5 dBi in Cellular band and 4 dBi in PCS band, for purposes of 2.1043 and 2.1091. Above MPE estimate is based upon the measured peak conducted output power. MPE estimate is submitted via separate RF exposure attachment. 3 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NEM8781” Please refer to the FCC ID label format. Labeling instruction has been provided in the OEM installation instruction. 4 The Grant should include the following words in the device description or grant notes: “modular transmitter” or “transmitter module”. Modular approval is requested for this application.

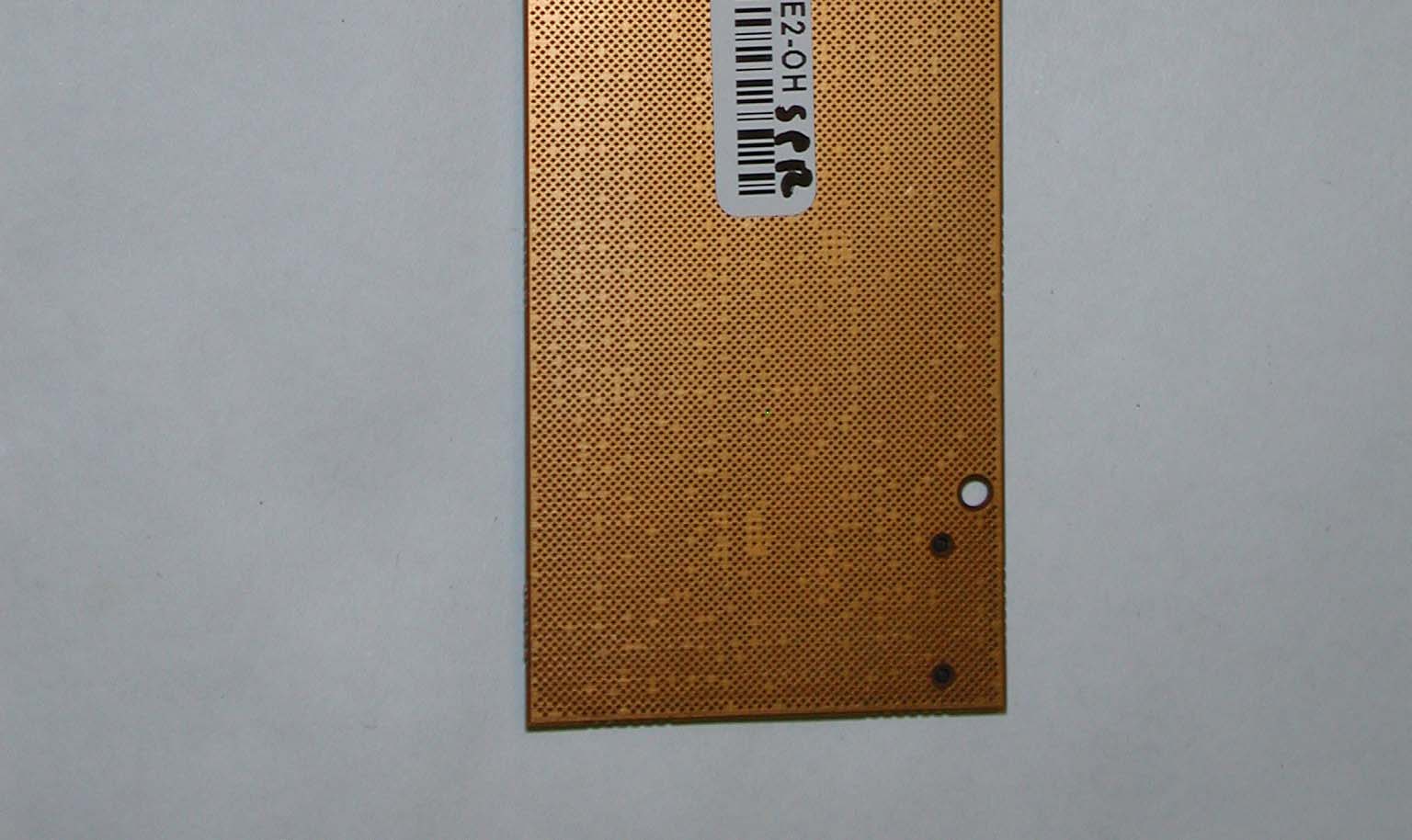

EM8781 Label ID and Location EUT Label Location EUT

Evaluation of RF Exposure for EM8781 Wireless Modem as a Mobile Device In this application we seek modular approval to the EM8781 wireless modem for use in mobile configuration. Based on the FCC OET Bulletin 65 Supplement C and 47 CFR §2.1091, we have concluded that the EM8781 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 5 dBi in cellular band and 4 dBi in PCS band. The following analysis will demonstrate such compliance. The analysis will be done in two US bands. Operation in cellular band (824 – 849 MHz) The peak conducted output power of EM8781 in cellular band is 32 dBm. Take the worst case as an example, in which an antenna with 5 dBi gain is used. The resulted power density at a distance of 20 cm can be deducted as follows: EIRP = 32 + 5 = 37 dBm = 5012 mW Power Density = EIRP*DutyCycle/(4 πR 2 ) = 5012*0.5/(4* π*20 2 ) = 0.50 mW/cm 2 where DutyCycle is 0.5 for GPRS operation (the worst case) and R is 20 cm. The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit = 824/1500 = 0.55 mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore EM8781 in cellular band is compliant with the FCC rules on RF exposure. Operation in PCS band (1850 – 1910 MHz) The peak conducted output power of EM8781 in PCS band is 29 dBm. Take the worst case as an example, in which an antenna with 4 dBi gain is used. The resulted ERP can be expressed as follows: ERP = 29 + 4 –2.15 = 30.85 dBm (1.22 W) < 3 W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR §2.1091 that operate at frequencies above 1.5 GHz with an ERP of 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3 W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for EM8781 in PCS band is categorically excluded.

FCC CFR47 PART 22H AND 24E & INDUSTRY CANADA RSS-132 AND RSS-133 CERTIFICATION TEST REPORT FOR 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE MODEL NUMBER: EM8781 FCC ID: N7NEM8781 IC: 2417C-EM8781 REPORT NUMBER: 07U10905-1 ISSUE DATE: APRIL 03, 2007 Prepared for SIERRA WIRELESS INC. 13811 WIRELESS WAY RICHMOND, BC V6V 3A4, CANADA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U10905-1 DATE: APRIL 03, 2007 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND FCC: N7NEM8781, IC: 2417C-EM8781 Page 2 of 22 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By --- 04/03/07 Initial Issue T. Chan REPORT NO: 07U10905-1 DATE: APRIL 03, 2007 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND FCC: N7NEM8781, IC: 2417C-EM8781 Page 3 of 22 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 7 5.3. DESCRIPTION OF TEST SETUP ................................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 11 7. LIMITS AND RESULTS ................................................................................................................. 12 7.1. FIELD STRENGTH OF SPURIOUS RADIATION..................................................................... 12 8. SETUP PHOTOS .............................................................................................................................. 21 REPORT NO: 07U10905-1 DATE: APRIL 03, 2007 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND FCC: N7NEM8781, IC: 2417C-EM8781 Page 4 of 22 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SIERRA WIRELESS 13811 WIRELESS WAY RICHMOND, BC V6V 3A4, CANADA EUT DESCRIPTION: 850/900/1800/1900/2100 MHz MULTI-BAND MODULE MODEL: EM8781 SERIAL NUMBER: S4304570156E2-OH DATE TESTED: MARCH 26-27, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 22H and 24E NO NON-COMPLIANCE NOTED (Radiated Portion) IC RSS-132 ISSUE 2 and RSS-133 ISSUE 3 NO NON-COMPLIANCE NOTED (Radiated Portion) Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN MENGISTU MEKURIA EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U10905-1 DATE: APRIL 03, 2007 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND FCC: N7NEM8781, IC: 2417C-EM8781 Page 5 of 22 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with TIA/EIA 603C (2004), ANSI C63.4-2003, FCC CFR 47 Part 2, FCC CFR 47 Part 15 and FCC CFR 47 Part 22H, 24E, RSS-GEN, RSS132, & RSS133. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.4, ANSI C63.7 and CISPR Publication 22. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” CCS is accredited by NVLAP, Laboratory Code 200065-0. The full scope of accreditation can be vi…

Text truncated - open the document above for the full version.

 2006 Sierra Wireless, Inc. This document contains information which is proprietary and confidential to Sierra Wireless, Inc. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sierra Wireless, Inc. is strictly prohibited. EM8781 Test Report For FCC and IC Certification IC: 2417C-EM8781 FCC ID: N7NEM8781 Prepared by SIERRA WIRELESS INC. 13811 WIRELESS WAY RICHMOND, BC V6V 3A4 CANADA SIERRA WIRELESS, INC. FCC Part 22 & 24 Test Report EM8781 Mar. 20, 2007 Page 2 of 67  2006 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. Table of Contents 1 Introduction and Purpose....................................................................... 3 2 Test Summary ....................................................................................... 3 3 Description of Equipment Under Test ................................................... 4 RF Power Output ......................................................................................... 4 3.1 Test Procedure .................................................................................................... 4 3.2 Test Equipment.................................................................................................... 4 3.3 Test Results GSM/EDGE .................................................................................... 5 3.4 Test Results UMTS .............................................................................................. 5 3.5 Test Settings for UMTS Mode on the CMU200 .................................................. 6 4 Occupied Bandwidth ............................................................................. 8 4.1 Test Procedure .................................................................................................... 8 4.2 Test Results ......................................................................................................... 8 4.3 Test Plots............................................................................................................. 9 5 Out of Band Emissions at Antenna Terminals ..................................... 18 5.1 Test Procedure .................................................................................................. 18 5.2 Test Equipment.................................................................................................. 18 5.3 Test Results ....................................................................................................... 19 5.4 Test Plots........................................................................................................... 20 6 Block Edge Compliance...................................................................... 56 6.1 Test Procedure .................................................................................................. 56 6.2 Test Equipment.................................................................................................. 56 6.3 Test Results ....................................................................................................... 56 6.4 Test Plots........................................................................................................... 57 7 Frequency Stability Versus Temperature............................................. 63 7.1 Summary of Results........................................................................................... 63 7.2 Test Procedure .................................................................................................. 63 7.3 Test Equipment.................................................................................................. 63 7.4 Test Results ....................................................................................................... 64 8 Frequency Stability Versus Voltage .................................................... 66 8.1 Summary of Results........................................................................................... 66 8.2 Test Procedure .................................................................................................. 66 8.3 Test Equipment.................................................................................................. 66 8.4 Test Results ....................................................................................................... 67 SIERRA WIRELESS, INC. FCC Part 22 & 24 Test Report EM8781 Mar. 20, 2007 Page 3 of 67  2006 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 1 Introduction and Purpose This document provides the EM8781 wireless modem test data for the FCC and IC certification. The tests included in this report are limited to all conducted tests required. The radiated tests were performed at an external test facility. 2 Test Summary FCC RULE DESCRIPTION OF TEST RESULT PAGE 2.1046 RF Power Output Complies 5 2.1049 Occupied Bandwidth Complies 8 2.1051, 22.901(d) 22.917, 24.238(a) Out of Band Emissions at Antenna Terminals Complies 19 FCC part 22H/24E Block Edge Requirements Complies 56 2.1053 Field Strength of Spurious Radiation Complies See CCS Report 2.1055 Frequency Stability versus Temperature Complies 63 2.1055 Frequency Stability versus Voltage Complies 66 The tests described in this report were performed by Mr. Philip Wright and Mr. Hari Shankar Shukla at: Sierra Wireless, Inc. 13811 Wireless Way Richmond, B.C. V6V 3A4 Canada SIERRA WIRELESS, INC. FCC Part 22 & 24 Test Report EM8781 Mar. 20, 2007 Page 4 of 67  2006 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 3 Description of Equipment Under Test The Sierra Wireless Inc. model EM8781 is a multi-band wireless modem operating on the GSM/GPRS/EDGE/UMTS network. In the US and Canada, only cellular and PCS bands are used for GSM/GPRS/UMTS…

Text truncated - open the document above for the full version.

REPORT NO: 07U10905-1 DATE: APRIL 03, 2007 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND FCC: N7NEM8781, IC: 2417C-EM8781 Page 21 of 22 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR MOBILE CONFIGURATION RADIATED FRONT PHOTO REPORT NO: 07U10905-1 DATE: APRIL 03, 2007 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND FCC: N7NEM8781, IC: 2417C-EM8781 Page 22 of 22 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED BACK PHOTO
