N7NEM91Wireless Module

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 053019-02a Request for Modular/Limited Modular Approval Date: June 9, 2020 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: __N7NEM91 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: Module RADIO elements are shielded. Please see submitted external photograph exhibits. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: Module chipset design incorporates integrated buffer circuitry. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: Module chipset incorporates voltage regulation to transceiver circuitry. 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☐ - YES ☒ - NO(*) Details: No applicable to licensed modules. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: EUT conformance testing was performed in a standalone configuration. THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 053019-02a Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is author…

Text truncated - open the document above for the full version.

June 3, 2020 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Authorization Letter for Grantee Code N7N Dear Sir/Madam: I hereby authorize Ms. Suzi Lan of Sierra Wireless to act on my behalf in all manners relating to the application for equipment authorization including signing of all documents relating to these matters. Any and all acts carried out by Ms. Suzi Lan of Sierra Wireless on my behalf shall have the same effect as acts of my own. Sincerely, Ying Wang Senior Manager, Regulatory Compliance

Date: June 04, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NEM91 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 522(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. • Schematics • Block Diagram • Operation Description • Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information: • Integration Manual • Product Photos • Test Setup Photos Best Regards, Suzi Lan Sr. Certification Engineer

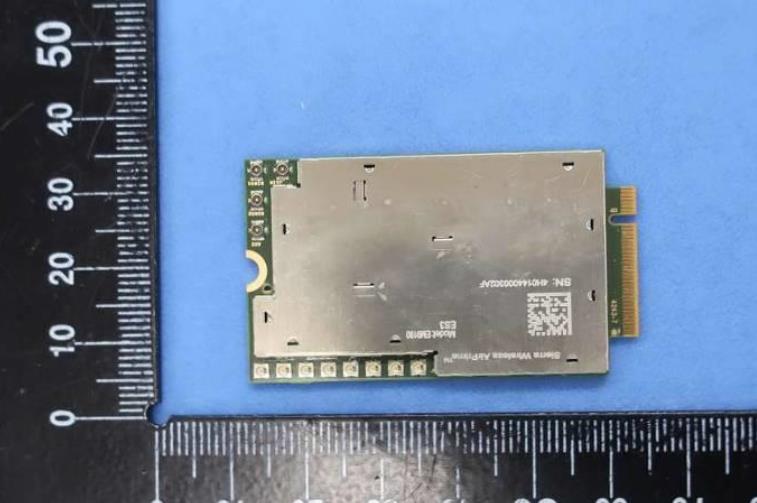

Sierra Wireless Inc., 13811 Wireless Way Richmond, BC Canada V6V 3A4 Tel. +1 604 231 1100 Fax. +1 604 231 1109 Date: June 02, 2020 Model # EM9190 FCC ID: N7NENM91 Device Photos: Enclosure, Top Surface Enclosure, Bottom Surface

Sierra Wireless Inc., 13811 Wireless Way Richmond, BC Canada V6V 3A4 Tel. +1 604 231 1100 Fax. +1 604 231 1109 Date: June 02, 2020 Model # EM9190 FCC ID: N7EM91 Label and location: EM9190 SIERRA WIRELESS EM9190 FCC ID: N7NEM91

Sierra Wireless Inc., 13811 Wireless Way Richmond, BC Canada V6V 3A4 Tel. +1 604 231 1100 Fax. +1 604 231 1109 Date: June 02, 2020 Model # EM9190 FCC ID: N7NENM91 Device Photos: Disclosure:

Sporton International (Shenzhen) Inc. Page Number : 1 of 13 TEL : +86-755-86379589 Report Issued Date : Mar. 16, 2021 FAX : +86-755-86379595 Report Version : Rev. 04 FCC ID : N7NEM91 RF Exposure Evaluation Report Report No. : FA021501 RF Exposure Evaluation Report APPLICANT : Sierra Wireless, Inc. EQUIPMENT : Wireless Module BRAND NAME : AirPrime MODEL NAME : EM9190 FCC ID : N7NEM91 STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (ShenZhen) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Long Liang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 13 TEL : +86-755-86379589 Report Issued Date : Mar. 16, 2021 FAX : +86-755-86379595 Report Version : Rev. 04 FCC ID : N7NEM91 RF Exposure Evaluation Report Report No. : FA021501 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 7 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 9 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................. 10 5.1. Standalone Power Density Calculation ........................................................................................... 10 5.2. Collocated Power Density Calculation ............................................................................................. 11 Sporton International (Shenzhen) Inc. Page Number : 3 of 13 TEL : +86-755-86379589 Report Issued Date : Mar. 16, 2021 FAX : +86-755-86379595 Report Version : Rev. 04 FCC ID : N7NEM91 RF Exposure Evaluation Report Report No. : FA021501 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA021501 Rev. 01 Initial issue of report. May 25, 2020 FA021501 Rev. 02 Updated FCC ID information. Jun. 04, 2020 FA021501 Rev. 03 Updated antenna gain value for LTE band 30 and LTE band42/48. Jan. 26, 2021 FA021501 Rev. 04 Updated 5GNR maximum tune up power. Mar. 16, 2021 Sporton International (Shenzhen) Inc. Page Number : 4 of 13 TEL : +86-755-86379589 Report Issued Date : Mar. 16, 2021 FAX : +86-755-86379595 Report Version : Rev. 04 FCC ID : N7NEM91 RF Exposure Evaluation Report Report No. : FA021501 1. Administration Data 1.1. Testing Laboratory Sporton International (Shenzhen) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.01. Testing Laboratory Test Firm Sporton International (Shenzhen) Inc. Test Site Location 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China TEL: +86-755-86379589 FAX: +86-755-86379595 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1256 421272 Applicant Company Name Sierra Wireless, Inc. Address 13811 Wireless Way, Richmond, BC, Canada V6A 3A4 Manufacturer Company Name Sierra Wireless, Inc. Address 13811 Wireless Way, Richmond, BC, Canada V6A 3A4 Sporton International (Shenzhen) Inc. Page Number : 5 of 13 TEL : +86-755-86379589 Report Issued Date : Mar. 16, 2021 FAX : +86-755-86379595 Report Version : Rev. 04 FCC ID : N7NEM91 RF Exposure Evaluation Report Report No. : FA021501 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Wireless Module Brand Name AirPrime Model Name EM9190 IMEI 351735110001030 FCC ID N7NEM91 Wireless Technology and Frequency Range WCDMA Band II: 1852.4 MHz ~ 1907.6 MHz WCDMA Band IV: 1712.4 MHz ~ 1752.6 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz LTE Band 2: 1850.7 MHz ~ 1909.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 7: 2502.5 MHz ~ 2567.5MHz LTE Band 12: 699.7 MHz ~ 715.3 MHz LTE Band 13: 779.5 MHz ~ 784.5 MHz LTE Band 14: 790.5 MHz ~ 795.5 MHz LTE Band 17: 706.5 MHz ~ 713.5 MHz LTE Band 25: 1850.7 MHz ~ 1914.3 MHz LTE Band 26: 814.7 MHz ~ 848.3 MHz LTE Band 30: 2307.5 MHz ~ 2312.5 MHz LTE Band 38: 2572.5 MHz ~ 2617.5 MHz LTE Band 41: 2498.5 MHz ~ 2687.5 MHz LTE Band 42: 3552.5 MHz ~ 3597.5 MHz LTE Band 48: 3552.5 MHz ~ 3697.5 MHz LTE Band 66: 1710.7 MHz ~ 1779.3 MHz LTE Band 71: 665.5 MHz ~695.5 MHz 5G NR n2 : 1852.5 MHz ~ 1907.5 MHz 5G NR n5 : 826.5 MHz ~ 846.5 MHz 5G NR n41 : 2506.02 MHz ~ 2679.99 MHz 5G NR n66 : 1712.5 MHz ~ 1777.5 MHz 5G NR n71 : 665.5 MHz ~ 695.5 MHz Mode RMC 12.2Kbps HSDPA HSUPA DC-HSDPA HSPA+ (16QAM uplink is not supported) LTE: QPSK, 16QAM, 64QAM, 256QAM DFT-s-OFDM (PI/2 BPSK / QPSK / 16QAM / 64QAM / 256QAM) CP-OFDM (QPSK / 16QAM / 64QAM / 256QAM) HW Version 1.0 SW Version 00.15.01.00 EUT Stage Identical Prototype Remark: 1. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 2. LTE band 42 covered by LTE band 48 with the same power level, so only chose LTE band 48 to perform standalone power density calculation. 3. This device supports HPUE for LTE band 41 with class 2 power level, so HPUE has been performed standalone power density calculation. 4. For DFT-s-OFDM and CP-OFDM output power measurement reduction, according to maximum power reduction for the CP-OFDM mod…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 20 TEL : 86-755-8637-9589 Report Issued Date : Jun. 05, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID : N7NEM91 Report Template No.: BU5-FG22/24/27 Version 2.0 FCC RF Test Report Report No. : FG021501A FCC RF Test Report APPLICANT : Sierra Wireless, Inc. EQUIPMENT : Wireless Module BRAND NAME : AirPrime MODEL NAME : EM9190 FCC ID : N7NEM91 STANDARD : 47 CFR Part 2, 22(H), 24(E), 27(L) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Feb. 15, 2020 and completely tested on Mar. 30, 2020. We, Sporton International (ShenZhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.26-2015 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Derreck Chen / Supervisor Approved by: Eric Shih / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 20 TEL : 86-755-8637-9589 Report Issued Date : Jun. 05, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID : N7NEM91 Report Template No.: BU5-FG22/24/27 Version 2.0 FCC RF Test Report Report No. : FG021501A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ....................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum Conducted Power, Frequency Tolerance, and Emission Designator ............................... 6 1.7 Testing Location ................................................................................................................................ 7 1.8 Test Software .................................................................................................................................... 7 1.9 Applicable Standards ........................................................................................................................ 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................ 8 2.3 Support Unit used in test configuration ............................................................................................. 9 2.4 Measurement Results Explanation Example .................................................................................... 9 2.5 Frequency List of Low/Middle/High Channels ................................................................................... 9 3 CONDUCTED TEST RESULT ................................................................................................................... 10 3.1 Measuring Instruments .................................................................................................................... 10 3.2 Test Setup ....................................................................................................................................... 10 3.3 Test Result of Conducted Test ........................................................................................................ 10 3.4 Conducted Output Power and ERP/EIRP ....................................................................................... 11 3.5 Peak-to-Average Ratio .................................................................................................................... 12 3.6 99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 13 3.7 Conducted Band Edge .................................................................................................................... 14 3.8 Conducted Spurious Emission ........................................................................................................ 15 3.9 Frequency Stability .......................................................................................................................... 16 4 RADIATED TEST ITEMS .......................................................................................................................... 17 4.1 Measuring Instruments .................................................................................................................... 17 4.2 Test Setup ....................................................................................................................................... 17 4.3 Test Result of Radiated Test ..............…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 21 TEL : 86-755-8637-9589 Report Issued Date : Jun. 05, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC : N7NEM91 Report Template No.: BU5-FGLTE Version 2.0 FCC RF Test Report Report No. : FG021501E FCC RF Test Report APPLICANT : Sierra Wireless, Inc. EQUIPMENT : Wireless Module BRAND NAME : AirPrime MODEL NAME : EM9190 FCC ID : N7NEM91 STANDARD : 47 CFR Part 2, 90(R) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Feb. 15, 2020 and completely tested on May 10, 2020. We, Sporton International (ShenZhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.26 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Derreck Chen / Supervisor Approved by: Eric Shih / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 21 TEL : 86-755-8637-9589 Report Issued Date : Jun. 05, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC : N7NEM91 Report Template No.: BU5-FGLTE Version 2.0 FCC RF Test Report Report No. : FG021501E TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Maximum Conducted Power, Frequency Tolerance, and Emission Designator ............................... 6 1.5 Testing Site ........................................................................................................................................ 6 1.6 Test Software ..................................................................................................................................... 7 1.7 Applied Standards ............................................................................................................................. 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode .......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................. 9 2.3 Support Unit used in test configuration and system .......................................................................... 9 2.4 Measurement Results Explanation Example ..................................................................................... 9 3 CONDUCTED TEST ITEMS ...................................................................................................................... 10 3.1 Measuring Instruments .................................................................................................................... 10 3.2 Conducted Output Power and ERP ................................................................................................. 11 3.3 Peak-to-Average Ratio .................................................................................................................... 12 3.4 Occupied Bandwidth ........................................................................................................................ 13 3.5 Conducted Band Edge Measurement ............................................................................................. 14 3.6 Emission Mask ................................................................................................................................. 15 3.7 Conducted Spurious Emission Measurement ................................................................................. 16 3.8 Frequency Stability Measurement ................................................................................................... 17 4 RADIATED TEST ITEMS .......................................................................................................................... 18 4.1 Measuring Instruments .................................................................................................................... 18 4.2 Test Setup ....................................................................................................................................... 18 4.3 Test Result of Radiated Test ........................................................................................................... 18 4.4 Radiated Spurious Emission Measurement .................................................................................... 19 5 LIST OF MEASURING EQUIPMENT ........................................................................................................ 20 6 UNCERTAINTY OF EVALUATION ........................................................................................................... 21 APPENDIX A. TEST RESULTS OF CONDUCTED TEST APPENDIX B. TEST RESULTS OF RADIA…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 21 TEL : 86-755-8637-9589 Report Issued Date : Jun. 05, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID : N7NEM91 Report Template No.: BU5-FWLTE Version 2.0 FCC RF Test Report Report No. : FW021501 FCC RF Test Report APPLICANT : Sierra Wireless, Inc. EQUIPMENT : Wireless Module BRAND NAME : AirPrime MODEL NAME : EM9190 FCC ID : N7NEM91 STANDARD : 47 CFR Part 2, and 90(S) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Feb. 15, 2020 and completely tested on Apr. 03, 2020. We, Sporton International (ShenZhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.26-2015 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Derreck Chen / Supervisor Approved by: Eric Shih / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 21 TEL : 86-755-8637-9589 Report Issued Date : Jun. 05, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID : N7NEM91 Report Template No.: BU5-FWLTE Version 2.0 FCC RF Test Report Report No. : FW021501 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum Conducted Power, Frequency Tolerance and Emission Designator ................................ 6 1.7 Testing Site........................................................................................................................................ 7 1.8 Test Software .................................................................................................................................... 7 1.9 Applied Standards ............................................................................................................................. 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................ 8 …
