N7NHL6528GWireless Module

4114016 3.0 January 28, 2014 AirPrime HL6528-G Product Technical Specification 4114016 Rev 3.0 January 28, 2014 2 Product Technical Specification Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where cellular modems are not advised without proper device certifications. These areas include environments where cellular radio can interfere such as explosive atmospheres, medical equipment, or any other equipment which may be susceptible to any form of radio interference. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitations of Liability This manual is provided “as is”. Sierra Wireless makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the manual shall endorse all risks arising from its use. The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Customer understands that Sierra Wireless is not providing cellular or GPS (including A-GPS) services. These services are provided by a third party and should be purchased directly by the Customer. 4114016 Rev 3.0 January 28, 2014 3 Product Technical Specification SPECIFIC DISCLAIMERS OF LIABILITY: CUSTOMER RECOGNIZES AND ACKNOWLEDGES SIERRA WIRELESS IS NOT RESPONSIBLE FOR AND SHALL NOT BE HELD LIABLE FOR ANY DEFECT OR DEFICIENCY OF ANY KIND OF CELLULAR OR GPS (INCLUDING A-GPS) SERVICES. Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® . This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group and MMP Portfolio Licensing. Copyright © 2014 Sierra Wireless. All rights reserved. Trademarks Sierra Wireless ® , AirPrime ® , AirLink ® , AirVantage ® , WISMO ® and the Sierra Wireless and Open AT logos are registered trademarks of Sierra Wireless, Inc. or one of its subsidiaries. Watcher ® is a registered trademark of NETGEAR, Inc., used under license. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Sales Desk: Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time Contact: http://www.sierrawireless.com/sales Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Technical Support: [email protected] RMA Support: [email protected] Fax: 1-604-231-1109 Web: http://www.sierrawireless.com/ Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com 4114016 Rev 3.0 January 28, 2014 4 Product Technical Specification Document History Version Date Updates 0.1 April 4th, 2013 Creation 0.2 May 13, 2013 Footprint definition update 0.3 May 24, 2013 Mechanical definition change, 0.4 May 31, 2013 Padout definition change Mechanical definition change 0.5 June 7, 2013 Add product label Correct max current Correct padout definition 0.6 June 8, 2013 Add 2G_TX_ON information Add VBATT_PA information 0.7 July 12, 2013 Added:  4 pin UART0  UIM1_DET and UIM2_DET signal on de…

Text truncated - open the document above for the full version.

Date: April 21 st , 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NHL6528G We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 522(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. Schematics Block Diagram Operation Description Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information: Integration Manual Product Photos Test Setup Photos Best Regards, Suzi Lan Certification Leader

Modular Approval Checklist FCC ID: Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand-alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NSL8084G Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report SL8084T N7NHL6528G MC7350"

Sierra Wireless Inc., 13811 Wireless Way Richmond, BC Canada V6V 3A4 Tel. +1 604 231 1100 Fax. +1 604 231 1109 Date: April 15, 2014 Model # HL6528-G FCC ID: N7NHL6528G IC: 2417C-HL6528G Enclosure, Top Surface Enclosure, Bottom Surface Disclosure:

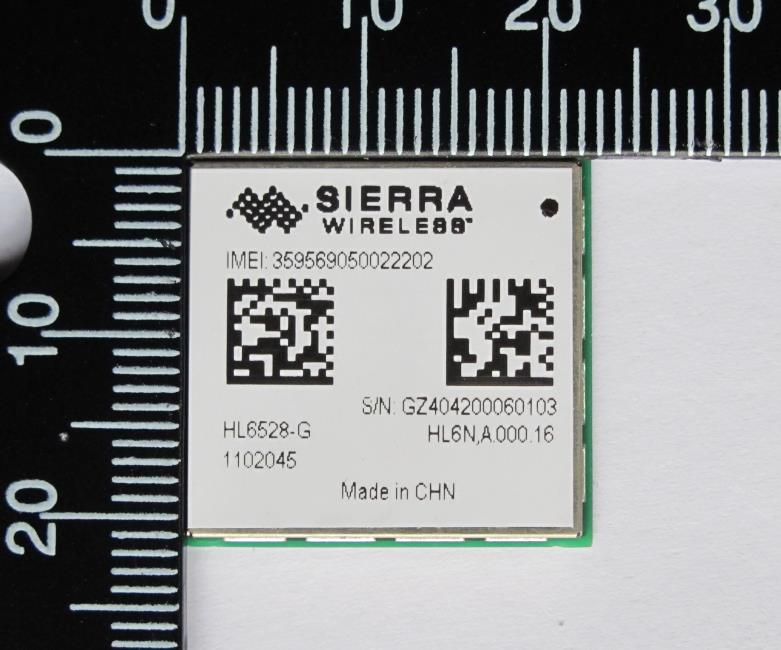

Sierra Wireless Inc., 13811 Wireless Way Richmond, BC Canada V6V 3A4 Tel. +1 604 231 1100 Fax. +1 604 231 1109 Date: April 15, 2014 Model # HL6528-G FCC ID: N7NHL6528G IC: 2417C-HL6528G Label and location: Module Label

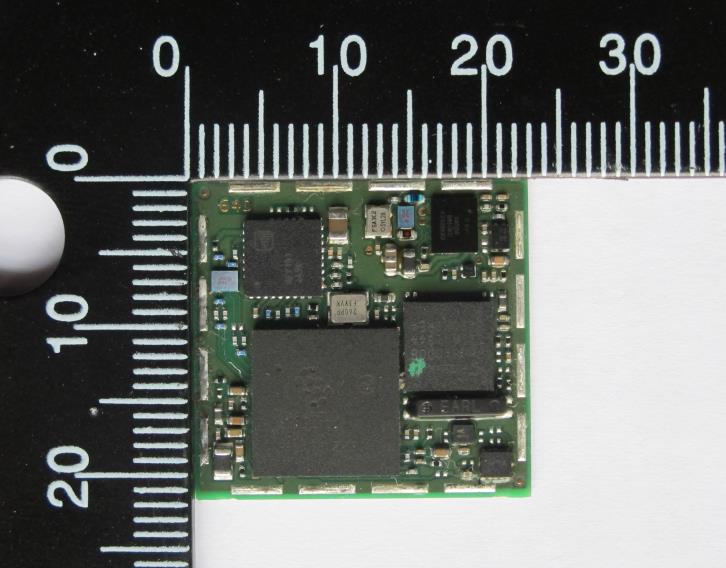

Sierra Wireless Inc., 13811 Wireless Way Richmond, BC Canada V6V 3A4 Tel. +1 604 231 1100 Fax. +1 604 231 1109 Date: April 15, 2014 Model # HL6528-G FCC ID: N7NHL6528G IC: 2417C-HL6528G Enclosure, Top Surface Enclosure, Bottom Surface Disclosure:

MPE Evaluation for HL6528-G Wireless Module April 21, 2014 1. Introduction In this application we seek for modular approval to the HL6528-G wireless module for use in standalone and collocated simultaneous transmission under mobile configuration. This Maximum Permissive Exposure (MPE) report demonstrates compliance analysis for HL6528-G wireless module with FCC CFR 47 §2.1091 and IC RSS-102 for standalone and collocated transmission in mobile exposure conditions. The MPE analysis is limited for US / Canada bands only. The general population/uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Any collocated transmitter must have a valid FCC ID documenting equivalent or degraded RF characteristics with the collocated parameters defined in this MPE report. A separation distance of 20cm or more shall be maintained between the end user and each WWAN, WiMAX or WLAN, and Bluetooth transmitting antenna. Portable user conditions or additional collocated transmitters not allowed based on this RF exposure analysis require a Class II permissive change and updated RF exposure report. 2. RF Exposure Limits and Equations FCC RULES: According to FCC OET Bulletin 65 Supplement C, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1307. Table 1 : Limits for Maximum Permissible Exposure (MPE) IC RULES: IC has adopted the RF field strength limits established in Health Canada’s RF exposure guideline. The limits are shown in Table 2 below per RSS 102. Table 2 : RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) EQUATIONS: Power density is given by : S = EIRP /(4 * Pi* D^2) where S = Power density (mW/cm^2) EIRP = Equivalent Isotropic Radiated Power (mW) D = Separation distance (cm) 3. Product Declarations The HL6528-G wireless module can be installed for use in any mobile host as long as the antenna gain of the host antenna does not exceed the gain listed in table 3. This MPE analysis is applicable to any collocated transmitters with transmit power: -less than or equal to 29.0dBm for WLAN/WiMAX; and -less than or equal to 15.0dBm for BT. Specific FCC IDs for those devices are not necessary or identified in this analysis providing they are classified as mobile transmitters. A 100% duty cycle is used for calculations to present a worse-case analysis when applicable. Table 3: HL6528-G Standalone and Collocated Transmission Declarations Mode Equipment Category Max Transmitter Duty Cycle Transmitter Range (MHz) Maximum Conducted Power Maximum Antenna Gain (dBi) (dBm) (W) Standalone Collocated GPRS Class10 25% 824-849 35.0 2.00 4.5 3.0 1850 -1910 32.0 1.00 1.0 3.0 4. MPE Calculations The WWAN MPE calculations are based on conservative conducted transmit power exceeding those listed in the FCC ID N7Nhl6528G and IC number 2417C-HL6528G filing. The higher transmit power levels are used to present a worst case assessment. The WiMAX, WLAN, and BT transmit power and antenna gain parameters represent a maximum transmit power for a given frequency band. Integration of either a WiMAX or WLAN, and BT module that exceeds the parameters requires a new FCC authorization or permissive change application. A maximum antenna gain of 5 dBi for WLAN/WiMAX/BT has been assumed for all collocated antennas. Table 4, 5, and 6 summarize transmitter parameters associated with this analysis. 4.1. Individual Transmitter Calculations 4.1.1. Maximum Output Power The maximum power calculations for HL6528-G per wireless technology are shown in Table 4 Technology Frequency (MHz) Maximum Conducted Power (dBm) Maximum Conducted Power (W) Maximum Antenna Gain (dBi) Duty Cycle Max EIRP (dBm) Max EIRP (W) Max ERP (dBm) Max ERP (W) Max output power limit HL6528 - G standalone GPRS 824-849 35.0 2.00 4.5 1.000 39.500 8.913 37.360 5.445 7 W ERP 1850-1910 32.0 1.00 1.0 1.000 33.000 1.995 30.860 1.219 2 W EIRP Table 4: HL6528-G Maximum Output Power Calculation 4.1.2. Standalone Power Density The power density calculations for the individual transmitters per wireless technology at an exposure minimum separation distance of 20cm are shown in Table 5. For frequency dependent limit, the lowest transmitter frequency was used to represent the lowest MPE limit in this analysis (eg. 824MHz = 0.549mW/cm 2 ) Technology Frequency (MHz) Maximum Conducted Power (dBm) Maximum Conducted Power (W) Maximum Antenna Gain (dBi) Duty Cycle Average EIRP (dBm) Average EIRP (mW) Power Density @ 20cm (mW/cm^2) FCC MPE Limit (mW/cm^2) HL6528 - G standalone GPRS 824-849 35.0 0.25 4.5 0.250 29.98 995.268 0.198 0.549 1850-1910 32.0 0.25 1.0 0.250 26.98 498.816 0.099 1.000 Table 5: HL6528-G Standalone MPE Calculation 4.2. Collocated MPE Calculation The WiMAX, WLAN, and BT power levels listed represent the worse-case scenario for corresponding frequency ranges given. Technology Frequency (MHz) Maximum Conducted Power (dBm) Maximum Conducted Power (W) Maximum Antenna Gain (dBi) Duty Cycle Average EIRP (dBm) Average EIRP (mW) Power Density @ 20cm (mW/cm^2) FCC MPE Limit (mW/cm^2) HL6528 - G module (Collocated) GPRS 824-849 35.0 2.00 2.0 0.250 30.98 1252.868 0.249 0.549 1850-1910 32.0 1.00 1.0 0.250 26.98 498.816 0.099 1.000 Table 6: HL6528-G Collocated MPE Calculation Per OET Bulletin 65, when RF sources have difference frequencies, the fraction of the FCC power density limit shall be determined and the sum of all fractional components shall be less than 1. WLAN/WiMAX Band (GHz) WLAN/WiMAX Pd (mW/cm^2) BT Pd (mW/cm^2) WLAN/WiMAX + BT Pd (mW/cm^2) Limit 2.3-2.4 0.500 0.020 0.520 1.000 2.4-2.5 2.5-2.7 3.3-3.8 5.15-5.85 Table 7: (WLAN or WiMAX) + BT Collocated MPE Calculation WLAN / WiMAX Band (GHz) WLAN / WiMAX + BT Pd (mW/cm^2) …

Text truncated - open the document above for the full version.

RF Test Report Test in accordance with Federal Communications Commission(FCC) CFR TITLE 47, Parts 2, 22, 24 & Industry Canada (IC), RSS-GEN, 132,133 Product Name : HL6528X Model No. : HL6528-G FCC ID : N7NHL6528G IC : 2417C-HL6528G Applicant : Sierra Wireless Inc. Address : 13811 Wireless way Richmond, BC, V6V 3A4 Canada Date of Receipt : 2014-02-23 Test Date : 2014-02-25~2014-03-05 Issued Date : 2014-03-05 Report No. : UL05420131227FCC/IC009-2 Report Version : V1.0 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL05420131227FCC/IC009-2 Page 2 of 52 Page: 2 of 52 Test Report Certification Issued Date : 2014-03-05 Report No. : UL05420131227FCC/IC009-2 Product Name : HL6528X Applicant : Sierra Wireless Inc. Address : 13811 Wireless way Richmond, BC, V6V 3A4 Canada Manufacturer : Sierra Wireless Inc. Address : 13811 Wireless way Richmond, BC, V6V 3A4 Canada Model No. : HL6528-G EUT Voltage : MIN: 3.3V, NOR: 3.7V, MAX: 4.5V Brand Name : Sierrawireless FCC ID: N7NHL6528G IC: 2417C-HL6528G Applicable Standard : ANSI/TIA-603-D-2010; FCC CFR Title 47 Part 2; FCC CFR Title 47 Part 22 Subpart H; FCC CFR Title 47 Part24 Subpart E; RSS-GEN Issue2; Industry Canada RSS-132, Issue3; Industry Canada RSS-133, Issue6; Test Result : Complied Performed Location : Unilab (Shanghai) Co., Ltd. FCC 2.948 register number is 714465 IC register number is 11025A No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50277862 Documented By : (Technical Engineer: Andy Wei) Reviewed By : (Senior Engineer: Forest Cao) Approved By : (Supervisor: Eva Wang) Unilab(Shanghai) Co.,Ltd. Report No. : UL05420131227FCC/IC009-2 Page 3 of 52 Page: 3 of 52 TABLE OF CONTENTS SUMMARY OF TEST RESULT ....................................................................................................................................... 4 1. General Information ........................................................................................................................................ 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Mode of Operation ................................................................................................................................. 7 1.3. Tested System Details .......................................................................................................................... 9 1.4. Configuration of Tested System ........................................................................................................... 9 1.5. EUT Exercise Software ......................................................................................................................... 8 2. Technical Test ..................................................................................................................................................... 9 2.1. Test Environment .................................................................................................................................... 9 3. Peak Output Power ......................................................................................................................................... 10 3.2. Test Setup .............................................................................................................................................. 10 3.3. Limit ......................................................................................................................................................... 11 3.4. Test Procedure ...................................................................................................................................... 12 3.5. Uncertainty ............................................................................................................................................. 12 3.6. Test Result ............................................................................................................................................. 13 4. Occupied Bandwidth ........................................................................................................................................ 16 4.1. Test Equipment ..................................................................................................................................... 16 4.2. Test Setup .............................................................................................................................................. 16 4.3. Limit ......................................................................................................................................................... 17 4.4. Test Procedure ...................................................................................................................................... 17 4.5. Uncertainty ............................................................................................................................................. 17 4.6. Test Result ............................................................................................................................................. 18 5.Spurious Emission At Antenna Terminals (+/- 1MHz) ................................................................................. 26 5.1. Test Equipment ..................................................................................................................................... 26 5.2. Test Setup .............................................................................................................................................. 26 5.3. Limit ..........................................................................................…

Text truncated - open the document above for the full version.

Model Name: HL6528-G Report Number: UL05420131227FCC/IC009-7 Page 1 of 3 TEST SETUP PHOTOS for Part 22/Part 24 & RSS 132/RSS133 Occupied Bandwidth, Modulation Characteristic, Conducted Power Measurement, Spurious Emission At Antenna Terminals (+/- 1MHz), Conducted Spurious Emission Measurement Setup Model Name: HL6528-G Report Number: UL05420131227FCC/IC009-7 Page 2 of 3 Frequency Stability Under Temperature & Voltage Variations Setup ERP Test, Radiated Spurious Measurement(30MHz to 1GHz) Setup Model Name: HL6528-G Report Number: UL05420131227FCC/IC009-7 Page 3 of 3 Radiated Spurious Measurement (Above 1GHz), EIRP Test Setup
