N7NHL7519Wireless module

TBC 1.0 July 28, 2015 AirPrime HL7519 User Guide TBC Rev 1.0 July 28, 2015 2 User Guide Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where cellular modems are not advised without proper device certifications. These areas include environments where cellular radio can interfere such as explosive atmospheres, medical equipment, or any other equipment which may be susceptible to any form of radio interference. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitations of Liability This manual is provided “as is”. Sierra Wireless makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the manual shall endorse all risks arising from its use. The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Customer understands that Sierra Wireless is not providing cellular or GPS (including A-GPS) services. These services are provided by a third party and should be purchased directly by the Customer. TBC Rev 1.0 July 28, 2015 3 User Guide SPECIFIC DISCLAIMERS OF LIABILITY: CUSTOMER RECOGNIZES AND ACKNOWLEDGES SIERRA WIRELESS IS NOT RESPONSIBLE FOR AND SHALL NOT BE HELD LIABLE FOR ANY DEFECT OR DEFICIENCY OF ANY KIND OF CELLULAR OR GPS (INCLUDING A-GPS) SERVICES. Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® . This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group and MMP Portfolio Licensing. Copyright © 2015 Sierra Wireless. All rights reserved. Trademarks Sierra Wireless ® , AirPrime ® , AirLink ® , AirVantage ® , WISMO ® and the Sierra Wireless and Open AT logos are registered trademarks of Sierra Wireless, Inc. or one of its subsidiaries. Watcher ® is a registered trademark of NETGEAR, Inc., used under license. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Sales Desk: Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time Contact: http://www.sierrawireless.com/sales Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Technical Support: [email protected] RMA Support: [email protected] Fax: 1-604-231-1109 Web: http://www.sierrawireless.com/ Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com TBC Rev 1.0 July 28, 2015 4 User Guide Document History Version Date Updates 1.0 July 28, 2015 Creation TBC Rev 1.0 July 28, 2015 5 Contents 1. INTRODUCTION .................................................................................................... 8 1.1. Common Flexible Form Factor (CF 3 ) ............................................................................... 8 1.2. Physical Dimensions ....................................................................................................... 8 1.3. General Features ......................................................................…

Text truncated - open the document above for the full version.

Date: 2015/8/31 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: N7NHL7519 Product name: Wireless module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model HL7519 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Signature : Name and Job Title. : Denis CHABOT / Senior Manager, Certification E-mail : [email protected] Tel. : (852) 2824 5222

Date: August 31, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: N7NHL7519 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for a period of (up to 180 days):. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description ☒ Bill of Materials ☒ Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Signature : Name and Job Title. : Denis CHABOT / Senior Manager, Certification E-mail : [email protected] Tel. : (852) 2824 5222

Modular Approval Checklist FCC ID: N7NHL7519 Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand‐alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NHL7519” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report

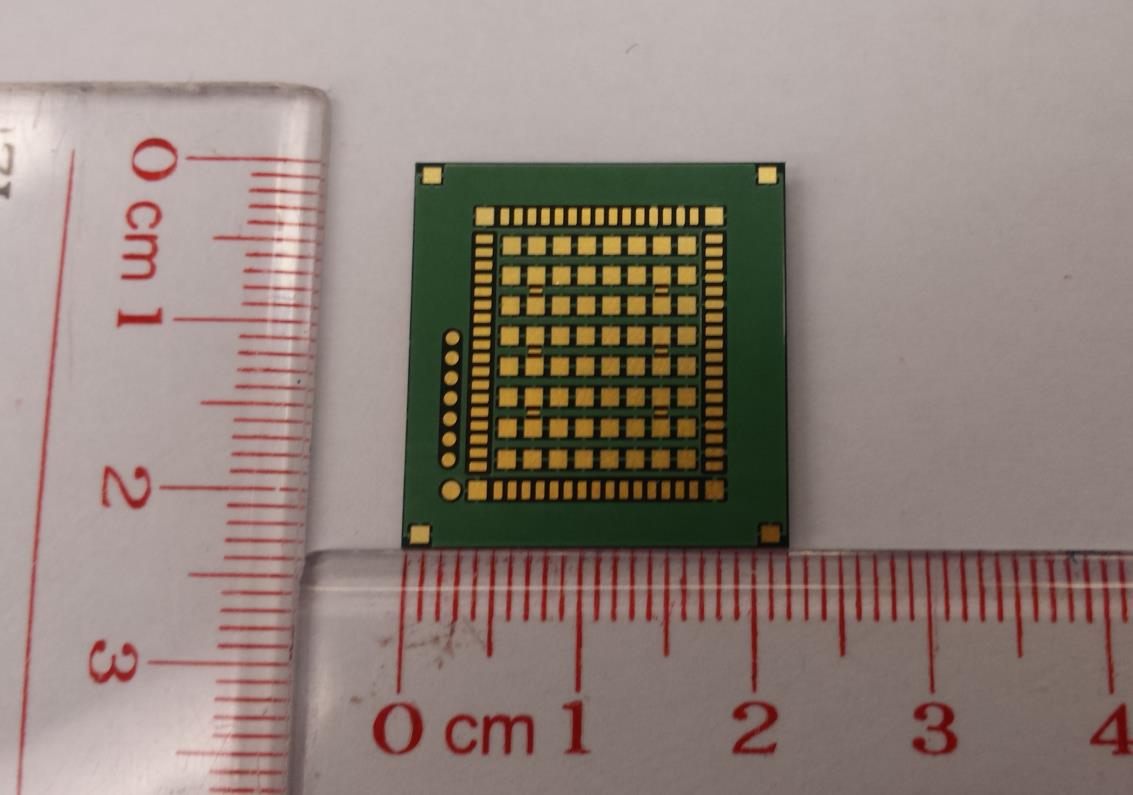

Project No.: 581801 Page No. : 1 of 2 Photographs of EUT

HL7519 – Label Specs NOT TO SCALE, TYPICAL REPRESENTATION Dimensions are taken with respect to the edge of the surface that the laser etch is made on.

Project No.: 581801 Page No. : 2 of 2

Report No.: FA581801 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : N7NHL7519 Equipment : Wireless Module Model No. : HL7519 Brand Name : AirPrime Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 18, 2015 Tested Date : Aug. 23 ~ Sep. 04, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA581801 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 1.4 MAXIMUM ANTENNA GAIN EVALUATION (REFERENCE ONLY) ..................................................... 6 2 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA581801 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA581801 Rev. 01 Initial issue Sep. 16, 2015 Report No.: FA581801 Page : 4 of 7 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance Report No.: FA581801 Page : 5 of 7 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS Mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) LTE Band 13 779.5 22.32 2 20 0.054 0.520 782.0 22.38 2 20 0.055 0.521 784.5 22.33 2 20 0.054 0.523 LTE Band 2 1850.7 23.24 2 20 0.066 1.000 1880.0 23.23 2 20 0.066 1.000 1909.3 23.52 2 20 0.071 1.000 LTE Band 4 1710.7 23.03 2 20 0.063 1.000 1732.5 23.02 2 20 0.063 1.000 1754.3 23.02 2 20 0.063 1.000 Report No.: FA581801 Page : 6 of 7 Report Version: Rev. 01 1.4 MAXIMUM ANTENNA GAIN EVALUATION (REFERENCE ONLY) Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP,W) LTE Band 13 779.5 22.32 24.00 10.17 20 0.520 12.92 3 782.0 22.38 24.00 10.18 20 0.521 12.92 3 784.5 22.33 24.00 10.20 20 0.523 12.92 3 Note: In order to comply with both Maximum Permissible Exposure and ERP limit, the maximum antenna gain shall not be greater than 10.17 dBi in LTE band 13 Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (EIRP,W) LTE Band 2 1850.7 23.24 24.00 13.01 20 1.000 9.01 2 1880.0 23.23 24.00 13.01 20 1.000 9.01 2 1909.3 23.52 24.00 13.01 20 1.000 9.01 2 Note: In order to comply with both Maximum Permissible Exposure and EIRP limit, the maximum antenna gain shall not be greater than 9.01 dBi in LTE band 2 Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (EIRP,W) LTE Band 4 1710.7 23.03 24.00 13.01 20 1.000 6.00 1 1732.5 23.02 24.00 13.01 20 1.000 6.00 1 1754.3 23.02 24.00 13.01 20 1.000 6.00 1 Note: In order to comply with both Maximum Permissible Exposure and EIRP limit, the maximum antenna gain shall not be greater than 6 dBi in LTE band 4 Report No.: FA581801 Page : 7 of 7 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══EN…

Text truncated - open the document above for the full version.

Report No.: FG581801P24 Page : 1 of 78 Report Version: Rev. 02 FCC Test Report FCC ID : N7NHL7519 Equipment : Wireless Module Model No. : HL7519 Brand Name : AirPrime Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Standard : 47 CFR FCC Part 24 Subpart E Received Date : Aug. 18, 2015 Tested Date : Aug. 23 ~ Sep. 04, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FG581801P24 Page : 2 of 78 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition and Location Information ......................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TEST RESULTS................................................................................................................................... 11 3.1 Equivalent Isotropically Radiated Power .............................................................................................. 11 3.2 Radiated Emissions .............................................................................................................................. 18 3.3 Conducted Emissions ........................................................................................................................... 30 3.4 Band Edge ............................................................................................................................................ 37 3.5 Occupied and 26 dB Bandwidth ........................................................................................................... 62 3.6 Peak to Average Ratio ......................................................................................................................... 69 3.7 Frequency Stability ............................................................................................................................... 76 4 TEST LABORATORY INFORMATION ............................................................................................... 78 Report No.: FG581801P24 Page : 3 of 78 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FG581801P24 Rev. 01 Initial issue Sep. 16, 2015 Report No.: FG581801P24 Page : 4 of 78 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 2.1046 / 24.232(c) Equivalent Isotropically Radiated Power Power[dBm]: 25.52 Pass 2.1053 / 24.238(a) Radiated Emissions Meet the requirement of limit Pass 2.1051 / 24.238(a) Conducted Emissions Meet the requirement of limit Pass 2.1051 / 24.238(a) Band Edge Meet the requirement of limit Pass 2.1049 / 24.238(b) Occupied Bandwidth Meet the requirement of limit Pass 2.1051 / 24.232(d) Peak to average ratio Meet the requirement of limit Pass 2.1055 / 24.235 Frequency Stability Meet the requirement of limit Pass Report No.: FG581801P24 Page : 5 of 78 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Band (MHz) Channel Bandwidth: 1.4MHz: 1850.7~1909.3 Channel Bandwidth: 3MHz: 1851.5~1908.5 Channel Bandwidth: 5MHz: 1852.5~1907.5 Channel Bandwidth: 10MHz: 1855~1905 Channel Bandwidth: 15MHz: 1857.5~1902.5 Channel Bandwidth: 20MHz: 1860~1900 Modulation QPSK, 16QAM (Uplink) Release Version 9 Duplex Mode FDD UE Category 4 H/W Version 1 S/W Version V.3.2 1.1.2 Maximum EIRP and Emission Designator Mode Modulation Maximum EIRP (W) Emission Designator LTE Band 2, CB: 1.4MHz QPSK 0.319 1M09G7D LTE Band 2, CB: 1.4MHz 16QAM 0.272 1M09W7D LTE Band 2, CB: 3MHz QPSK 0.318 2M69G7D LTE Band 2, CB: 3MHz 16QAM 0.277 2M70W7D LTE Band 2, CB: 5MHz QPSK 0.330 4M52G7D LTE Band 2, CB: 5MHz 16QAM 0.278 4M50W7D LTE Band 2, CB: 10MHz QPSK 0.348 9M03G7D LTE Band 2, CB: 10MHz 16QAM 0.286 9M00W7D LTE Band 2, CB: 15MHz QPSK 0.356 13M46G7D LTE Band 2, CB: 15MHz 16QAM 0.298 13M46W7D LTE Band 2, CB: 20MHz QPSK 0.333 17M95G7D LTE Band 2, CB: 20MHz 16QAM 0.299 18M00W7D Report No.: FG581801P24 Page : 6 of 78 Report Version: Rev. 02 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Dipole 2 R-SMA --- Note: The antenna is for testing use only. 1.1.4 EUT Operational Condition Supply Voltage 3.7 Vdc from host Operational Voltage Vnom (3.7 V) Vmax (4.5 V) Vmin (3.2 V) Operational Climatic Tnom (20°C) T…

Text truncated - open the document above for the full version.

Report No.: FG581801P24 Page : 46 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 5MHz, QPSK Channel 18625 1 RB lower / Offset 0 Channel 18625 1 RB lower / Offset 0 Channel 18625 100% RB / Offset 0 Channel 18625 100% RB / Offset 0 Report No.: FG581801P24 Page : 47 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 5MHz, QPSK Channel 19175 1 RB upper / Offset 0 Channel 19175 1 RB upper / Offset 0 Channel 19175 100% RB / Offset 0 Channel 19175 100% RB / Offset 0 Report No.: FG581801P24 Page : 48 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 5MHz, 16QAM Channel 18625 1 RB lower / Offset 0 Channel 18625 1 RB lower / Offset 0 Channel 18625 100% RB / Offset 0 Channel 18625 100% RB / Offset 0 Report No.: FG581801P24 Page : 49 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 5MHz, 16QAM Channel 19175 1 RB upper / Offset 0 Channel 19175 1 RB upper / Offset 0 Channel 19175 100% RB / Offset 0 Channel 19175 100% RB / Offset 0 Report No.: FG581801P24 Page : 50 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 10MHz, QPSK Channel 18650 1 RB lower / Offset 0 Channel 18650 1 RB lower / Offset 0 Channel 18650 100% RB / Offset 0 Channel 18650 100% RB / Offset 0 Report No.: FG581801P24 Page : 51 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 10MHz, QPSK Channel 19150 1 RB upper / Offset 0 Channel 19150 1 RB upper / Offset 0 Channel 19150 100% RB / Offset 0 Channel 19150 100% RB / Offset 0 Report No.: FG581801P24 Page : 52 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 10MHz, 16QAM Channel 18650 1 RB lower / Offset 0 Channel 18650 1 RB lower / Offset 0 Channel 18650 100% RB / Offset 0 Channel 18650 100% RB / Offset 0 Report No.: FG581801P24 Page : 53 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 10MHz, 16QAM Channel 19150 1 RB upper / Offset 0 Channel 19150 1 RB upper / Offset 0 Channel 19150 100% RB / Offset 0 Channel 19150 100% RB / Offset 0 Report No.: FG581801P24 Page : 54 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 15MHz, QPSK Channel 18675 1 RB lower / Offset 0 Channel 18675 1 RB lower / Offset 0 Channel 18675 100% RB / Offset 0 Channel 18675 100% RB / Offset 0 Report No.: FG581801P24 Page : 55 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 15MHz, QPSK Channel 19125 1 RB upper / Offset 0 Channel 19125 1 RB upper / Offset 0 Channel 19125 100% RB / Offset 0 Channel 19125 100% RB / Offset 0 Report No.: FG581801P24 Page : 56 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 15MHz, 16QAM Channel 18675 1 RB lower / Offset 0 Channel 18675 1 RB lower / Offset 0 Channel 18675 100% RB / Offset 0 Channel 18675 100% RB / Offset 0 Report No.: FG581801P24 Page : 57 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 15MHz, 16QAM Channel 19125 1 RB upper / Offset 0 Channel 19125 1 RB upper / Offset 0 Channel 19125 100% RB / Offset 0 Channel 19125 100% RB / Offset 0 Report No.: FG581801P24 Page : 58 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 20MHz, QPSK Channel 18700 1 RB lower / Offset 0 Channel 18700 1 RB lower / Offset 0 Channel 18700 100% RB / Offset 0 Channel 18700 100% RB / Offset 0 Report No.: FG581801P24 Page : 59 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 20MHz, QPSK Channel 19100 1 RB upper / Offset 0 Channel 19100 1 RB upper / Offset 0 Channel 19100 100% RB / Offset 0 Channel 19100 100% RB / Offset 0 Report No.: FG581801P24 Page : 60 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 20MHz, 16QAM Channel 18700 1 RB lower / Offset 0 Channel 18700 1 RB lower / Offset 0 Channel 18700 100% RB / Offset 0 Channel 18700 100% RB / Offset 0

Report No.: FG581801P24 Page : 61 of 78 Report Version: Rev. 02 Mode LTE Band 2, CB: 20MHz, 16QAM Channel 19100 1 RB upper / Offset 0 Channel 19100 1 RB upper / Offset 0 Channel 19100 100% RB / Offset 0 Channel 19100 100% RB / Offset 0 Report No.: FG581801P24 Page : 62 of 78 Report Version: Rev. 02 3.5 Occupied and 26 dB Bandwidth 3.5.1 Test Procedures 1. Set RBW = 20 / 50 / 100 / 200 / 200 / 300 kHz, VBW = 100 / 200 / 300 / 1000 / 1000 / 1000 kHz channel bandwidth 1.4 / 3 / 5 / 10 / 15 / 20 MHz. 2. Detector = Peak, Trace mode = max hold. 3. Sweep = auto couple, Allow the trace to stabilize. 4. Using occupied bandwidth measurement function of spectrum analyzer to measure occupied bandwidth. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower) that are attenuated by 26dB relative to the maximum level measured in the fundamental emission. 3.5.2 Test Setup Report No.: FG581801P24 Page : 63 of 78 Report Version: Rev. 02 3.5.3 Test Result of Occupied Bandwidth Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 2 1.4 QPSK 18607 1850.7 1.3217 1.0941 LTE Band 2 1.4 QPSK 18900 1880.0 1.3261 1.0890 LTE Band 2 1.4 QPSK 19193 1909.3 1.3565 1.0940 LTE Band 2 1.4 16QAM 18607 1850.7 1.3130 1.0897 LTE Band 2 1.4 16QAM 18900 1880.0 1.3130 1.0854 LTE Band 2 1.4 16QAM 19193 1909.3 1.3261 1.0897 Worst plots OBW 26dB bandwidth Report No.: FG581801P24 Page : 64 of 78 Report Version: Rev. 02 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 2 3 QPSK 18615 1851.5 2.9652 2.6918 LTE Band 2 3 QPSK 18900 1880.0 2.9739 2.6918 LTE Band 2 3 QPSK 19185 1908.5 2.9739 2.6918 LTE Band 2 3 16QAM 18615 1851.5 3.0087 2.7004 LTE Band 2 3 16QAM 18900 1880.0 2.9913 2.6918 LTE Band 2 3 16QAM 19185 1908.5 3.0000 2.6918 Worst plots OBW 26dB bandwidth Report No.: FG581801P24 Page : 65 of 78 Report Version: Rev. 02 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 2 5 QPSK 18625 1852.5 5.0435 4.5007 LTE Band 2 5 QPSK 18900 1880.0 5.0435 4.4862 LTE Band 2 5 QPSK 19175 1907.5 5.0580 4.5152 LTE Band 2 5 16QAM 18625 1852.5 5.0145 4.5007 LTE Band 2 5 16QAM 18900 1880.0 5.0145 4.4863 LTE Band 2 5 16QAM 19175 1907.5 4.9855 4.5007 Worst plots OBW 26dB bandwidth Report No.: FG581801P24 Page : 66 of 78 Report Version: Rev. 02 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 2 10 QPSK 18650 1855.0 10.1159 9.0014 LTE Band 2 10 QPSK 18900 1880.0 10.3768 9.0303 LTE Band 2 10 QPSK 19150 1905.0 10.1739 9.0303 LTE Band 2 10 16QAM 18650 1855.0 10.0000 9.0014 LTE Band 2 10 16QAM 18900 1880.0 10.1159 9.0014 LTE Band 2 10 16QAM 19150 1905.0 10.1449 8.9725 Worst plots OBW 26dB bandwidth Report No.: FG581801P24 Page : 67 of 78 Report Version: Rev. 02 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 2 15 QPSK 18675 1857.5 15.6087 13.4587 LTE Band 2 15 QPSK 18900 1880.0 15.5217 13.4587 LTE Band 2 15 QPSK 19125 1902.5 14.9565 13.4153 LTE Band 2 15 16QAM 18675 1857.5 15.6087 13.4587 LTE Band 2 15 16QAM 18900 1880.0 15.6087 13.4587 LTE Band 2 15 16QAM 19125 1902.5 15.5217 13.4587 Worst plots OBW 26dB bandwidth Report No.: FG581801P24 Page : 68 of 78 Report Version: Rev. 02 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 2 20 Q…

Text truncated - open the document above for the full version.
