N7NHL7588Wireless module

Sierra Wireless, ULC
Wireless module - FCC ID N7NHL7588 - Sierra Wireless, ULC
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Aug 23, 2015
Application Purpose
Original Equipment
Date of Application
Aug 23, 2015
Equipment Note
Wireless module
Frequency Range
1720.00000000 - 1745.00000000
Company
Sierra Wireless, ULC
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TBC 1.0 July 28, 2015 AirPrime HL7588 User Guide TBC Rev 1.0 July 28, 2015 2 User Guide Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where cellular modems are not advised without proper device certifications. These areas include environments where cellular radio can interfere such as explosive atmospheres, medical equipment, or any other equipment which may be susceptible to any form of radio interference. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitations of Liability This manual is provided “as is”. Sierra Wireless makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the manual shall endorse all risks arising from its use. The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Customer understands that Sierra Wireless is not providing cellular or GPS (including A-GPS) services. These services are provided by a third party and should be purchased directly by the Customer. TBC Rev 1.0 July 28, 2015 3 User Guide SPECIFIC DISCLAIMERS OF LIABILITY: CUSTOMER RECOGNIZES AND ACKNOWLEDGES SIERRA WIRELESS IS NOT RESPONSIBLE FOR AND SHALL NOT BE HELD LIABLE FOR ANY DEFECT OR DEFICIENCY OF ANY KIND OF CELLULAR OR GPS (INCLUDING A-GPS) SERVICES. Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® . This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group and MMP Portfolio Licensing. Copyright © 2015 Sierra Wireless. All rights reserved. Trademarks Sierra Wireless ® , AirPrime ® , AirLink ® , AirVantage ® , WISMO ® and the Sierra Wireless and Open AT logos are registered trademarks of Sierra Wireless, Inc. or one of its subsidiaries. Watcher ® is a registered trademark of NETGEAR, Inc., used under license. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Sales Desk: Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time Contact: http://www.sierrawireless.com/sales Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Technical Support: [email protected] RMA Support: [email protected] Fax: 1-604-231-1109 Web: http://www.sierrawireless.com/ Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com TBC Rev 1.0 July 28, 2015 4 User Guide Document History Version Date Updates 1.0 July 28, 2015 Creation TBC Rev 1.0 July 28, 2015 5 Contents 1. INTRODUCTION .................................................................................................... 8 1.1. Common Flexible Form Factor (CF 3 ) ............................................................................... 8 1.2. Physical Dimensions ....................................................................................................... 8 1.3. General Features ......................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Modular Approval Checklist FCC ID: N7NHL7588 Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand‐alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NHL7588” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report

External Photos

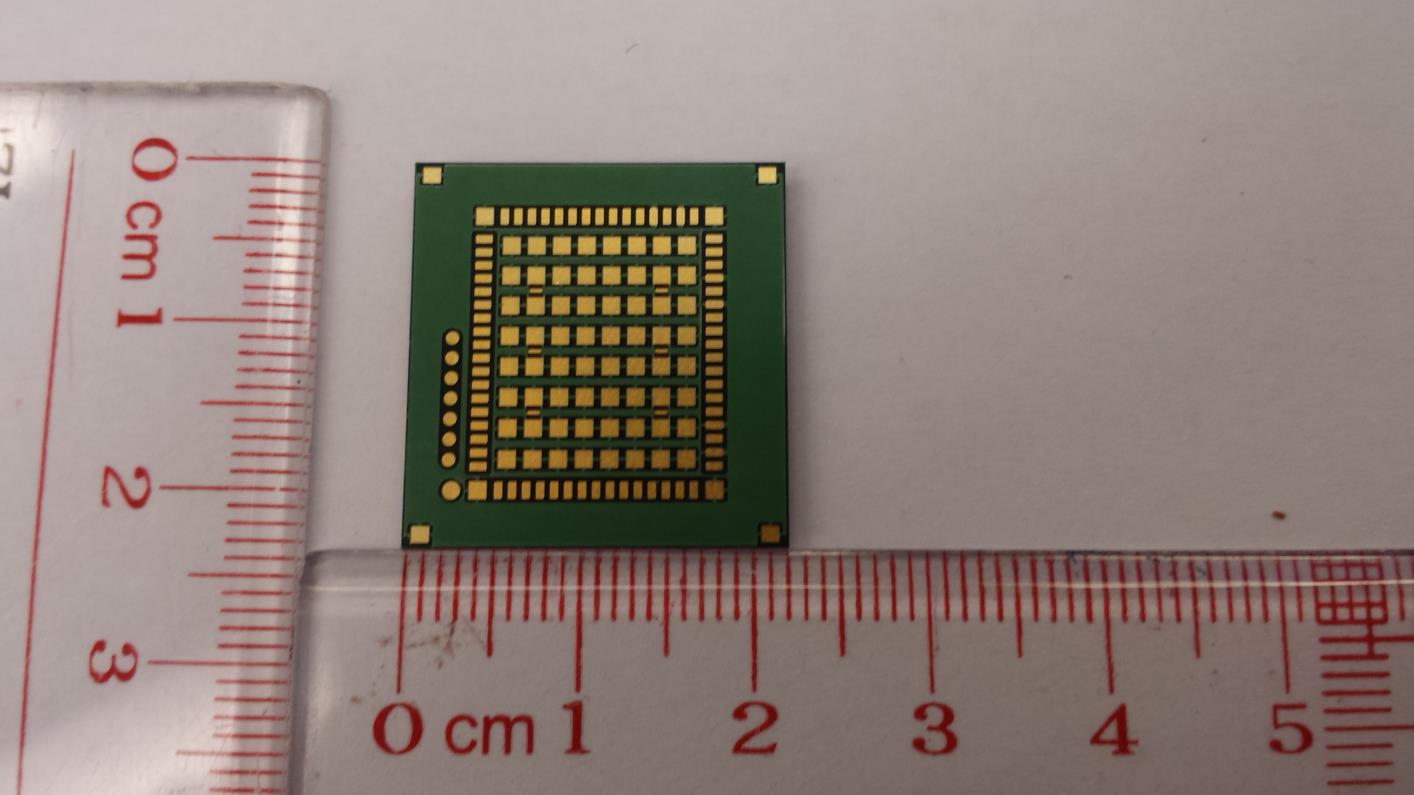

Project No.: EP571601 Page No. : 1 of 2 Photographs of EUT

ID Label/Location Info

HL7588 – Label Specs NOT TO SCALE, TYPICAL REPRESENTATION Dimensions are taken with respect to the edge of the surface that the laser etch is made on.

Internal Photos

Project No.: EP571601 Page No. : 2 of 2

RF Exposure Info

Report No.: FA571601 Page : 1 of 8 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : N7NHL7588 Equipment : Wireless Module Model No. : HL7588 Brand Name : AirPrime Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Standard : 47 CFR FCC Part 2.1091 Received Date : Jul. 16, 2015 Tested Date : Jul. 20 ~ Jul. 30, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA571601 Page : 2 of 8 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 1.4 MAXIMUM ANTENNA GAIN EVALUATION (REFERENCE ONLY) ..................................................... 6 2 TEST LABORATORY INFORMATION ................................................................................................. 8 Report No.: FA571601 Page : 3 of 8 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA571601 Rev. 01 Initial issue Aug. 17, 2015 Report No.: FA571601 Page : 4 of 8 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance Report No.: FA571601 Page : 5 of 8 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS Mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) WCDMA 850 826.4 24.70 2 20 0.093 0.551 836.4 24.73 2 20 0.094 0.558 846.6 24.74 2 20 0.094 0.564 LTE Band 5 824.7 23.71 2 20 0.074 0.550 836.5 23.55 2 20 0.071 0.558 848.3 23.62 2 20 0.073 0.566 LTE Band 13 779.5 23.42 2 20 0.069 0.520 782.0 23.57 2 20 0.072 0.521 784.5 23.30 2 20 0.067 0.523 LTE Band 17 706.5 23.51 2 20 0.071 0.471 710.0 23.38 2 20 0.069 0.473 713.5 23.47 2 20 0.070 0.476 WCDMA 1900 1852.4 25.45 2 20 0.111 1.000 1880.0 25.41 2 20 0.110 1.000 1907.6 25.50 2 20 0.112 1.000 LTE Band 2 1850.7 23.79 2 20 0.075 1.000 1880.0 23.88 2 20 0.077 1.000 1909.3 23.95 2 20 0.078 1.000 LTE Band 4 1710.7 24.13 2 20 0.082 1.000 1732.5 24.10 2 20 0.081 1.000 1754.3 24.22 2 20 0.083 1.000 Report No.: FA571601 Page : 6 of 8 Report Version: Rev. 01 1.4 MAXIMUM ANTENNA GAIN EVALUATION (REFERENCE ONLY) Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP/EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP/EIRP,W) WCDMA 850 826.4 24.70 24.00 9.72 20 0.551 15.90 7 836.4 24.73 24.00 9.75 20 0.558 15.87 7 846.6 24.74 24.00 9.79 20 0.564 15.86 7 Note: In order to comply with both Maximum Permissible Exposure and ERP/EIRP limit, the maximum antenna gain shall not be greater than 9.72 dBi in WCDMA 850 Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP/EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP/EIRP,W) LTE Band 5 824.7 23.71 24.00 10.41 20 0.550 16.60 7 836.5 23.55 24.00 10.48 20 0.558 16.60 7 848.3 23.62 24.00 10.54 20 0.566 16.60 7 Note: In order to comply with both Maximum Permissible Exposure and ERP/EIRP limit, the maximum antenna gain shall not be greater than 10.41 dBi in LTE band 5 Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP/EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP/EIRP,W) LTE Band 13 779.5 23.42 24.00 10.17 20 0.520 12.92 3 782.0 23.57 24.00 10.18 20 0.521 12.92 3 784.5 23.30 24.00 10.20 20 0.523 12.92 3 Note: In order to comply with both Maximum Permissible Exposure and ERP/EIRP limit, the maximum antenna gain shall not be greater than 10.17 dBi in LTE band 13 Report No.: FA571601 Page : 7 of 8 Report Version: Rev. 01 Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP/EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP/EIRP,W) LTE Band 17 706.5 23.51 24.00 9.74 20 0.471 12.92 3 710.0 23.38 24.00 9.76 20 0.473 12.92 3 713.5 23.47 24.00 9.79 20 0.476 12.92 3 Note: In order to comply with both Maximum Permissible Exposure and ERP/EIRP limit, the maximum antenna gain shall not be greater than 9.74 dBi in LTE band 17 Mode Freq. (MHz) Conducted power (dBm) Maximum tune up power (dBm) Max Gain to comply with MPE Max Gain to comply with ERP/EIRP Antenna Gain (dBi) Distance (cm) Limit (mW/cm 2 ) Antenna Gain (dBi) Limit (ERP/EIRP,W) WCDMA 1900 1852.4 25.45 24.00 11.56 20 1.000 7.56 2 1880.0 25.41 24.00 11.60 20 1.000 7.60 2 1907.6 25.50 24.00 11.51 20 1.000 7.51 2 Note: In order to comply with both Maxim…

Text truncated - open the document above for the full version.

Test Report

Report No.: FG571601P22 Page : 1 of 69 Report Version: Rev. 02 FCC Test Report FCC ID : N7NHL7588 Equipment : Wireless Module Model No. : HL7588 Brand Name : AirPrime Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Standard : 47 CFR FCC Part 22 Subpart H Received Date : Jul. 16, 2015 Tested Date : Jul. 20 ~ Jul. 30, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FG571601P22 Page : 2 of 69 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition and Location Information ......................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TEST RESULTS................................................................................................................................... 12 3.1 Effective Radiated Power ..................................................................................................................... 12 3.2 Radiated Emissions .............................................................................................................................. 19 3.3 Conducted Emissions ........................................................................................................................... 29 3.4 Band Edge ............................................................................................................................................ 35 3.5 Occupied and 26 dB Bandwidth ........................................................................................................... 53 3.6 Peak to Average Ratio ......................................................................................................................... 59 3.7 Frequency Stability ............................................................................................................................... 65 4 TEST LABORATORY INFORMATION ............................................................................................... 69 Report No.: FG571601P22 Page : 3 of 69 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FG571601P22 Rev. 01 Initial issue Aug. 17, 2015 FG571601P22 Rev. 02 Add temperature and humidity chamber in equipment list Aug. 24, 2015 Report No.: FG571601P22 Page : 4 of 69 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 2.1046 / 22.913(a)(2) Effective Radiated Power Power[dBm] : WCDMA: 24.59 LTE: 23.56 Pass 2.1053 / 22.917(a) Radiated Emissions Meet the requirement of limit Pass 2.1051 / 22.917(a) Conducted Emissions Meet the requirement of limit Pass 2.1051 / 22.917(a) Band Edge Meet the requirement of limit Pass 2.1049 / 22.917(a) Occupied Bandwidth Meet the requirement of limit Pass - Peak to average ratio Meet the requirement of limit Pass 2.1055 / 22.355 Frequency Stability Meet the requirement of limit Pass Report No.: FG571601P22 Page : 5 of 69 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Frequency (MHz) WCDMA Band 5: 826.4~846.6 LTE Band 5: Channel Bandwidth: 1.4MHz: 824.7~848.3 Channel Bandwidth: 3MHz: 825.5~847.5 Channel Bandwidth: 5MHz: 826.5~846.5 Channel Bandwidth: 10MHz: 829~844 Modulation WCDMA: QPSK (Uplink) LTE: QPSK, 16QAM (Uplink) Release Version WCDMA: R5 / R6 / R7 / R8 LTE: 8 Duplex Mode FDD UE Category 4 H/W Version 1.0 S/W Version HL75xx.V.3.1 1.1.2 Maximum ERP and Emission Designator Mode Modulation Maximum ERP(W) Emission Designator WCDMA 850 QPSK 0.288 4M11F9W LTE Band 5, CB: 1.4MHz QPSK 0.219 1M09G7D LTE Band 5, CB: 1.4MHz 16QAM 0.198 1M09W7D LTE Band 5, CB: 3MHz QPSK 0.222 2M69G7D LTE Band 5, CB: 3MHz 16QAM 0.189 2M70W7D LTE Band 5, CB: 5MHz QPSK 0.221 4M50G7D LTE Band 5, CB: 5MHz 16QAM 0.198 4M50W7D LTE Band 5, CB: 10MHz QPSK 0.227 9M01G7D LTE Band 5, CB: 10MHz 16QAM 0.199 9M01W7D 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Dipole 2 R-SMA --- Note: The antenna is for testing use only. Report No.: FG571601P22 Page : 6 of 69 Report Version: Rev. 02 1.1.4 EUT Operational Condition Supply Voltage 3.7 Vdc from host Operational Voltage Vnom (3.7 V) Vmax (4.5 V) Vmin (3.2 V) Operational Climatic Tnom (20°C) Tmax (55°C) Tmin (-20°C) 1.1.5 Ope…

Text truncated - open the document above for the full version.

Test Report

Report No.: FG571601P22 Page : 41 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 3MHz, QPSK Channel 20415 1 RB lower / Offset 0 Channel 20415 1 RB lower / Offset 0 Channel 20415 100% RB / Offset 0 Channel 20415 100% RB / Offset 0 Report No.: FG571601P22 Page : 42 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 3MHz, QPSK Channel 20635 1 RB upper / Offset 0 Channel 20635 1 RB upper / Offset 0 Channel 20635 100% RB / Offset 0 Channel 20635 100% RB / Offset 0 Report No.: FG571601P22 Page : 43 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 3MHz, 16QAM Channel 20415 1 RB lower / Offset 0 Channel 20415 1 RB lower / Offset 0 Channel 20415 100% RB / Offset 0 Channel 20415 100% RB / Offset 0 Report No.: FG571601P22 Page : 44 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 3MHz, 16QAM Channel 20635 1 RB upper / Offset 0 Channel 20635 1 RB upper / Offset 0 Channel 20635 100% RB / Offset 0 Channel 20635 100% RB / Offset 0 Report No.: FG571601P22 Page : 45 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 5MHz, QPSK Channel 20425 1 RB lower / Offset 0 Channel 20425 1 RB lower / Offset 0 Channel 20425 100% RB / Offset 0 Channel 20425 100% RB / Offset 0 Report No.: FG571601P22 Page : 46 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 5MHz, QPSK Channel 20625 1 RB upper / Offset 0 Channel 20625 1 RB upper / Offset 0 Channel 20625 100% RB / Offset 0 Channel 20625 100% RB / Offset 0 Report No.: FG571601P22 Page : 47 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 5MHz, 16QAM Channel 20425 1 RB lower / Offset 0 Channel 20425 1 RB lower / Offset 0 Channel 20425 100% RB / Offset 0 Channel 20425 100% RB / Offset 0 Report No.: FG571601P22 Page : 48 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 5MHz, 16QAM Channel 20625 1 RB upper / Offset 0 Channel 20625 1 RB upper / Offset 0 Channel 20625 100% RB / Offset 0 Channel 20625 100% RB / Offset 0 Report No.: FG571601P22 Page : 49 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 10MHz, QPSK Channel 20450 1 RB lower / Offset 0 Channel 20450 1 RB lower / Offset 0 Channel 20450 100% RB / Offset 0 Channel 20450 100% RB / Offset 0 Report No.: FG571601P22 Page : 50 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 10MHz, QPSK Channel 20600 1 RB upper / Offset 0 Channel 20600 1 RB upper / Offset 0 Channel 20600 100% RB / Offset 0 Channel 20600 100% RB / Offset 0

Test Report

Report No.: FG571601P22 Page : 51 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 10MHz, 16QAM Channel 20450 1 RB lower / Offset 0 Channel 20450 1 RB lower / Offset 0 Channel 20450 100% RB / Offset 0 Channel 20450 100% RB / Offset 0 Report No.: FG571601P22 Page : 52 of 69 Report Version: Rev. 01 Mode LTE Band 5, CB: 10MHz, 16QAM Channel 20600 1 RB upper / Offset 0 Channel 20600 1 RB upper / Offset 0 Channel 20600 100% RB / Offset 0 Channel 20600 100% RB / Offset 0 Report No.: FG571601P22 Page : 53 of 69 Report Version: Rev. 01 3.5 Occupied and 26 dB Bandwidth 3.5.1 Test Procedures 1. Set RBW = 100 kHz, VBW = 300 kHz for WCDMA. Set RBW = 30 / 50 / 100 / 200 kHz, VBW = 100 / 200 / 300 /1000 kHz for LTE channel bandwidth 1.4 / 3 / 5 / 10 MHz. 2. Detector = Peak, Trace mode = max hold. 3. Sweep = auto couple, Allow the trace to stabilize. 4. Using occupied bandwidth measurement function of spectrum analyzer to measure occupied bandwidth 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower) that are attenuated by 26dB relative to the maximum level measured in the fundamental emission. 3.5.2 Test Setup Report No.: FG571601P22 Page : 54 of 69 Report Version: Rev. 01 3.5.3 Test Result of Occupied Bandwidth Mode Channel Frequency (MHz) 99% OBW (MHz) 26dB BW (MHz) WCDMA BAND 5 4132 826.4 4.0955 4.6232 WCDMA BAND 5 4182 836.4 4.1099 4.7536 WCDMA BAND 5 4133 846.6 4.0955 4.6377 Worst plots OBW 26dB bandwidth Report No.: FG571601P22 Page : 55 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 5 1.4 QPSK 20407 824.7 1.3080 1.0879 LTE Band 5 1.4 QPSK 20525 836.5 1.3020 1.0879 LTE Band 5 1.4 QPSK 20643 848.3 1.3050 1.0879 LTE Band 5 1.4 16QAM 20407 824.7 1.3260 1.0879 LTE Band 5 1.4 16QAM 20525 836.5 1.3200 1.0879 LTE Band 5 1.4 16QAM 20643 848.3 1.3350 1.0879 Worst plots 26dB bandwidth OBW Report No.: FG571601P22 Page : 56 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 5 3 QPSK 20415 825.5 2.9580 2.6913 LTE Band 5 3 QPSK 20525 836.5 2.9520 2.6913 LTE Band 5 3 QPSK 20635 847.5 2.9700 2.6913 LTE Band 5 3 16QAM 20415 825.5 2.9640 2.6970 LTE Band 5 3 16QAM 20525 836.5 2.9760 2.6970 LTE Band 5 3 16QAM 20635 847.5 2.9700 2.6913 Worst plots 26dB bandwidth OBW Report No.: FG571601P22 Page : 57 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 5 5 QPSK 20425 826.5 5.0300 4.4850 LTE Band 5 5 QPSK 20525 836.5 5.0000 4.4950 LTE Band 5 5 QPSK 20625 846.5 5.0400 4.4950 LTE Band 5 5 16QAM 20425 826.5 5.0200 4.5054 LTE Band 5 5 16QAM 20525 836.5 4.9200 4.4855 LTE Band 5 5 16QAM 20625 846.5 4.9900 4.4955 Worst plots 26dB bandwidth OBW Report No.: FG571601P22 Page : 58 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) 26dB BW (MHz) 99% OBW (MHz) LTE Band 5 10 QPSK 20450 829.0 10.1200 8.9710 LTE Band 5 10 QPSK 20525 836.5 10.2400 8.9910 LTE Band 5 10 QPSK 20600 844.0 10.3600 9.0109 LTE Band 5 10 16QAM 20450 829.0 10.0800 8.9910 LTE Band 5 10 16QAM 20525 836.5 10.1400 8.9510 LTE Band 5 10 16QAM 20600 844.0 10.1200 9.0109 Worst plots 26dB bandwidth OBW Report No.: FG571601P22 Page : 59 of 69 Report Version: Rev. 01 3.6 Peak to Average Ratio 3.6.1 Limit of Peak to Average Ratio Peak-to-average ratio (PAR) of the transmission may not exceed 13 dB. 3.6.2 Test Procedures 1. Enable CCDF function of spectrum analyzer and set RBW = 10 MHz. 2. Set the number of counts to a value that stabilizes the measured CCDF curve. 3. Record the maximum PAPR level associated with a probability of 0.1%. 3.6.3 Test Setup Report No.: FG571601P22 Page : 60 of 69 Report Version: Rev. 01 3.6.4 Test Result of Peak to Average Ratio MODE Channel Frequency (MHz) Peak to Average ratio (dB) WCDMA BAND 5 4132 826.4 2.93 WCDMA BAND 5 4182 836.4 1.83 WCDMA BAND 5 4133 846.6 2.90 Worst plots Report No.: FG571601P22 Page : 61 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) Peak to Average ratio (dB) LTE Band 5 1.4 QPSK 20407 824.7 6.03 LTE Band 5 1.4 QPSK 20525 836.5 5.71 LTE Band 5 1.4 QPSK 20643 848.3 5.94 LTE Band 5 1.4 16QAM 20407 824.7 7.01 LTE Band 5 1.4 16QAM 20525 836.5 6.55 LTE Band 5 1.4 16QAM 20643 848.3 6.81 Worst plots Report No.: FG571601P22 Page : 62 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) Peak to Average ratio (dB) LTE Band 5 3 QPSK 20415 825.5 5.77 LTE Band 5 3 QPSK 20525 836.5 5.45 LTE Band 5 3 QPSK 20635 847.5 5.48 LTE Band 5 3 16QAM 20415 825.5 6.67 LTE Band 5 3 16QAM 20525 836.5 6.35 LTE Band 5 3 16QAM 20635 847.5 6.41 Worst plots Report No.: FG571601P22 Page : 63 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) Peak to Average ratio (dB) LTE Band 5 5 QPSK 20425 826.5 5.62 LTE Band 5 5 QPSK 20525 836.5 5.30 LTE Band 5 5 QPSK 20625 846.5 5.45 LTE Band 5 5 16QAM 20425 826.5 6.38 LTE Band 5 5 16QAM 20525 836.5 6.14 LTE Band 5 5 16QAM 20625 846.5 6.49 Worst plots Report No.: FG571601P22 Page : 64 of 69 Report Version: Rev. 01 Mode CB (MHz) Modulation Channel Frequency (MHz) Peak to Average ratio (dB) LTE Band 5 10 QPSK 20450 829.0 5.48 LTE Band 5 10 QPSK 20525 836.5 5.39 LTE Band 5 10 QPSK 20600 844.0 5.74 LTE Band 5 10 16QAM 20450 829.0 6.29 LTE Band 5 10 16QAM 20525 836.5 6.20 LTE Band 5 10 16QAM 20600 844.0 6.38 Worst plots Report No.: FG571601P22 Page : 65 of 69 Report Version: Rev. 01 3.7 Frequency Stability 3.7.1 Limit of Frequency Stability The frequency stability shall be less +/- 2.5ppm. 3.7.2 Test Procedures 1. EUT was placed at temperature chamber and connected to an external power supply. 2. Temperature and voltage condition shall be tested to confirm frequency stability. 3. Temperature range is from -30~55 o C and voltage range is from lowest to highest working voltage. 4. Link up EUT and simulator. Confirm …

Text truncated - open the document above for the full version.

Test Report

Report No.: FG571601P24 Page : 1 of 90 Report Version: Rev. 02 FCC Test Report FCC ID : N7NHL7588 Equipment : Wireless Module Model No. : HL7588 Brand Name : AirPrime Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, BC, V6V 3A4 Canada Standard : 47 CFR FCC Part 24 Subpart E Received Date : Jul. 16, 2015 Tested Date : Jul. 20 ~ Jul. 30, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FG571601P24 Page : 2 of 90 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..............................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ying Wang(Director, Regulatory Compliance)
[email protected]604-232-1440Fax: 604-231-1109

Technical Contact

International Certification Corp.Gary Chang
[email protected]886-3-271-8628

No.3-1, Lane 6, Wen San 3rd St. Kwei Shan · Taiwan

Non-Technical Contact

International Certification Corp.Wendy Liao
[email protected]886-3-271-8629

Test Firm

International Certification Corp.Fu-Cheng Chuang
[email protected]886-3-271-8666Fax: 886-3-318-0155

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
22271.72 GHz - 1.75 GHz209.00 mW18M0W7D0.015 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power out is conducted at the antenna terminal. Single Modular Approval. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter evaluation procedures as documented in this filing. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed 9.72 dBi at 800 MHz and/or 850 MHz, 7.51 dBi at 1900 MHz, 9.74 dBi at 700 MHz and 5.78 dBi at 1700 MHz as defined in 2.1091 for satisfying RF exposure compliance. Under no conditions may an antenna gain be used that would exceed the ERP and/or EIRP power limits as specified in Part 22, 24 and 27. The Grantee is responsible for providing the documentation required for modular use.
