N7NHL7618Module

December 02, 2015 AirPrime HL7618 Product Technical Specification 4117929 Rev 2.0 December 02, 2015 2 Product Technical Specification Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where cellular modems are not advised without proper device certifications. These areas include environments where cellular radio can interfere such as explosive atmospheres, medical equipment, or any other equipment which may be susceptible to any form of radio interference. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitations of Liability This manual is provided “as is”. Sierra Wireless makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the manual shall endorse all risks arising from its use. The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Customer understands that Sierra Wireless is not providing cellular or GPS (including A-GPS) services. These services are provided by a third party and should be purchased directly by the Customer. 4117929 Rev 2.0 December 02, 2015 3 Product Technical Specification SPECIFIC DISCLAIMERS OF LIABILITY: CUSTOMER RECOGNIZES AND ACKNOWLEDGES SIERRA WIRELESS IS NOT RESPONSIBLE FOR AND SHALL NOT BE HELD LIABLE FOR ANY DEFECT OR DEFICIENCY OF ANY KIND OF CELLULAR OR GPS (INCLUDING A-GPS) SERVICES. Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® . This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group and MMP Portfolio Licensing. Copyright © 2015 Sierra Wireless. All rights reserved. Trademarks Sierra Wireless ® , AirPrime ® , AirLink ® , AirVantage ® , WISMO ® , ALEOS ® and the Sierra Wireless and Open AT logos are registered trademarks of Sierra Wireless, Inc. or one of its subsidiaries. Watcher ® is a registered trademark of NETGEAR, Inc., used under license. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Sales Desk: Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time Contact: http://www.sierrawireless.com/sales Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Technical Support: [email protected] RMA Support: [email protected] Fax: 1-604-231-1109 Web: http://www.sierrawireless.com/ Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com 4117929 Rev 2.0 December 02, 2015 4 Product Technical Specification Document History Version Date Updates 1.0 August 14, 2015 Creation 2.0 December 02, 2015 Added:  2.12 Analog to Digital Converter (ADC1)  2.15.3 TX_ON Indicator (TX_ON)  Error! Reference source not found. Error! Reference source not found.  Error! Reference source not found. Error! Reference source not found. Updated:  Table 2 AirPrime HL7618 Features  Figure 1 AirPrime HL7618 Architecture Overview  Figure 2 AirPrime HL7618 Mechanical Overvie…

Text truncated - open the document above for the full version.

Modular Approval Checklist FCC ID: N7NHL7618 Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand‐alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NHL7618” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report

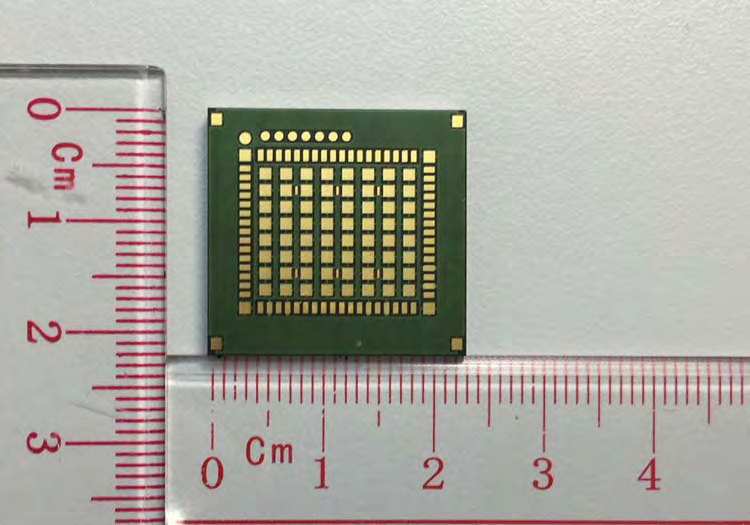

1 of 2 External Photos Model Number: HL7618 FCC ID: N7NHL7618 2 of 2 EUT Photo 1 ) EUT Photo 2 )

ID Label info & Label Location FCC ID : N7NHL7618

1 of 2 Internal Photos Model Number: HL7618 FCC ID: N7NHL7618 2 of 2 EUT Photo 1 )

A Test Lab Techno Corp. Changan Lab：N o. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C) Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1511FS11 Applicant ： Sierra Wireless Inc. Manufacturer ： Sierra Wireless Inc. Product Type ： Module Trade Name ： AirPrime Model Number ： HL7618 Date of Received Nov. 16, 2015 Test Period ： Nov. 16, 2015 Date of Issued Dec. 09, 2015 Test Specification ： ANSI / IEEE Std.C95.1-1992 47 CFR § 2.1091 47 CFR §1.1310 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1511FS11Page 1 of 15 ©2015 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT).................................................................... 3 2. Human Exposure Assessment ........................................................................................ 4 3. RF Output Power ............................................................................................................ 5 4. Max. Gain Evaluation.................................................................................................... 13 5. Test Result ....................................................................................................................15 Report Number: 1511FS11Page 2 of 15 ©2015 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Sierra Wireless Inc. 13811 Wireless Way, Richmond, BC, Canada V6V 3A4 Manufacturer Sierra Wireless Inc. 13811 Wireless Way, Richmond, BC, Canada V6V 3A4 Product Type Module Trade Name AirPrime Model Number HL7618 FCC ID N7NHL7618 IMEI Number 355463070000006 Frequency Range Band UL Frequency (MHz) DL Frequency (MHz) Modulation LTE Band 4 1710 ~ 1755 2110 ~ 2155 QPSK, 16QAM LTE Band 13 777 ~ 787 746 ~ 756 QPSK, 16QAM Channel Bandwidth LTE Band 4 : 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz LTE Band 13: 5MHz, 10MHz Transmit Power QPSK 16QAM (conducted power) Band (dBm) (W) (dBm)(W) LTE Band 4 (Channel Bandwidth 1.4MHz) 22.69 0.186 22.380.173 LTE Band 4 (Channel Bandwidth 3MHz) 22.93 0.196 22.380.173 LTE Band 4 (Channel Bandwidth 5MHz) 22.91 0.195 22.390.173 LTE Band 4 (Channel Bandwidth 10MHz) 22.92 0.196 22.350.172 LTE Band 4 (Channel Bandwidth 15MHz) 23.01 0.200 22.230.167 LTE Band 4 (Channel Bandwidth 20MHz) 22.74 0.188 22.050.160 LTE Band 13 (Channel Bandwidth 5MHz) 22.36 0.172 21.850.153 LTE Band 13 (Channel Bandwidth 10MHz) 22.02 0.159 21.780.151 Antenna Specification LTE Band 4: 6.99 dBi LTE Band 13 : 11.87 dBi Temperature Range -30 ~ +55°C RF Evaluation 5.20 W/m 2 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1511FS11Page 3 of 15 ©2015 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation 2 4R PG S π = limit av maxS P R 2 4 G π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1511FS11Page 4 of 15 ©2015 A Test Lab Techno Corp. 3. RF Output Power RB Configuration Average Power Band Channel Bandwidth ModulationChannel Frequency (MHz) Size Offset (dBm) (W) 1 0 22.39 0.173 1 2 22.36 0.172 1 5 22.34 0.171 3 0 22.34 0.171 3 1 22.31 0.170 3 3 22.29 0.169 19957 1710.7 6 0 21.37 0.137 1 0 22.42 0.175 1 2 22.40 0.174 1 5 22.40 0.174 3 0 22.40 0.174 3 1 22.36 0.172 3 3 22.33 0.171 20175 1732.5 6 0 21.36 0.137 1 0 22.69 0.186 1 2 22.65 0.184 1 5 22.65 0.184 3 0 22.62 0.183 3 1 22.61 0.182 3 3 22.58 0.181 QPSK 20393 1754.3 6 0 21.65 0.146 1 0 21.91 0.155 1 2 21.78 0.151 1 5 21.66 0.147 3 0 21…

Text truncated - open the document above for the full version.

A Test Lab Techno Corp. Report Number: 1511FR21 1 of 115 FCC 47 CFR PART 27 RF Test Report Applicant ： Sierra Wireless Inc. Address ： 13811 Wireless Way, Richmond, BC, Canada V6V 3A4 Product Type ： Module Trade Name ： AirPrime Model Number ： HL7618 Applicable Standard ： FCC 47 CFR PART 27L ANSI/TIA-603-D 2010 Application Purpose ： Original Receive Date ： Nov. 16, 2015 Test Period ： Nov. 16 ~ Nov. 17, 2015 Issue Date ： Dec. 09, 2015 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C) Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1511FR21 2 of 115 Revision History Rev. Issue Date Revisions Revised By 00 Dec. 09, 2015 Initial Issue A Test Lab Techno Corp. Report Number: 1511FR21 3 of 115 Verification of Compliance Issued Date: 12/09/2015 Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way, Richmond, BC, Canada V6V 3A4 Product Type : Module Trade Name : AirPrime Model Number : HL7618 FCC ID : N7NHL7618 EUT Rated Voltage : DC 3.2V / 3.7 V / 4.5V Test Voltage : DC 3.2V / 3.7 V / 4.5V Applicable Standard : FCC 47 CFR PART 27L ANSI/TIA-603-D 2010 Test Result : Complied Application Purpose : Original Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C) Te l：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) TABLE OF CONTENTS 1 General Information ................................................................................................................................. 6 1.1. EUT Description .................................................................................................................................. 6 1.2. Mode of Operation ............................................................................................................................... 8 1.3. EUT Exercise Software ..................................................................................................................... 10 1.4. Configuration of Test System Details ................................................................................................ 10 1.5. Test Site Environment ....................................................................................................................... 10 1.6. Summary of Test Result .................................................................................................................... 11 2 Conducted Output Average Power Test .............................................................................................. 12 2.1. Limit ................................................................................................................................................... 12 2.2. Test Instruments ................................................................................................................................ 12 2.3. Test Setup .......................................................................................................................................... 12 2.4. Test Procedure .................................................................................................................................. 12 2.5. Uncertainty ........................................................................................................................................ 12 2.6. Test Result ......................................................................................................................................... 13 3 Effective Radiated Power / Equivalent Isotropic Radiated Power Test ............................................ 21 3.1. Limit ................................................................................................................................................... 21 3.2. Test Instruments ................................................................................................................................ 21 3.3. Test Setup .......................................................................................................................................... 21 3.4. Test Procedure .................................................................................................................................. 23 3.5. Uncertainty ........................................................................................................................................ 23 3.6. Test Result ......................................................................................................................................... 24 4 Frequency Stability Test ....................................................................................................................... 25 4.1. Limit .......................................................................................…

Text truncated - open the document above for the full version.

Part 27L Test Setup Photographs Radiated Emissions Test Configuration: Description: Front View of Radiated Emission Test _ Below 1GHz Description: Back View of Radiated Emission Test _ Below 1GHz A Test Lab Techno Corp. Report Number: 1511FR21 1 of 3 Description: Front View of Radiated Emission Test _ Above 1GHz Description: Back View of Radiated Emission Test _ Above 1GHz A Test Lab Techno Corp. Report Number: 1511FR21 2 of 3 Description: Close View A Test Lab Techno Corp. Report Number: 1511FR21 3 of 3
