N7NHL78AEmbedded module with Cat-M1 and NB-IoT

Sierra Wireless HL781x Product Technical Specification 41114133 Rev. 5 Product Technical Specification Rev. 5 October 2022241114133 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless product are used in a normal manner with a well-constructed network, the Sierra Wireless product should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless product, or for failure of the Sierra Wireless product to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless product in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless product MUST BE POWERED OFF. The Sierra Wireless product can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless product in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless product MUST BE POWERED OFF. When operating, the Sierra Wireless product can transmit signals that could interfere with various onboard systems. Note:Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless products may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless product while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. PatentsThis product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® . This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from MMP Portfolio Licensing. Preface Rev. 5 October 2022341114133 Copyright© 2022 Sierra Wireless. All rights reserved. TrademarksSierra Wireless ® , AirLink ® , AirVantage ® and the Sierra Wireless logo are registered trademarks of Sierra Wireless. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Revision History Sales information and technical support, including warranty and returns Web: sierrawireless.com/company/contact-us/ Global toll-free number: 1-877-687-7795 6:00 am to 5:00 pm PST Corporate and product informationWeb: sierrawireless.com Revision number Release dateChanges 1.0June 2021Creation 2.0May 2022Updated: •Current consumption values 3.0May 2022Added: •Taiwan NCC Statement Product Technical Specification Rev. 5 October 2022441114133 4.0September 2022Updated: •Table3-7, Table3-8, Table3-9, Table4-10 values •Table3-9 changed to Cat-NB •For Table3-14 : •NB1 UL peak throughput value changed from 62.5 to 45.7 •Subcarriers uplink changed from 3 to 12 •For Table3-15 •Changed HL7810 to HL7812 •Removed duplicate MCS.TBS:13 •Changed NB2 UL peak throughput from 109 kbps to 159 kbps •Changed Subcarriers uplink from 3 to 12 •Table8-1 and Table8-2 values Added: •Added Standby for Table3-6, Table3-7, Table3-8, Table3-9 •Added note for flash wear out feature under Table3-5 5.0October 2022Updated: •Table8-1 Band 8 Added: •Added RF Circuit Rev 5 October 2022541114133 Contents 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 1.1 Supported RF Bands/Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 1.2 Common Flexible Form Factor (CF3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 1.3 Physical Dimensions and Connection Interface . . . . . . . . . . . . . . . . . . . . . . . . . . .10 1.4 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 1.5 Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 1.6 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1…

Text truncated - open the document above for the full version.

Justification of test data reuse (HL7810) June 27 th , 2022 2 Comparison • Model Name: HL7800 • FCC ID: N7NHL78 IC: 2417C-HL78 • Supported Frequency bands • Cat-M1/NB1: B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66 • Model Name: HL7810 • FCC ID: N7NHL78A IC: 2417C-HL78A • Supported Frequency bands • Cat-M1/NB1/NB2: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B85 • B8 is covering the range as defined in Part 27 SubPart P • NB2 is supported through a FW upgrade – no impact 3 Comparison (continued) • Both modules have the same form factor, I/O interface, shielding and antenna connectors. • Schematics: – Both modules share the same schematics – Band 8 was already supported in the original product – Band 85 is enabled by FW, no change in HW required • PCB Layout: – Both modules use a closely similar PCB, with some passive (resistors/capacitors) updated to accommodate those components end-of-life. 4 Layout (HL7800/HL7810) HL7800HL7810 5 RF Results • The components in HL7810 design are identical to HL7800’s in terms of characteristics. • The RF performance of HL7800 and HL7810 are identical with the exception that the HL7810 modules includes additional support for Band 85 (Band 8 was already supported in HL7800 as per 3GPP, not as per FCC Part 27). • All test data of HL7800 per FCC Part 22, 24, 27 and 90 as well as RSS-130, RSS-132, RSS- 133 and RSS0139 are valid for the HL7810 module and spot check testing for worst case measurements was performed on HL7810 to confirm results were within tolerance. • All reports are available in original certification under N7NHL78 (FCC) and 2417C-HL78 (ISED) • Test data for Band 8 and Band 85 are provided as tested against HL7810. • As such, LTE results from HL7800 can be reused for the FCC/IC certification of HL7810 Thank you 13811 Wireless Way :: Richmond, British Columbia, Canada, V6V 3A4 sierrawireless.com

September 7, 2016 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Authorization Letter for Grantee Code N7N Dear Sir/Madam: I hereby authorize Mr. Denis Chabot of Sierra Wireless to act on my behalf in all manners relating to the application for equipment authorization including signing of all documents relating to these matters. Any and all acts carried out by Mr. Denis Chabot of Sierra Wireless on my behalf shall have the same effect as acts of my own. Sincerely, Ying Wang Manager, Regulatory Compliance

Sierra Wireless, Inc. 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Confidentiality Request Letter Date: October 17, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: N7NHL78A Long-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Tune-up procedure Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Short-Term Confidentiality (STC) Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos Justification: Those documents contains sensitive business information about the product design Planned Release Date STC: If no date is given, 180 days from grant date will be used. Sincerely, Signature Contact Name: Denis Chabot Job Title: Director, Certification Email: [email protected]

Limited Modular Approval Checklist FCC ID: N7NHL78A Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand-alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NHL78A” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report Sincerely, __________________________ By: Denis CHABOT Title: Director, Certification Company: Sierra Wireless Inc. Telephone: +852 2824 5222 e-mail: [email protected]

Sierra Wireless, Inc. 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Authorization Letter Date: October 17, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: N7NHL78A To Whom It May Concern: We, the undersigned, hereby authorize the following person on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by DEKRA Testing and Certification Co., Ltd. on our behalf shall have the same effect as acts of our own. Agent Company name : DEKRA Testing and Certification Co., Ltd. Address : No. 26, Hwaya 1st Road., Guishan District, Taoyuan City, 33341, Taiwan Contact Name : Stanley Wu Email : [email protected] We are therefore responsible for the contents of the application. Product description : Embedded module Model No. : HL7810 Brand : AirPrime Sincerely, Signature Contact Name: Denis Chabot Job Title: DIrector, Certification Email: [email protected]

September 7, 2016 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Authorization Letter for Grantee Code N7N Dear Sir/Madam: I hereby authorize Mr. Denis Chabot of Sierra Wireless to act on my behalf in all manners relating to the application for equipment authorization including signing of all documents relating to these matters. Any and all acts carried out by Mr. Denis Chabot of Sierra Wireless on my behalf shall have the same effect as acts of my own. Sincerely, Ying Wang Manager, Regulatory Compliance

Sierra Wireless, Inc. 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Confidentiality Request Letter Date: October 17, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: N7NHL78A Long-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Tune-up procedure Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Short-Term Confidentiality (STC) Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos Justification: Those documents contains sensitive business information about the product design Planned Release Date STC: If no date is given, 180 days from grant date will be used. Sincerely, Signature Contact Name: Denis Chabot Job Title: Director, Certification Email: [email protected]

Limited Modular Approval Checklist FCC ID: N7NHL78A Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand-alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NHL78A” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report Sincerely, __________________________ By: Denis CHABOT Title: Director, Certification Company: Sierra Wireless Inc. Telephone: +852 2824 5222 e-mail: [email protected]

Sierra Wireless, Inc. 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Authorization Letter Date: October 17, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: N7NHL78A To Whom It May Concern: We, the undersigned, hereby authorize the following person on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by DEKRA Testing and Certification Co., Ltd. on our behalf shall have the same effect as acts of our own. Agent Company name : DEKRA Testing and Certification Co., Ltd. Address : No. 26, Hwaya 1st Road., Guishan District, Taoyuan City, 33341, Taiwan Contact Name : Stanley Wu Email : [email protected] We are therefore responsible for the contents of the application. Product description : Embedded module Model No. : HL7810 Brand : AirPrime Sincerely, Signature Contact Name: Denis Chabot Job Title: DIrector, Certification Email: [email protected]

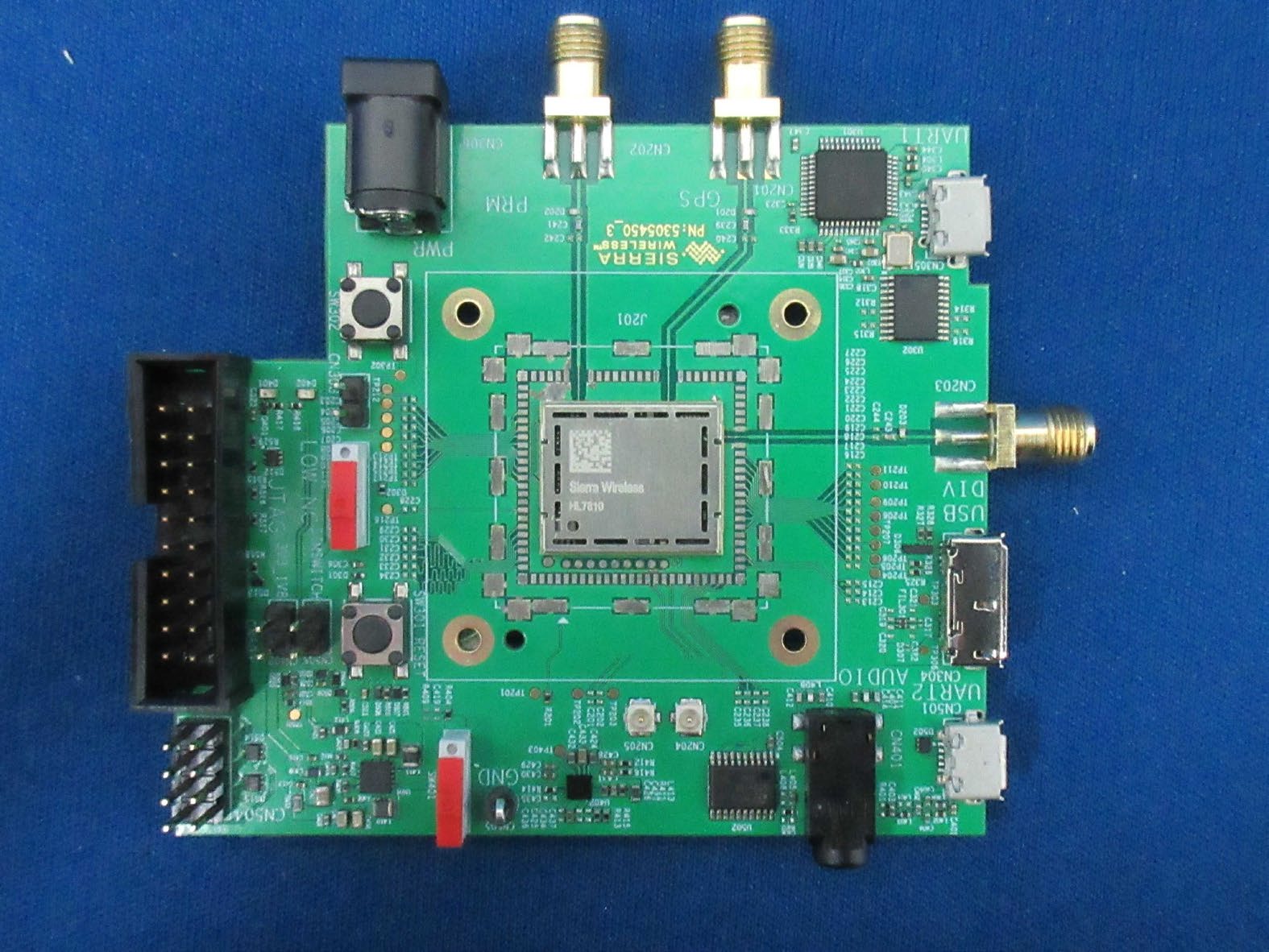

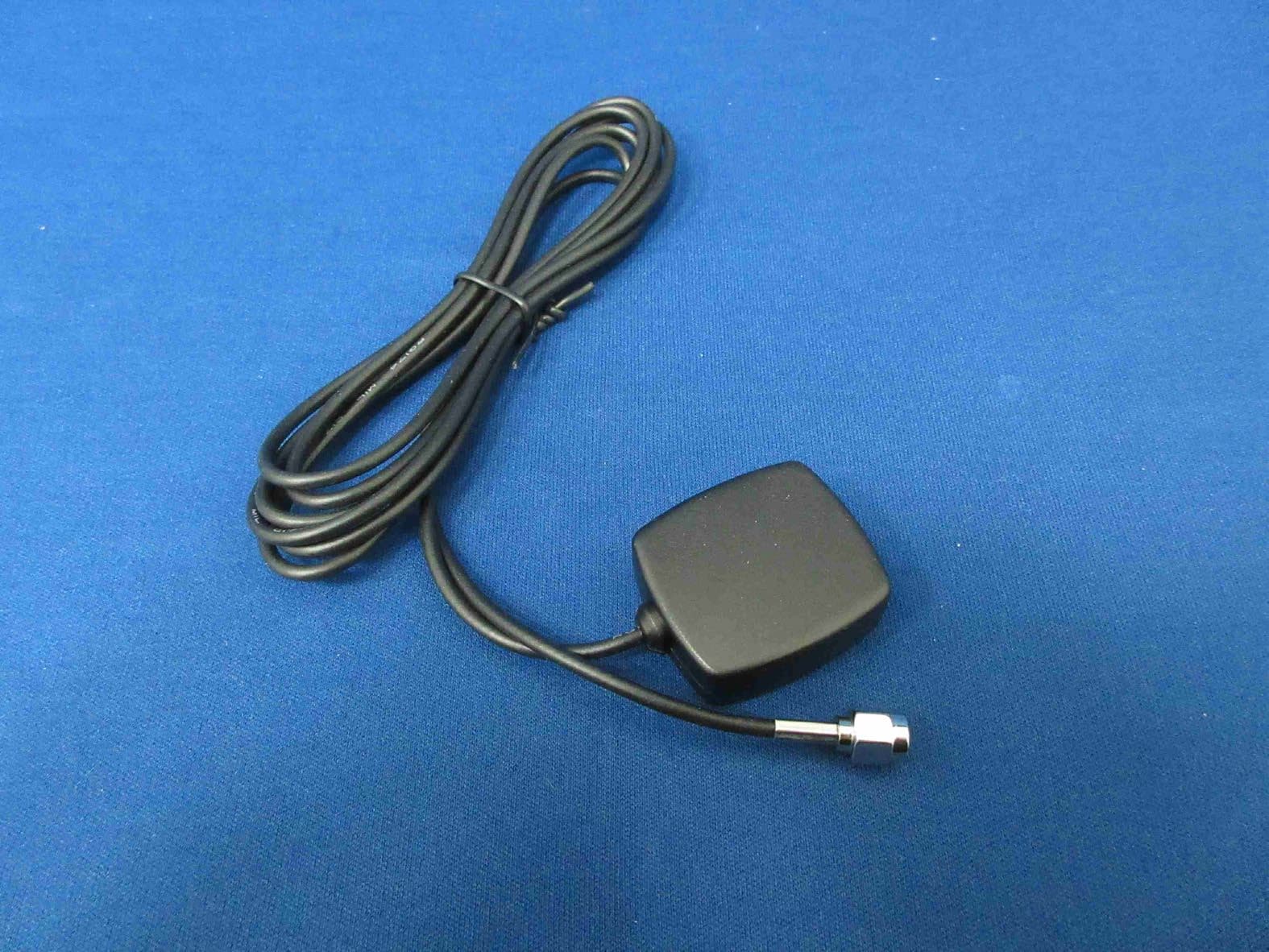

Report No.: 2220254R TEL : +886-3-582-8001 Page Number : 1 of 6 FAX : +886-3-582-8958  EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2220254R TEL : +886-3-582-8001 Page Number : 2 of 6 FAX : +886-3-582-8958 (3) EUT Photo (4) EUT Photo (WWAA Antenna) Report No.: 2220254R TEL : +886-3-582-8001 Page Number : 3 of 6 FAX : +886-3-582-8958  (5) EUT Photo (GPS Antenna)

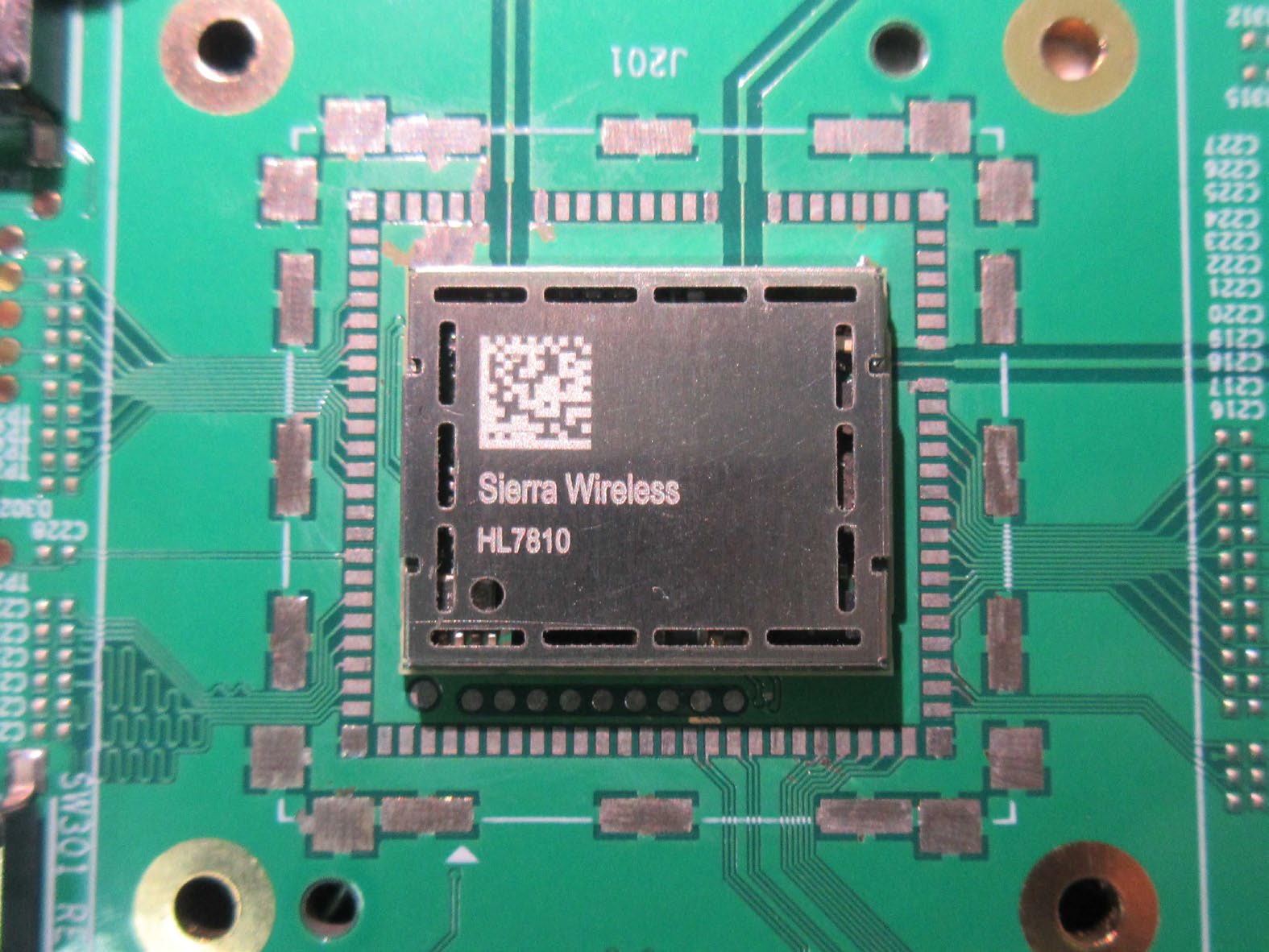

HL7810 Label

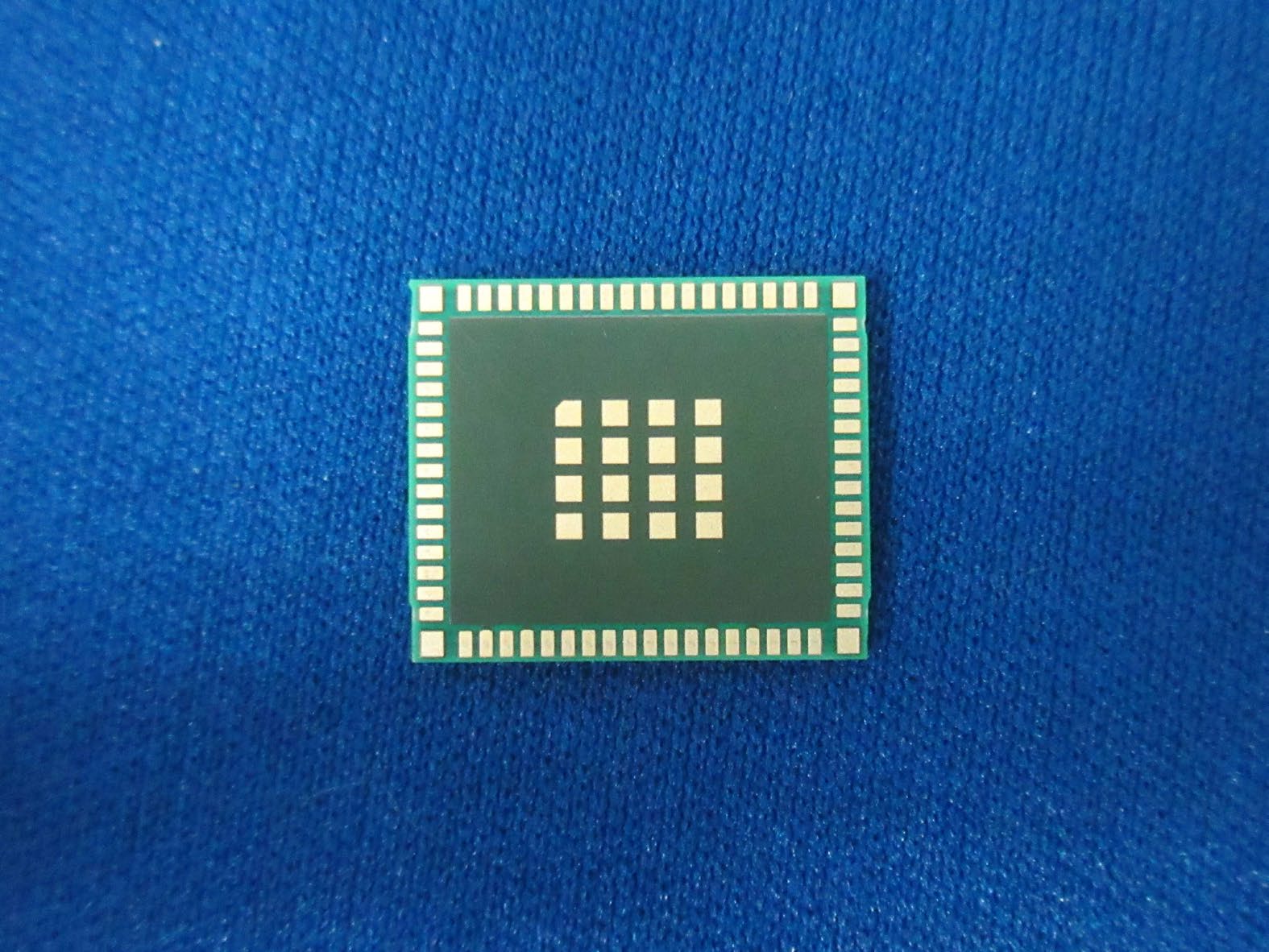

Report No.: 2220254R TEL : +886-3-582-8001 Page Number : 4 of 6 FAX : +886-3-582-8958  EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2220254R TEL : +886-3-582-8001 Page Number : 5 of 6 FAX : +886-3-582-8958 (3) EUT Photo (4) EUT Photo Report No.: 2220254R TEL : +886-3-582-8001 Page Number : 6 of 6 FAX : +886-3-582-8958 (5) EUT Photo (6) EUT Photo

Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 1 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 RF Exposure Evaluation Declaration Product Name ： Embedded module Brand Name ： AirPrime Model No. ： HL7810 FCC ID ： N7NHL78A IC ： 2417C-HL78A Applicant ： Sierra Wireless, Inc. Address ： 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Date of Receipt ： Feb. 14, 2022 Issued Date ： Oct. 19, 2022 Report No. ： 2220254R-RFUSOTHV13-A Report Version ： V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. The test report shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd. Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 2 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 Product Name : Embedded module Applicant : Sierra Wireless, Inc. Address : 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Manufacturer : Sierra Wireless, Inc. Address : 13811 Wireless Way, Richmond, BC V6V 3A4, Canada Brand Name : AirPrime Model No. : HL7810 FCC ID : N7NHL78A IC : 2417C-HL78A EUT Voltage : DC 3.2 ~ 4.35V (host equipment) Testing Voltage : DC 3.7V Applicable Standard : FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. ISED RSS-102 Issue 5 (Feb. 2021) – Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Laboratory Name : DEKRA Testing and Certification Co., Ltd. Hsin Chu Laboratory Address : No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 310, Taiwan, R.O.C. Test Result : Complied Documented By : (Amelia Wu / Project Specialist) Approved By : (Rueyyan Lin / Supervisor) The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd. Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 3 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 Revision History Version Description Issued Date V1.0 Initial issue of report Aug. 19, 2022 V2.0 Adding the verify results of LTE Band 2, LTE Band 4, LTE Band 5, LT E Band 12, LTE Band 13, LTE Band 25, LTE Band 26, LTE Band 66. Oct. 19, 2022 Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 4 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 1. General Information 1.1. EUT General Information RF General Information Evaluation Mode Band Uplink Frequency (MHz) Downlink Frequency (MHz) Modulation Type WWAN 4G LTE Band 2 880 ~ 915 1930~1990 Cat-M1: QPSK / 16QAM NB-IoT: BPSK / QPSK LTE Band 4 1710~1755 2110~2115 LTE Band 5 824~849 869~894 LTE Band 8 (FCC only) 897.5 ~ 900.5 925 ~ 960 LTE Band 12 699~716 729~746 LTE Band 13 777~787 746~756 LTE Band 25 1850~1915 1930~1995 LTE Band 26 814~849 (ISED Not support 814 ~ 824MHz) 859~894 LTE Band 66 1710~1780 2110~2200 LTE Band 85 698 ~ 716 728 ~ 746 Note: The above EUT information is declared by the manufacturer. Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 5 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 1.2. Test Facility Laboratory Information USA : FCC Registration Number: TW3024 Canada CAB identifier : TW3024 The address and introduction of DEKRA Testing and Certification Co., Ltd. laboratories can be founded in our Web site: http://www.dekra.com.tw If you have any comments, please don’t hesitate to contact us. Our test sites as below: Test Laboratory DEKRA Testing and Certification Co., Ltd. Address 1. No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 31061, Taiwan, R.O.C. 2. No.372, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 31061, Taiwan, R.O.C. Phone number 1. +886-3-582-8001 2. +886-3-582-8001 Fax number 1. +886-3-582-8958 2. +886-3-582-8958 E mail address [email protected] Website http://www.dekra.com.tw Note: Test site number for address 1 includes HC-SR02. Test site number for address 2 includes HC-CB02, HC-CB03, HC-CB04, HC-SR10 and HC-SR12. Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 6 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 2. RF Exposure Evaluation 2.1. Test Limit <For FCC> (A) Test Limit for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 *(100) <6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1500 - - f/300 <6 1500-100,000 - - 5 <6 (B) Test Limit for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1500 - - f/1500 <30 1500-100,000 - - 1.0 <30 Note: f = frequency in MHz; *Plane-wave equivalent power density Report No. 2220254R-RFUSOTHV13-A TEL : +886-3-582-8001 Page Number : 7 of 11 FAX : +886-3-582-8958 Issued Date : Oct. 19, 2022 Report Version : V2.0 Power Density (S) is calculated by the following formula: S=(P*G) /4πR 2 where: S = power density (in appropriate units, e.g. mW/ cm 2 ) P = power input to the antenna (in appropri…
