N7NMC7750Cellular/ PCS GSM/ EDGE/ WCDMA/ CDMA and 700 MHz LTE Modem

AirPrime Intelligent Embedded Modules Hardware Integration Guide 2130114 Rev 3.0.1 Preface Rev 3.0.1 Jan.11Proprietary and Confidential3 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND /OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and /or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. AirPrime Embedded Module Hardware Integration Guide 4Proprietary and Confidential2130114 Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright © 2011 Sierra Wireless. All rights reserved. Trademarks Watcher ® is a registered trademark of Sierra Wireless. Sierra Wireless™, AirPrime™ and the Sierra Wireless logo are trademarks of Sierra Wireless. Windows ® is a registered trademark of Microsoft Corporation. Other trademarks are the property of their respective owners. Contact Information Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Revision number Release dateChanges 3.0.1January 2011 • MC7750 FCC submission Rev 3.0.1 Jan.11Proprietary and Confidential5 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The Universal Development Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Required connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Overview of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electrostatic discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Module power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Disconnected state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Normal state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Low power state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 RF Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 RF connection . . …

Text truncated - open the document above for the full version.

AirPrime MC7750 Hardware Integration Guide 2130114 Rev 3.0.2 Preface Rev 3.0.2 Mar.11Proprietary and Confidential3 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND /OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and /or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. AirPrime MC7750 Hardware Integration Guide 4Proprietary and Confidential2130114 PatentsThis product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright© 2011 Sierra Wireless. All rights reserved. TrademarksWatcher ® is a registered trademark of Sierra Wireless. Sierra Wireless™, AirPrime™ and the Sierra Wireless logo are trademarks of Sierra Wireless. Windows ® is a registered trademark of Microsoft Corporation. Other trademarks are the property of their respective owners. Contact Information Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Revision number Release dateChanges 3.0.1January 2011•MC7750 FCC submission 3.0.2March 2011•Revised regulatory details Rev 3.0.2 Mar.11Proprietary and Confidential5 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The Universal Development Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Required connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Overview of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electrostatic discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Module power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Disconnected state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Normal state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Low power state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 RF Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 RF connecti…

Text truncated - open the document above for the full version.

Sierra Wireless Inc. FCCID: N7NMC7750 CRN: 97166/ 97167 FCC Question 1) Given that a grantee knows their own product, thus filings need to provide appropriate information to support and demonstrate how integrators and users will be able to comply with RF exposure compliance requirements. The grantee is responsible and must ensure its OEM integrators and distributors are provided with and following the necessary installation and implementation instructions/requirements and relevant grant restrictions to incorporate the approved transmitters and antennas. The instructions must clearly identify the minimum antenna-to-user separation distances applicable to all qualified host products, in terms of general and/or specific and/or example configurations and the relevant antenna installation locations and orientations required and/or acceptable for the allowed host product configurations. Other appropriate information must be provided to support compliance for the simple and basic "keep 20 cm away" condition. As described in FCCTCB conference presentations at minimum in the past year, for device types like this operating with external antennas, where instructions and/or RF exposure compliance exhibits have not provided sufficient general and/or specific and/or example antenna and cabling descriptions, and typical or specific means to install and operate to maintain mobile device conditions, then pursuant to 2.1091(d)(4) filings need to address SAR compliance for portable device conditions and operations, i.e. using KDB pub 447498 or KDB pub 616217 methods. Please revise relevant portions of this filing as appropriate. Applicant Response 1) The integration guide has been updated to include the following statements: a) a grantee knows their own product, thus filings need to provide appropriate information to support and demonstrate how integrators and users will be able to comply with RF exposure compliance requirements. The grantee is responsible and must ensure its OEM integrators and distributors are provided with and following the necessary installation and implementation instructions/requirements and relevant grant restrictions to incorporate the approved transmitters and antennas. (This information can be found on PAGE 18-19) b) The instructions must clearly identify the minimum antenna-to-user separation distances applicable to all qualified host products, in terms of general and/or specific and/or example configurations and the relevant antenna installation locations and orientations required and/or acceptable for the allowed host product configurations. (This information can be found on PAGE 18) c) Other appropriate information must be provided to support compliance for the simple and basic "keep 20 cm away" condition. (This information can be found on PAGE 21) d) As described in FCCTCB conference presentations at minimum in the past year, for device types like this operating with external antennas, where instructions and/or RF exposure compliance exhibits have not provided sufficient general and/or specific and/or example antenna and cabling descriptions, and typical or specific means to install and operate to maintain mobile device conditions, then pursuant to 2.1091(d)(4) filings need to address SAR compliance for portable device conditions and operations, i.e. using KDB pub 447498 or KDB pub 616217 methods. (This information can be found on PAGE 19) FCC Question 2) The install/operating instructions exhibit includes the text: "A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF exposure guidelines." Consistent with 2.909(a) grantee's compliance responsibility, please adjust relevant parts of filing where appropriate to clearly identify "operating requirements and conditions" that are to be included in the instructions manual of a host product. Applicant Response 2) The integration guide has been updated to include the following statements: a) "A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF exposure guidelines." Consistent with 2.909(a) grantee's compliance responsibility, please adjust relevant parts of filing where appropriate to clearly identify "operating requirements and conditions" that are to be included in the instructions manual of a host product. (This information can be found on PAGE 20) FCC Question 3) To permit inevitable use in typical modern multi-transmitter products and applications, if not in filing already please revise/amend to provide install/operating requirements to address KDB pub. 447498 D01 item 8) conditions. Other appropriate information must be provided to support compliance beyond a simple and basic bygone-era "must not be co- located" statement. Applicant Response 3) The integration guide has been updated to include the following statements: a) To permit inevitable use in typical modern multi-transmitter products and applications, if not in filing already please revise/amend to provide install/operating requirements to address KDB pub. 447498 D01 item 8) conditions. Other appropriate information must be provided to support compliance beyond a simple and basic bygone-era "must not be co- located" statement. (This information can be found on PAGE 20-21) FCC Question 4) MPE exhibit sec.1.2 first line seems inconsistent with other parts of filing, i.e. as we understand device has other modes not enumerated here - please revise relevant portions of this filing as appropriate. Section 1.2 of the MPE report has been revised to include all operational modes of the module. FCC Question 5) MPE pg 6 for 800-band shows 499 mW, which seems unclear whether/how that agrees with f-731 => if appropriate please adjust TCB processing procedures to ensure reported power levels are consistent across all portions of this and all future filings AL…

Text truncated - open the document above for the full version.

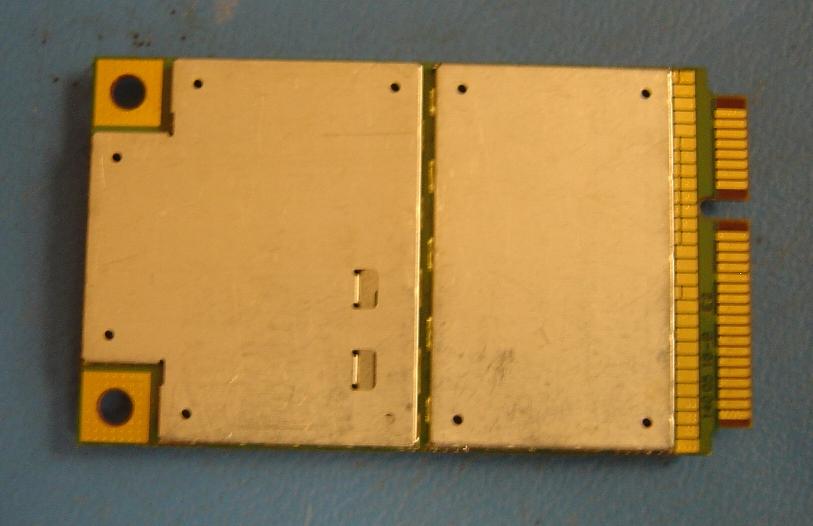

MC7750 External Photos Sierra Wireless, Inc. FCC ID: N7NMC7750 Model: MC7750 External Photos EUT Type: Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Wireless Module Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Sierra Wireless, Inc. FCC ID: N7NMC7750 Model: MC7750 External Photos EUT Type: Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Wireless Module Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. Sierra Wireless, Inc. FCC ID: N7NMC7750 Model: MC7750 External Photos EUT Type: Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Wireless Module Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. Sierra Wireless, Inc. FCC ID: N7NMC7750 Model: MC7750 External Photos EUT Type: Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700MHz LTE Wireless Module Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

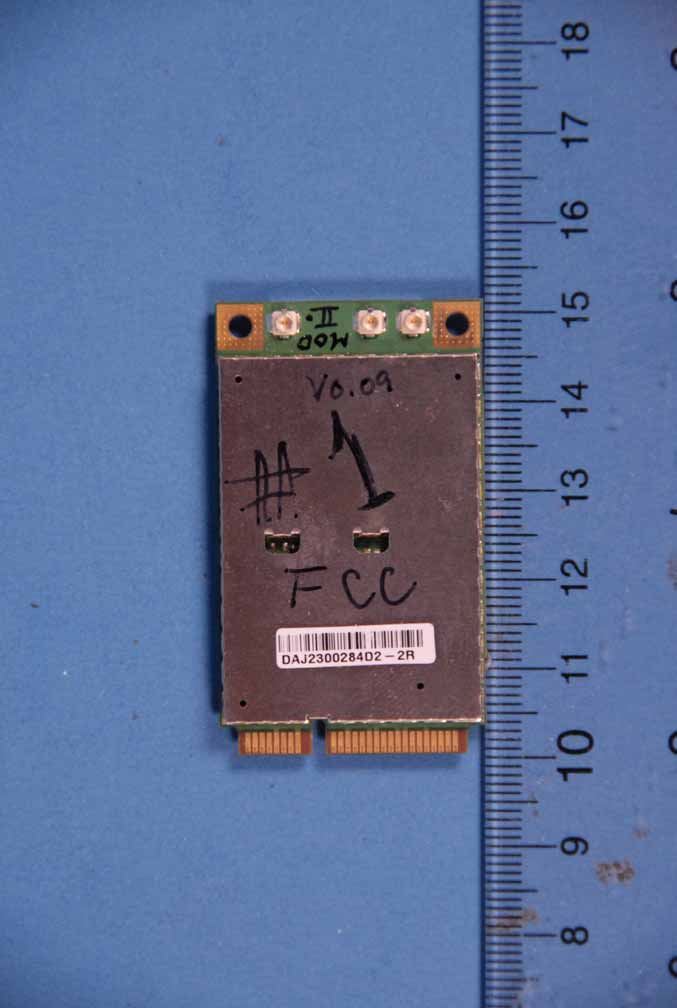

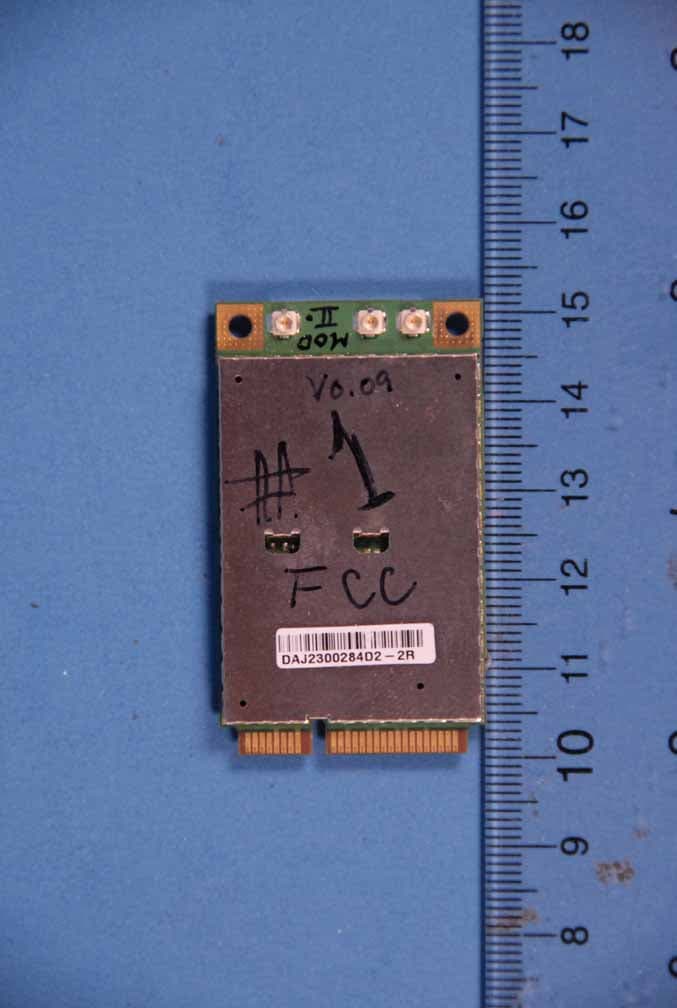

MC7750 Label Location MC7750

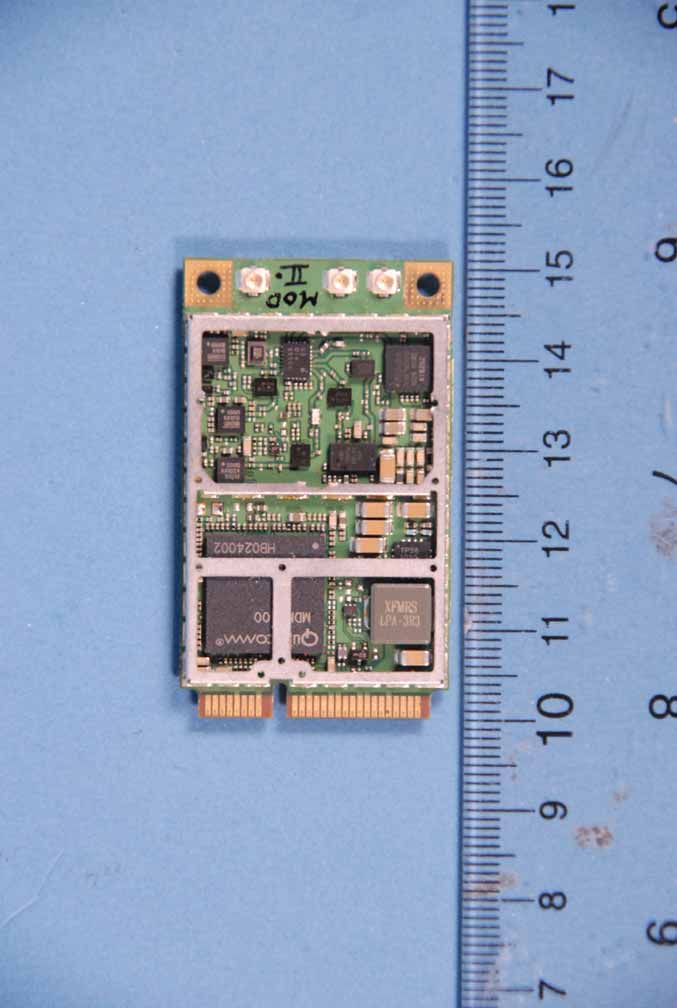

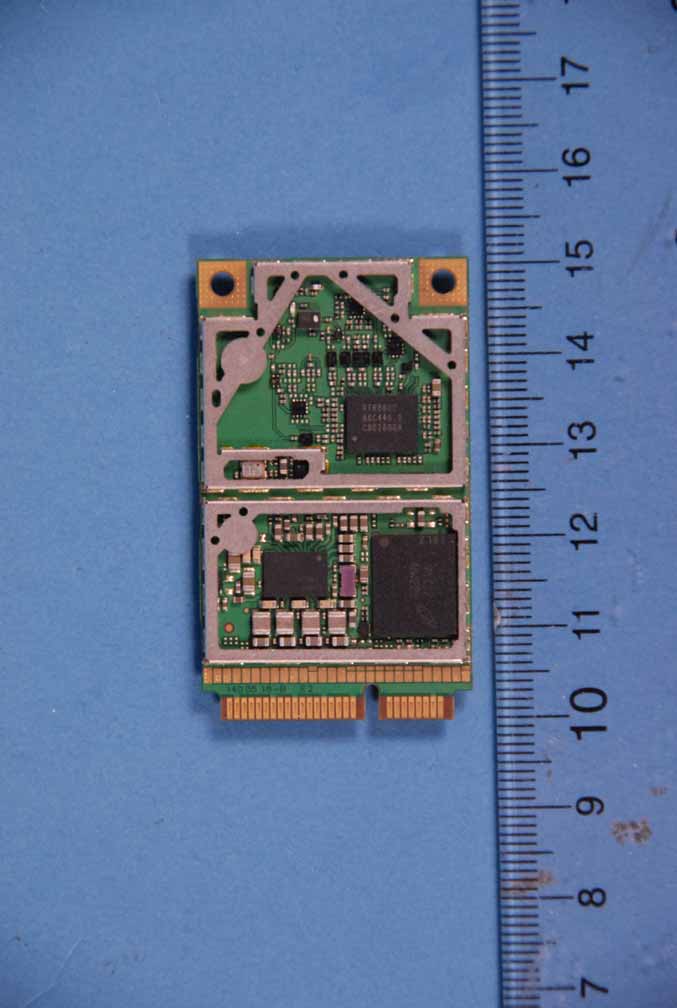

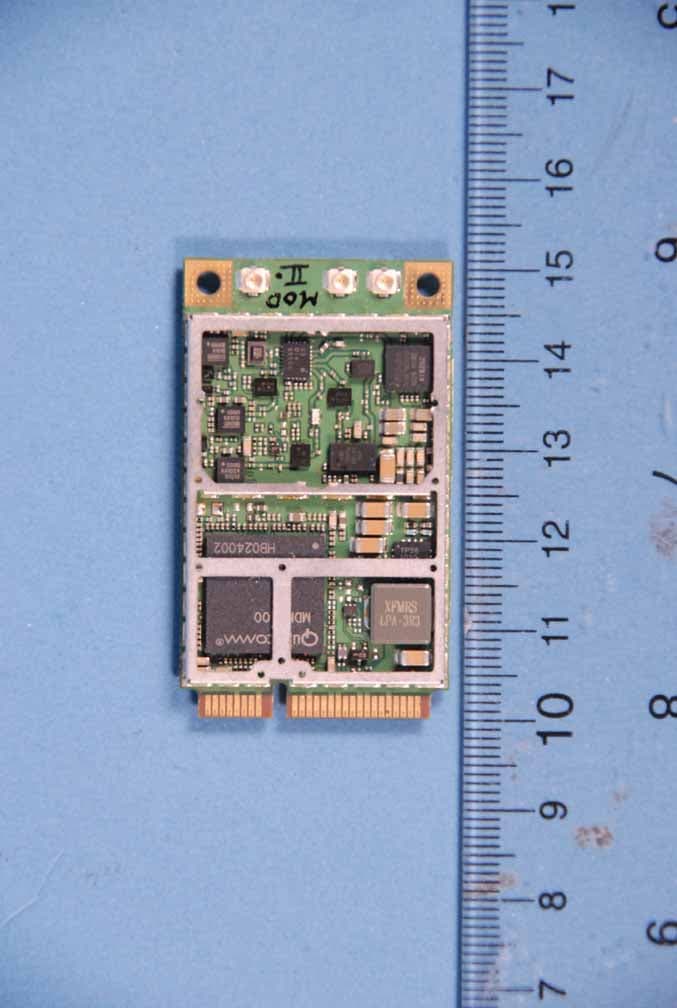

MC7750 Internal Photos

Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R3 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 1 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Sierra Wireless November 5, 2010 13811 Wireless Way Test Site/Location: Richmond, Canada PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0Y1010261761.N7N-R3 FCC ID: N7NMC7750 APPLICANT: Sierra Wireless EUT Type: Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. *This revised Test Report (S/ N: 0Y1010261761.N7N-R3) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard and destroy the previously issued test report (S/N: 0Y1010261761.N7N-R2) and dispose of it accordingly. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R3 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 2 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R3 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 3 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Sierra Wireless to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Sierra Wireless Model: MC7750 is a USB Wireless GSM/EDGE/WCDMA/CDMA/EvDO Module. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. EUT: Model: MC7750 Grantee: Sierra Wireless FCC ID: N7NMC7750 Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R3 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 4 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at leas…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R5 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 1 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Sierra Wireless November 5, 2010 13811 Wireless Way Test Site/Location: Richmond, Canada PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0Y1010261761.N7N-R5 FCC ID: N7NMC7750 APPLICANT: Sierra Wireless EUT Type: Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. *This revised Test Report (S/N: 0Y1010261761.N7N-R5) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard and destroy the previously issued test report (S/N: 0Y1010261761.N7N-R4) and dispose of it accordingly. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R5 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 2 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: N7NMC7750 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1010261761.N7N-R5 November 5, 2010 Cellular/PCS GSM/EDGE/WCDMA/CDMA/EvDO and 700 MHz LTE Wireless Module Page 3 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Sierra Wireless to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Sierra Wireless Model: MC7750 is a GSM/EDGE/WCDMA/CDMA/EvDO and LTE Band 13 Module. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and…

Text truncated - open the document above for the full version.
