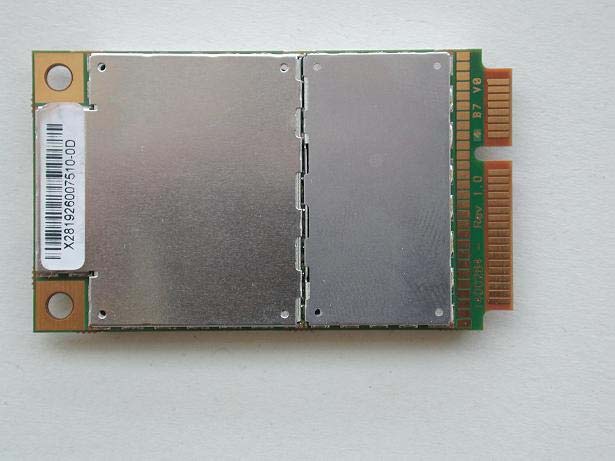

N7NMC8775Multi-Mode & Multi-Band Wireless Network MiniCard

2130114 Rev 1.3 MC5720, MC5725, MC8755, MC8765, MC8775 MiniCard Hardware Integration Guide Proprietary and Confidential Preface Rev 1.3 Jul.06 1 Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. PatentsPortions of this product may be covered by some or all of the following US patents: 5,515,013 5,629,960 5,845,216 5,847,553 5,878,234 5,890,057 5,929,815 6,169,884 6,191,741 6,199,168 6,339,405 6,359,591 6,400,336 6,516,204 6,561,851 6,643,501 6,653,979 6,697,030 6,785,830 6,845,249 6,847,830 6,876,697 6,879,585 6,886,049 6,968,171 6,985,757 7,023,878D442,170 D459,303 and other patents pending. This product includes technology licensed from: Licensed by QUALCOMM Incorporated under one or more of the following United States patents and/or their counterparts in other nations: 4,901,307 5,056,109 5,101,501 5,109,390 5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. Copyright©2006 Sierra Wireless. All rights reserved. MC5720/5725/8755/8765/8775 Hardware Integration Guide 22130114 TrademarksAirCard and “Heart of the Wireless Machine” are registered trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, the red‐tipped antenna, and Watcher are trademarks of Sierra Wireless. Windows ® is a registered trademark of Microsoft Corporation. Qualcomm ® is a registered trademark of Qualcomm Incorpo‐ rated. Other trademarks are the property of the respective owners. Contact Information Consult our website for up‐to‐date product descriptions, documentation, application notes, firmware upgrades, trouble ‐ shooting tips, and press releases: www.sierrawireless.com Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Rev 1.3 Jul.063 Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 The Universal Development Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Required connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Guide organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Overview of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electrostatic discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Module power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Disconnected state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Normal state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Low power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Usage models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 RF Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 RF connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Ground connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Antenna and cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Interference and sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Power supply noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Interference from other wireless devices . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Device-generated RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 MC5720/5725/8755/8765/8775 Hardware Integration Guide 42130114 Host/Module Communication Interface . . . . . . . . . . . . . . . . . . . . . 19 LED output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Ying Wang [[email protected]] Sent: Friday, August 04, 2006 4:35 PM To: Mike Kuo; Danielle Zhan Cc: Christine Vu Subject: RE: Sierra Wireless Inc., FCC ID: N7NMC8775, Assessment NO.: AN06T6024, Notice#1 Importance: High Attachments: MC8775 FCC parts 22 24 test report REVB.pdf MC8775 FCC parts 22 24 test r... -----Original Message----- From: Mike Kuo Sent: Friday, August 04, 2006 3:17 PM To: Mike Kuo Subject: Sierra Wireless Inc., FCC ID: N7NMC8775, Assessment NO.: AN06T6024, Notice#1 Based upon Radio System Description, this device has the following radio capabilities: GSM/GPRS/EDGE/UMTS/HSDPA operate in 850 /1900 MHz band. Support WCDMA ( UMTS ) Release 99 HSDPA up to 3.6 Mbps GSM Release 4 GPRS/EDGE Multislot Class 12. Release 4 Part 22/24 RF conducted test report portion : Question #1: Please provide output power verification on low, middle and high channel in accordance to the general description in section 5.2 of 2GPP TS 34.121, using the appropriate RMC ( Reference measurement channel ) or AMR with TPC ( transmit power control ) set to all "1's" . Results for all applicable physical channel configuration ( DPCCH, DPDCH and spreading codes ) should be tabulated in the test report. If there is any configurations that this device does not support or cannot be measured due to technical or equipment limitations should be clearly identified. SIERRA: The report does show a table on pg. 6, under section "4.4 Test Results UMTS". Results for low, mid and high channel are tabulated for both bands, UMTS1900B and UMTS800. The only piece of information missing on the setup description, is related to settings on the CMU200. Here they are: Node B Settings --------------- Primary Scrambling Code = 9 Output Channel Power = -51.7 dBm OCNS = Off Total Output Power (Ior+Ioc) = -51.7 dBm RMC Settings ------------ Reference Channel Type: 12.2 kbps Downlink/Uplink DL DTCH Transport Format: 12.2 kbps DL Resources in Use: 100 % UL CRC (Sym. Loop Mode 2): Off Test Mode: Loop Mode 2 Channel Data Source DTCH: PRBS9 Voice Settings 2 -------------- Voice Source: Echo Loopback Type: Off Adaptive Multirate Settings --------------------------- Active Code Set: Selection A Codec Mode: 12.2 kbps Signaling RAB Settings ----------------------- SRB Cell DCH: 3.4 kbps BS Down Link Physical Channels Settings --------------------------------------- Ior = -51.7 dBm P-CPICH = -3.3 dB P-SCH = -8.3 dB S-SCH = -8.3 dB P-CCPCH = -5.3 dB S-CCPCH = -5.3 dB S-CCPCH Channel Code = 2 PICH = -8.3 dB PICH Channel Code = 3 AICH = -8.3 dB AICH Channel Code = 6 DPDCH = -10.3 dB DPDCH Channel Code = 96 Power Offset (DPCCH/DPDCH) = 0.0 dB DL DPCH Timing Offset = 0 Secondary Scrambling Code = 0 Secondary Scrambling Code (HSDPA) = 0 HSDPA Channels = Off TPC Settings ------------- Algorithm = 2 TPC Step Size = 1dB TPC Pattern Setup = Set 1 (All 1, after linked to get maximum power) Question #2 : Please clearly identify the CMU 200 setting that were used during the final compliance measurement. CMU 200 setting information can be presented in text description or screen shots from CMU 200. If screen shots are provided, please make sure to include multiple screen settings if applicable. SIERRA: This is actually answered by the list above, on answer #1. Question #3: In the test report, the 3G portion of measurement is identified as UMTS. Please clearly documented in the test report on the mode of operation for UMTS operation. SIERRA: UMTS presents the highest TX power, however HSDPA may back off the power for different gain factors. In terms of in band and out of band HSDPA is "quieter" so it makes sense for us to only preset the normal UMTS. Question #4: Please provide strong justification or test data for not providing measurement on HSDPA modulation. SIERRA: This is also answered in Question #3. Question #5: GSM/EDGE measurement: GSM and GPRS are 2 G and EDGE is 2.5G. Which modulation was actually tested ? What is multislot Class used ? The output power measurement for GSM, GPRS, and EDGE are required. SIERRA: Both GMSK and 8PSK were tested and reported in the document. The device is multislot class-12. The highest GMSK GSM/GPRS power is for one timeslot, increasing the 3 number of timeslots the TX power is reduced accordingly. The output power for EDGE is the same for one to four timeslots. The relevant power levels were given in our test document. Question #6: As indicated in this test report, not all operational modes are tested. Please provide strong justification or explain the procedures were used during preliminary tests to identify the worse case. Please provide the description of tests been made during the preliminary tests to address band edge and occupied bandwidth. SIERRA: UMTS presents the highest TX power, however HSDPA may back off the power for different gain factors. In terms of in band and out of band HSDPA is "quieter" so it makes sense for us to only preset the normal UMTS. In terms of occupied bandwidth, they are the same. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Request for Modular Approval FCC ID:N7NMC87 75 Item No Requirements EUT 1 The final device is designed for mobile or fixed operation (Portable is not permitted – Reference TCB Exclusion List (17 July 2002) II(g)). This Mini-PCI express Quadband Modem module will be installed in a host product where the transmitting antenna can provide 20 cm separation distance to the body of user. This module is sold to OEM and will only be installed by OEM or OEM authorized installer. Install this module in a portable configuration is not allowed unless proper equipment authorization has obtained. 2 The maximum antenna gain to allow compliance with RF exposure requirements is listed on the Grant of Certification for the module The antenna gain including cable loss must not exceed 8 dBi in Cellular Band and 4 dBi in PCS band , for purposes of 2.1043 and 2.1091. Above MPE estimate is based upon the measured peak conducted output power. MPE Estimate is submitted via separate RF exposure attachment 3 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: xxxyyyzzz” Please refer to the FCC ID label format. Labeling instruction has been provided in the OEM installation instruction. 4 The Grant should include the following words in the device description or grant notes: “modular transmitter” or “transmitter module” Modular approval is requested for this application.

July 26, 2006 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, M.D. 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID N7NMC8775 We hereby request that the documentation listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. 1.MC8775 Schematics 2.MC8775 Block Diagram 3.MC8775 Detailed Circuit Description 4.MC8775 Tune Up Procedure Sincerely, Ying Wang Senior RF Engineer

Evaluation of RF Exposure for MC8775 Wireless Modem as a Mobile Device In this application we seek modular approval to the MC8775 wireless modem for use in mobile configuration. Based on the FCC OET Bulletin 65 Supplement C and 47 CFR §2.1091, we have concluded that the MC8775 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 8 dBi in cellular band and 4 dBi in PCS band. The following analysis will demonstrate such compliance. The analysis will be done in two US bands. Operation in cellular band (824 – 849 MHz) The peak conducted output power of MC8775 in cellular band is 32 dBm. Take the worst case as an example, in which an antenna with 8 dBi gain is used. The resulted power density at a distance of 20 cm can be deducted as follows: EIRP = 32 + 8 = 40 dBm = 10000 mW Power Density = EIRP*DutyCycle/(4πR 2 ) = 10000*0.25/(4*π*20 2 ) = 0.50 mW/cm 2 where DutyCycle is 0.25 for GPRS operation (the worst case) and R is 20 cm. The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit = 824/1500 = 0.55 mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore MC8775 in cellular band is compliant with the FCC rules on RF exposure. Operation in PCS band (1850 – 1910 MHz) The peak conducted output power of MC8775 in PCS band is 29 dBm. Take the worst case as an example, in which an antenna with 4 dBi gain is used. The resulted ERP can be expressed as follows: ERP = 29 + 4 –2.15 = 30.85 dBm (1.22 W) < 3 W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR §2.1091 that operate at frequencies above 1.5 GHz with an ERP of 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3 W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for MC8775 in PCS band is categorically excluded.

FCC CFR47 PART 22 SUBPART H AND PART 24 SUBPART E CERTIFICATION TEST REPORT FOR 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE MODEL NUMBER: MC8775 FCC ID: N7NMC8775 REPORT NUMBER: 06U10342-1 ISSUE DATE: JUNE 27, 2006 Prepared for SIERRA WIRELESS INC. 13811 WIRELESS WAY RICHMOND, BC V6V 3A4, CANADA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10342-1 DATE: JUNE 27, 2006 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE FCC ID: N7NMC8775 Page 2 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 06/27/06 Initial Issue Thu REPORT NO: 06U10342-1 DATE: JUNE 27, 2006 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE FCC ID: N7NMC8775 Page 3 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................4 2. TEST METHODOLOGY.........................................................................................................5 3. FACILITIES AND ACCREDITATION...................................................................................5 4. CALIBRATION AND UNCERTAINTY..................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION......................................................................5 4.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5. EQUIPMENT UNDER TEST..................................................................................................6 5.1. DESCRIPTION OF EUT.....................................................................................................6 5.2. MAXIMUM OUTPUT POWER............................................................................................6 5.3. SOFTWARE AND FIRMWARE............................................................................................6 5.4. WORST-CASE CONFIGURATION AND MODE..................................................................7 5.5. DESCRIPTION OF TEST SETUP........................................................................................8 6. TEST AND MEASUREMENT EQUIPMENT.......................................................................10 7. LIMITS AND RESULTS........................................................................................................11 7.1. RADIATED RF POWER OUTPUT....................................................................................11 7.2. FIELD STRENGTH OF SPURIOUS EMISSION.................................................................19 8. SETUP PHOTOS...................................................................................................................26 REPORT NO: 06U10342-1 DATE: JUNE 27, 2006 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE FCC ID: N7NMC8775 Page 4 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SIERRA WIRELESS 3811 WIRELESS WAY RICHMOND, BC V6V 3A4, CANADA EUT DESCRIPTION: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE MODEL: MC8775 DATE TESTED: JUNE 20 - 21, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 22 SUBPART H NO NON-COMPLIANCE NOTED FCC PART 24 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN SUNNY SHIH EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 06U10342-1 DATE: JUNE 27, 2006 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE FCC ID: N7NMC8775 Page 5 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with TIA/EIA 603C (2004), ANSI C63.4-2003, FCC CFR 47 Part 2, FCC CFR 47 Part 15 and FCC CFR 47 Part 22H and 24E. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.4, ANSI C63.7 and CISPR Publication 22. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” CCS is accredited by NVLAP, Laboratory Code 200065-0. The full scope of a…

Text truncated - open the document above for the full version.

MiniCard 8775 Partial Test Report For FCC Certification IC: 2417C-MC8775 FCC ID: N7NMC8775 Prepared by SIERRA WIRELESS INC. 13811 WIRELESS WAY RICHMOND, BC V6V 3A4 CANADA Test Date(s): July 6, 2006, July 13, 2006  2006 Sierra Wireless, Inc. This document contains information which is proprietary and confidential to Sierra Wireless, Inc. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sierra Wireless, Inc. is strictly prohibited. SIERRA WIRELESS, INC. FCC Part 22 & 24 Test ReportMC8775 July 13, 2006Page 2 of 72 Table of Contents 1 Introduction and Purpose ............................................................................. 3 2 Test Summary .............................................................................................. 3 3 Description of Equipment Under Test .......................................................... 4 4 RF Power Output .......................................................................................... 5 4.1 Test Procedure ........................................................................................................... 5 4.2 Test Equipment .......................................................................................................... 5 4.3 Test Results GSM/EDGE ........................................................................................... 6 4.4 Test Results UMTS .................................................................................................... 6 4.5 Test Settings for UMTS Mode on the CMU210 ......................................................... 6 4.6 Test Setting Notes for GMSK and 8PSK Tests .......................................................... 7 5 Occupied Bandwidth .................................................................................... 8 5.1 Test Procedure ........................................................................................................... 8 5.2 Test Results ................................................................................................................ 8 5.3 Test Plots ................................................................................................................... 9 6 Out of Band Emissions at Antenna Terminals ........................................... 18 6.1 Test Procedure ......................................................................................................... 18 6.2 Test Equipment ........................................................................................................ 18 6.3 Test Results .............................................................................................................. 19 6.4 Test Plots ................................................................................................................. 20 7 Block Edge Compliance ............................................................................ 56 7.1 Test Procedure ......................................................................................................... 56 7.2 Test Equipment ........................................................................................................ 56 7.3 Test Results .............................................................................................................. 56 7.4 Test Plots ................................................................................................................. 57 8 Frequency Stability Versus Temperature ................................................... 63 8.1 Summary of Results ................................................................................................. 63 8.2 Test Procedure ......................................................................................................... 63 8.3 Test Equipment ........................................................................................................ 63 8.4 Test Results .............................................................................................................. 64 9 Frequency Stability Versus Voltage ........................................................... 69 9.1 Summary of Results ................................................................................................. 69 9.2 Test Procedure ......................................................................................................... 69 9.3 Test Equipment ........................................................................................................ 69 9.4 Test Results .............................................................................................................. 70  2006 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. SIERRA WIRELESS, INC. FCC Part 22 & 24 Test ReportMC8775 July 13, 2006Page 3 of 72 1Introduction and Purpose This document provides the FCC test data for the MC8775 wireless modem. The tests included in this report are limited to all conducted tests required. The radiated tests were performed at an external test facility. 2Test Summary FCC RULEDESCRIPTION OF TESTRESULTPAGE 2.1046RF Power OutputComplies6 2.1049Occupied BandwidthComplies8 2.1051, 22.901(d) 22.917, 24.238(a) Out of Band Emissions at Antenna Terminals Complies19 FCC part 22H/24E Block Edge RequirementsComplies56 2.1053Field Strength of Spurious RadiationCompliesSee CCS Report 2.1055Frequency Stability versus TemperatureComplies63 2.1055Frequency Stability versus VoltageComplies69 The tests described in this report were performed by Mr. Philip Wright at: Sierra Wireless, Inc. 13811 Wireless Way Richmond, B.C. V6V 3A4 Canada  2006 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. SIERRA WIRELESS, INC. FCC Part 22 & 24 Test ReportMC8775 July 13, 2006Page 4 of 72 3Description of Equipment Under Test T…

Text truncated - open the document above for the full version.

REPORT NO: 06U10342-1 DATE: JUNE 27, 2006 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE FCC ID: N7NMC8775 Page 26 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED FRONT PHOTO REPORT NO: 06U10342-1 DATE: JUNE 27, 2006 EUT: 850/900/1800/1900/2100 MHZ MULTI-BAND MODULE FCC ID: N7NMC8775 Page 27 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED BACK PHOTO
