N7NMC8801GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA+/RELEASE 8

AirPrime Intelligent Embedded Modules Hardware Integration Guide 2130114 Rev 2.02 Preface Rev 2.02 Sep.10Proprietary and Confidential3 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. AirPrime Embedded Module Hardware Integration Guide 4Proprietary and Confidential2130114 PatentsThis product includes technology licensed from QUALCOMM ® 3G. Manufactured or sold by Sierra Wireless Inc. or its licensees under one or more patents licensed from InterDigital Group. Copyright©2010 Sierra Wireless. All rights reserved. TrademarksAirCard ® and Watcher ® are registered trademarks of Sierra Wireless. Sierra Wireless, AirPrime, AirLink, AirVantage and the Sierra Wireless logo are trademarks of Sierra Wireless. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Revision number Release dateChanges 2.02September 2010•Created document Rev 2.02 Sep.10Proprietary and Confidential5 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The Universal Development Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Required connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Guide organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Overview of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Power signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Electrostatic discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Module power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Disconnected state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Normal state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

AirPrime Intelligent Embedded Modules Hardware Integration Guide 2130114 Rev 2.02 Preface Rev 2.02 Sep.10Proprietary and Confidential3 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. AirPrime Embedded Module Hardware Integration Guide 4Proprietary and Confidential2130114 PatentsThis product includes technology licensed from QUALCOMM ® 3G. Manufactured or sold by Sierra Wireless Inc. or its licensees under one or more patents licensed from InterDigital Group. Copyright©2010 Sierra Wireless. All rights reserved. TrademarksAirCard ® and Watcher ® are registered trademarks of Sierra Wireless. Sierra Wireless, AirPrime, AirLink, AirVantage and the Sierra Wireless logo are trademarks of Sierra Wireless. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History Sales Desk:Phone:1-604-232-1488 Hours:8:00 AM to 5:00 PM Pacific Time E-mail:[email protected] Post:Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax:1-604-231-1109 Web:www.sierrawireless.com Revision number Release dateChanges 2.02September 2010•Created document Rev 2.02 Sep.10Proprietary and Confidential5 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 The Universal Development Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Required connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Guide organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Overview of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Power signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Electrostatic discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Module power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Disconnected state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Off state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Normal state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Sierra Wireless America, Inc 2290 Cosmos Ct. Carlsbad CA, 92011 Tel. 760-476-8700 Fax 760-476-8701 AUTHORIZATION LETTER DATE: 20 February , 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Todd Van Cleave Manager Engineering Services Carlsbad Research & Development Sierra Wireless America, Inc.

January 17, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque /Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in submitting our application for the FCC equipment authorization. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from Sierra Wireless. Sincerely Yours, Ying Wang Staff Regulatory Specialist

December 15, 2010 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NMC8801 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  User Guide  Product Photos  Test Setup Photos Best Regards Ying Wang Staff Regulatory Specialist

Request for Modular Approval FCC ID: N7NMC8801 Item Requirements EUT 1 The final device is designed for mobile or fixed operation (Portable is not permitted – Reference TCB Exclusion List (17 July 2002) II (g)). This Modem module will be installed in a host product where the transmitting antenna can provide 20cm separation distance to the body of user. This module is sold to OEM and will only be installed by OEM or OEM authorized installer. Install this module in a portable configuration is not allowed unless proper equipment authorization has obtained. 2 The maximum antenna gain to allow compliance with RF exposure requirements is listed on the Grant of Certification for the module. The antenna gain including cable loss must not exceed 4.5 dBi in Cellular band and 3.4 dBi in PCS band, for purposes of 2.1043 and 2.1091. Above MPE estimate is based upon the measured peak conducted output power. MPE estimate is submitted via separate RF exposure attachment. 3 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NMC8801” Please refer to the FCC ID label format. Labeling instruction has been provided in the OEM installation instruction. 4 The Grant should include the following words in the device description or grant notes: “modular transmitter” or “transmitter module”. Modular approval is requested for this application.

Chris Harvey From: Chi Tsou [[email protected]] Sent: Thursday, December 30, 2010 6:56 PM To: Chris Harvey; Thu Chan; Neena Jain Cc: Chris Harvey -TCB; Claire Hoque Subject: RE: Sierra Wireless Inc., FCC ID: N7NMC8801, Assessment NO.: AN10T1288, Notice#1 Page 1 of 2RE: Sierra Wireless Inc., FCC ID: N7NMC8801, Assessment NO.: AN10T1288, Notice#1 12/31/2010 Hi Chris, Here are the client's answers: --------------------- 1. HSPA+ Release 8 is only associated with the receiver portion of the device, which is not subject to Part 22/24. 2. The MPR values for subtests1-5 have a range from zero to a max value as follows per 3GPP specs: Subtest-1: MPR=0dB allows for 18.8dBm<TX power<25.7dBm Subtest-2: MPR=2dB allows for 16.8dBm<TX power<25.7dBm Subtest-3: MPR=1dB allows for 17.8dBm<TX power<25.7dBm Subtest-4: MPR=2dB allows for 16.8dBm<TX power<25.7dBm Subtest-5: MPR=0dB allows for 18.8dBm<TX power<25.7dBm Hence, the reported TX power levels in the test report are within the ranges given in the above subtests. This is how the device works and it complies with the 3GPP specs. ----------------------------------------------------- Please advise if any further questions. Otherwise please do issue the TCB grant tomorrow. Thanks and warm regards, Chi -----Original Message----- From: Chris Harvey Sent: Thursday, December 23, 2010 1:15 PM To: Thu Chan Cc: Chris Harvey -TCB; Chi Tsou Subject: Sierra Wireless Inc., FCC ID: N7NMC8801, Assessment NO.: AN10T1288, Notice#1 Dear Thu and Chi, You are listed as the Technical Contact for the above referenced TCB application. The following items need to be resolved before the review can be continued: 1. This device is described as HSPA+ Release 8, but the Operational Description does not provide any details of this capability, such as modulations used. The RF Test report exhibit documents HSDPA Release 5 and HSUPA Release 6, but no other HSPA capabilities. Please confirm the capabilities of this device, update the Operational Description and RF Test Report exhibits accordingly. 2. The RF Power measurements in the HSPA Release 6 Subtests 1-5 do not seem to match the expected MPR pattern of 0,2,1,2,0 dB. Please explain the deviation from the expected MPR values. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Revised documentation should not be emailed, but instead should be submitted through "Add Attachment" function at the UL-CCS website. Please have your Assessment Number and FCC ID/IC Certification number handy. You may use the following link: https://cert.ccsemc.com/filing/ Best regards, Chris Harvey [email protected] No virus found in this message. Checked by AVG - www.avg.com Version: 10.0.1191 / Virus Database: 1435/3348 - Release Date: 12/30/10 Page 2 of 2RE: Sierra Wireless Inc., FCC ID: N7NMC8801, Assessment NO.: AN10T1288, Notice#1 12/31/2010

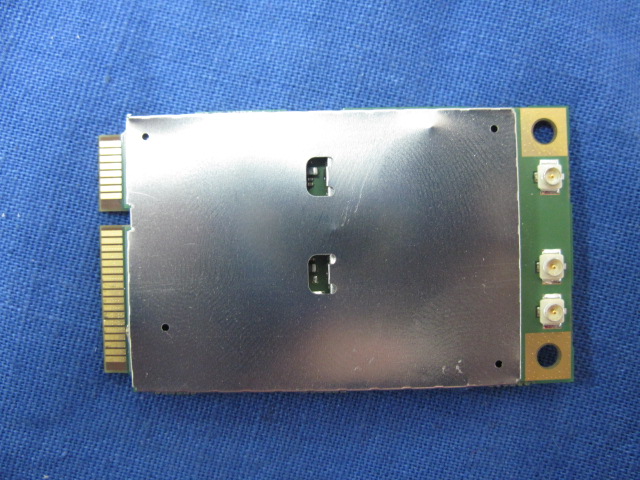

(1) EUT Photo (2) EUT Photo

(1) EUT Photo (2) EUT Photo

Page 1 of 1 12/17/2010https://ftp4.sierrawireless.com/MOVEitISAPI/MOVEitISAPI.310/action=hu_downld!par ...

(1) EUT PHOTO (2) EUT PHOTO

(1) EUT PHOTO (2) EUT PHOTO

Evaluation of RF Exposure for MC8801 Wireless Modem as a Mobile Device In this application we seek modular approval to the MC8801 wireless modem for use in mobile configuration. Based on the FCC OET Bulletin 65 Supplement C and 47 CFR §2.1091, we have concluded that the MC8801 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 4.5 dBi in cellular band and 3.4 dBi in PCS band. The following analysis will demonstrate such compliance. The analysis will be done in two US bands. Operation in cellular band (824 – 849 MHz) The peak conducted output power of MC8801 in Cellular band is 32.91 dBm. Take the worst case as an example, in which an antenna with 4.5 dBi gain is used. The resulted power density at a distance of 20 cm can be deducted as follows: Power Density = EIRP*DutyCycle/(4πR 2 ) = 0.548 mW/cm 2 where DutyCycle is 0.5 for GPRS operation (the worst case) and R is 20 cm. The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit = 824/1500 = 0.55 mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore MC8801 in Cellular band is compliant with the FCC rules on RF exposure. Operation in PCS band (1850 – 1910 MHz) The peak conducted output power of MC8801 in PCS band is 29.56 dBm. Take the worst case as an example, in which an antenna with 3.4 dBi gain is used. The resulted ERP can be expressed as follows: ERP = 29.56 + 3.4 –2.15 = 30.81dBm (1.21 W) < 3 W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR §2.1091 that operate at frequencies above 1.5 GHz with an ERP of 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3 W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for MC8801 in PCS band is categorically excluded.

FCC Part22H&24E Test Report Industry Canada RSS-132/RSS-133 Product Name : GSM/GPRS/EDGE/HSDPA/HSUPA/ HSPA+/RELEASE 8 MODULE Model No. : MC8801 FCC ID : N7NMC8801 IC : 2417C-MC8801 Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, British Columbia Canada, V6V 3A4. Date of Receipt : Aug. 23, 2010 Test Date : Aug. 24, 2010 ~ Sep. 05, 2010 Issued Date : Dec. 07, 2010 Report No. : 108S040R-HP-US-P07V01 Report Version : V 8.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 108S040R-HP-US-P07V01 Page: 2 of 102 Test Report Certification Issued Date : Dec. 07, 2010 Report No. : 108S040R-HP-US-P07V01 Product Name : GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA+/RELEASE 8 MODULE Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way Richmond, British Columbia Canada, V6V 3A4. Model No. : MC8801 FCC ID : N7NMC8801 IC : 2417C-MC8801 EUT Voltage : HV: 3.6 / LV: 3.0 / Normal 3.3V Trade Name : SIERRA WIRELESS Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C, RSS-GEN Issue 2 FCC Part22 Subpart H, FCC Part24 Subpart E Industry Canada RSS-132, Issue 2 Industry Canada RSS-133, Issue 5 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 108S040R-HP-US-P07V01 Page: 3 of 102 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI Report No： 108S040R-HP-US-P07V01 Page: 4 of 102 TABLE OF CONTENTS Description Page 1. General Information ...................................................................................................... 6 1.1. EUT Description ........................................................................................................ 6 1.2. Mode of Operation .................................................................................................... 7 1.3. Tested System Details .............................................................................................. 8 1.4. Configuration of Tested System ................................................................................ 9 1.5. EUT Exercise Software ........................................................................................... 10 2. Technical Test ............................................................................................................. 11 2.1. Summary of Test Result .......................................................................................... 11 2.2. Test Environment .................................................................................................... 12 3. Peak Output Power..................................................................................................... 13 3.1. Test Equipment .......................................................................................................13 3.2. Test Setup ............................................................................................................... 14 3.3. Limit ........................................................................................................................ 14 3.4. Test Procedure ........................................................................................................ 15 3.5. Uncertainty .............................................................................................................. 17 3.6. Test Result.............................................................................................................. 18 4. Occupied Bandwidth................................................................................................... 21 4.1. Test Equipment .......................................................................................................21 4.2. Test Setup ............................................................................................................... 21 4.3. Limit ...........................................................…
