N7NQ2698Cellular/PCS GSM/EDGE/WCDMA Modem

WA_DEV_Q2698_001 June 18, 2011 AirPrime Q2698 Hardware Integration Guide WA_DEV_Q2698_HWIG Rev 1.0 JuneJune 18, 2011 2 Hardware Integration Guide Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitations of Liability This manual is provided “as is”. Sierra Wireless makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the manual shall endorse all risks arising from its use. The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. WA_DEV_Q2698_HWIG Rev 1.0 JuneJune 18, 2011 3 Hardware Integration Guide Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright © 2011 Sierra Wireless. All rights reserved. Trademarks AirCard ® and Watcher ® are registered trademarks of Sierra Wireless. Sierra Wireless™, AirPrime™, AirLink™, AirVantage™ and the Sierra Wireless logo are trademarks of Sierra Wireless. , , ® , inSIM ® , WAVECOM ® , WISMO ® , Wireless Microprocessor ® , Wireless CPU ® , Open AT ® are filed or registered trademarks of Sierra Wireless S.A. in France and/or in other countries. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh and Mac OS are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of the respective owners. Contact Information Sales Desk: Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time E-mail: [email protected] Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax: 1-604-231-1109 Web: www.sierrawireless.com Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com WA_DEV_Q2698_HWIG Rev 1.0 JuneJune 18, 2011 4 Hardware Integration Guide Document History Version Date Updates 001 June 18, 2012 Creation WA_DEV_Q2698_HWIG Rev 001 June 18, 2011 5 Contents 1. INTRODUCTION .................................................................................................. 7 1.1. Hardware Development Components ............................................................................... 7 2. POWER INTERFACE ........................................................................................... 8 2.1. Power Supply .................................................................................................................... 8 2.2. Electrostatic Discharge (ESD) ........................................................................................... 8 2.3. Power States ..................................................................................................................... 9 3. RF INTEGRATION .................…

Text truncated - open the document above for the full version.

14 August 2012 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NQ2698 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 522(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  Integration Manual  Product Photos  Test Setup Photos Best Regards, Ying Wang Manager, Regulatory Compliance

Modular Approval Checklist FCC ID: N7NQ2698 Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand-alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NQ2698” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report

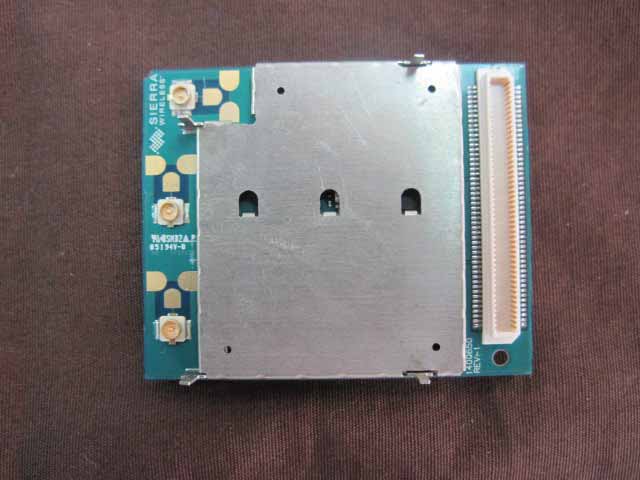

Report No.: 125S043R-HP-US-P07V01 Page: 1 of 2  External Photograph (1) Test Board Photo (2) EUT Photo Report No.: 125S043R-HP-US-P07V01 Page: 2 of 2 (3) EUT Photo

Q2698 Label Location

Report No.: 125S043R-HP-US-P07V01 Page: 1 of 3  Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 125S043R-HP-US-P07V01 Page: 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 125S043R-HP-US-P07V01 Page: 3 of 3 (5) EUT Photo

Evaluation of RF Exposure for Q2698 Wireless Modem as a Mobile Device In this application we seek modular approval to the Q2698 wireless modem for use in mobile configuration. Part I: FCC requirement Based on the FCC OET Bulletin 65 Supplement C and 47 CFR §2.1091, we have concluded that the Q2698 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 7.5 dBi in cellular band and 3.5 dBi in PCS band. The following analysis will demonstrate such compliance. The analysis will be done in two US bands. Operation in cellular band (824 – 849 MHz) The peak conducted output power of Q2698 in Cellular band is 32.65 dBm. Take the worst case as an example, in which an antenna with 7.5 dBi gain is used. The resulted power density at a distance of 20 cm can be deducted as follows: EIRP = Pcond + 7.5 Power Density = EIRP*DutyCycle/(4πR 2 ) The table below shows the different MPE levels in different time slot configurations: Max Pcond (dBm) Max EIRP (dBm) Max EIRP (mW) Dute Cycle MPE (mW/ cm 2 ) 1 Time Slot 32.44 39.94 9862.79 12.5% 0.245 2 Time Slots 32.65 40.15 10351.42 25% 0.515 3 Time Slots 30 37.5 5623.41 37.5% 0.420 4 Time Slots 29 36.5 4466.84 50% 0.444 The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit = 824/1500 = 0.55 mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore Q2698 in Cellular band is compliant with the FCC rules on RF exposure. Operation in PCS band (1850 – 1910 MHz) The peak conducted output power of Q2698 in PCS band is 29.4 dBm. Take the worst case as an example, in which an antenna with 3.5 dBi gain is used. The resulted ERP can be expressed as follows: ERP = 29.4 + 3.5 –2.15 = 30.75 dBm (1.19 W) < 3 W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR §2.1091 that operate at frequencies above 1.5 GHz with an ERP of 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3 W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for Q2698 in PCS band is categorically excluded. Part II: IC requirement Power Density= 0.515m W/cm 2 =5.15W/ m 2 (Worse case) When operate in cellular band (824 – 849 MHz) if the device antenna gain does not exceed 7.5 dBi in cellular band. Power Density= 0.095m W/cm 2 =0.95W/ m 2 (Worse case) When operate in PCS band (1850 – 1910 MHz) if the device antenna gain does not exceed 3.5 dBi in PCS band. The table below shows the different MPE levels in different time slot configurations: Max Pcond (dBm) Max EIRP (dBm) Max EIRP (mW) Dute Cycle MPE (mW/ cm 2 ) 1 Time Slot 29.4 32.9 1949.84 12.5% 0.048 2 Time Slots 29.3 32.8 1905.46 25% 0.095 3 Time Slots 27 30.5 1122.02 37.5% 0.084 4 Time Slots 25 28.5 707.95 50% 0.070 AS IC RSS-102 requirement, RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) listed below: Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/ m 2 ) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2* 6 300-1500 1.585 f 0.5 0.0042 f 0.5 f/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 x 10-4 f 0.5 6.67 x 10-5 f 616000/f 1.2 Note: f is frequency in MHz. * Power density limit is applicable at frequencies greater than 100 MHz. The RF Field Strength limit for General Population/Uncontrolled Exposure is shown in the RSS- 102 and can be calculated as follows: Cellular band limit = 824/150 = 5.5 W/m 2 PCS band limit =10W/ m 2 As we can see the resulted power density is below the MPE limit, therefore Q2698 is compliant with the IC rules on RF exposure.

FCC Part22H&24E Test Report Industry Canada RSS-132/RSS-133 Product Name : Wireless Module Model No. : Q2698 FCC ID : N7NQ2698 IC : 2417C-Q2698 Applicant : Sierra Wireless Hong Kong Limited Address : Unit 201-207, 2nd Floor, Bio-Informatics Center, No. 2 Science Park West Avenue Hong Kong Science Park, Shatin, New Territories, Hong Kong, People's Republic of China Date of Receipt : 16/05/2012 Test Date : 16/05/2012~08/06/2012 Issued Date : 24/07/2012 Report No. : 125S043R-HP-US-P07V01 Report Version : V 2.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 125S043R-HP-US-P07V01 Page: 2 of 46 Test Report Certification Issued Date : 24/07/2012 Report No. : 125S043R-HP-US-P07V01 Product Name : Wireless Module Applicant : Sierra Wireless Hong Kong Limited Address : Unit 201-207, 2nd Floor, Bio-Informatics Center, No. 2 Science Park West Avenue Hong Kong Science Park, Shatin, New Territories, Hong Kong, People's Republic of China Manufacturer : Sierra Wireless Hong Kong Limited Address : Unit 201-207, 2nd Floor, Bio-Informatics Center, No. 2 Science Park West Avenue Hong Kong Science Park, Shatin, New Territories, Hong Kong, People's Republic of China Model No. : Q2698 FCC ID : N7NQ2698 IC : 2417C-Q2698 EUT Voltage : 3.4V/3.8V/4.2V Brand Name : Sierra Wireless Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C FCC Part22.913(a)&22.917(b), FCC Part24.232(b)&24.238(b) Industry Canada RSS-132, Issue 2: 2005 Clause 4.4&4.5&4.6 Industry Canada RSS-133, Issue 5: 2009 Clause 6.4&6.5&6.6 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Manager: Marlin Chen) Report No.: 125S043R-HP-US-P07V01 Page: 3 of 46 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 125S043R-HP-US-P07V01 Page: 4 of 46 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 5 1.1. EUT Description ......................................................................................................... 5 1.2. Mode of Operation ...................................................................................................... 6 1.3. Tested System Details ................................................................................................ 7 1.4. Configuration of Tested System .................................................................................. 8 1.5. EUT Exercise Software ............................................................................................... 9 2. Technical Test ........................................................................................................... 10 2.1. Summary of Test Result ............................................................................................ 10 2.2. Test Environment ...................................................................................................... 10 3. Spurious Emission .................................................................................................... 11 3.1. Test Equipment ......................................................................................................... 11 3.2. Test Setup................................................................................................................. 12 3.3. Limit .......................................................................................................................... 13 3.4. Test Procedure ......................................................................................................... 13 3.5. Uncertainty ............................................................................................................... 14 3.6. Test Result ................................................................................................................ 15 4. Receiver Spurious Emission for RSS 132/133............................................…

Text truncated - open the document above for the full version.

 2009 Sierra Wireless, Inc. This document contains information which is proprietary and confidential to Sierra Wireless, Inc. Disclosure to persons other than the officers, employees, agents, or subcontractors of the Company or licensee of this document without the prior written permission of Sierra Wireless, Inc. is strictly prohibited. Q2698 Test Report FOR FCC and IC Certifications IC: 2417C-Q2698 FCC ID: N7NQ2698 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 2 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. Table of Contents 1 Introduction and Purpose ......................................................................... 4 2 Test Summary .......................................................................................... 4 3 Description of Equipment under Test ...................................................... 4 4 RF Power Output ..................................................................................... 5 4.1 Test Procedure .................................................................................................... 5 4.2 Test Equipment.................................................................................................... 5 4.3 Test Results GSM/EDGE (GMSK: MCS4; 8-PSK: MCS9) ................................ 6 4.4 Test Results UMTS .............................................................................................. 6 4.4.1 Test 1: RF Output Power Results for WCDMA R99 ....................................... 6 4.4.2 Test 2: RF Output Power Results for HSDPA Rel6 ........................................ 7 4.4.3 Test 3: RF Output Power Results for HSPA (HSDPA & HSUPA) Rel6 ......... 9 4.5 Test Settings for UMTS Mode on CMU200 ...................................................... 11 5 Occupied Bandwidth .............................................................................. 15 5.1 Test Procedure .................................................................................................. 15 5.2 Test Equipment.................................................................................................. 15 5.3 Test Results ....................................................................................................... 15 5.3.1 GSM Results .................................................................................................. 16 5.3.2 WCDMA Results ........................................................................................... 16 5.4 Test Plots ........................................................................................................... 17 6 Out of Band Emissions at Antenna Terminals ...................................... 26 6.1 Test Procedure .................................................................................................. 26 6.2 Test Equipment.................................................................................................. 26 6.3 Test Results ....................................................................................................... 27 6.4 Test Plots ........................................................................................................... 28 7 Block Edge Compliance ........................................................................ 64 7.1 Test Procedure .................................................................................................. 64 7.2 Test Equipment.................................................................................................. 64 7.3 Test Results ....................................................................................................... 64 7.4 Test Plots ........................................................................................................... 65 8 Frequency Stability versus Temperature ............................................... 71 8.1 Summary of Results ........................................................................................... 71 8.2 Test Procedure .................................................................................................. 71 8.3 Test Equipment.................................................................................................. 71 8.4 Test Results ....................................................................................................... 72 8.4.1 GSM Frequency Error over Temperature .................................................... 72 8.4.2 UMTS Frequency Error over Temperature .................................................. 72 9 Frequency Stability versus Voltage ....................................................... 73 9.1 Summary of Results ........................................................................................... 73 9.2 Test Procedure .................................................................................................. 73 9.3 Test Equipment.................................................................................................. 73 9.4 Test Results ....................................................................................................... 74 9.4.1 GSM Frequency Error over Voltage............................................................. 74 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 3 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 9.4.2 UMTS Frequency Error over Voltage .......................................................... 74 SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 4 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 1 Introduction and Purpose This document provides test data for the Q2698 modem intended for FCC and Industry Canada certifications. The tests included in this report are limited…

Text truncated - open the document above for the full version.

SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 25 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 5.3.17) WCDMA Occupied Bandwidth, PCS Middle channel, 1880 MHz, 99% BW 5.3.18) WCDMA Occupied Bandwidth, PCS High channel, 1907.6 MHz, 99% BW SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 26 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 6 Out of Band Emissions at Antenna Terminals FCC 22.901(d), 22.917, 24.238(a) Out of Band Emissions: The mean power of emissions must be attenuated below the mean power of the unmodulated carrier (P) on any frequency outside the frequency band by at least (43 + 10 log P) dB. The out of band emission limit translates to a worst case absolute limit of -13dBm in this case. 6.1 Test Procedure The RF output of the transmitter was connected to a spectrum analyzer through a calibrated coaxial cable. Sufficient scans were taken to show the out-of-band emissions, if any, up to 10 th harmonic. The EUT was scanned for spurious emissions from 1MHz to 20GHz with sufficient bandwidth and video resolution. Data plots are included. Multiple sweeps were recorded in maximum hold mode using a peak detector to ensure that the worst-case emissions were captured. Test Setup 6.2 Test Equipment EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CAL. DATE Control Computer TC Generic PC 100488 N/A Wireless Test Set Rohde & Schwarz CMU200 110520 November 17, 2011 Spectrum Analyzer Rohde & Schwarz FSP 100714 November 15, 2011 Spectrum Analyzer Rohde & Schwarz FSQ 200428 March 03, 2008 DC Power Supply HP 6632A 3530A N/A Interface Board Shop built ATEMux N/A N/A Directional Coupler Pasternack PE2209-10 N/A N/A Control DC Power Supply Interface Board DUT Agilent E4440A Spectrum Analyzer 10dB attenuator SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 27 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 6.3 Test Results Refer to the following plots. • Cellular Band Plot Number Description 6.4.1 – 6.4.3 GMSK Mode, Low channel, 824.20 MHz 6.4.4 – 6.4.6 GMSK Mode, Middle Channel, 836.6 MHz 6.4.7 – 6.4.9 GMSK Mode, High Channel, 848.8 MHz 6.4.10 – 6.4.12 8-PSK Mode, Low channel, 824.20 MHz 6.4.13 – 6.4.15 8-PSK Mode, Middle Channel, 836.6 MHz 6.4.16 – 6.4.18 8-PSK Mode, High Channel, 848.8 MHz • PCS Band Plot Number Description 6.4.19 – 6.4.21 GMSK Mode, Low Channel, 1850.2 MHz 6.4.22 – 6.4.24 GMSK Mode, Middle Channel, 1880.0 MHz 6.4.25 – 6.4.27 GMSK Mode, High Channel, 1909.8 MHz 6.4.28 – 6.4.30 8-PSK, Mode, Low Channel, 1850.2 MHz 6.4.31 – 6.4.33 8-PSK Mode, Middle Channel, 1880.0 MHz 6.4.34 – 6.4.36 8-PSK Mode, High Channel, 1909.8 MHz • UMTS Cellular Band Plot Number Description 6.4.37 – 6.4.39 WCDMA Mode, Low Channel, 826.4 MHz 6.4.40 – 6.4.42 WCDMA Mode, Middle Channel, 836.4 MHz 6.4.43 – 6.4.45 WCDMA Mode, High Channel, 846.6 MHz • UMTS PCS Band Plot Number Description 6.4.46 – 6.4.48 WCDMA Mode, Low Channel, 1852.4 MHz 6.4.49 – 6.4.51 WCDMA Mode, Middle Channel, 1880.0 MHz 6.4.52 – 6.4.54 WCDMA Mode, High Channel, 1907.6 MHz The plots below show that the conducted emission limits requirements are met. SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 28 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. 6.4 Test Plots Plot 6.4.1) Out of Band Emissions at Antenna Terminals GMSK, Low channel, 824.200 MHz, 30 MHz to 1 GHz Plot 6.4.2) Out of Band Emissions at Antenna Terminals GMSK, Low channel, 824.200 MHz, TX signal +/- 20 MHz The strong emission shown in each case is the carrier signal. SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 29 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. Plot 6.4.3) Out of Band Emissions at Antenna Terminals GMSK, Low channel, 824.200 MHz, 1 GHz to 20 GHz Cellular Harmonics for Ch. 128 (824.2 MHz) Level (dBm) Second -30.29 dBm Third -31.04 dBm Others ---- SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 30 of 74  2009 Sierra Wireless, Inc. The contents of this page are subject to the confidentiality information on page one. Plot 6.4.4) Out of Band Emissions at Antenna Terminals GMSK, Mid Channel, 836.6 MHz, 30 MHz to 1 GHz Plot 6.4.5) Out of Band Emissions at Antenna Terminals GMSK, Mid Channel, 836.6 MHz, TX signal +/- 20 MHz The strong emission shown in each case is the carrier signal. SIERRA WIRELESS, INC. FCC Part 22, 24 / RSS 132, 133 Q2698 May30, 2012 Page 31 of 74  2009 Sierra Wireless, Inc. The c…
