N7NSL8090Wireless Module

WA_DEV_SL8090_PTS_002 002 May 03, 2011 AirPrime SL809x Hardware Integration Guide WA_DEV_SL8090_PTS_002 Rev 002 May 03, 2011 2 Hardware Integration Guide Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitations of Liability This manual is provided “as is”. Sierra Wireless makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the manual shall endorse all risks arising from its use. The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. WA_DEV_SL8090_PTS_002 Rev 002 May 03, 2011 3 Hardware Integration Guide Patents This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® 3G. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group. Copyright © 2011 Sierra Wireless. All rights reserved. Trademarks AirCard ® and Watcher ® are registered trademarks of Sierra Wireless. Sierra Wireless™, AirPrime™, AirLink™, AirVantage™ and the Sierra Wireless logo are trademarks of Sierra Wireless. , , ® , inSIM ® , WAVECOM ® , WISMO ® , Wireless Microprocessor ® , Wireless CPU ® , Open AT ® are filed or registered trademarks of Sierra Wireless S.A. in France and/or in other countries. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh and Mac OS are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of the respective owners. Contact Information Sales Desk: Phone: 1-604-232-1488 Hours: 8:00 AM to 5:00 PM Pacific Time E-mail: [email protected] Post: Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax: 1-604-231-1109 Web: www.sierrawireless.com Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com WA_DEV_SL8090_PTS_002 Rev 002 May 03, 2011 4 Hardware Integration Guide Document History Version Date Updates 001 March 07, 2011 Creation 002 May 03, 3011 Added recommended RF routing information in section 5.3 Important Compliance Information for North American Users Updated Table 2 ESD Specifications Updated the Power State names in Table 3 Supported SL809x Power States Updated the signal names in Table 6 Audio Pin Description Removed FCC and IC numbers for SL8092/SL8093 in section 5.3 Important Compliance Information for North American Users WA_DEV_SL8090_PTS_002 Rev 002 May 03, 2011 5 Contents 1. INTRODUCTION .................................................................................................. 7 1.1. Hardware Development Components ............................................................................... 7 2. POWER INTERFACE ........................................................................................... 8 2.1. Power Suppl…

Text truncated - open the document above for the full version.

January 17, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque /Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in submitting our application for the FCC equipment authorization. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from Sierra Wireless. Sincerely Yours, Ying Wang Staff Regulatory Specialist

January 8, 2008 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Authorization Letter for Grantee Code N7N Dear Sir/Madam: I hereby authorize Mr. Todd Van Cleave of Sierra Wireless to act on my behalf in all manners relating to the application for equipment authorization including signing of all documents relating to these matters. Any and all acts carried out by Mr. Todd Van Cleave of Sierra Wireless on my behalf shall have the same effect as acts of my own. Sincerely, Ying Wang Staff Regulatory Specialist

May 10, 2011 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Re: Confidentiality Request for FCC ID: N7NSL8090 We hereby request that the exhibits listed below, submitted with our application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) and 0.459 of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request.  Schematics  Block Diagram  Operation Description  Tune Up Procedure Furthermore, pursuant to Public Notice DA 04-1705 in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, we request the following exhibits be withheld from public viewing for a short limited time of 180 days from the date of the Grant of Equipment Authorization, due to the sensitive business information:  User Guide Best Regards Ying Wang Staff Regulatory Specialist

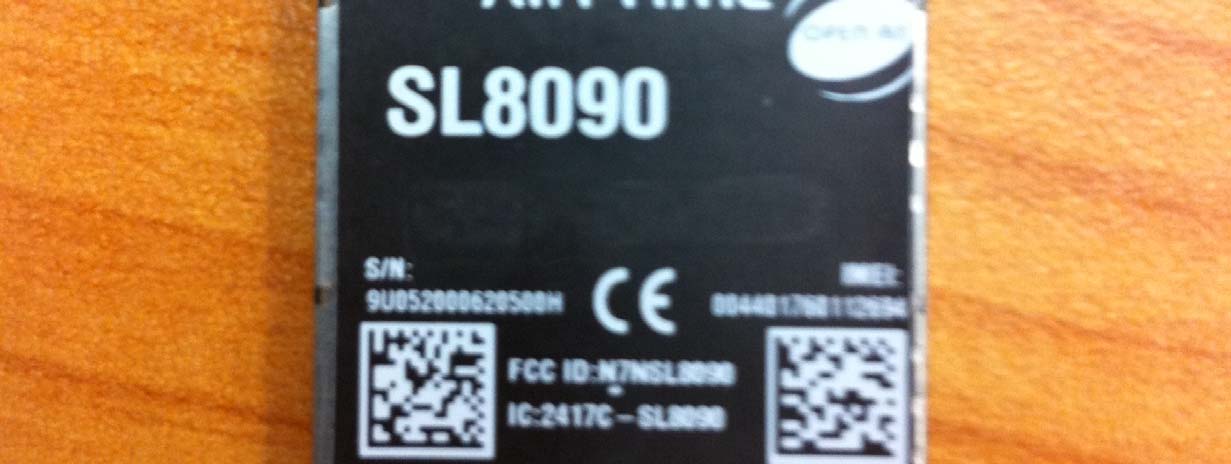

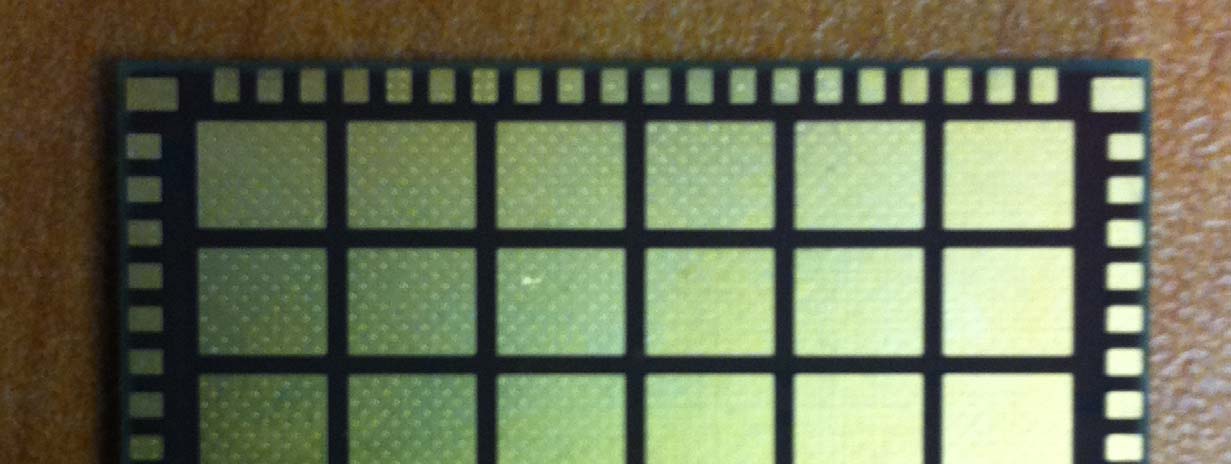

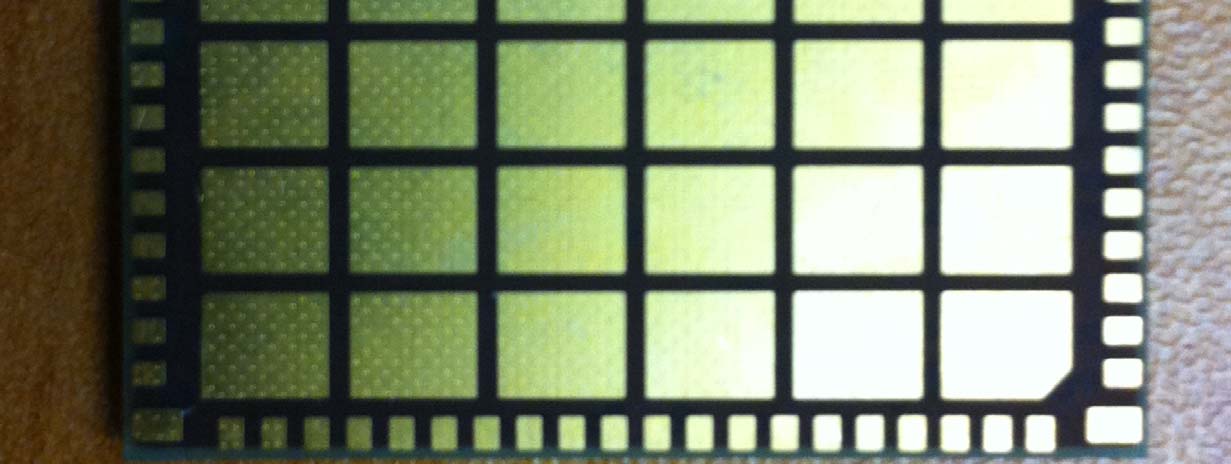

Modular Approval Checklist FCC ID: N7NSL8090 Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded. Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module; Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) Not applicable to licensed modules 5 The module must demonstrate compliance in a stand-alone configuration; EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: N7NSL8090” Please refer to the FCC ID label format. Labeling instruction has been provided in the OEM installation instruction. 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements; The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the product integration guide 8 The module must comply with RF exposure requirements. Compliance with RF exposure requirements is addressed in RF exposure report

SIERRA WIRELESS Evaluation of RF Exposure for AirPrime® SL8090 as a Mobile Device In this application we seek modular approval to the AirPrime® SL8090 for use in mobile configuration. Based on the FCC OET Bulletin 65 Supplement C and 47 CFR §2.1091, we have concluded that the AirPrime® SL8090 will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 6.2 dBi in cellular band and 3.8 dBi in PCS band. The following analysis will demonstrate such compliance. The analysis will be done in two US bands. Operation in cellular band (824 – 849 MHz) The peak conducted output power of AirPrime® SL8090 in Cellular band is 32.2 dBm. Take the worst case as an example, in which an antenna with 6.2 dBi gain is used. The resulted power density at a distance of 20 cm can be deducted as follows: ERP = 32.2 + 6.2 = 38.4 dBm = 6918 mW Power Density = EIRP*DutyCycle/(4πR 2 ) = 6918 *0.25/(4*π*20 2 ) = 0.34 mW/cm 2 where DutyCycle is 0.25 for GPRS operation in Class 10 (the worst case) and R is 20 cm. The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit = 824/1500 = 0.55 mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore AirPrime® SL8090 in Cellular band is compliant with the FCC rules on RF exposure. Operation in PCS band (1850 – 1910 MHz) The peak conducted output power of AirPrime® SL8090 in PCS band is 29.2 dBm. Take the worst case as an example, in which an antenna with 4 dBi gain is used. The resulted ERP can be expressed as follows: ERP = 29.2 + 3.8 –2.15 = 30.85 dBm (1.22 W) < 3 W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR §2.1091 that operate at frequencies above 1.5 GHz with an ERP of 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3 W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for AirPrime® SL8090 in PCS band is categorically excluded.

FCC Part22H&24E Test Report Industry Canada RSS-132/RSS-133 Product Name : Wireless Module Model No. : SL8090 FCC ID : N7NSL8090 IC : 2417C-SL8090 Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way, Richmond, British Columbia, Canada V6V3A4 Date of Receipt : Jan. 19, 2011 Test Date : Jan. 19, 2011 ~ Jan. 26, 2011 Issued Date : Jan. 27, 2011 Report No. : 111S040R-HP-US-P07V01 Report Version : V 6.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 111S040R-HP-US-P07V01 Page: 2 of 106 Test Report Certification Issued Date : Jan. 27, 2011 Report No. : 111S040R-HP-US-P07V01 Product Name : Wireless Module Applicant : Sierra Wireless Inc. Address : 13811 Wireless Way, Richmond, British Columbia, Canada V6V3A4 Manufacturer : Sierra Wireless Inc. Address : 13811 Wireless Way, Richmond, British Columbia, Canada V6V3A4 Model No. : SL8090 FCC ID : N7NSL8090 IC : 2417C-SL8090 EUT Voltage : 3.3V– 3.6V– 4.3V Trade Name : Sierra Wireless Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C, RSS-GEN Issue 2 FCC Part22 Subpart H, FCC Part24 Subpart E Industry Canada RSS-132, Issue 2 Industry Canada RSS-133, Issue 5 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No： 111S040R-HP-US-P07V01 Page: 3 of 106 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI Report No： 111S040R-HP-US-P07V01 Page: 4 of 106 TABLE OF CONTENTS Description Page 1. General Information ...................................................................................................... 6 1.1. EUT Description ........................................................................................................ 6 1.2. Mode of Operation .................................................................................................... 7 1.3. Tested System Details .............................................................................................. 8 1.4. Configuration of Tested System ................................................................................ 9 1.5. EUT Exercise Software ........................................................................................... 10 2. Technical Test ............................................................................................................. 11 2.1. Summary of Test Result .......................................................................................... 11 2.2. Test Environment .................................................................................................... 12 3. Peak Output Power..................................................................................................... 13 3.1. Test Equipment .......................................................................................................13 3.2. Test Setup ............................................................................................................... 14 3.3. Limit ........................................................................................................................ 14 3.4. Test Procedure ........................................................................................................ 15 3.5. Uncertainty .............................................................................................................. 17 3.6. Test Result.............................................................................................................. 18 4. Occupied Bandwidth................................................................................................... 19 4.1. Test Equipment .......................................................................................................21 4.2. Test Setup ............................................................................................................... 21 4.3. Limit .................................................................…

Text truncated - open the document above for the full version.
