N7ZWVM-1101Wireless Video Module

Block Diagram for Model WVM-1101 ; RF Signal ; Analog Signal ; Power ; Digital Control ; High Speed Digital A ME8801D MAX8874TE TC7W08 CRS5001B28CRS5001B28 Syn Bias VCO Bias Vdd2, Control PA BP Bia CK32RESET_L Serial_loadSerial_clk Serial_in (0-3) Data Out TX5 RX5 ANT_A ANT_B 3.3V_A A R51 Buffe AS218-3 TDFS8 A TF551 LFB LX5506E-L SMS7630-0 RN4985 CX-101 RF-ModuleBlock Diagram LDB215G51 A ME8805DE RXOUT_IP RXOUT_IN DPDT LPF (Patter Coupler BPF Balu Matching X’tal (32MH Reg Reg Tr Reg DetecMatching TXIN_IPTXIN_INTXIN_QP + Rx - Tx + - Pdetect Power and Control VCO LNA RF-IC Tx and Rx Block

MAX LIGHT MEASUREMENT REPORT Technology Lab Page:1/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:2/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:3/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:4/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:5/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:6/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:7/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:8/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101

MAX LIGHT MEASUREMENT REPORT Technology Lab Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Label Format: Label Position: Equipment Label 2.0cmX1.0cm This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including. Interference that may cause undesired operation. Model No. : WVM1101-TX / WVM1101-RX FCC ID: N7ZWVM-1101 Rear View

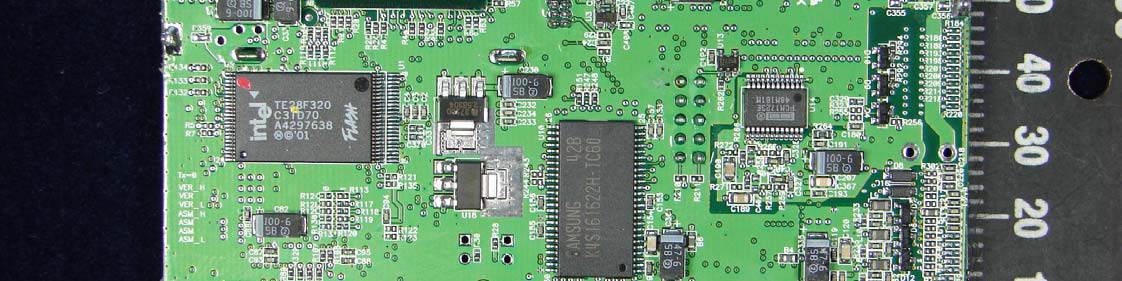

MAX LIGHT MEASUREMENT REPORT Technology Lab Page:1/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:2/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:3/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:4/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:5/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:6/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:7/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 MAX LIGHT MEASUREMENT REPORT Technology Lab Page:8/8 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101

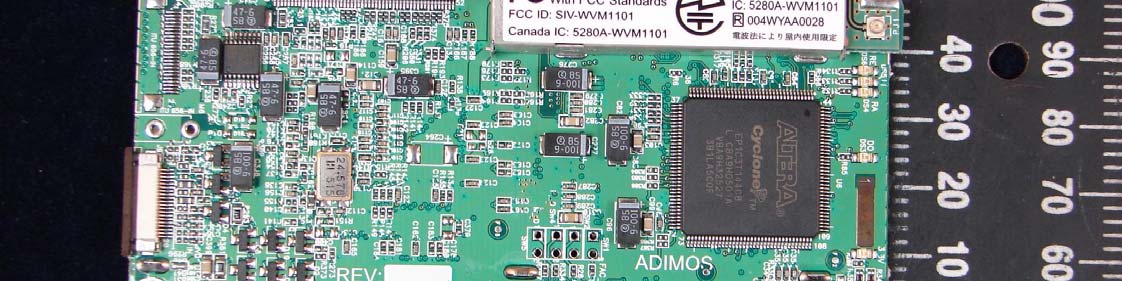

Module picture without shielding Module picture without shielding

Specification For Approval 2006 / 04 / 21 Date 060421006 File No. A Revision Customer Manufacturer 2.4 / 5.0 GHz External Antenna Part Number Description INVAX P/N : R-AN2450-1901RS Approved By Invax 北路8154樓 Te l : 886-2-2788-5218 Fax:886-2-2783-1658 COR / F-G-15a Cortec 省路 Te l : 86-769-85388261 Fax: 86-769-85397133 Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 1 Version: 1.0 Issue Date: 2006-04-17 Index: 1. Mechanical Dimension Drawing 2. Technical Specification 3. S11 Return Loss / S.W.R. / Impedance Testing Result 4. Antenna Radiation Pattern 5. Plastic Parts Material Datasheet 6. Metal Parts Material Datasheet 7. Coaxial Cable Datasheet 8. Reliability Testing 9. SGS Testing Report Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 2 Version: 1.0 Issue Date: 2006-04-17 1. Mechanical Dimension Drawing Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 3 Version: 1.0 Issue Date: 2006-04-17 2. Technical Specification A. Electrical Characteristics S.W.R. 2400 ~ 2500 MHz: < 2.0 4900 ~ 5900 MHz: < 2.0 Antenna Average Gain 3.9 dBi Antenna Radiation Pattern Omni-directional Impedance 50 Ohm Connector SMA Male Reverse B. Mechanical Dimension Total Length 196 mm C. Material Color Black Material of Outer Cover TPE (Color: Black) Material of Hinge PA-6 (Color: Black) Material of Base Pa-6 (Color: Black) Material of Connector Copper Material of Tube Copper D. Environmental Operation Temperature - 30 ̊C ~ + 80 ̊C Storage Temperature - 30 ̊C ~ + 80 ̊C 3. S11 Return Loss / S.W.R. / Impedance Testing Result Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 4 Version: 1.0 Issue Date: 2006-04-17 4. Antenna Radiation Pattern Testing Equipment Specification: Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 5 Version: 1.0 Issue Date: 2006-04-17 Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 8720D Received Antenna: 0.7~6.0 GHz for Gain Calibration Double Ridged Horn Antenna Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 6 Version: 1.0 Issue Date: 2006-04-17 Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 7 Version: 1.0 Issue Date: 2006-04-17 Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 8 Version: 1.0 Issue Date: 2006-04-17 Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 9 Version: 1.0 Issue Date: 2006-04-17 Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 10 Version: 1.0 Issue Date: 2006-04-17 Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 11 Version: 1.0 Issue Date: 2006-04-17 5. Plastic Parts Material Datasheet Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 12 Version: 1.0 Issue Date: 2006-04-17 6. Metal Parts Material Datasheet Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 13 Version: 1.0 Issue Date: 2006-04-17 7. Coaxial Cable Datasheet RG-178 Coaxial Cable Specification 1. Cable Type MIL – C – 17 / RG-178 2. Impedance 50 ± 3 ohm Material silver-coated cooper Conductor Numbers 7 Conductor Size 0.102 mm 3. Inner Conductor Outer Diameter 0.3 mm Material FEP Color Clear Average Thickness 0.28 mm 4. Dielectric Layer Diameter 0.86 mm Material silver-coated cooper Construction 16-3-0.1 mm 5. Braid (Shielding) Coverage 95 % Material FEP Color Brown Average Thickness 0.25 mm 6. Outer Cover Diameter 1.80 ± 0.05 mm 7. V.S.W.R Testing (DC ~ 6GHz) < 1.3 100 MHz 46 900 MHz 155 1800 MHz 295 2400 MHz 340 5200 MHz 505 8. Attenuation (dB / 100 meter ) 6000 MHz 550 9. Capacitance 97 ± 3 ( pF / meter) 10. Maximum Power 30 dBm 11. Spark Test 2.0 KV 12. Rating Temp. and Voltage 200 ̊C / 30V 13. Conductor Resistance 335 ohm / KM / 20 ̊C max. 14. Dielectric Resistance 3 G ohm / KM / 20 ̊C min. Product Number: R-AN2450-1901RS Product Name: 2.4 / 5.0 GHz External Antenna Page 14 Version: 1.0 Issue Date: 2006-04-17 8. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 120 cycles After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 3. Damp Heat 500 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 4. Endurance 500 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 9. SGS Test Report

Specification For Approval 2005 / 12 / 16 Date STA – 0980 File No. Customer Manufacturer 2.4 / 5.0GHz External Antenna Part Number Description INVAX P/N : AN2450-6401RS Approved By Invax 8154 Tel: (02)2788-5218 Fax: (02)2783-1658 CVX / FG-15a Cortec Tel: 86-769-5317599 Fax: 86-769-5317869 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Index: 1. Mechanical Dimension Drawing 2. Feature and Application 3. Technical Specification 4. S11 Return Loss / S.W.R. / Impedance Testing Result 5. Antenna Radiation Pattern 6. Plastic Parts Material Datasheet 7. Metal Parts Material Datasheet 8. Coaxial Cable Datasheet 9. Reliability Testing 10. SGS Testing Report Page 1 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 1. Mechanical Dimension Drawing Page 2 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 2. Feature and Application . dual band dipole antenna design . small size / high gain / omni-directional radiation pattern . IEEE 802.11 a / b / g WLAN AP (Access Point) application . Bluetooth / HomeRF / ISM Band and other 2.4~2.5 or 4.9~ 5.9 GHz wireless communication application 3. Technical Specification A. Electrical Characteristics Working Frequency Range 2400 ~ 2500 MHz 4900 ~ 5900 MHz S.W.R. 2400 ~ 2500 MHz: < 2.0 4900 ~ 5900 MHz: < 3.0 Antenna Gain 4 dBi Antenna Radiation Pattern Omni-directional Impedance 50 Ohm Connector 50 Ohm AN2450-6401RS: SMA Male Reverse B. Mechanical Dimension Total Length AN2450-6401RS: 158 mm C. Material Color AN2450-6401RS: Black Material of Hinged Cover PC+ABS (Color: Black) Material of Hinged Casing PC+ABS (Color: Black) Material of Plastic Base ABS(Color: Black) Material of Plastic Cap ABS (Color: Black) Material of Connector Copper (CT3604), Cr plated Material of Sheet Metal Copper D. Environmental Page 3 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Operation Temperature - 30 ̊C ~ + 85 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C Page 4 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 4. S11 Return Loss / S.W.R. / Impedance Testing Result Antenna @ 180 degree Page 5 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Antenna @ 90 degree Page 6 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 5. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 8720D Received Antenna: 0.7~6.0 GHz for Gain Calibration Double Ridged Horn Antenna Page 7 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 8 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 6. Plastic Parts Material Datasheet Page 9 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 10 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 7. Metal Parts Material Datasheet Page 11 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 8. Coaxial Cable Datasheet RG-178 Coaxial Cable Specification 1. Cable Type MIL – C – 17 / RG-178 2. Impedance 50 ± 3 ohm Material silver-coated cooper Conductor Numbers 7 Conductor Size 0.102 mm 3. Inner Conductor Outer Diameter 0.3 mm Material FEP Color Clear Average Thickness 0.28 mm 4. Dielectric Layer Diameter 0.86 mm Material silver-coated cooper Construction 16-3-0.1 mm 5. Braid (Shielding) Coverage 95 % Material FEP Color Brown Average Thickness 0.25 mm 6. Outer Cover Diameter 1.80 ± 0.05 mm 7. V.S.W.R Testing (DC ~ 6GHz) < 1.3 100 MHz 46 900 MHz 155 1800 MHz 295 2400 MHz 340 5200 MHz 505 8. Attenuation (dB / 100 meter ) 6000 MHz 550 9. Capacitance 97 ± 3 ( pF / meter) 10. Maximum Power 30 dBm 11. Spark Test 2.0 KV 12. Rating Temp. and Voltage 200 ̊C / 30V 13. Conductor Resistance 335 ohm / KM / 20 ̊C max. 14. Dielectric Resistance 3 G ohm / KM / 20 ̊C min. Page 12 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 9. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 90 ̊C (30minutes); 120 cycles After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 3. Damp Heat 500 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 4. Endurance 500 hours at 90 ̊C After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% Page 13 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna 10. SGS Testing Report Page 14 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 15 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 16 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 17 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 18 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 19 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz External Antenna Page 20 Version: 1.0 Issue Date: 2005-05-11 Product Number: AN2450-6401RS Product Name: 2.4 / 5.0 GHz Externa…

Text truncated - open the document above for the full version.

• 1 Theory of Operation Model: WVM-1101 WVM-1101 Wireless Video Module delivers video over wireless channel. It enables a wireless connection between a video source (DVD, VCR, PVR, STB, BS or PC) and a video display (standard TV, flat screen TV or video monitor) The WVM-1101 (operates in 5.15-5.35GHz band) system transmits audio and video signals from the (Model WVM-Tx) unit to the (Model WVM-Rx) unit, over IEEE 802.11a WLAN, by encoding the signals according to MPEG standards. The following is a list of the key features of the WVM-1101 1) IEEE 802.11a standard compliant Wireless LAN communication at 5GHz. 2) Modular RF (WVM-1101) will only be operating in 5..15-.5.35GHz band and will be sold in countries where 5.15-5.35GHz band is allowed 3) WLAN bit rates of 6 Mbps, 12 Mbps and 24 Mbps. Supported Operating Frequencies 5.15-5.25Ghz and 5.25-5.35GHz Modulation Types •DSSS: CCK • OFDM: BPSK, QPSK, 16 QAM, 64 QAM resulting in data rates ranging from 6 to 24 Mbps. FCC 15.407 Requirements Frequency Stability (15.407 (g)) FCC 15.407(g) states: “Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual.” The device operates in 5.15GHz and 5.35GHz. The carrier is 20MHz wide. For example, IEEE Channel #36 (5.18GHz) has Fc centered at 5.18GHz with a bandwidth of 20Mhz or 5.17 to 5.19 GHz. This provides a guard band of 20 MHz (5.17 GHz - 5.15 GHz). The device also requires a +/- 20 ppm XTAL over temperature and with aging. This is required per the 802.11 specification. Based on the tolerance of the XTAL and the 20 MHz guard band, the device will maintain emissions within the UNII bands under normal operating conditions. Ensuring Indoor Use in 5.15-5.25 GHz Band (15.407 (e)) FCC 15.407(e) states: “Within the 5.15-5.25 GHz band, U-NII devices will be restricted to indoor operations to reduce any potential for harmful interference to co-channel MSS operations.” The user manual includes the following statement: “Radio Frequency interference requirements: This device is restricted to indoor use only. Industry Canada and FCC requires this product to be used indoors due to its operation in the frequency range 5.15 to 5.25 GHz” Discontinue Transmitting with absence of Data or operational failure (15.407 (c)) FCC 15.407(e) states: “The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure.” Data transmission is always initiated by software, which is then passed through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. These are the only ways by which the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted.

MAX LIGHT MEASUREMENT REPORT 1/2 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab M M a a x x i i m m u u m m P P e e r r m m i i s s s s i i b b l l e e E E x x p p o o s s u u r r e e 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Description of EUT EUT : Wireless Video Module Applicant : TURBOCOMM TECH.INC. 2F,No.19-8 San Chong Road ,Nan-Kang, Taipei 115,Taiwan,R.O.C Manufacturer : TURBOCOMM TECH.INC. 2F,No.19-8 San Chong Road ,Nan-Kang, Taipei 115,Taiwan,R.O.C Model No : WVM1101-TX / WVM1101-RX FCC ID : N7ZWVM-1101 3. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. MAX LIGHT MEASUREMENT REPORT 2/2 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r^2) Where Pd = power density in mW/cm^2 Pout = output pwer to antenna in Mw G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 5. Test Result: 802.11a Max RF Power (dBm) TX Antenna Gain (dBi) Testing Result (mW/cm^2) MPE Limit (mW/cm^2) 18.37 4.0 0.0054 1

Part 15 Subpart B & E (15.407) ANSI C63.4-2003 Product : Wireless Video Module Applicant : TURBOCOMM TECH.INC. FCC ID : N7ZWVM-1101 Model No. : WVM1101-TX / WVM1101-RX Report No. : MLT0603P15004 Issue Date : April 20,2006 Test By Max Light Technology Co.,Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 T T h h e e t t e e s s t t r r e e p p o o r r t t c c o o n n s s i i s s t t s s o o f f 5 5 6 6 p p a a g g e e s s i i n n t t o o t t a a l l . . I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . MAX LIGHT MEASUREMENT REPORT Page: 2/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab Table of Contents : I. General 4. II. Conducted Emissions Requirements 8. III. Radiated Emissions Requirements 16 . IV. For 802.11a 5150MHz – 5350MHz 32. 1. Emission bandwidth Requirements 32. 2. Peak Transmit Power Requirements 36. 3. Peak Power Spectral Density Requirements 40 . 4. Peak Excursion Requirements 44 . 5. Band Edges Requirements 48 . 6. Frequency Stability Requirements 52 . V. Antenna Requirements 54. Appendix I (EUT Test Setup) 55. MAX LIGHT MEASUREMENT REPORT Page: 3/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003. All test were conducted by MLT (Max Light Technology Co., Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart B & E (15.407). EUT : Wireless Video Module Applicant : TURBOCOMM TECH.INC. 2F,No.19-8 San Chong Road ,Nan-Kang, Taipei 115,Taiwan,R.O.C Manufacturer : TURBOCOMM TECH.INC. 2F,No.19-8 San Chong Road ,Nan-Kang, Taipei 115,Taiwan,R.O.C Model No : WVM1101-TX / WVM1101-RX FCC ID : N7ZWVM-1101 Prepared by : Approved by : Jesse Tien Roger Chen MAX LIGHT MEASUREMENT REPORT Page: 4/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of TURBOCOMM TECH.INC. In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart A And B &E of the Commission’s and Regulations. 1.2 Description of EUT EUT : Wireless Video Module Applicant : TURBOCOMM TECH.INC. 2F,No.19-8 San Chong Road ,Nan-Kang, Taipei 115,Taiwan,R.O.C Manufacturer : TURBOCOMM TECH.INC. 2F,No.19-8 San Chong Road ,Nan-Kang, Taipei 115,Taiwan,R.O.C Model No : WVM1101-TX / WVM1101-RX FCC ID : N7ZWVM-1101 Power Type : Input : AC100~240V 0.8A 50~60Hz Output : DC3.3V 4A Model No.: SA06N3V3 - V Frequency of Channel : See Next page Type of Modulation : Orthogonal Frequency Division Multiplexing Scheme Type of Antenna : 1/2 λDIOPLE Antenna During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. MAX LIGHT MEASUREMENT REPORT Page: 5/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab Frequency of 5150MHz～5250MHz,5250MHz～5350MHz(Working Frequency) Channel No. Frequency (MHz) 01 5180 02 5200 03 5220 04 5240 05 5260 06 5280 07 5300 08 5320 1.3 Summary Of Tests For frequency 5150MHz – 5350MHz 47 CFR Part 15 Subpart E Reference Test Results Note 15.407(b)(5) AC Power Conducted Emission PASS 15.407(b/1/2/3)(b)(5) Electronic Filed Strength Spurious, 30MHz ～ 40GHz PASS 15.407(a/1/2/3) Peak Transmit Power PASS 15.407(a)(6) Peak Power Excursion PASS 15.407(a/1/2/3) Peak Power Spectral Density PASS 15.407(g) Frequency Stability PASS Note: (1) The WVM1101-TX / WVM1101-RX802.11a (CH01/CH04/CH05/CH08) have been tested, the testing report only record the worst cases which were 802.11a (CH01). (2)There were no changes made to this EUT (hardware or antenna) (3)The WVM1101-TX and WVM1101-RX are electrically identical. MAX LIGHT MEASUREMENT REPORT Page: 6/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab 1.4 Description of Support Equipment In order to construct the minimum system which required by the ANSI C63.4-2003, following equipments were used as the support units. Computer : IBM Model No. : 16W Serial No. : BNL345M FCC ID : FCC DOC Monitor : IBM Model No. : 10L6145 030 Serial No. : 23-092079 FCC ID : FCC DOC Keyboard : IBM Model No. : KB-9930 Serial No. : 09N5395 FCC ID : FCC DOC Mouse : IBM Model No. : 0180-05N Serial No. : 23-96142 FCC ID : EMJMUSJJ MAX LIGHT MEASUREMENT REPORT Page: 7/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab 1.5 Configuration of System Under Test During testing the EUT (Wireless Adapter) ’s test fixture extender connected to the Desktop PC, and the monitor / modem / keyboard / mouse / printer connected to desktop’s PC I/O port. 1.6 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4-2003 "Measurement of un-Intentional Radiators. 1.7 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these te…

Text truncated - open the document above for the full version.

MAX LIGHT MEASUREMENT REPORT Page: 19/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab 3.3 Test Configuration: Front View of The Test Configuration MAX LIGHT MEASUREMENT REPORT Page: 20/56 Report Number: MLT0603P15004 FCC ID: N7ZWVM-1101 Technology Lab Rear View of The Test Configuration
