N89-DWG814E802.11 b/g ADSL2+ Wireless Router

DWG Series ADSL2+ Router Quick Installation Manual 1 Appearance Figure 1 DWG series rear view 2 Packing List z One DWG series ADSL2+ router z One power adapter z One telephone cable z One Ethernet cable z One USB cable z Two screws and two anchors z One Quick Installation Manual z One CD z Certificate of Quality 3 Hardware Installation 3.1 Installing ADSL Line Figure 2 Installing ADSL Line Two options are available for ADSL line connections: z Direct connect the ADSL line (same as a regular telephone port) to the wall telephone line outlet. z As shown in Figure 2 , Connect th e ADSL port and a telephone set to a splitter, and then the splitter to the wall outlet of telephone line. Thus you may place phone calls when accessing the Internet. 3.2 Connecting to PC or Ethernet You can use crossover or straight throug h cables to connect the PC, HUB, or switch to the MDI/MDIX auto-sensing interface of WDR series ADSL2+ router. 3.3 Connecting the Power Cord (1) Attach one end of the power cord to the router and the other end to power outlet. The power cord is accessory of the router. (2) Observe the LED status one minute later. The following table lists the LEDs and their normal expected status. Table 1 LEDs LED Normal status Power The LED stays green. Check the power cord connection if the LED stays off. Link The blinking of the LED indicates the ADSL activation and 20 to 30 seconds later, the LED stays green. LAN The green LED stays on. The blinking of the green LED indicates the data transmission on the Ethernet port. Diag This LED is off. If this LED turns on, contact the agents for help. 3.4 Configuring to Obtain an IP Address Automatically Take the operation in the Windows 2000/ XP operating system for example. The steps are as follows: (1) Click the <Start> button and choose the Settings > Control Panel options. Double-click on the Network Dial-up Connections icon from the Control Panel window. (2) Right-click on the Local Area Connectio n icon and select the Properties from the pop-up menu. Next, choose the Intern et Protocol (TCP/IP) from the Local Area Connection Properties tabbed interf ace and click <Properties> to proceed. (3) When the Internet Protocol (TCP/IP) Properties interface pops up, select the Obtain an IP address automatically and Obtain DNS server address automatically options, then click <OK>. 3.5 Logon (1) Check the configuration of the proxy server. Disable the proxy server first when the PC is accessing the In ternet through proxy server. (2) Use the Web browser. Enter http://192.168.1.1 in the address bar (by default, the IP address of the WDR ADSL2+ router is 192.168.1.1). (3) Log onto the Web setup manager. A new window appears prompting you to enter the user name and password. For the first logon, use the default administrator user name admin with the password admin . The password can be modified after entering the management interface. Telephone Desktop PC Telephone por t A DSL2+ Wireless Route r NoteBook Splitte r LINE ADSL PHONE Figure 3 Entering the user name and password 4 Setup After you log onto the Web page, follow the simple steps to finish the quick configuration: (1) Click <Quick Start> from the Naviga tion bar to the Quick Start window. Select the PPPoE as the login type, and then input the user name and password assigned by ISP. You may leave the Service Name box untouched. Then click <Save Settings> to proceed. Figure 4 Setting parameters (2) Click <Status> from the Navigation bar to enter the Status tabbed page. You can find that the IP Address item presen ts an IP address of the public network instead of the original 0.0.0.0. Figure 5 Checking status (3) If you obtain no public IP address, click <WAN Setup> from the Navigation bar. Then you can view the VPI/VCI value that the system detects automatically. If the values are incorrect, select th e Disable option and input the values manually. For the correct VPI/VCI value, contact your local ISP. Figure 6 Checking the VPI/VCI value At last, click <Save Settings> in th e WAN tabbed interface to finish the configuration. Figure 7 Save settings 5 Quick Troubleshooting Table 2 Quick troubleshooting Symptom Solution The ADSL Link LED stays OFF. The RJ-11 telephone cable must be used and connected to the ADSL and telephone ports correctly. Access to the Internet fails. Make sure that: 1) You have followed all the steps described above and found no problems. 2) The IP address of your PC is in the range of allocated valid addresses. To check it, select the Run option from the Start menu. In the pop-up window, input winipcfg (in Win98 operating system) or ipconfig (in Win2000/XP operating system) for the IP address checking. 3) You can ping the IP address of the gateway (192.168.1.1). 4) You have performed the correct DNS configuration on your PC. 5) You have disabled the proxy server. 6) The correct VPI/VCI value is set on the WAN Setup window. You forget the login password. Both of the default user name and password are admin . If you have changed the password but forget it, press the Reset button for 5 seconds to restore the default settings on the router. Then you can access the Web page with the default user name and password. Note: The reset function restores the settings to the factory default settings. Access to the router Web pages fails. Make sure that: 1) The LAN LED is ON. 2) The settings of TCP/IP properties are correct. 3) You have entered the correct user name and password. If you still cannot access the router Web pages, press the Reset button for 5 seconds to restore the default settings. The modification on the Web pages fails to save. You need to click <Save Settings> to save every modification that you have made. Input the username and password assigned by ISP FCC Caution: 1. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,…

Text truncated - open the document above for the full version.

CyberTAN Technology Inc. 99 Park Avenue III Science-based Industrial Park Hsinchu 308, Taiwan, R.O.C. *********************************************************************************** Authorization Agency Letter Product : ADSL2+ Wireless Router Model : DWG-814E FCC ID : N89-DWG814E To Whom It May Concern: Please be advised that CyberTAN Technology Inc. authorizes. Compliance Certification Services Inc. to act on our behalf on the produce certificate applications submitted,(For example:FCC certificate,IC certificate,CE application,& notification) until otherwise notified, for all relation certificated institute. Thank you for your attention to this matter. Sincerely, Signature:

CyberTAN Technology Inc. 99 Park Avenue III Science-based Industrial Park Hsinchu 308, Taiwan, R.O.C. Confidentiality Request FCC ID : N89-DWG814E Product : ADSL2+ Wireless Router Model : DWG-814E Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

Mike Kuo From: [email protected] Sent: Monday, April 11, 2005 1:40 AM To: Mike Kuo Cc: [email protected] Subject: FW: CyberTAN Technology Inc., FCC ID: N89-DWG814E , Assessment NO.: AN05T4690, Notice#1-- Updated(0411)-Revised Attachments: DWG-814E_Description of Operational_revised.pdf; DWG-814E_Report(FRF)0411.pdf; DWG-814E_User menual(0411).pdf 4/13/2005 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, April 07, 2005 8:58 PM To: Mike Kuo Subject: CyberTAN Technology Inc., FCC ID: N89-DWG814E , Assessment NO.: AN05T4690, Notice#1 Question#1: User Manual does not include the information required per section 15.21, 15.105(b) and RF exposure warning statement. Please submit revised user manual to address this requirement. "Mike Kuo" <[email protected]> 2005/04/09 09:48 <[email protected]> <[email protected]> Ans: Please find the attached for updated:DWG-814E_User manual(0411). Question#2: The block diagram of operational description indicated this device is capable of operating from 2412 to 2472 MHz which does not agree with the test report. Please explain.. Ans: Please find the attached for updated:DWG-814E_Description of Operational-Revised. And have remark the following statement: In USA, this device can only operate in 2412-2462MHz, as for other channels will be disable by software before importing. Question#3: Section 3.1 of test report indicated the calibration of AH-840 Horn antenna is overdue. Please address this ISO Guide 17025 quality issue. Ans: Sorry for our typing error.We have corrected that ! Please find the attached for updated:DWG-814E_Report(FRF)0411. Best Regards, Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4/13/2005

Compliance Certification Services Inc. Report No.：50314301 Page 1 of 46 External Photo Compliance Certification Services Inc. Report No.：50314301 Page 2 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 3 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 4 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 5 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 19 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 20 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 21 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 22 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 23 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 24 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 25 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 26 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 27 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 28 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 29 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 30 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 31 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 32 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 33 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 34 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 35 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 36 of 46 Power Adapter：HON-KWANG / D12-1A Compliance Certification Services Inc. Report No.：50314301 Page 37 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 38 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 39 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 40 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 41 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 42 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 43 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 44 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 45 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 46 of 46

Company : CyberTAN Technology Inc. Model : DWG-814E Product : ADSL2+ Wireless Router ADSL2+ Wireless Router Model No: DWG-814E FCC ID：N89-DWG814E This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here

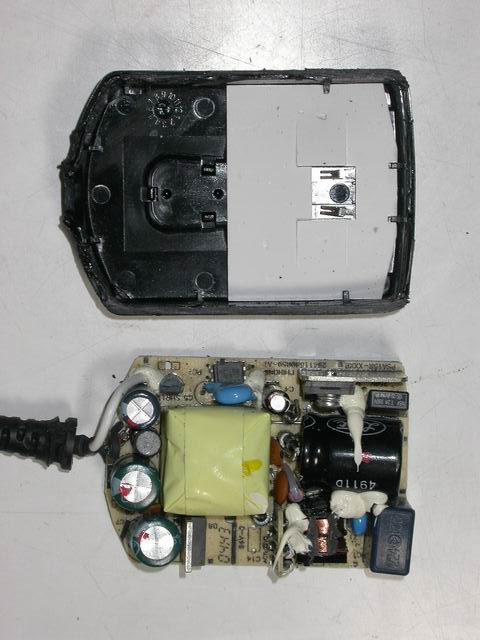

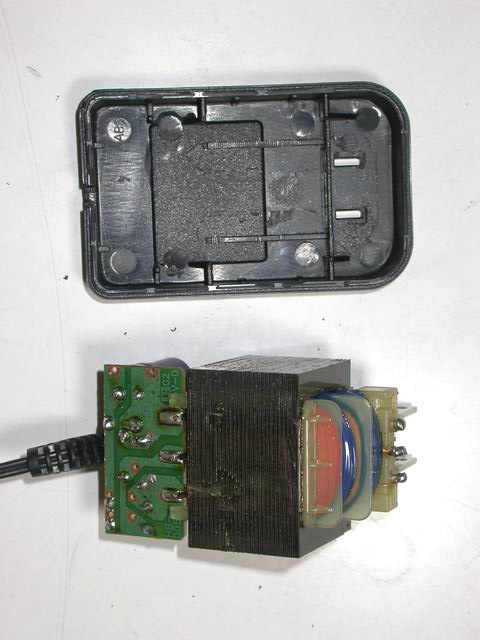

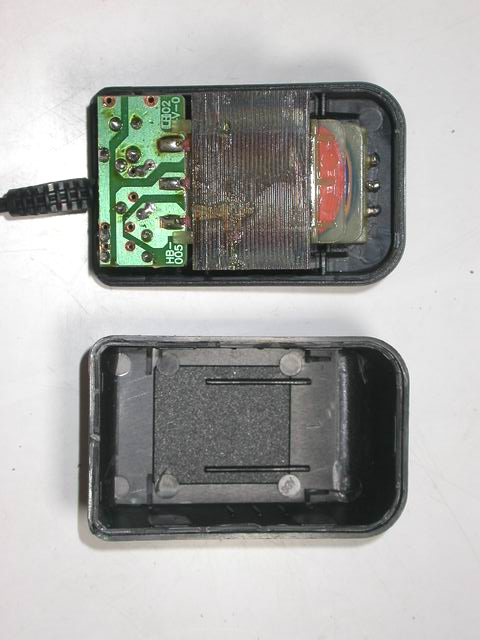

Compliance Certification Services Inc. Report No.：50314301 Page 6 of 46 Internal Photo Compliance Certification Services Inc. Report No.：50314301 Page 7 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 8 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 9 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 10 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 11 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 12 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 13 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 14 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 15 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 16 of 46 Compliance Certification Services Inc. Report No.：50314301 Page 17 of 46

DWG814E Operation description LNA Tran s m i t Prea m p Qua d rature Up /Dow n Co nv e r t e r VC O Sy nthesizer Lo op Filter 40. 44 M H z Cloc k Dat a Cloc k Lat c h En ab l e RX Am pl Lo w PassFilter Computer Baseban d Proc esso r/M A C TX I TXQ BB AGC RX I RX Q TNETW 113 0 U1 M i niP C I Bus EEP ROM U4 IF SAWFi lt e r ( 374M Hz ) 1.5/3.3V IF 374M Hz FL5 JM1 R X AGC T/R T/R 2.8/3.3V U5 J3 J2 RC 2 422 T X AGC U14 U8 U6+ X 2 OSC CKT. 24 C 0 8 Sw itch DIVE RSITY 1.8/3.3V FL2 U10 BAND PA S S FILT ER U15 RF 2412 - 2 4 7 2 MHz C y berTAN Technol ogy , Inc. R40, C90 C88, C89 T/R Band Pass Fi lt e r P. A . Po w e r Detector RC 2 321 / 2 326 RX PR E AMP T/R T/R IFLO U2 R F CHANNEL:2.412GH z - 2 .472G H z FL1 Operation descrition U1 MAC/BB controller ( TNETW1130) Æ Determine the modulation t y p e (DB P SK,DQPSK ,CCK ,OFD M) Æ Baseband Processor Æ send out T X I & T XQ signal Æ U8 radio IC (RC2422) Æ Mixed T X I & T XQ with IF signal(374M Hz) Æ S e nd out transmission s i gnal Æ U2 RF part (2412-2484MHz) and Power Am plifier (RC 2 326) to amplify the signal Æ BPF Æ U14 Antenna diversity switch Æ Antenna Æ Transmit signal out from Antenna F In USA, this device can only operate in 2412-2462MHz, as for other channels will be disable by software before importing.

Compliance Certification Services Inc. FCC ID : N89-DWG814E Report No.：50314301-RP2 Page 1 of 57 RF TEST REPORT Product Name ： ADSL2+ Wireless Router Model Number ： DWG-814E Brand Name ： CyberTAN FCC ID ： N89-DWG814E Applicant ： CyberTAN Technology Inc. Address ： No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Received Date ： March 14, 2005 Tested Date ： March 14 ~ 30, 2005 Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-8012 FAX: (03) 582-5720 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Compliance Certification Services Inc. FCC ID : N89-DWG814E Report No.：50314301-RP2 Page 2 of 57 Test Report Certification Product Name ： ADSL2+ Wireless Router Model Number ： DWG-814E Brand Name ： CyberTAN FCC ID ： N89-DWG814E Applicant ： CyberTAN Technology Inc. Measurement Standard : FCC 47 C.F.R. Part 15, Subpart B and Subpart C (2004), ANSI C63.4 (2003) CISPR 22, CLASS B, (1997) +A2 (2002) WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc. FCC ID : N89-DWG814E Report No.：50314301-RP2 Page 3 of 57 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION ................................................................................................... 5 1.1 General Statement ...............................................................................................................................5 1.2 General Description of EUT & Power ................................................................................................5 1.3 Description of Peripherals...................................................................................................................6 1.4 EUT & Peripherals Setup Diagram.....................................................................................................6 1.5 EUT Operating Condition ...................................................................................................................7 1.6 Description of Test Site.......................................................................................................................8 1.7 Summary of Test Results ....................................................................................................................9 2. CONDUCTED POWERLINE TEST....................................................................................... 10 2.1 Test Equipments..................................................................................................................................10 2.2 Test Setup............................................................................................................................................10 2.3 Conducted Power Line Emission Limit ..............................................................................................11 2.4 Test Procedure.....................................................................................................................................11 2.5 Uncertainty of Conducted Emission ...................................................................................................11 2.6 Conducted RF Voltage Measurement .................................................................................................12-15 2.7 Photos of Conduction Test ..................................................................................................................16 3. RADIATED EMISSION TEST ................................................................................................ 17 3.1 Test Equipments..................................................................................................................................17 3.2 Test Setup............................................................................................................................................17 3.3 Radiation Limit ...................................................................................................................................18 3.4 Test Procedures ...................................................................................................................................19 3.5 Uncertainty of Radiated Emission ......................................................................................................19 3.6 Radiated RF Noise Measurement........................................................................................................20-32 3.7 Photos of Open Site.............................................................................................................................33-34 4. 6dB BANDWIDTH MEASUREMENT ................................................................................... 35 4.1 Test Equipments..................................................................................................................................35 4.2 Test Setup............................................................................................................................................35 4.3 Limits of 6dB Bandwidth Measurement .............................................................................................35 4.4…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID : N89-DWG814E Report No.：50314301-RP2 Page 16 of 57 2.7 Photos of Conduction Test Compliance Certification Services Inc. FCC ID : N89-DWG814E Report No.：50314301-RP2 Page 33 of 57 3.7 Photos of Open Site Compliance Certification Services Inc. FCC ID : N89-DWG814E Report No.：50314301-RP2 Page 34 of 57
