N89-EWW631C1V1AX3000 Wireless Dual Band Wall Mount Access Point

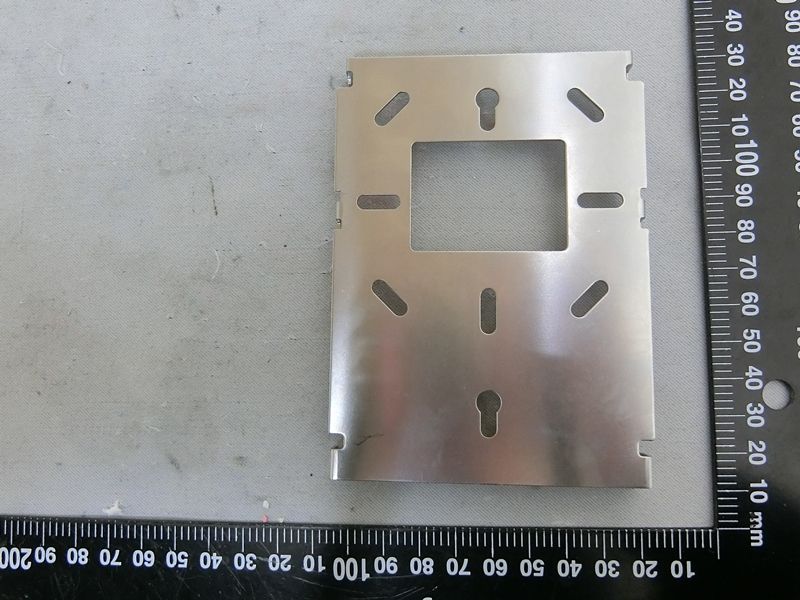

FIGURE 11>12: Mounting bracket to a wall and insert into the WAN port in the bottom side. FIGURE 13: Fit into slots on the bottom of the RAP630W-311G / 211G. 8. The mounting bracket has two lower hooks that fi t into slots on the bottom of the RAP630W-311G / 211G. Rest the bottom of the RAP630W-311G / 211G on the lower hooks, and tilt the RAP630W-311G / 211G until it is up against the mounting bracket. 9. Align the screw holes on the left and right sides of the RAP630W-311G / 211G with the corresponding screw holes on both sides of the bracket. 10. Use a T10 Torx driver to screw the factory-supplied Torx fl at head machine screws through the RAP630W-311G / 211G screw holes into the threaded inserts on the sides of the mounting bracket. 11. Confi rm whether it can start normally. FIGURE 14: Using the screw into the threaded inserts on the sides. > Step 10: Testing the RAP630W-311G / 211G Operation After a short pause to re-establish the Internet connection, you can test the RAP630W-311G / 211G. 1. Using any wireless-enabled PC or mobile device, search for and select the wireless network you previously confi gured. 2. If you can connect, open a browser and navigate to any public website. 3. Using any wired PC or other device and an Ethernet cable, plug into an Ethernet port on the bottom of the RAP630W-311G / 211G. 4. Open a browser and navigate to any public website. 5. Repeat Step 3 and Step 4 in this procedure for the other Ethernet ports on the bottom of the RAP630W-311G / 211G. 6. Verify that all connected PoE-powered devices and are working correctly. Congratulations! Your RAP630W-311G / 211G is active and ready for use. FIGURE 15: RAP630W-311G / 211G set up image. > Step 8: Testing the RAP630W-311G / 211G Operation After a short pause to re-establish the Internet connection, you can test the RAP630W-311G / 211G. 1. Using any wireless-enabled PC or mobile device, search for and select the wireless network you previously confi gured. 2. If you can connect, open a browser and navigate to any public website. 3. Using any wired PC or other device and an Ethernet cable, plug into an Ethernet port on the bottom of the RAP630W-311G / 211G. 4. Open a browser and navigate to any public website. 5. Repeat Step 3 and Step 4 in this procedure for the other Ethernet ports on the bottom of the RAP630W-311G / 211G. 6. Verify that all connected devices are workingcorrectly. Congratulations! Your RAP630W-311G / 211G is active and ready for use. > Step 9: Mounting Instructions Generic wall mount installation 1. Attach the RAP630W-311G / 211G mounting bracket to a wall. 2. Mark the positions of the two screw holes. 3. After removing the mounting bracket, proceed with drilling. 4. Retrieve two coupling nuts from the kit and use a hammer to secure them into the wall, creating screw holes. FIGURE 9>10: Mark the positions of the two screw holes and make the screw holes. 5. Align the mounting bracket with screw holes, inserting screws through the holes in the bracket and the newly drilled screw holes. 6. Make sure that the mounting bracket is securely fastened on the wall. 7. Take the uplink Ethernet cable and insert it into the WAN port in the bottom of the RAP630W-311G / 211G. 567 6011-31100021R This Quick Setup Guide provides step-by-step instructions on how to install and begin using your SonicFi RAP630W-311G / 211G dual-band 802.11ax indoor Wi-Fi access point (AP). Upon following the steps outlined in this guide, you will be able to access the RAP630W-311G / 211G Access Point Wall Switch, allowing you to offer wired and wireless network access to users. Subsequently, this document will refer to the RAP630W-311G / 211G Access Point Wall Switch as the RAP630W-311G / 211G. FIGURE 1: RAP630W-311G / 211G Access Point: Top View and Back View. About Peripheral Devices The RAP630W-311G / 211G can provide power to PoE-powered devices, with the supplied power contingent on the PoE power delivered to the RAP630W-311G / 211G. The LAN + PoE Out port is designated for PoE-powered peripheral devices, such as IP Phone and IP camera. TABLE 1: RAP630W-311G / 211G AP Ports No.LabelDescription 11G ETH PoE 1 x 10/100/1000 Mbps RJ-45 Ethernet port (supports 802.3af/at PoE in) 21G ETH PoE 1 x 10/100/1000 Mbps RJ-45 Ethernet port (supports 802.3af PoE out) 31G ETH2 x 10/100/1000 Mbps RJ-45 Ethernet port 4Reset switchResets the AP RAP630W-311G / 211G Access Point Quick Setup Guide Package Contents A complete RAP630W-311G / 211G installation package includes all of the following items: • RAP630W-311G / 211G Access Point. • One mounting kit, including Two 1-inch No. 8 steel pan-headPhillips sheet metal screws, two anti-theft screws, two coupling nuts and wall-mount anchors. • One wall plate bracket. • Service Level Agreement/Limited Warranty Statement (Optional). • Declaration of Conformity (Optional). • Regulatory Statement (Optional). • This Quick Setup Guide (Electrical). Required Hardware Tools • A controller (Confirm that "Controller" has completed the first registration). • Cat 5e (or better) Ethernet cable. • Customer-supplied IEEE 802.3af/at-compliant PoE switch and customer-supplied Ethernet cable. • Customer-supplied IEEE 802.3af/at-compliant PoE injector and customer-supplied Ethernet cable. • No. 2 Phillips screwdriver and T10 Torx driver for the mounting bracket screws. • (Optional) One or two separate bypass cables run through the outlet box. > Step 1: Connecting Your Controller to the AP 1. Using an Ethernet cable to connect one of your controller LAN port to the PoE port of the AP. Refer to Figure2. FIGURE 2: RAP630W-311G / 211G AP Ports on Bottom Panel. A. Ethernet + PoE in port B. Ethernet port C. Ethernet port D. Ethernet + POE out port E. Reset button 2. Verify that the PWR LED (front side) on the AP is lit a steady blue. A D E B C > Step 2: Login Controller website for setting 1. Using an Ethernet cable to connect your computer network port to one of the LAN ports on the controller. 2. Open a browser (we rec…
