N89-RAP750EV1BE5000 Wireless Dual Band Outdoor Wall Mount Access Point

Ronto Enterprise Networking Solution Hardware Installation Guide SonicFi Inc. Address: 1F., No.222, Shijie Rd., East Dist., Hsinchu City 300, Taiwan (R.O.C.) Version: V0.7 1 ⚫ Supports model list Type Description Enterprise Access Point RAP630C-311G, RAP630W-311G, RAP630W-211G RAP7110C-341X, RAP750W-311A, RAP750E-H, RAP750E-S Ethernet Switch RSW226G-1PV, RSW226G-1P, RSW226G-1V RSW226G-1, RSW226G-2PV, RSW210G-2PV, RSW210G-1PV, RSW210G-1V, RSW210A-1PPV, RSW210A-1V, RSW210A-1PP, RSW210A-1 Enterprise Access Point Controller RCN205G-1PV This manual includes the Controller, Enterprise Access Points and Ethernet Switches installation and configuration. All of the Access Points and Ethernet Switches are managed by Controller. 2 Index 1. Abstract ............................................................................................................................ 4 2. Installation ....................................................................................................................... 5 2.1 RCN205G-1PV Hardware Installation ............................................................................. 5 2.1.1 RCN205G-1PV Hardware Specification .......................................................................... 5 2.1.2 Overview ......................................................................................................................... 6 2.1.3 Package Contents ........................................................................................................... 6 2.1.4 Required Hardware Tools .............................................................................................. 6 2.1.5 Installation Steps ............................................................................................................ 7 2.1.6 Controller LCD Touch Screen ........................................................................................ 10 2.2 RSW210GSeries Hardware Installation ........................................................................ 16 2.2.1 RSW210G Series Hardware Specification .................................................................... 27 2.2.2 Switch LCD Touch Screen ............................................................................................. 29 2.3 RSW226G Series Hardware Installation ....................................................................... 36 2.3.1 Overview ....................................................................................................................... 36 2.3.2 LCD Indicator ................................................................................................................ 39 2.3.3 LED Indicators ............................................................................................................... 39 2.3.4 Switch LCD Touch Screen ............................................................................................. 41 2.3.5 Rack Mounting .............................................................................................................. 48 2.3.6 RSW226G Series Hardware Specification .................................................................... 52 2.4 Warnings and Cautionary Messages ............................................................................ 54 2.4.1 Regulatory Notice and Statement ............................................................................... 55 2.5 RAP630W-311G/211G Quick Setup Guide .................................................................. 60 2.5.1 RAP630W-311G/211G Hardware Specification.......................................................... 61 2.5.2 Overview ....................................................................................................................... 62 2.5.3 About Peripheral Devices ............................................................................................. 62 2.5.4 Package Contents ......................................................................................................... 63 2.5.5 Required Hardware Tools ............................................................................................ 63 2.5.6 Installation Steps .......................................................................................................... 64 2.6 RAP630C-311G Quick Setup Guide ............................................................................... 73 2.6.1 RAP630C-311G Hardware Specification ...................................................................... 74 2.6.2 Overview ....................................................................................................................... 75 3 2.6.3 Package Contents ......................................................................................................... 76 2.6.4 Required Hardware Tools ............................................................................................ 76 2.6.5 Installation Steps .......................................................................................................... 77 2.6.6 RAP630W-311G/ RAP630C-311G LED Indicator .......................................................... 85 2.7 RAP7110C-341X Quick Setup Guide ............................................................................ 86 2.7.1 RAP7110C-341X Hardware Specification .................................................................... 87 2.7.2 Overview ....................................................................................................................... 88 2.7.3 Package Contents ......................................................................................................... 88 2.7.4 Required Hardware Tools ............................................................................................ 89 2.7.5 Installation Steps .......................................................................................................... 90 2.8 RAP750W-311A Quick Setup Guide ........................................…

Text truncated - open the document above for the full version.

RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 65 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 66 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 67 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 68 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 69 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 70 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 71 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 72 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 73 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 74 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 75 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 76 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 77 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 78 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 79 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 80 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 81 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 82 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 83 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 84 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 85 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 86 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 87 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 88 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 89 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 90 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 91 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 92 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 93 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 94 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 95 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 96 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 97 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 98 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 99 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 100 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 101 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 102 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 103 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 104 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 105 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 106 of 136 Report No. : FR582738AB RSE TX above 1GHz_Test Mode: Mode 2 Appendix E.3 Sporton International Inc. Hsinchu Laboratory Page No. : 107 of …

Text truncated - open the document above for the full version.

Test Photos Appendix A Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 1 1. Photographs of Dynamic Frequency Selection Test Configuration FRONT VIEW CLOSE-UP VIEW ─────THE END───── Report No. : FZ582738

Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 4 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No. : FR582738AB Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 4 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 30MHz~1GHz Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No. : FR582738AB Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 4 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No. : FR582738AB Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 4 of 4 Test Mode: Mode 2 FRONT VIEW REAR VIEW ─────THE END───── Report No. : FR582738AB

Test Photos Appendix E Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 3 Report No. : AP582738 1. Photographs of Test Configuration The initial test position. +Z axis. Phi and Theta are zero degree. Test Photos Appendix E Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 3 Report No. : AP582738 Test Setup Photos Test Photos Appendix E Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 3 Report No. : AP582738 2. Antenna Configuration Diagram of EUT ─────THE END─────

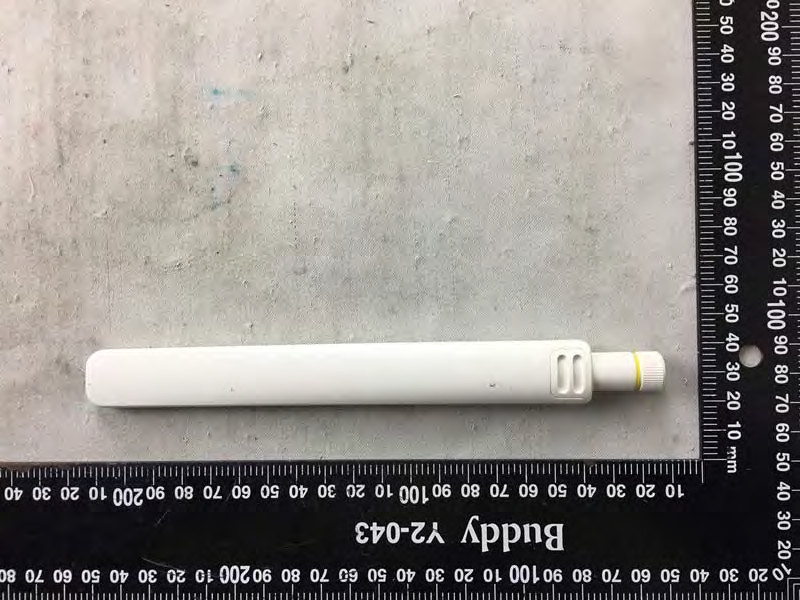

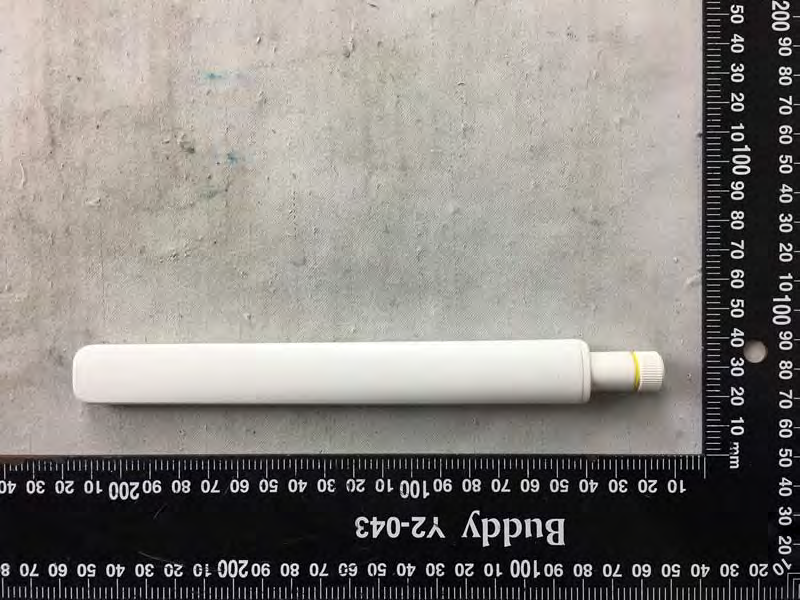

Dipole ANTENNA 2.4~2.5/5.15~5.85GHz Working Frequency Halogens Free Product P/N: RFDPA161500SBLB813 Customer： 建漢 Customer ‘s Part No.： 2365-23100006R Production： Address： NO.11, KE-YI ST., CHUNAN TOWN, MIAOLI COUNTY 350402, TAIWAN, R.O.C. Part Number：RFDPA161500SBLB813 History List REV. EDITOR PAGE ITEMS OF CHANGE DATE VALID DATE ECN NO. P0 CXLIU ALL Temporary Release 2025/03/25 According to the date of PLM Release N/A P1 CXLIU ALL 刪除Gain table 2025/12/17 According to the date of PLM Release N/A INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 1 OF 12 品名：RFDPA161500SBLB813 1. Explanation of part number： RF DPA 1615 00 S B L B 8 13 Type Code Product Code Dipole Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project Walsin RF Device DPA: Dipole Antenna Per 2 digits of length, width e.g.: 1615 Length 196.55mm, Width ψ13.0mm 2 digits for cable length e.g.: 00 None Cable A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 5: 5 GHz 6: 6GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.2/5.8 GHz tri-band N: NFC T:LTE band W: WCDMA band B: MP T:During Test X: Pile Run 0:None 1:∅0.81 3:∅1.13 6:RG316 7:∅1.37 8:RG178 01~99 series number 2. Electrical Specification： Item Specification Working Frequency Range 2.4~2.5/5.15~5.85GHz Peak Gain 2.4 ~ 2.5 GHz：5.20 dBi 5.15 ~ 5.85GHz：7.18 dBi Return Loss -10dB(Max) VSWR 2 max. Polarization Linear Radiation Pattern Omni-directional Impedance 50 Operation Temperature －20°C ～ ＋65°C INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 2 OF 12 3. Antenna Drawing： INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 3 OF 12 4. Performance Report： Test Report ■Experimental Setup INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 4 OF 12 ■Electrical Characteristics Return Loss INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 5 OF 12 ■Antenna Efficiency & Peak Gain INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 6 OF 12 ■3 Views of Antenna INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 7 OF 12 ■Radiation P attern X-Z Plane Phi=0.00deg Gain . dB INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY：劉采璇 CHECKED BY：詹惠雯 DESIGNED BY：吳金煌 APPROVED BY：陳振榮 TITLE：RFDPA161500SBLB813 DOCUMENT SPEC REV. NO. P1 PAGE 8 OF 12 Y-Z Plane Phi=90.00deg Gain . dB INPAQ TECHNOLOGY CO., LTD 2025/12/17 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝N/A X.X＝N/A X.XX＝N/A ANGLES＝N/A HOLEDIA＝N/A SCALE：N/A UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND …

Text truncated - open the document above for the full version.

Report No. : AP582738 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 12 TEL : 886-3-656-9065 Issued Date : Dec. 29, 2025 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 Antenna Composite Gain Test Report FCC ID N89-RAP750EV1 Equipment BE5000 Wireless Dual Band Outdoor Wall Mount Access Point Brand Name SonicFi Model Name RAP750E-S Applicant CyberTAN Technology Inc. No. 99, Park Avenue III Science-based Industrial Park Hsinchu Taiwan 308 Manufacturer CyberTAN Technology Inc. No. 99, Park Avenue III Science-based Industrial Park Hsinchu Taiwan 308 Standard KDB662911 D03 v02 Sample Received Sep. 22, 2025 Start Test Date Oct. 13, 2025 Final Test Date Oct. 13, 2025 ___________________________________________ Approved by: Sam Chen Sporton International Inc. Hsinchu Laboratory No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302010, Taiwan (R.O.C.) Report No. : AP582738 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 12 TEL : 886-3-656-9065 Issued Date : Dec. 29, 2025 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 Table of Contents History of this test report ................................................................................................................................. 3 1. Operation Mode and Antenna Information ........................................................................................ 4 2. Test Frequency ..................................................................................................................................... 4 3. Testing Location ................................................................................................................................... 4 4. Test Facility and Configuration ........................................................................................................... 5 5. Reference Calibration .......................................................................................................................... 6 6. Test Method .......................................................................................................................................... 7 7. Measured Values and Calculation of Maximum Gain Positions ...................................................... 8 8. Summary of Test Result ...................................................................................................................... 9 9. Test Setup ........................................................................................................................................... 10 10. Test Equipment and Calibration Data .............................................................................................. 11 11. Test Results ........................................................................................................................................ 12 Report No. : AP582738 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 12 TEL : 886-3-656-9065 Issued Date : Dec. 29, 2025 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 History of this test report Report No. Version Description Issued Date AP582738 01 Initial issue of report Dec. 29, 2025 Report No. : AP582738 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 4 of 12 TEL : 886-3-656-9065 Issued Date : Dec. 29, 2025 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 1. Operation Mode and Antenna Information Antenna Position RF Port Brand Name Model Name Ant. Type Connector Modes of Operation 2G Ant1 1 Airgain AP01CBARA PCB I-PEX 2.4GHz 2G Ant2 2 Airgain AP01CBARA PCB I-PEX 2.4GHz 5G Ant1 1 GALTRONICS 02102142-07899 PCB I-PEX 5GHz UNII 1~3 5G Ant2 2 GALTRONICS 02102142-07899 PCB I-PEX 5GHz UNII 1~3 Note: 2.4GHz Operation Mode (2TX/2RX) 2G Ant1~2 can be used as transmitting/receiving antenna. 2G Ant1~2 could transmit/receive simultaneously. 5GHz Operation Mode (2TX/2RX) 5G Ant1~2 can be used as transmitting/receiving antenna. 5G Ant1~2 could transmit/receive simultaneously. 2. Test Frequency The listed frequency of each bands are selected to represent each frequency bands Band [MHz] Test Frequency [MHz] 2400-2483.5 2400 2450 2483.5 5150-5250 5200 5250-5350 5300 5470-5725 5600 5725-5850 5785 3. Testing Location Testing Location Sporton International Inc. Hsinhua Laboratory HW A YA ADD : No.13-1 & 14-1, Ln. 19, Wen 33rd St., Guishan Dist., Taoyuan City 333, Taiwan R.O.C. Test Condition Test Site No. Test Engineer Test Environment (°C / %) Test Date Radiated 05CH03-HY Vivi Jiang 23.5-24.5 / 45-55 Oct. 13, 2025 Note: Testing Site Information Brand Name: TDK Dimension: 11m*6m*6m Characteristic: Fully Anechoic Chamber Report No. : AP582738 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 5 of 12 TEL : 886-3-656-9065 Issued Date : Dec. 29, 2025 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 4. Test Facility and Configuration Test configuration: Reference to CITA OTA distributed-axes system configuration. Chamber: Fully Anechoic Chamber. Measurement antenna: Dual Polarization Horn antenna Turntable: Multi-axis positioner (Theta and Phi angle). #Reference to CTIA “ctia-test-plan-for-wireless-device-over-the-air -performance-ver-3-7-1” Report No. : AP582738 Antenna Composite Gain Test Report Sporton International Inc. Hsinchu Laboratory Page No. : 6 of 12 TEL : 886-3-656-9065 Issued Date : Dec. 29, 2025 FAX : 886-3-656-9085 Report Version : 01 Report Template No.: CB-H1_3 Ver1.0 5. Reference Calibration Connected cables to VNA calibration kit and use network analyzer internal function to do calibration. Do short, open and load to each side. Then connect through to both side and calibrate G values. The cable loss is calibrated and set inside the network analyzer. Measure…

Text truncated - open the document above for the full version.

DFS TEST REPORT Report No. : FZ582738 TEL : 886-3-656-9065 Page Number : 2 of 175 FAX : 886-3-656-9085 Issued Date : Dec. 29, 2025 Report Template No.: CB-A12_3 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories .......................................................................................................................................... 12 1.3 Support Equipment ............................................................................................................................... 12 1.4 Applicable Standards ........................................................................................................................... 12 1.5 Testing Location Information ................................................................................................................ 12 2 Test Configuration of EUT ................................................................................................................. 13 2.1 Test Channel Frequencies Configuration ............................................................................................. 13 2.2 The Worst Case Measurement Configuration ...................................................................................... 13 3 Dynamic Frequency Selection (DFS) Test Result ........................................................................... 14 3.1 General DFS Information ..................................................................................................................... 14 3.2 Radar Test Waveform Calibration ........................................................................................................ 17 3.3 UNII Detection Bandwidth .................................................................................................................... 26 3.4 Channel Availability Check (CAC) ........................................................................................................ 34 3.5 In-service Monitoring ............................................................................................................................ 38 3.6 Statistical Performance Check ............................................................................................................. 43 4 Test Equipment and Calibration Data ............................................................................................ 174 5 Measurement Uncertainty ............................................................................................................... 175 Appendix A. Test Photos Photographs of EUT v01 DFS TEST REPORT Report No. : FZ582738 TEL : 886-3-656-9065 Page Number : 3 of 175 FAX : 886-3-656-9085 Issued Date : Dec. 29, 2025 Report Template No.: CB-A12_3 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FZ582738 01 Initial issue of report Dec. 29, 2025 DFS TEST REPORT Report No. : FZ582738 TEL : 886-3-656-9065 Page Number : 4 of 175 FAX : 886-3-656-9085 Issued Date : Dec. 29, 2025 Report Template No.: CB-A12_3 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.3 FCC KDB 905462 7.8.1 DFS: UNII Detection Bandwidth Measurement PA SS - 3.4 FCC KDB 905462 7.8.2.1 DFS: Initial Channel Availability Check Time PA SS - 3.4 FCC KDB 905462 7.8.2.2 DFS: Radar Burst at the Beginning of the Channel Availability Check Time PA SS - 3.4 FCC KDB 905462 7.8.2.3 DFS: Radar Burst at the End of the Channel Availability Check Time PA SS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Channel Move Time (CMT) PA SS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Channel Closing Transmission Time (CCTT) PA SS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Non-Occupancy Period (NOP) PA SS - 3.6 FCC KDB 905462 7.8.4 DFS: Statistical Perf…

Text truncated - open the document above for the full version.
