N89-EWW501A1MY NET AC 1300 ROUTER

My Net ™ AC1300 Router User Manual WD ® Service and Support Should you encounter a problem, please give us an opportunity to address it before returning this product. Most technical support questions can be answered through our knowledge base or e-mail support service at http://support.wdc.com. If the answer is not available or, if you prefer, please contact WD at the best telephone number shown below. Your product includes 30 days of free telephone support during the warranty period. This 30-day period starts on the date of your first telephone contact with WD technical support. E-mail support is free for the entire warranty period and our extensive knowledge base is available 24/7. To help us keep you informed of new features and services, remember to register your product online at http://register.wdc.com. Accessing Online Support Visit our product support website at http://support.wdc.com and choose from these topics: „ Downloads - Download drivers, software, and updates for your WD product. „ Registration - Register your WD product to get the latest updates and special offers. „ Warranty & RMA Services - Get Warranty, Product Replacement (RMA), RMA Status, and Data Recovery Information. „ Knowledge Base - Search by keyword, phrase, or answer ID. „ Installation - Get online installation help for your WD product or software. „ WD Community – Share your thoughts and connect with other users. Contacting WD Technical Support When contacting WD for support, have your WD product serial number, system hardware, and system software versions available. United States/North America English/Spanish 855.842.5370 Asia Pacific00 +80085584253 Australia 0011 +80085584253 Hong Kong/Singapore/Thailand 001 +80085584253 Japan 001/0033/0061 +80085584253 Europe00 +80085584253 Finland 990/999 +80085584253 Middle East0031.880062100 Africa0031.880062100 South Africa 09 +80085584253 Go to http://support.wdc.com/contact for a list of additional phone support numbers by region. i MY NET AC1300 ROUTER USER MANUAL Table of Contents WD ® Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Recording Your WD Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Registering Your WD Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing the Router on the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Setting up a New Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4Basic Settings and Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Opening My Dashboard After Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Understanding My Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Connecting to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Configuring Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Setting up External Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Adding a Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Advanced WAN (Internet) Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Advanced Wireless Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Advanced LAN Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Advanced Storage Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Security Settings Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Additional Features Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Admin Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 6Performing Advanced Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Enabling Guest Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Setting Up Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Changing the Administrator's Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Accessing Files Stored on an Attached USB Drive . . .…

Text truncated - open the document above for the full version.

CyberTAN Technology Inc. 99 Park Avenue III, Hsinchu Science Park Hsinchu 308, Taiwan. Tel: 886-3-57777777 ext 53219 / Fax: 886-3-5777788 Confidential Letter Date: 2012/9/28 Federal Communications Commission Authorization and Evaluation Division FCC ID：N89-EWW501A1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : CyberTAN Technology Inc. Applicant’s company address : 99 Park Avenue III, Hsinchu Science Park Hsinchu 308, Taiwan. Signature : _____________________________ Job Title and Dept. : Amy Wu. / Manager E-Mail : [email protected] Tel. : 886-3-57777777 ext 53219

CyberTAN Technology Inc. 99 Park Avenue III, Hsinchu Science Park Hsinchu 308, Taiwan. Tel: 886-3-57777777 ext 53219 / Fax: 886-3-5777788 Power of Attorney Date: 2012/9/28 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: WD / J2F FCC ID: N89-EWW501A1 Product name: MY NET AC1300 ROUTER FCC Grantee contact person information. Applicant’s company name : CyberTAN Technology Inc. Applicant’s company address : 99 Park Avenue III, Hsinchu Science Park Hsinchu 308, Taiwan. Signature : _____________________________ Job Title and Dept. : Amy Wu. / Manager E-Mail : [email protected] Tel. : 886-3-57777777 ext 53219

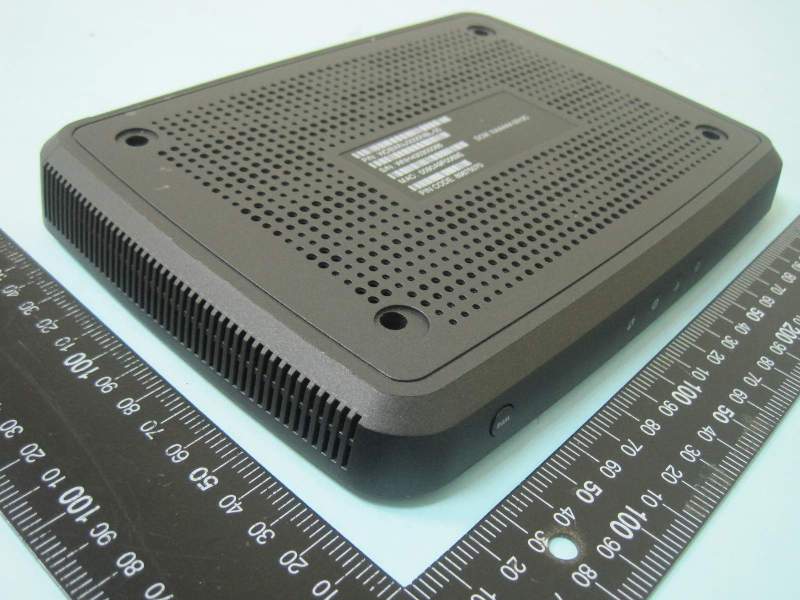

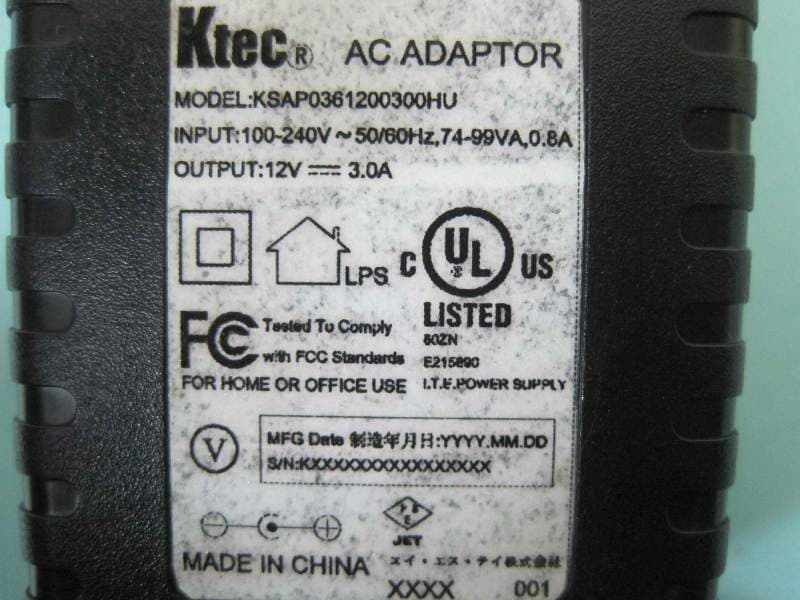

REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 Photographs of EUT REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 Adapter 1 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 Adapter 2 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255

REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 Photographs of EUT REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255 REPORT NO.281404 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct.18, 2012 FAX : 886-2-2696-2255

Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a : 13.54dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3241 13.5449 22.6197 0.028473 1 Complies Note: =8.01 dBi For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a: 26.33dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 26.3268 429.2198 0.270166 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b/g: 27.23 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.01 3.9902 27.2322 528.7139 0.419924 1 Complies Note: =6.01 dBi CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.419924 / 1 + 0.270166 / 1 = 0.69009, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 21°C Humidity 56.4% Test Engineer Kenneth Huang Configurations 2.4G + 5G TX Horizontal Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company CyberTAN Technology Inc. Applicant Address 99 Park Avenue III, Hsinchu Science Park Hsinchu 308, Taiwan. FCC ID N89-EWW501A1 Manufacturer’s company Western Digital Technologies, Inc. Manufacturer Address 3355 Michelson Drive, Suite 100 Irvine, CA92612 Product Name MY NET AC1300 ROUTER Brand Name WD Model Name J2F Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jul. 05, 2012 Final Test Date Oct. 01, 2012 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E and KDB 789033 – 20120305.The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR281404AA Report Format Version: 02 Page No. : i of ii FCC ID: N89-EWW501A1 Issued Date : Oct. 18, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................7 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................19 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................27 4.4. Power Spectral Density Measurement ..............................................................................................................................................41 4.5. Peak Excursion Measurement ...........................................................................................................................................................46 4.6. Radiated Emissions Measurement ....................................................................................................................................................51 4.7. Band Edge Emissions Measurement .................................................................................................................................................66 4.8. Frequency Stability Measurement ....................................................................................................................................................74 4.9. Antenna Requirements .....................................................................................................................................................................76 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 77 6. TEST LOCATION.............................................................................................................................................. 79 7. TAF CERTIFICATE OF ACCREDITATION .................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode : Mode 1 FRONT VIEW REAR VIEW Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR281404 FCC ID: N89-EWW501A1 Page No. : A5 of A5 Test Configuration: Above 1GHz / Mode 1 FRONT VIEW REAR VIEW
