N89-NU361802.11a/b/g/n/ac Wifi + Bluetooth Combo Module

Confidential i 2015-02-09 NU361-HS User Manual CyberTAN Technology, Inc. Model Name NU361-HS Description 802.11a/b/g/n/ac Wi-Fi + Bluetooth Combo Module Version Release 0.1 (xC) Date April 01, 2015 Author Cindy Fan CyberTAN Confidential ii 2015-04-01 NU361-HS User Manual Revision History Date Release Author Description 2015-04-01 0.1 Cindy Fan First preliminary release. Related Documents Date Author Description Broadcom BCM43569 CyberTAN Technology, Inc. No. 99, Park Avenue III Hsinchu Science Park Hsinchu, Taiwan 30077 R.O.C. CyberTAN ® is a registered trademark of CyberTAN Technology, Inc. Bluetooth ® is a trademark of the Bluetooth SIG. All other trademarks appearing herein are the property of their respective owners. This document may contain privileged or confidential information that is the property of CyberTAN Technology, Inc. and the improper disclosure of which is an offense punishable under law. This document may be viewed and used only by the individual or other entity that received it directly from CyberTAN. Redistribution of this document in any form is strictly prohibited. The products described in this document are not intended or designed for use in any application involving risk of harm to persons or property. CYBERTAN PROVIDES THIS DOCUMENT AS-IS, WITHOUT WARRANTY OF ANY KIND. CYBERTAN DISCLAIMS ALL WAR-RANTIES, EXPRESSED AND IMPLIED, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. CyberTAN Confidential iii 2015-04-01 NU361-HS User Manual Table of Contents 1. OVERVIEW...............................................................................................................................1 1.1 Basic Specifications........................................................................................................2 2. MECHANICAL CHARACTERISTICS..................................................................................4 2.1 Pin Numberings................................................................................................................4 2.2 Pin Out Definitions...........................................................................................................5 2.3 Module Dimensions........................................................................................................6 3. PINOUTS AND SIGNAL DESCRIPTIONS..........................................................................7 3.1 Pin Definitions...................................................................................................................7 4. EMI CERTIFICATION NOTES..............................................................................................8 5. REGULATORY INFORMATION...........................................................................................9 5.1 FCC Statement................................................................................................................9 CyberTAN Confidential iv 2015-04-01 NU361-HS User Manual List of Figures Figure 1: WTB Connector Layout ................................................................................................4 Figure 2: Pins Configuration.........................................................................................................5 Figure 3: Orientation and Date Markings (Top View) ..............................................................6 List of Tables Table 1: Basic Specifications........................................................................................................2 Table 2: Module Dimensions........................................................................................................6 Table 3: Pin Definition..................................................................................................................7 NC361-HS User Manual CyberTAN Confidential 1 2015-04-01 1. OVERVIEW Makers of smart phones and home appliances can easily add full IEEE 802.11ac, Bluetooth 4.1 +EDR (Enhanced Data Rate) and their products with the NU361-HS combo module. The combo module features tiny sizes and low power consumption. The NU361-HS is the perfect way to offer high-speed, worldwide wireless connectivity in any handheld or wireless-attached digital devices. Features and Benefits • Single Chip Design SoC minimizes component count and simplifies hardware and software design. • Tiny Size in a 9-pin WTB Interface Module’s 40mm(W) × 46.45mm(L) footprint makes it ideal for high-density designs. Both Wi-Fi and Bluetooth use a common 9-pin WTB connector. • Seamless Wireless Connectivity The module supports the IEEE 802.11a/b/g/n/ac standards for high speed and transparent inter-operation with most home and business WLANs and all public hot spots around the world. • Up-to-date, High-level Security WEP, WPA, and WPA2 are supported to ensure maximum data privacy. • Dynamic Rate Shifting Wireless transmission speed is automatically adjusted on the basis of signal strength to achieve maximum availability and link reliability. NU361-HS User Manual CyberTAN Confidential 2 2015-04-01 1.1 Basic Specifications Table 1: Basic Specifications Model Number NU361-HS Product Type 802.11a/b/g/n/ac Wi-Fi + Bluetooth Combo Module Main Chip(s) Broadcom BCM43569 Connector 9 Pin WTB Connector WLAN Standard(s) IEEE 802.11a/b/g and 802.11n,Draft 802.11ac WLAN Spreading IEEE 802.11a/b/g/n OFDM/DSSS PHY specification WLAN Operating Frequency 5150~5250MHz, 5250~5350MHz and 5470-5725MHz, DFS band, 5725~5850MHz, 2400~2483.5MHz. WLAN Channels 2.4GHz: 11 (US), 13 (EU), 14 (Japan) channels 5GHz: CH. 36-64, 100-165 North America WLAN Data Rates 802.11g data rates of 6,9,12,18,24,36,48, 54Mbps 802.11b data rates of 1, 2, 5.5, and 11Mbps 802.11n data rates up to 300Mbps Draft 802.11ac data rates up to 867Mbps WLAN Modulation Schemes 802.11ac: 256QAM 802.11g/n: 64QAM (65/54/48Mbps), 16QAM (36/24Mbps) QPSK (18/12Mbps), BPSK (9/6Mbps) 802.11b: CCK (11/5.5Mbps), DQPSK (2Mbps) and DBPSK…

Text truncated - open the document above for the full version.

CyberTAN Technology Inc. No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Tel: 886-3-5777777 #52261 / Fax: 886-3- 5635191 Confidential Letter Date: 2015/3/30 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：N89-NU361 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● User’s Manual Permanent CyberTAN Technology Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. ● Block Diagram ● Schematic Diagram ● Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : CyberTAN Technology Inc. Applicant’s company address : No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Signature : Name and Job Title : City Kuo / Director E-Mail : [email protected] Tel. : 886-3-5777777 #52261

CyberTAN Technology Inc. No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Tel: 886-3-5777777 #52261 / Fax: 886-3- 5635191 DoC Attestation Letter Date: 2015/3/30 We CyberTAN Technology Inc., as the grantee of this project (FCC ID: N89-NU361 / Brand Name: CyberTAN / Model No.: NU361-HS), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD530540, FCC designation number : TW1024). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : CyberTAN Technology Inc. Applicant’s company address : No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Signature : Name and Job Title : City Kuo / Director E-Mail : [email protected] Tel. : 886-3-5777777 #52261

Page No. : 27 Module Approval Request Letter Subject: Module Approval Date: 2015/4/13 FCC ID: N89-NU361 Dear Reviewer, We, Sporton International Inc., are authorized by CyberTAN Technology Inc. to have their state-of-the-art 802.11a/b/g/n/ac Wi-Fi + Bluetooth Combo Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM43569. 3. The requirement of power supply regulation: The part number of the power regulator is RT5710AHGQW. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

CyberTAN Technology Inc. No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Tel: 886-3-5777777 #52261 / Fax: 886-3- 5635191 Power of Attorney Date: 2015/3/30 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: CyberTAN / NU361-HS FCC ID: N89-NU361 Product name: 802.11a/b/g/n/ac Wi-Fi + Bluetooth Combo Module FCC Grantee contact person information. Applicant’s company name : CyberTAN Technology Inc. Applicant’s company address : No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Signature : Name and Job Title : City Kuo / Director E-Mail : [email protected] Tel. : 886-3-5777777 #52261

CyberTAN Technology Inc. No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Tel: 886-3-5777777 #52261 / Fax: 886-3- 5635191 TPC Declaration Letter Date: 2015/3/30 FCC ID：N89-NU361 To whom it may concern, We, CyberTAN Technology Inc., declare that the EUT (Model Name: NU361-HS) is slave device and channel used is defined by master device. The requirement of Uniform Spreading is not applicable for equipment. Currently, the software and associated drivers to support TPC are built into the device firmware. Regards, FCC Grantee contact person information. Applicant’s company name : CyberTAN Technology Inc. Applicant’s company address : No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Signature : Name and Job Title : City Kuo / Director E-Mail : [email protected] Tel. : 886-3-5777777 #52261

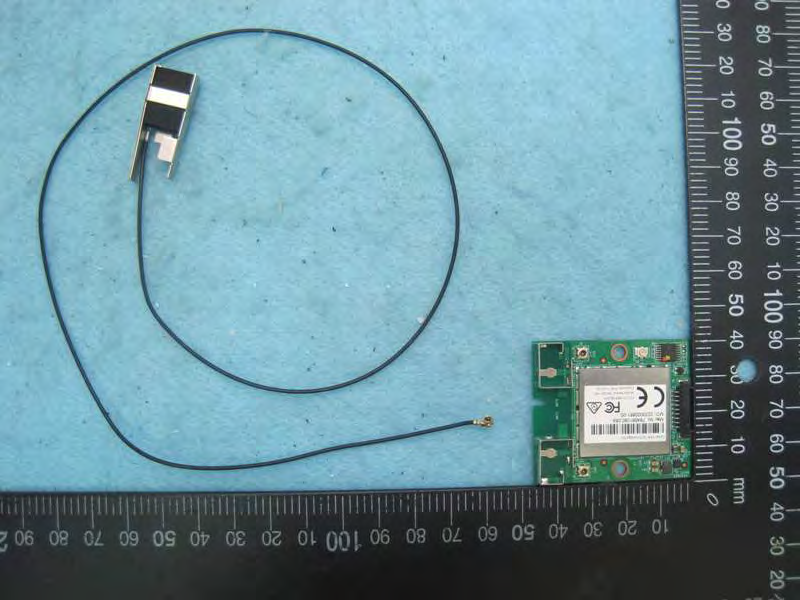

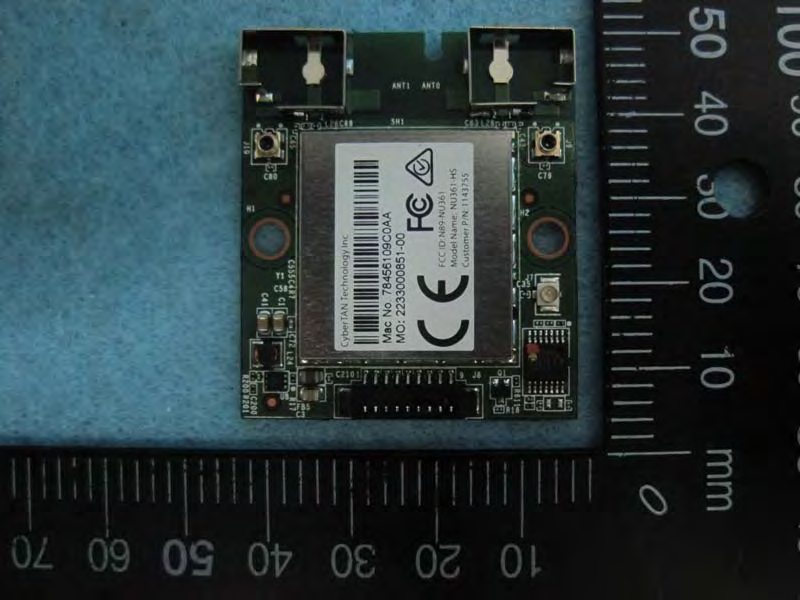

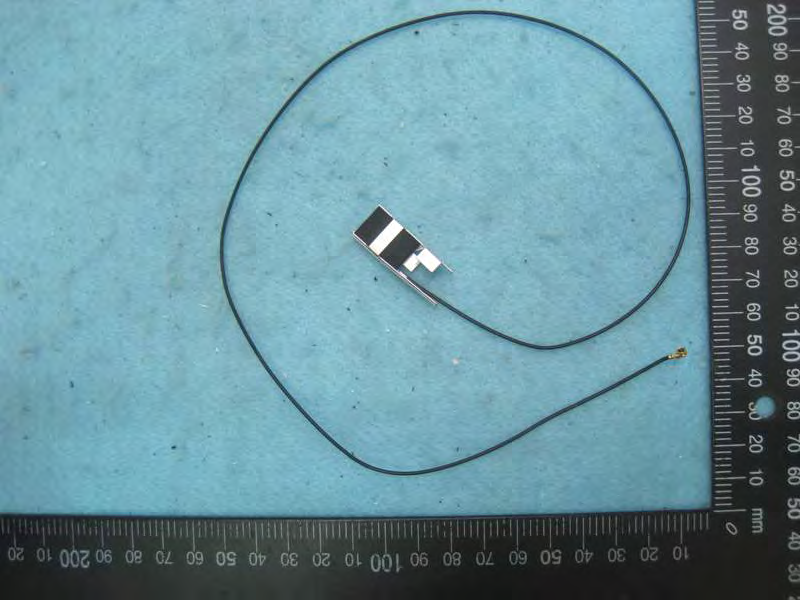

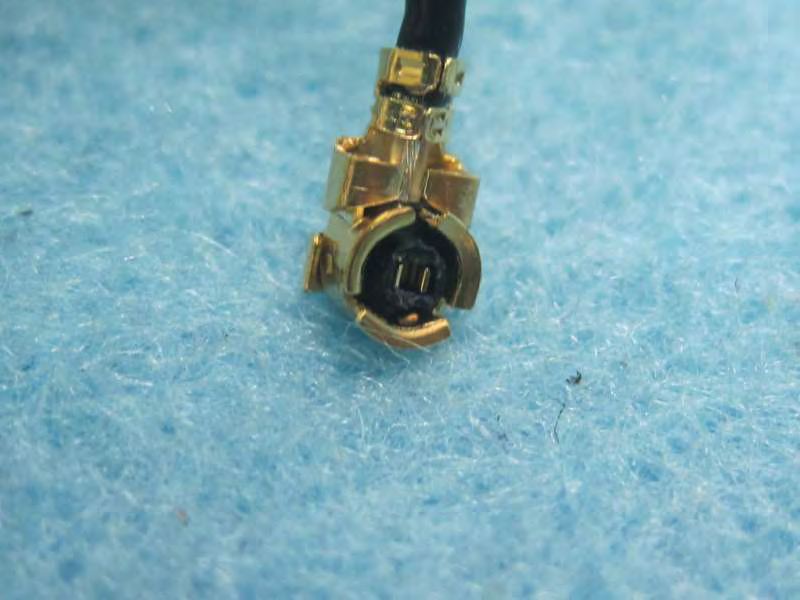

Report No.:530540 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-3-327-3456 ISSUED DATE : Apr. 13, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:530540 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-3-327-3456 ISSUED DATE : Apr. 13, 2015 FAX : 886-3-327-0973 PIFA Antenna (Only for Bluetooth Function) Report No.:530540 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-3-327-3456 ISSUED DATE : Apr. 13, 2015 FAX : 886-3-327-0973

Label: (24mm x 26mm) Label Here

Report No.:530540 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Apr. 13, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:530540 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Apr. 13, 2015 FAX : 886-3-327-0973

Report No.: FR530540 FCC ID: N89-NU361 Page No. : B1 of B4 Appendix B. Maximum Permissible Exposure Report No.: FR530540 FCC ID: N89-NU361 Page No. : B2 of B4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby that distance of at least 0.2 m is normally maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR530540 FCC ID: N89-NU361 Page No. : B3 of B4 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band (NII): Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11a : 22.23dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5580 3.97 2.4946 22.2259 166.9532 0.082898 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11b: 21.82 dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2437 1.21 1.3213 21.8168 151.9435 0.039961 1 Complies For Buletooth: Antenna Type : PIFA Antenna Max Conducted Power for Bluetooth EDR (8DPSK) 3Mbps : 4.81 dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2441 4.12 2.5823 4.8083 3.0258 0.001555 1 Complies Antenna Type : PIFA Antenna Max Conducted Power for Bluetooth 4.0 : 0.82 dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2442 4.12 2.5823 0.8200 1.2078 0.000621 1 Complies Report No.: FR530540 FCC ID: N89-NU361 Page No. : B4 of B4 Conclusion: Both of the WLAN 2.4GHz Band and Bluetooth can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.039961 / 1 + 0.001555 / 1 = 0.041516, which is less than “1”. This confirmed that the device complies. Conclusion: Both of the WLAN 5GHz Band and Bluetooth can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.082898 / 1 + 0.001555 / 1= 0.084453, which is less than “1”. This confirmed that the device complies.

Report No.: FR530540 FCC ID: N89-NU361 Page No. : C1 of C5 Appendix C. Radiated Emission Co-location Report Report No.: FR530540 FCC ID: N89-NU361 Page No. : C2 of C5 1. Results of Radiated Emissions for Co-located Temperature 25°C Humidity 65% Test Engineer Roki Liu, Akina Chiu Configurations 2.4G + BT Horizontal Report No.: FR530540 FCC ID: N89-NU361 Page No. : C3 of C5 Vertical Report No.: FR530540 FCC ID: N89-NU361 Page No. : C4 of C5 Temperature 25°C Humidity 65% Test Engineer Roki Liu, Akina Chiu Configurations 5G + BT Horizontal Report No.: FR530540 FCC ID: N89-NU361 Page No. : C5 of C5 Vertical

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company CyberTAN Technology Inc. Applicant Address No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan FCC ID N89-NU361 Manufacturer’s company CyberTAN Technology Inc. Manufacturer Address No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, 308 Taiwan Product Name 802.11a/b/g/n/ac Wi-Fi + Bluetooth Combo Module Brand Name CyberTAN Model Name NU361-HS Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2402 ~ 2480MHz Received Date Mar. 10, 2015 Final Test Date Apr. 10, 2015 Submission Type Original Equipment Statement Test result included is only for the Bluetooth BR/EDR of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR530540AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: N89-NU361 Issued Date : Apr. 13, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Carrier Frequencies .............................................................................................................................................................3 3.4. Table for Filed Antenna.......................................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................8 3.11. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................15 4.3. Hopping Channel Separation Measurement ...................................................................................................................................17 4.4. Number of Hopping Frequency Measurement.................................................................................................................................28 4.5. Dwell Time Measurement..................................................................................................................................................................30 4.6. Radiated Emissions Measurement ....................................................................................................................................................37 4.7. Emissions Measurement ....................................................................................................................................................................49 4.8. Antenna Requirements .....................................................................................................................................................................63 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 64 6. MEASUREMENT UNCERTAINTY................................…

Text truncated - open the document above for the full version.

Report No.: FR530540 FCC ID: N89-NU361 Page No. : A1 of A9 Appendix A. Test Photos Report No.: FR530540 FCC ID: N89-NU361 Page No. : A2 of A9 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A3 of A9 CLOSE-UP VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A4 of A9 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A5 of A9 CLOSE-UP VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A6 of A9 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A7 of A9 CLOSE-UP VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A8 of A9 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR530540 FCC ID: N89-NU361 Page No. : A9 of A9 CLOSE-UP VIEW
