N89-MM200MIEEE 802.11 b/g MiniCard

MM200-M / IEEE 802.11b/g MiniCard MM200-M IEEE 802.11b/g MiniCard User Manual Rev 0.1 MM200-M / IEEE 802.11b/g MiniCard National Communications Commission Interference Statement This equipment includes wireless RF module, and must be labeled in a visible area with the following: Contains NCC ID: MM200-M / IEEE 802.11b/g MiniCard ii Table of contents Introduction................................................... 1 Hardware Installation...................................... 4 Using the Wireless Utility................................. 5 MM200-M / IEEE 802.11b/g MiniCard 1 Chapter 1 Introduction Thank you for using the Wireless MiniCard. The MM200-M is a single-band, quad-mode wireless net- work adapter that works on all the frequencies allocated for WLAN operation everywhere in the world. It is in compliance with the IEEE802.11g, 802.11b standards. MM200-M features the compactness and high bus speed of the Minicard specifications which gives users of laptops, notebooks, tablet PCs, and other mobile computing devices transparent Internet access anywhere in the world through any WiFi network without software changes or additional hardware. Able to provide greater than 54Mbps real world throughput using high-speed spatial multiplexing modes, the MM200-M provides the freedom to work as you wish, wherever you wish, using whatever kind of application you wish to use. The adapter installs directly in any host device with a Mini PCI slot: just plug it in and you’re ready to access local resources and/or the Internet at the highest speed the WLAN, the location, and the host computer can provide. It is ready to work “out of the box” in any embedded de- vice or in any computer running Microsoft® Windows Vista, or XP. The MM200-M MiniCard is truly a “must-have” for every productivity-sensitive laptop, notebook, or tablet PC user and any bandwidth- sensitive embedded design. Features and Benefits • Standard Mini Card Connector with Multiple Interface Support Module’s 30.0 mm × 30.0 mm footprint and minicard slot make it ideal for daughter board attachment to an UMPC. Pin-selectable SPI and SDIO interfaces. • Seamless Wireless Connectivity The modules support the IEEE 802.11b/g standards for high speed and transparent interoperations with most home and business WLANs and all public hot spots around the world. • Up-to-date, High-level Security WEP, WPA, and WPA2 are supported to ensure maximum data privacy. • Dynamic Rate Shifting Wireless transmission speed is automatically adjusted on the basis of signal strength to achieve maxi- mum availability and link reliability. • BT and Cellular Coexistence Industrial Bluetooth coexistence logics are included. There is one antenna for WLAN. Coexist with cel- lular GSM, DCS, PCS and W-CDMA bands. • Ultra Low Power Consumption Excellent standby and Power Saving Mode current consumptions. MM200-M / IEEE 802.11b/g MiniCard 2 What is Wireless LAN? Wireless Local Area Network (WLAN) systems offer a great number of advantages over traditional wired systems. WLANs are flexible and easy to setup and manage. They are also more economical than wired LAN systems. Using radio frequency (RF) technology, WLANs transmit and receive data through the air. WLANs com- bine data connectivity with user mobility. For example, users can roam from a conference room to their office without being disconnected from the LAN. Using WLANs, users can conveniently access shared information, and network administrators can con- figure and augment networks without installing or moving network cables. WLAN technology provides users with many convenient and cost saving features: • Mobility: WLANs provide LAN users with access to real-time information anywhere in their organi- zation, providing service opportunities that are impossible with wired networks. • Ease of Installation: Installing is easy for novice and expert users alike, eliminating the need to install network cables in walls and ceilings. • Scalability: WLANs can be configured in a variety of topologies to adapt to specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users roaming over a broad area. LAN Modes Wireless LANs can be configured in one of two ways: Table 1: LAN modes Ad-hoc Networking Also known as a peer-to-peer network, an ad-hoc net- work is one that allows all workstations and computers in the network to act as servers to all other users on the network. Users on the network can share files, print to a shared printer, and access the Internet with a shared modem. However, with ad-hoc networking, users can only communicate with other wireless LAN computers that are in the wireless LAN workgroup, and are within range. Infrastructure Networking Infrastructure networking differs from ad-hoc network- ing in that it includes an access point. Unlike the ad- hoc structure where users on the LAN contend the shared bandwidth, on an infrastructure network the access point can manage the bandwidth to maximize bandwidth utilization. Additionally, the access point enables users on a wire- less LAN to access an existing wired network, allowing wireless users to take advantage of the wired networks resources, such as Internet, email, file transfer, and printer sharing. Infrastructure networking has the following advantages over ad-hoc networking: • Extended range: each wireless LAN computer within the range of the access point can commu- nicate with other wireless LAN computers within range of the access point. • Roaming: the access point enables a wireless LAN computer to move through a building and still be connected to the LAN. • Wired to wireless LAN connectivity: the access point bridges the gap between wireless LANs and their wired counterparts. —Introduction 3 Notes on wireless LAN configuration When configuring a wireless LAN (WLAN), be sure to note the following points: • Optimize the per…

Text truncated - open the document above for the full version.

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: _ N89-MM200M ___ Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes 3. The modular transmitter must have its own power supply regulation. Yes 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: 2008-02-26 Signature: _______

Federal Communications Commission February 25, 2008 Authorization and Evaluation Division ATTESTATION FCC ID: N89-MM200M Product: IEEE 802.11b/g MiniCard Model: MM200-M We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Best Regards, ------------------------------------------------ Chiu Wen Chuan CyberTAN Technology, Inc. Tel: 886-3-577-7777 E-mail: [email protected]

Subject: Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: N89-MM200M Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram (MM200-M) BlkDia Schematics (MM200-M) Schem Theory of Operation (MM200-M) OpDes The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------ Chiu Wen Chuan CyberTAN Technology, Inc. Tel: 886-3-577-7777 E-mail: [email protected]

We Name: CyberTAN Technology, Inc. Address: 99 Park Avenue 3, Science Park City: Hsinchu 308 Country: Taiwan, R.O.C. Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: IEEE 802.11b/g MiniCard Type designation: MM200-M Trademark: CyberTAN FCC ID: N89-MM200M on our behalf. ------------------------------------------------ Chiu Wen Chuan CyberTAN Technology, Inc. Tel: 886-3-577-7777 E-mail: [email protected]

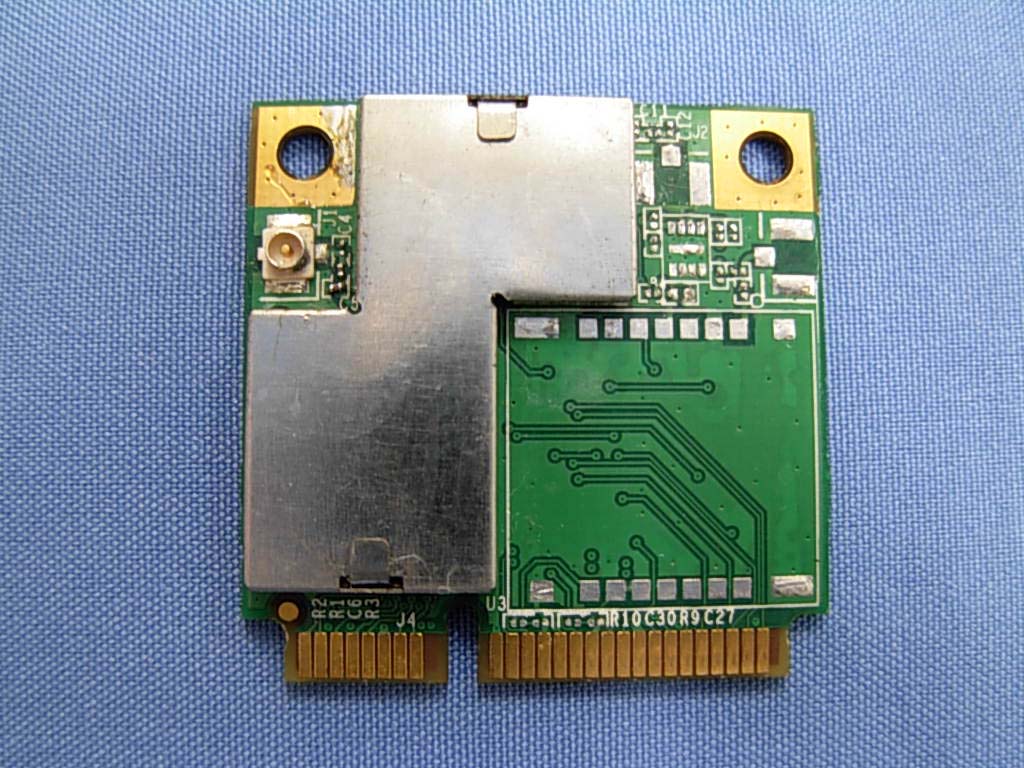

Report No： 081090R-RFUSP05V01-1 Page: 76 of 78 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo

Report No： 081090R-RFUSP05V01-1 Page: 76 of 79 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: N89-MM200M FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. IEEE 802.11b/g MiniCard Model No.: MM200-M F F C C C C I I D D : : N N 8 8 9 9 - - M M M M 2 2 0 0 0 0 M M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: CyberTAN Model number.: MM200-M

Report No： 081090R-RFUSP05V01-1 Page: 77 of 78 (3) EUT Photo (4) EUT Photo Report No： 081090R-RFUSP05V01-1 Page: 78 of 78 (5) EUT Photo (6) EUT Photo

Report No： 081090R-RFUSP05V01-1 Page: 77 of 79 (3) EUT Photo (4) EUT Photo Report No： 081090R-RFUSP05V01-1 Page: 78 of 79 (5) EUT Photo Report No： 081090R-RFUSP05V01-1 Page: 79 of 79 (6) EUT Photo (7) EUT Photo

Report No. 081090R-RFUSP05V01-Exp-1 Page: 1 of 4 RF Exposure Evaluation declaration Product Name ：IEEE 802.11b/g MiniCard Model No. ：MM200-M FCC ID. ：N89-MM200M Applicant : CyberTAN Technology, Inc. Address : 99 Park Avenue 3, Science Park Hsinchu 308, Taiwan, R.O.C. Date of Receipt : 2008/01/06 Date of Declaration : 2008/02/26 Report No. : 081090R-RFUSP05V01-Exp-1 Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 081090R-RFUSP05V01-Exp-1 Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 081090R-RFUSP05V01-Exp-1 Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product IEEE 802.11b/g MiniCard Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.45dBi or 1.758 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 58.4790 0.02045 6 2437.00 32.2849 0.01129 11 2462.00 29.5121 0.01032 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 081090R-RFUSP05V01-Exp-1 Page: 4 of 4 Product IEEE 802.11b/g MiniCard Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.45dBi or 1.758 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: IEEE 802.11g Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 62.6614 0.02191 6 2437.00 59.2925 0.02074 11 2462.00 55.8470 0.01953 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .
