IEEE802.11b WLAN PCI Adapter User’s Manual Rev 0.9 WLAN PCI Adapter User’s Manual Regulatory compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled envir onment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter. 2 WLAN PCI Adapter User’s Manual About this manual This User’s Manual describes how to install and operate your IEEE802.11b WLAN PCI Card. Please read this manual before you install the product. This manual includes the following topics: ¾ Product description and features. ¾ Hardware installation procedure. ¾ Software installation procedure. ¾ FAQ 3 WLAN PCI Adapter User’s Manual Table of Contents Regulatory compliance.............................................................2 About this manual.....................................................................3 Chapter 1 - Introduction ...........................................................5 Features.................................................................................5 What is Wireless LAN?..........................................................6 Wireless LAN Modes.............................................................6 Notes on Wireless LAN Configuration...................................7 Chapter 2 - Hardware Installation............................................8 Package Contents.................................................................. 8 System Requirements for the Card.......................................8 Install the PCI Adapter...........................................................8 LED Indicators.......................................................................9 Connecting the adjustable Antenna to the Card..................10 Chapter 3 – Driver Installation for Windows.........................11 Driver installation for Windows 98.......................................11 Driver installation for Windows 2000...................................14 Driver installation for Windows ME......................................17 Driver installation for Windows XP.......................................19 Chapter 4 – Installing and Using the Wireless Utility..........21 Installation in Windows........................................................21 Using Wireless Utility In Windows XP..................................24 Use Windows Wireless Network Configuration..........................24 Use Wireless LAN Utility............................................................27 Use Wireless LAN Utility In Windows 98, 2000 and ME.............30 Configuring the IEEE802.11b WLAN PCI Card...................30 Chapter 5 – Installing Network Protocols.............................35 Installing the Network Protocols for Windows 98 and Millennium............................................................................35 Appendix A – FAQ...................................................................38 Appendix B – Specifications..................................................39 4 WLAN PCI Adapter User’s Manual Chapter 1 - Introduction Thank you for purchasing the IEEE802.11b WLAN PCI Card. This high-speed IEEE802.11b WLAN PCI Card provides you with an innovative wireless networking solution. The Card is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! The Card is a network Adapter with a rate of 1, 2, 5.5, and 11 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission implementing the IEEE 802.11b standard. This Adapter provides Device Drivers for Windows Operating Systems. It also provides tools for the configuration of the Card. The tool, as well as the installation steps of the plug-and-play procedure for the Windows operating systems, is described in this document. Features The IEEE802.11b WLAN PCI Card offers compliance with the IEEE 802.11b specification. This feature allows them to communicate with other wireless devices that support the standard. Features of the Card are: z Uses 2.4GHz frequency ba…

Text truncated - open the document above for the full version.

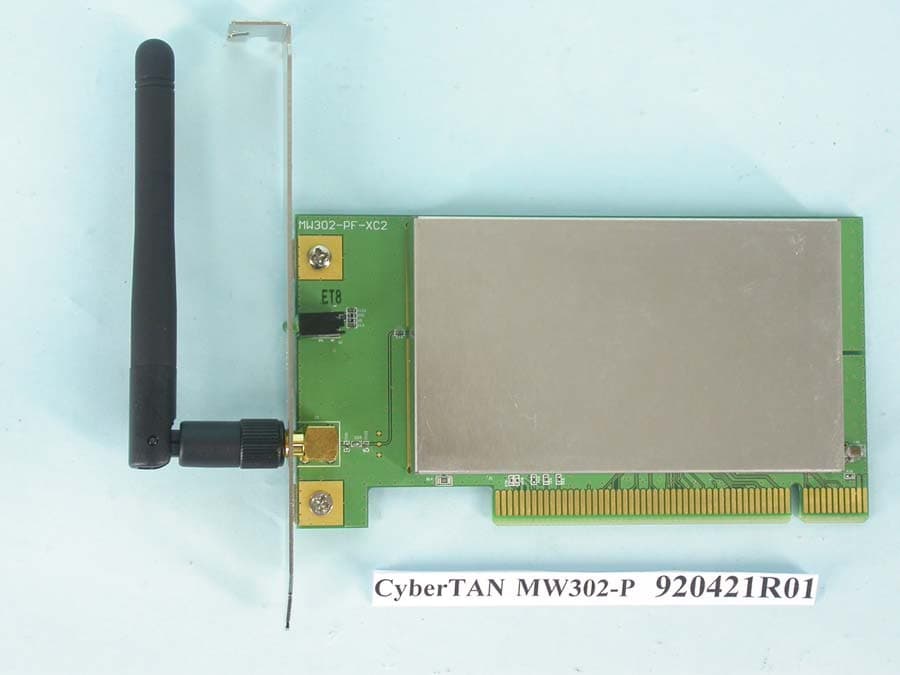

Page 1 ANNEX PHOTOGRAPHS OF EUT

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID: N89-MW302P ADT No.920421R01 Operational Description The transmitter of the EUT is powered by host equipment. The antenna used in this product is Dipole antenna with reversed SMA antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance away from the radiator. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

Report No: 920421R01 1 RF EXPOSURE REPORT REPORT NO.: RF920421R01 MODEL NO.: MW302-P ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CYBERTAN TECHNOLOGY INC. ADDRESS: No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 Report No: 920421R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: 920421R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No: 920421R01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241296.610.061.0 6243798.630.061.0 11246296.610.061.0

FCC ID: N89-MW302P Report No.: RF920421R01 1 Issued: May 8, 2003 FCC TEST REPORT REPORT NO.: RF920421R01 MODEL NO.: MW302-P RECEIVED: Apr. 21, 2003 TESTED: Apr. 25 ~ Apr. 30, 2003 APPLICANT: CYBERTAN TECHNOLOGY INC. ADDRESS: No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 54 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: N89-MW302P Report No.: RF920421R01 2 Issued: May 8, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS(A) ..................................................................................... 22 4.2.7TEST RESULTS(B) ..................................................................................... 27 4.36dB BANDWIDTH MEASUREMENT .......................................................... 32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 32 4.3.2TEST INSTRUMENTS ................................................................................ 32 4.3.3TEST PROCEDURE................................................................................... 33 4.3.4TEST SETUP .............................................................................................. 33 4.3.5EUT OPERATING CONDITIONS................................................................ 33 4.3.6TEST RESULTS.......................................................................................... 34 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 38 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 38 4.4.2TEST INSTRUMENTS ................................................................................ 38 4.4.3TEST PROCEDURES................................................................................. 39 4.4.4TEST SETUP .............................................................................................. 39 FCC ID: N89-MW302P Report No.: RF920421R01 3 Issued: May 8, 2003 4.4.5EUT OPERATING CONDITIONS................................................................ 39 4.4.6TEST RESULTS.......................................................................................... 40 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 41 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 41 4.5.2TEST INSTRUMENTS ................................................................................ 41 4.5.3TEST PROCEDURE................................................................................... 42 4.5.4TEST SETUP .............................................................................................. 42 4.5.5EUT OPERATING CONDITIONS................................................................ 42 4.5.6TEST RESULTS.......................................................................................... 43 4.6BAND EDGES MEASUREMENT ................................................................ 47 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 47 4.6.2TEST INSTRUMENTS ................................................................................ 47 4.6.3TEST PROCEDURE................................................................................... 47 4.6.4EUT OPERATING CONDITION .................................................................. 47 4.6.5TEST RESULTS.......................................................................................... 48 4.7ANTENNA REQUIREMENT...............................…

Text truncated - open the document above for the full version.

FCC ID: N89-MW302P Report No.: RF920421R01 52 Issued: May 8, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-MW302P Report No.: RF920421R01 53 Issued: May 8, 2003 RADIATED EMISSION TEST
