N89-UW600EUSB 2.0 802.11g/b Wireless Network Adapter

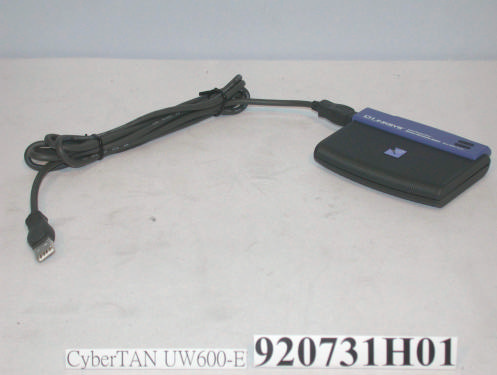

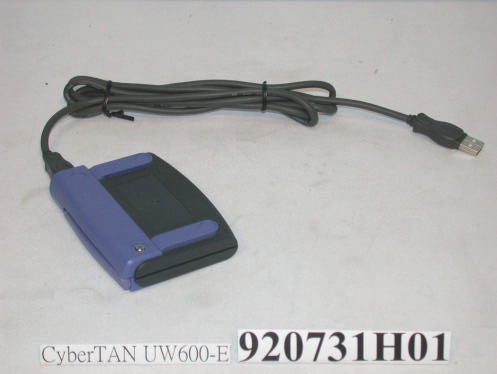

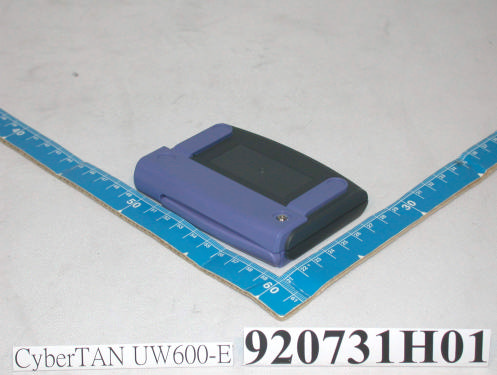

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 1 CONSTRUCTION PHOTOS OF EUT Detachable Antenna Page 2 Page 3 Page 4 Page 5 PIFA Antenna Page 6 Page 7 Page 8

FCC ID: N89-UW600E ADT No. 920731H01 Operational Description This device is a USB 2.0 802.11g/b Wireless Network Adapter which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT (USB 2.0 802.11g/b Wireless Network Adapter) is powered by from host equipment. The antenna types used in this product are Antenna 1: Detachable Antenna with MMCX connector and Antenna 2: PIFA Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: N89-UW600E Report No.: RF920731H01 ADT No. 920731H01 1 RF EXPOSURE REPORT REPORT NO.: RF920731H01 MODEL NO.: UW600-E, UW601-E, UW602-E ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: N89-UW600E Report No.: RF920731H01 ADT No. 920731H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: N89-UW600E Report No.: RF920731H01 ADT No. 920731H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: N89-UW600E Report No.: RF920731H01 ADT No. 920731H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2Bi or 1.58 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241277.446179780.0244190711.0 6243771.285303010.0224765231.0 11246264.56542290.020357721.0 (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241224.603676040.0077576311.0 6243720.13724250.0063493481.0 11246222.803420720.0071900041.0

FCC ID: N89-UW600E Report No.: RF920731H011Issued: Aug. 11, 2003 ADT No.: 920731H01 FCC TEST REPORT REPORT NO.: RF920731H01 MODEL NO.: UW600-E, UW601-E, UW602-E RECEIVED: Jul. 31, 2003 TESTED: Jul. 31 to Aug. 8, 2003 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: N89-UW600E Report No.: RF920731H012Issued: Aug. 11, 2003 ADT No.: 920731H01 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................8 3.4DESCRIPTION OF SUPPORT UNITS..................................................................9 4TEST TYPES AND RESULTS..............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT.....................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................10 4.1.2TEST INSTRUMENTS...........................................................................................10 4.1.3TEST SETUP..........................................................................................................11 4.1.4EUT OPERATING CONDITIONS........................................................................12 4.1.5TEST RESULTS (A)...............................................................................................13 4.2Radiated Emission Measurement........................................................................15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................15 4.2.2TEST INSTRUMENTS...........................................................................................16 4.2.3TEST PROCEDURES...........................................................................................17 4.2.4TEST SETUP..........................................................................................................18 4.2.5EUT OPERATING CONDITIONS........................................................................18 4.2.6TEST RESULTS......................................................................................................19 4.2.7TEST RESULTS – DSSS......................................................................................20 4.2.8TEST RESULTS –OFDM......................................................................................23 4.2.9TEST RESULTS (B)...............................................................................................26 4.2.10TEST RESULTS – DSSS......................................................................................27 4.2.11TEST RESULTS –OFDM......................................................................................30 4.36dB BANDWIDTH MEASUREMENT..................................................................33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................33 4.3.2TEST INSTRUMENTS...........................................................................................33 4.3.3TEST PROCEDURE..............................................................................................34 4.3.4TEST SETUP..........................................................................................................34 4.3.5EUT OPERATING CONDITIONS........................................................................34 4.3.6TEST RESULTS-DSSS.........................................................................................35 FCC ID: N89-UW600E Report No.: RF920731H013Issued: Aug. 11, 2003 ADT No.: 920731H01 4.3.7TEST RESULTS-OFDM........................................................................................39 4.4MAXIMUM PEAK OUTPUT POWER..................................................................43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............43 4.4.2TEST INSTRUMENTS...........................................................................................43 4.5MAXIMUM PEAK OUTPUT POWER..................................................................43 4.5.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............43 4.5.2TEST INSTRUMENTS...........................................................................................43 4.5.3TEST PROCEDURES...........................................................................................44 4.5.4TEST SETUP..........................................................................................................44 4.5.5EUT OPERATING CONDITIONS........................................................................44 4.5.6TEST RESULTS-DSSS.........................................................................................45 4.5.7TEST RESULTS-OFDM........................................................................................45 4.6POWER SPECTRAL DENSITY MEASUREMENT...........................................46 4.6.1LIMITS OF POWER SPECTRAL DENSITY MEAS…

Text truncated - open the document above for the full version.

FCC ID: N89-UW600E Report No.: RF920731H0164Issued: Aug. 11, 2003 ADT No.: 920731H01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-UW600E Report No.: RF920731H0165Issued: Aug. 11, 2003 ADT No.: 920731H01 RADIATED EMISSION TEST
